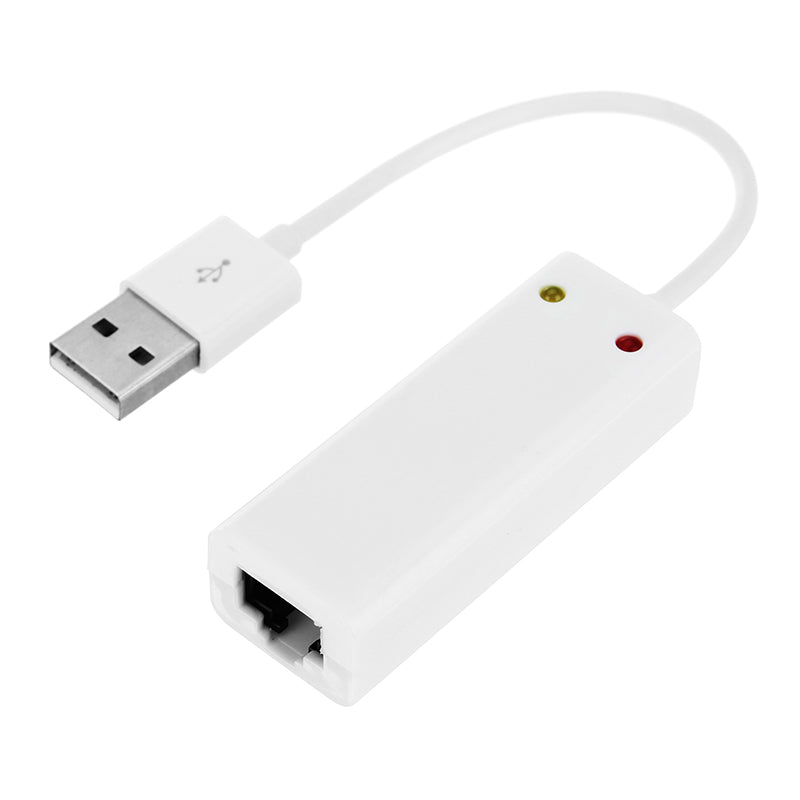

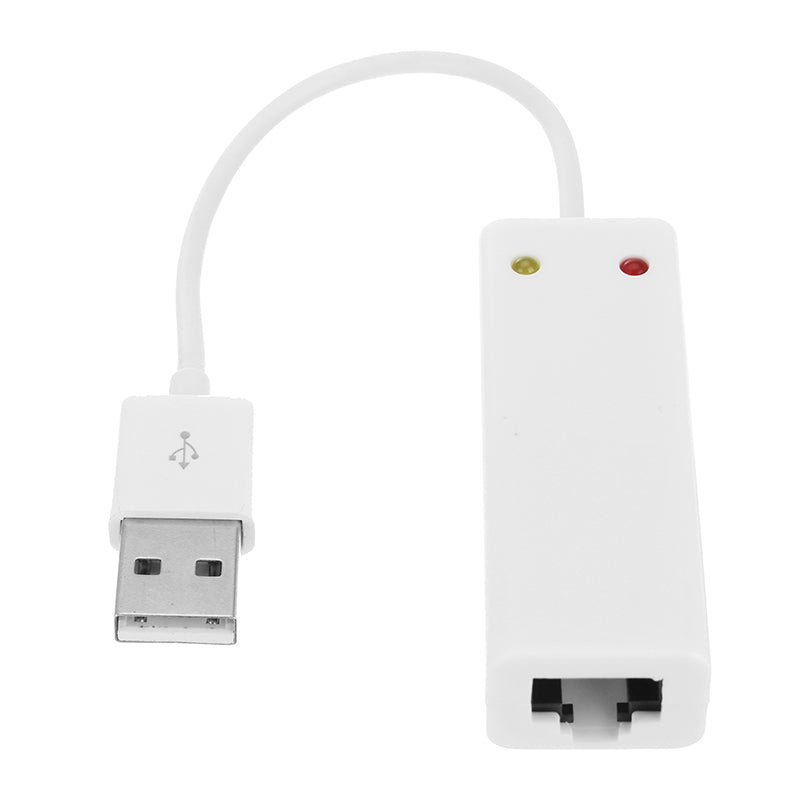

RTL8152 100Mbps USB 2.0 to RJ45 Lan Network Ethernet Adapter Card
The USB to Ethernet controller has been designed to provide a small form factor solution that enables embedded system designers to deliver Ethernet connectivity while leveraging the proliferation of USB 2.0 technology.
It features a USB interface to communicate with a USB Host Controller and is compliant with USB specification V1.1 and V2.0. Integrates on-chip Fast Ethernet for MAC and PHY, which is IEEE802.3 10Base-T and IEEE802.3u 100Base-TX/ 100BASE-FX compatible.It can be used in any embedded system with a USB host microcontroller that needs a twisted pair physical connection or fiber PECL interface to external 100Base-FX optical transceiver module.
Features:
Chipset :RTL8152
Switch 10Mbps or 100Mbps network automatically
Half/Full duplex 10/100Mbps operation
Support full duplex flow control(IEEE 802.3X)
Support all USB standard commands
Support suspend/resume detection logic
Compliant to USB interface verison 1.0/1.1/2.0/3.0
Support 10Mbps N-way auto-negotiation operation
Specifications:
Network Standards |
EEE 802.3: 10Base-T
IEEE 802.3u: 100Base-T, TX, and T4 compatible |
Data Transfer Rates |
|
Ethernet: 10Mbps/20Mbps (half/Full Duplex)
Fast Ethernet: 100Mbps/200Mbps (Half/Full Duplex) |
|
Host Interface |
USB2.0 (1.1 Compliant) |
Network interface |
Female RJ45 Jack |
Operating System |
Windows 2000, XP, Vista |
Dimensions |
58 x 21 x 15 mm(L x W x H) |
Cable |
150mm |
Weight |
30g |
Housing Material |
PC |
Working Environment |
Operation temperature -10 – 60 degree
Storage temperature: -20 – 60 degree |
Package:
1X USB to Ethernet Lan RJ45 Network Card.
