Features:
- Beautiful appearance, excellent performance in flame retardant, waterproof and shockproof;
- Ultra-wide voltage working range and high performance anti-electromagnetic compatibility, can adapt to a variety of harsh working conditions;
- Supports six scanning modes to facilitate the application of users in various occasions;
- standard ten-core RJ45 interface;

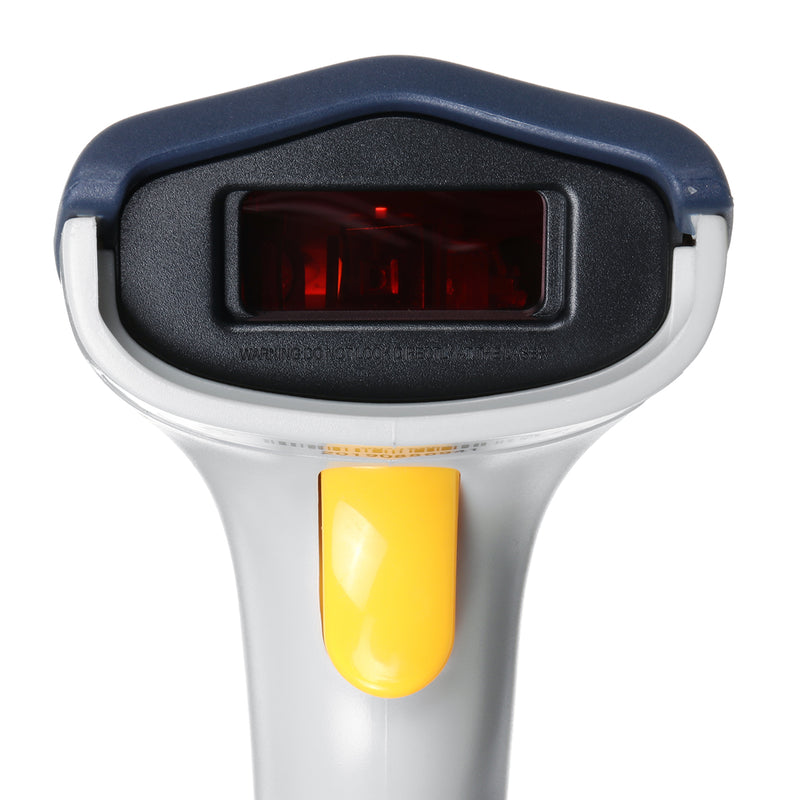

-High brightness red laser line, suitable for all kinds application of uneven illumination;
- Optional auto-sensing configuration, auto-sensing sensitivity setting for self-learning, strong adaptability;
- Various data interfaces, providing USB-HID, USB analog serial port, UART, KB four interfaces;
- There is a clear sound and light indication after successful decoding;
- Efficient decoding rate and ultra-low bit error rate, and can identify many types of 1D barcodes, including some rare barcodes;
- Support secondary development of various project types;
- Support multi-national keyboard language and support secondary development of various keyboard languages;
Specifications:
Voltage: DC 3.5-5.5V
Current: 50mA (working); 25mA (standby); 100mA (maximum peak)
Light source: Red light with a wavelength of 650 nm ± 10%, power < 20 mW
Scan depth of field: 0-550mm (1.0mm density bar code test value), up to 130cm
Recognizable angle: up and down: 70°, left and right: 70°
Bar code contrast: >=30%
Reading accuracy: >=4mil
Decoding rate: 120 times / sec
Bit error rate: 1/3 million times
Electrostatic level: Contact discharge: 9KV, air discharge 15KV
Seismic resistance: Through the 1.8m free landing test
Support barcode reading type: EAN/JAN-8, 13; UPC-A; UPC-E; CODE-128; CODE-93; RSS-Standard, Limited, Expanded; CODE-39; Inter-Leaved 2/5; Standard 2/5; Matrix 2/5; Industrial 2/5; China-Post; MSI; MSI-PLESSEY; CODE-BAR; CODE-11
Precautions:
When using the scanner, please confirm that the voltage meets the technical requirements and must not exceed the requirements of the indicator;
Do not shoot both eyes when using it;
If you are exposed to corrosive, chemical or other potentially hazardous substances, toxic and high-pressure substances, use a protective scanner.
Package List:

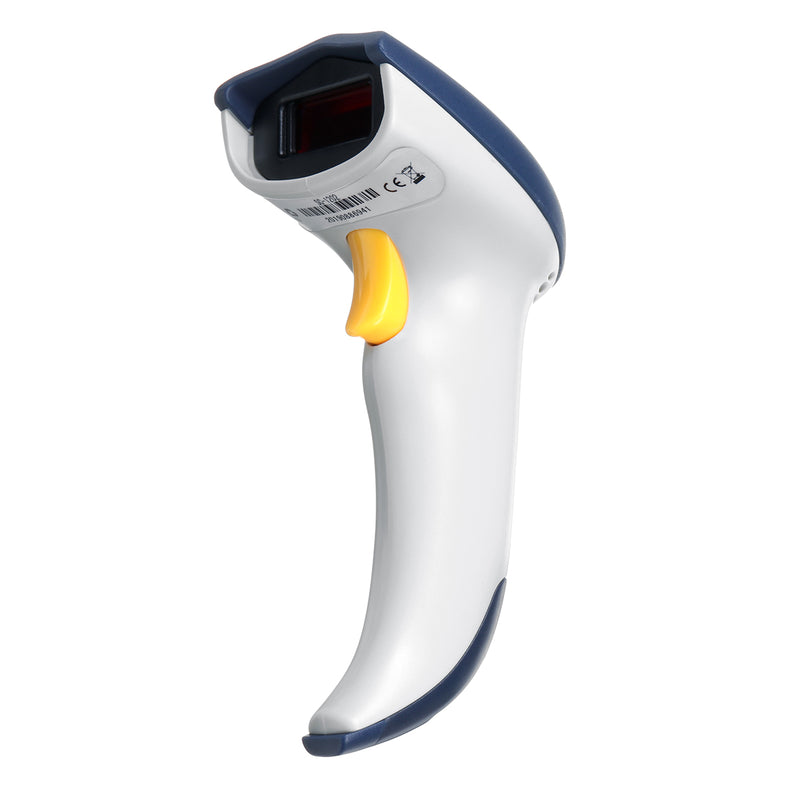

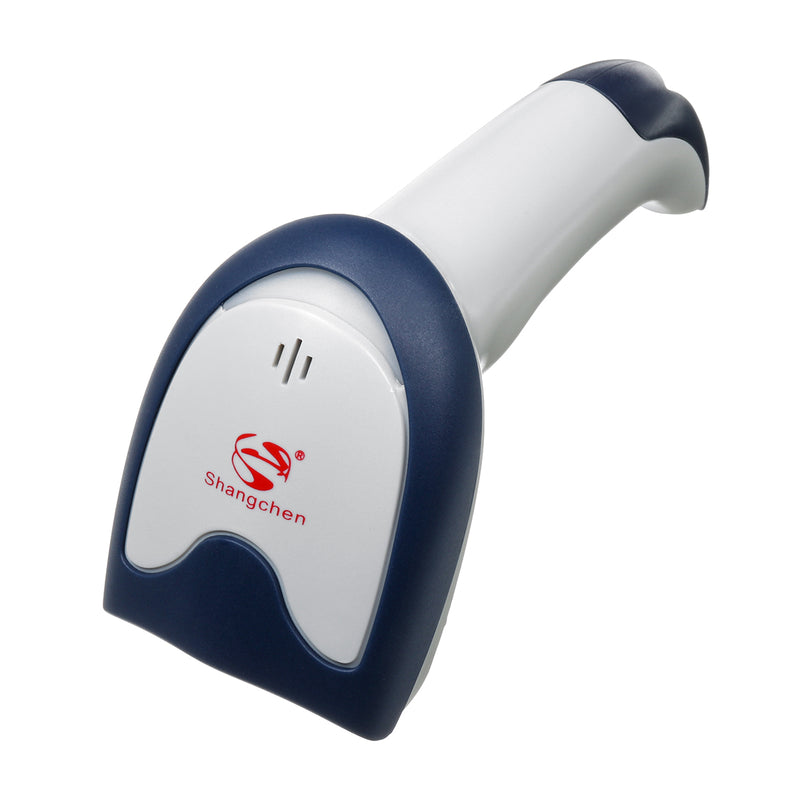

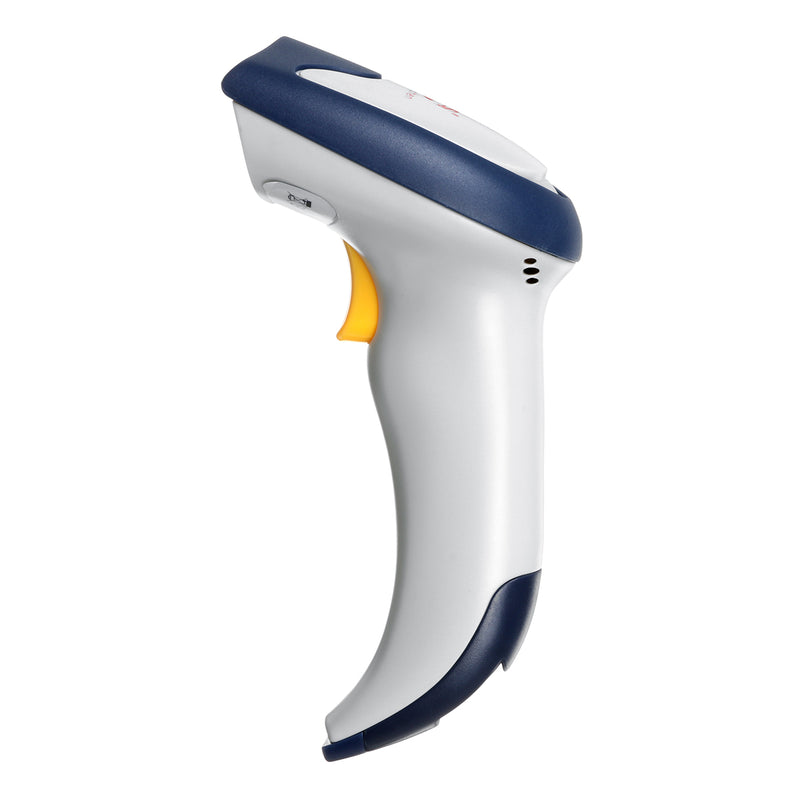

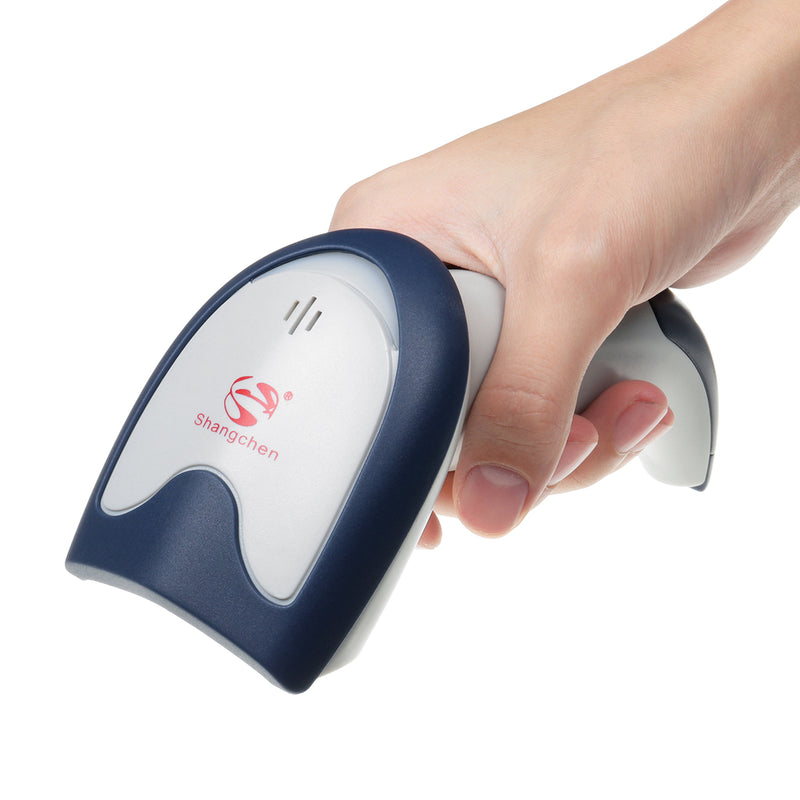

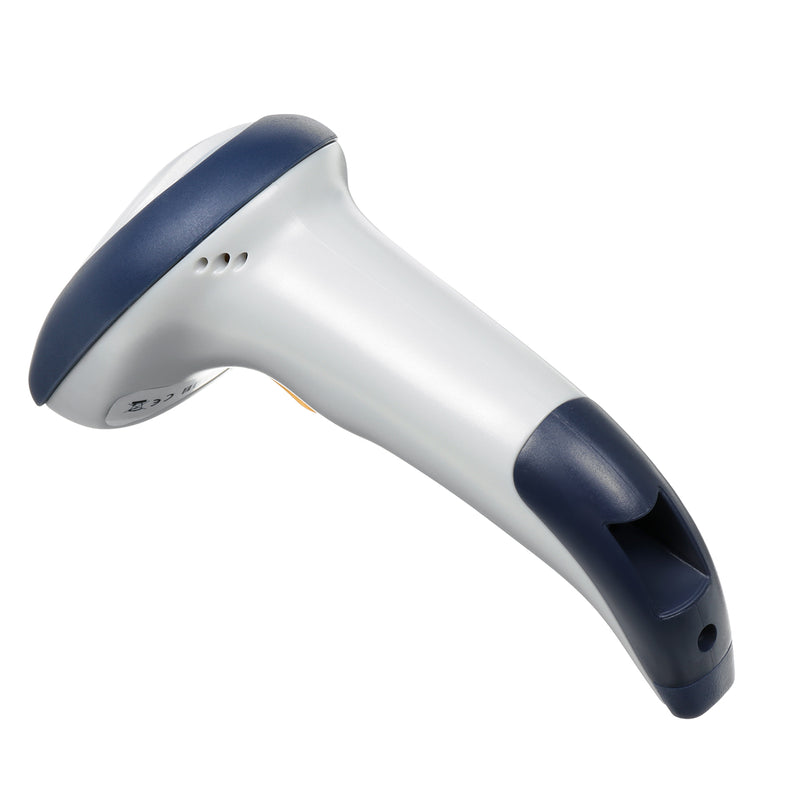

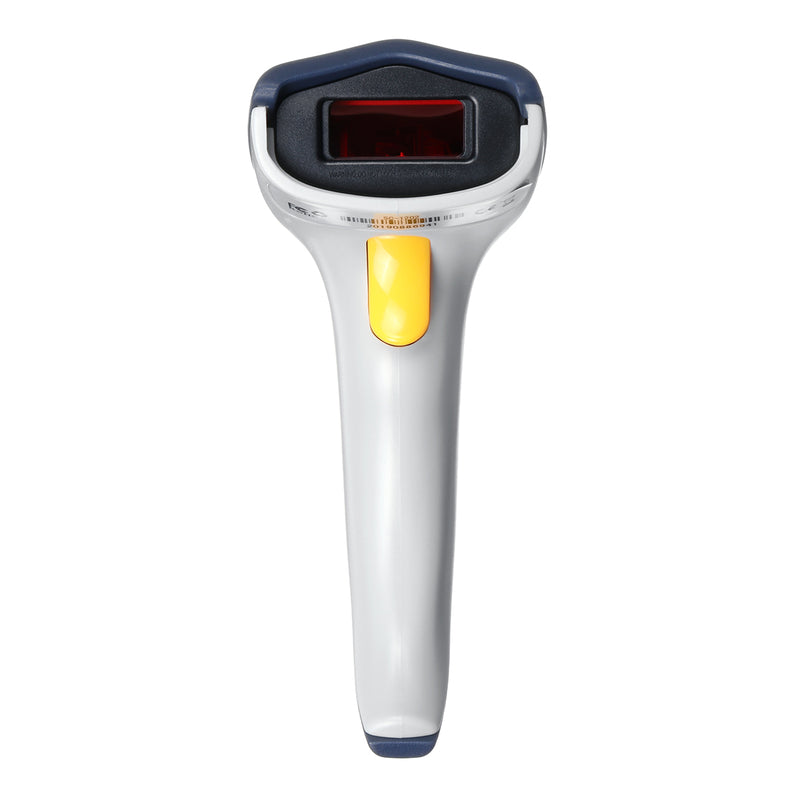

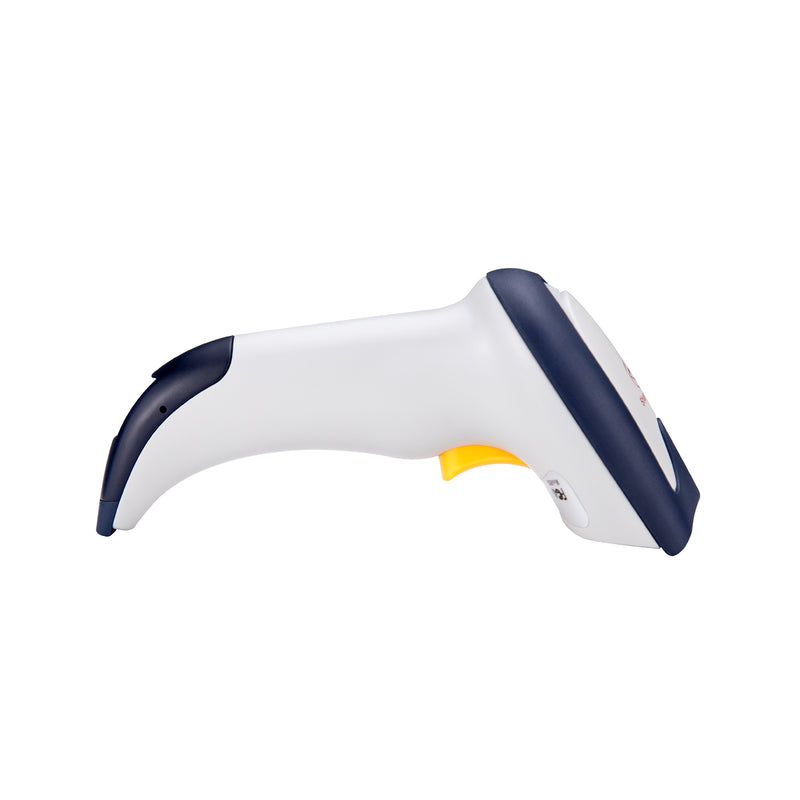

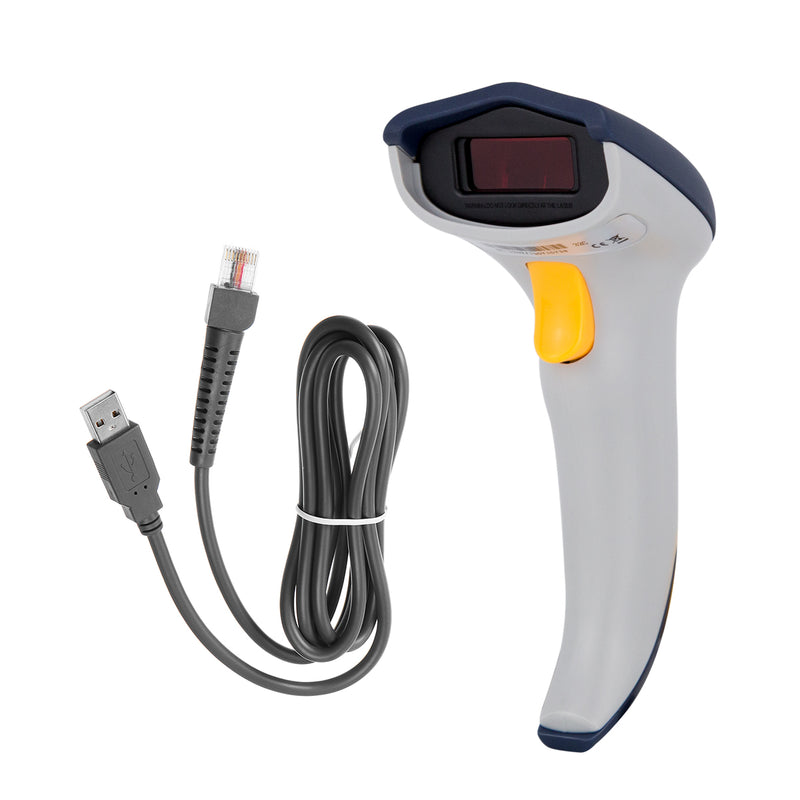

1X Handheld Scanner
1X USB Charging Cable
