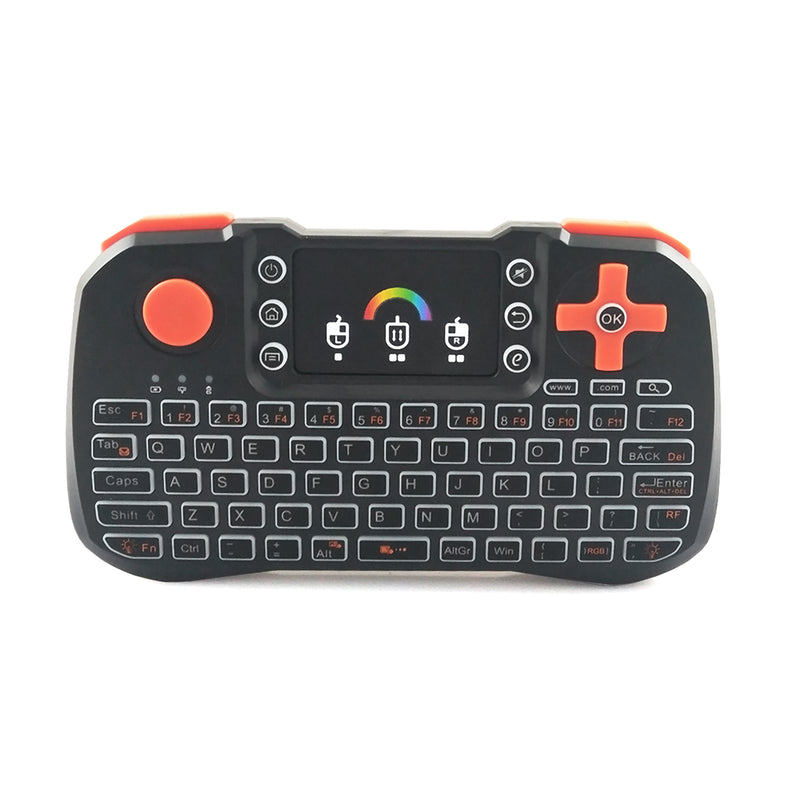

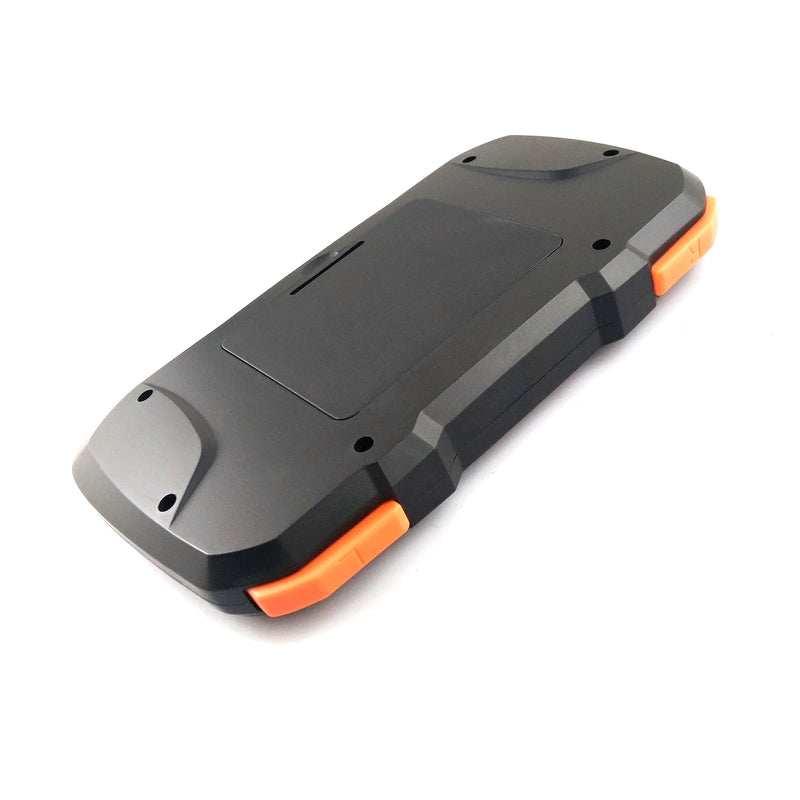

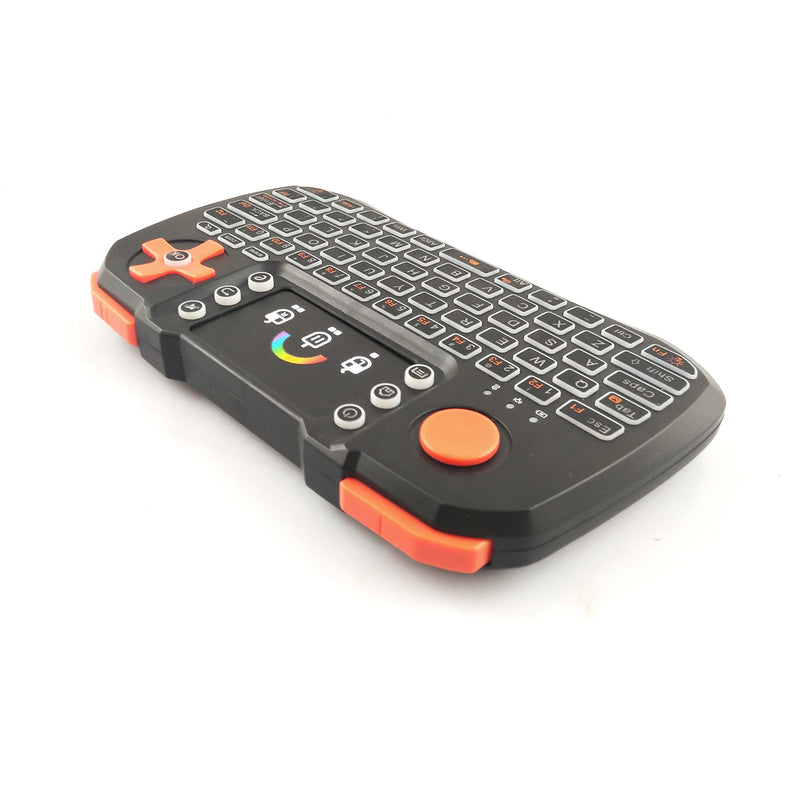

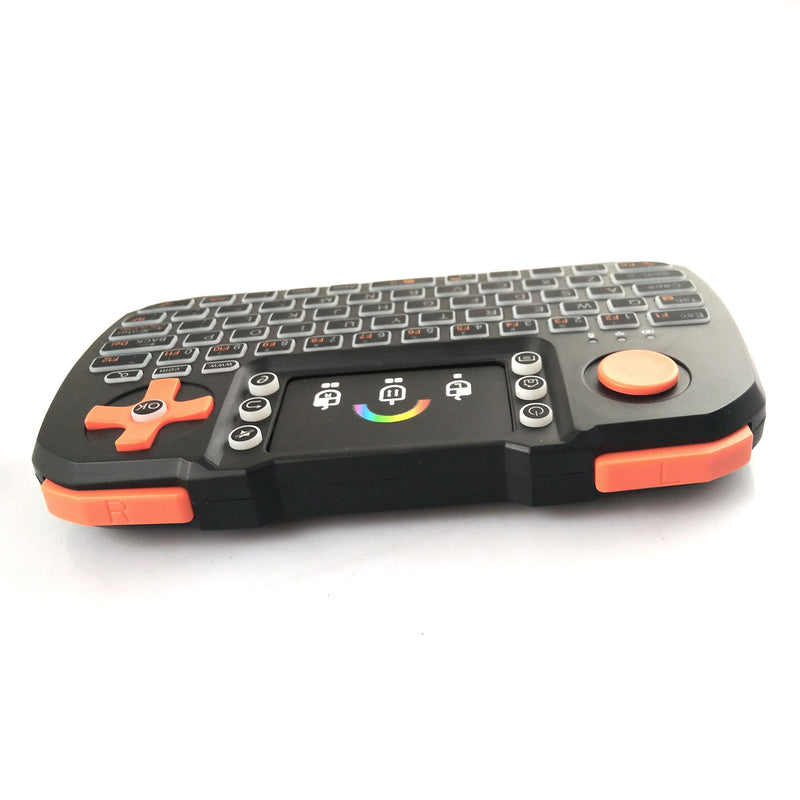

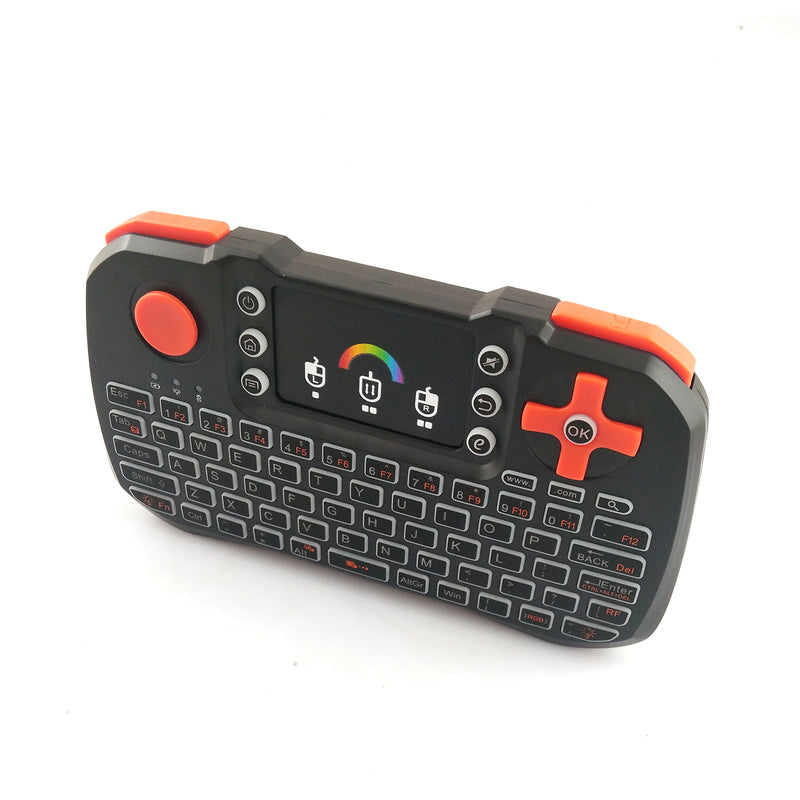

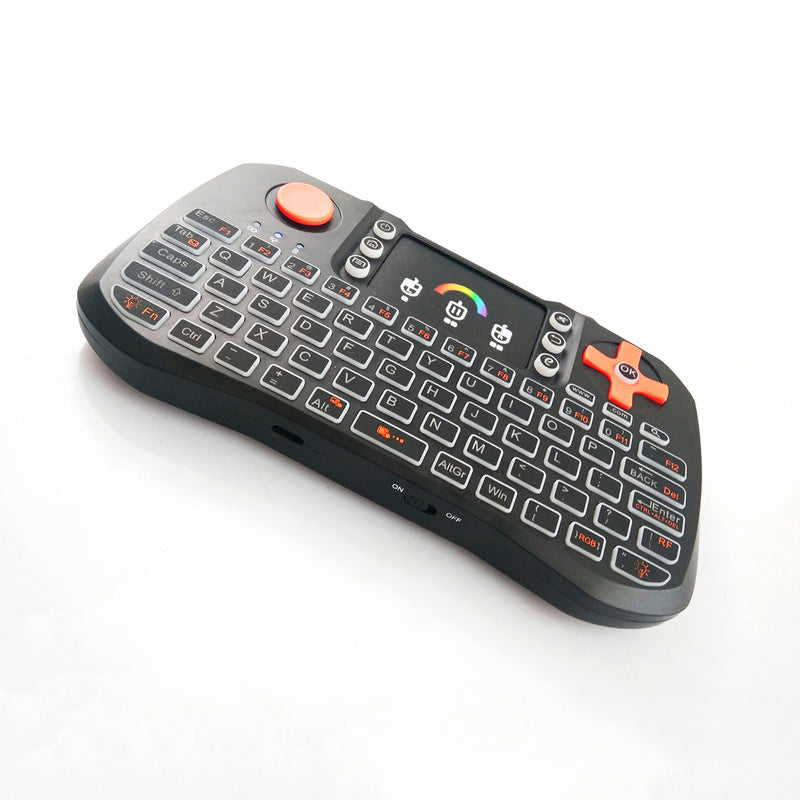

TZ10 touch screen MINI keyboard remote control Air mouse
Save 0
SKU: U2I-BG-1371558
Share this product
Description
Product introduction
1. Name: Touch the mini keyboard. 2. Model: TZ10 3. 2.4G 4. Full keyboard input 5. With touch screen, feel good 6. Backlight function can be selected 7. With power switch 8. Lithium battery can be charged
Electrical parameter
1.USB receiving end Transmission rate 1Mbps Operating frequency 2400.0MHz – 2483.5MHz Output power -18dBm - 5dBm Features 2.4G Wireless Keyboard
2. Controller Transmission rate 1Mbps Operating frequency 2400.0MHz – 2483.5MHz Output power -18dBm - 5dBm Function Gamepad, full keyboard input
Special button function operation instructions
1. All buttons only send wireless code values by default. The code values refer to the HID device usage code table. 2. Press “” once, the uppercase function is locked, press “ ” once again, the uppercase function is released, and the lowercase is entered. 3. Press and hold the "Shift" + special character key to enter the special character function. 4. When the FN+ button is pressed while entering the button of the orange font, it is the function of the orange button.
Functional operation instructions
USB receiver The TZ10 USB receiver is defined as a standard HID device, plug and play, receiving transmitter signals and data, and supports Windows and Android. And iOS system. 2. Pairing 2.1 Press and hold the “FN+RF” button at the same time after power-on. At this time, the LED blue light flashes into the wireless pairing mode. 2.2 Status The blue light stops flashing and is always on, indicating that the RF connection is successful. 2.3 The TZ10 automatically exits the pairing mode if there is no connection or the pairing is unsuccessful within 60 seconds. 3. Touch the cursor pointer speed adjustment 3.1 Cursor pointer speed selection: Press the “FN+DPI” button at the same time, the status light flashes 1 time, indicating that the cursor pointer speed changes, the third gear cycle, The default is the middle file; 4. Touchpad switch 4.1 Touchpad switch selection: Press the “FN+ALT” button at the same time, the status light flashes 1 time, indicating that the touchpad is on or off, the default is on; Touchpad function description, click for the left mouse button, both fingers are simultaneously clicked as the right mouse button, and both fingers slide up and down at the same time as the top and bottom of the scroll wheel. 5. Backlight control 5.1 Backlight selection: Press the “FN+” button at the same time, you can choose whether the backlight is on or off, and press FN+RGB when the backlight is on. The key enters the 7 color dimming mode, where the backlight can be used to adjust the color of the backlight. The order of dimming from left to right is: red, orange, Yellow, green, blue, blue, white. After adjusting, press FN+RGB key to save and exit (or stay in 10S auto save to exit) Note: The touch cursor is not available when entering touch dimming. 6. Power management TZ10 powered by lithium battery (BL-5B) 3.7V
◎ TZ10 power consumption description 1, the general mode Button + touch control Power consumption 8 ~ 30mA; 2, sleep mode If the TZ10 is not used for 3 minutes, the TZ10 will enter standby mode, and the power consumption will be less than 30uA. At this point, the customer presses any key to wake up the TZ10.
