1. Six HDMI Inputs switch or split to two HD Displays.
2. HDMI supports Full HD,3D and 4Kx2K video
3. Any input HD Source can do audio extract by the SPDIF or 3.5mm Headphone audio output port.
4. HDMI to achieve the synchronization of audio signal separation.
5. Support 2.0/ 5.1/ ADV three kinds of audio mode options

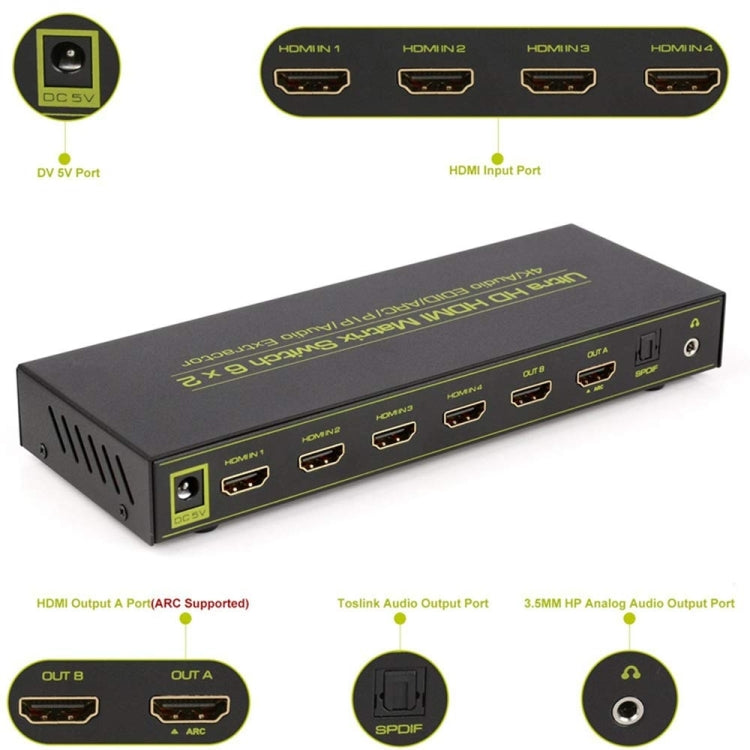

6. Supports ARC ,TV audio will return and out by the Optical Port; （only the OUT A port supports ARC function）。
7. Supports HDMI audio separation, can output by optical and 3.5mm Headphone at the same time
8. Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM2.0
9. Support PIP function: have one main picture and five small pictures, it can do switch of input sources by press button or remote.

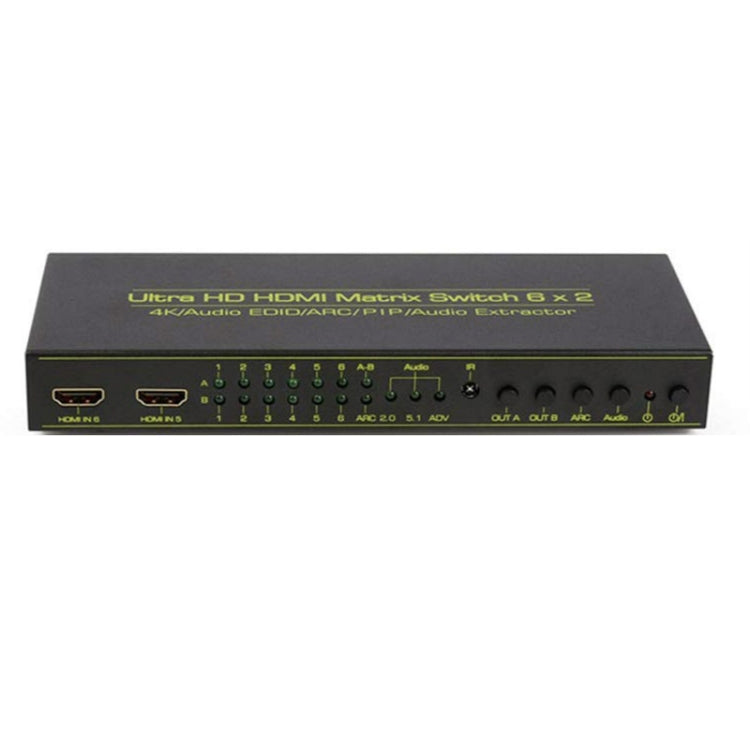

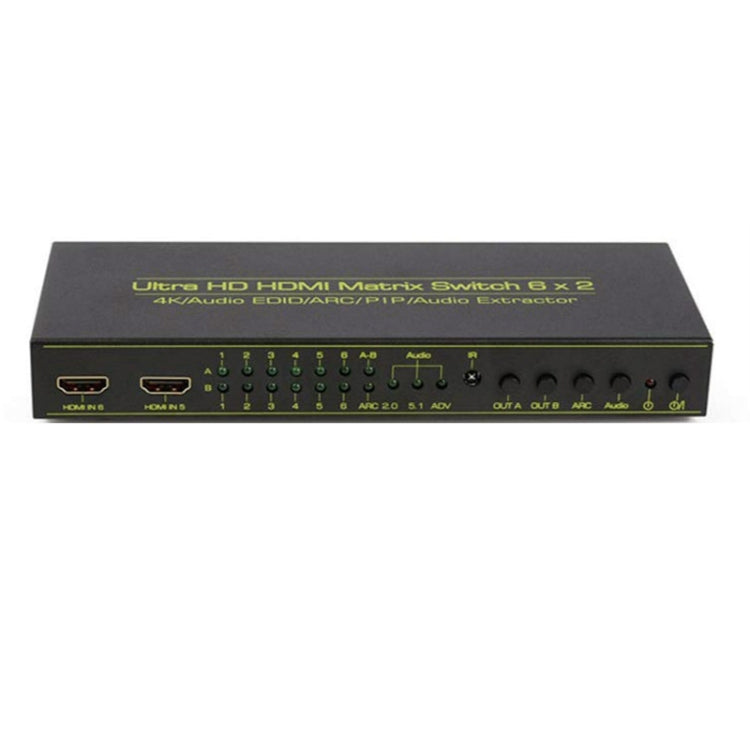

10. LED indication: when source or sink is working, LED related will go bright.
11. Support IR Remote Control and Push Button at device control.
12. Led Status Light allows the user to know the working status easily.
13. Power-off memory
14. No loss of quality
15. Need DC5V/2A power supply
