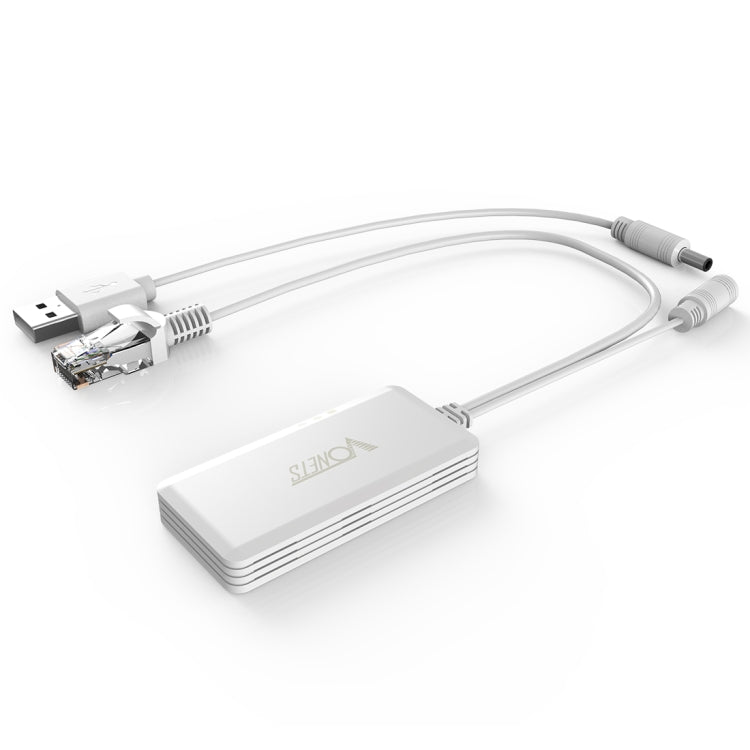

1. Industrial-grade WiFi bridge / repeater.

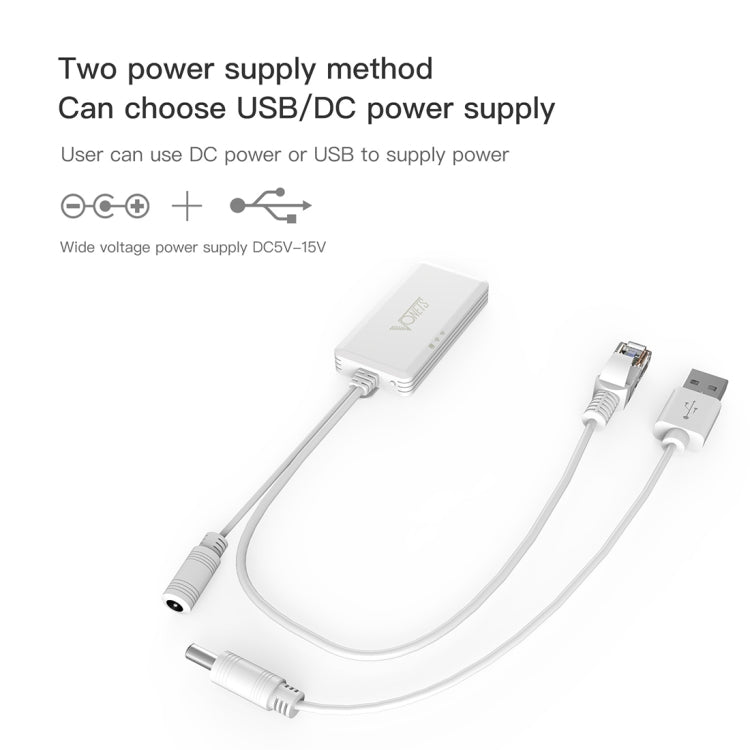

2. Support wide voltage DC5-15V power supply, two-stage automatic overvoltage protection;
3. Support both 2.4G and 5G band.
4. RF power: 2.4G--14.5dBm, 5G--21dBm/23dBm Adjustable.
5. Support WiFi transmission protocols such as 802.11ac and 802.11n.

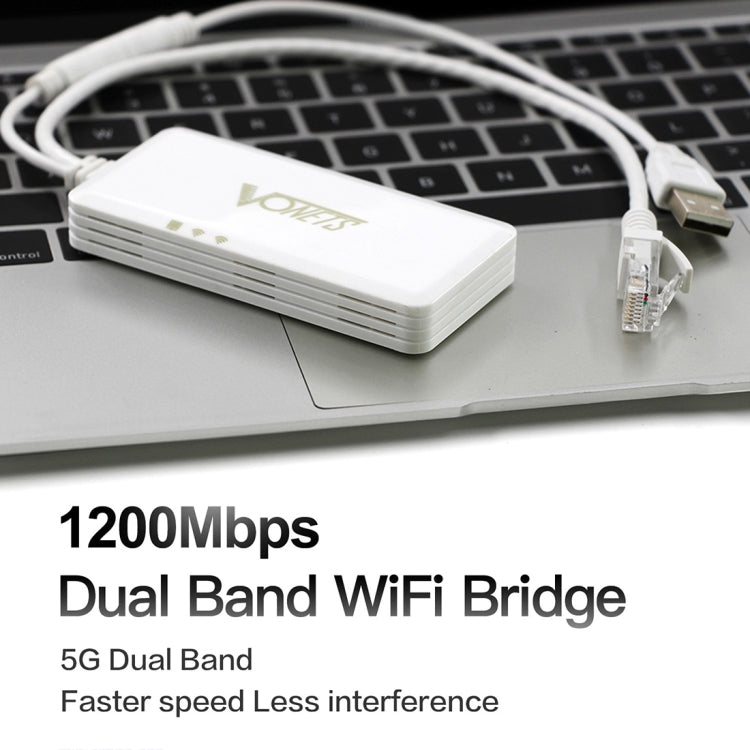

6. WiFi transmission rate: 300Mbps (2.4G) + 900Mbps (5G).
7. Point-to-point barrier-free maximum transmission distance: 300 meters (802.11A).
8. Support connecting more than 20pcs WiFi terminal at the same time.
9. Adopt temperature compensated auto frequency control technology (TAFC), WiFi signal is more stable and not easy to drop.
10. Original creation VDNS virtual domain configuration technology to solve the useras trouble of configuration.
11. Built-in heat sink with convection cooling holes on both sides of the housing for more efficient heat dissipation.

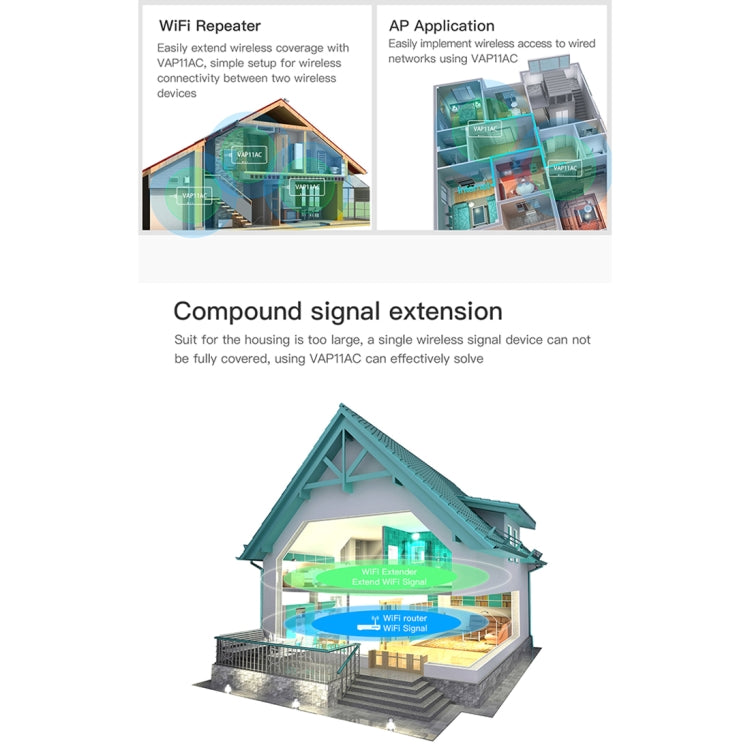

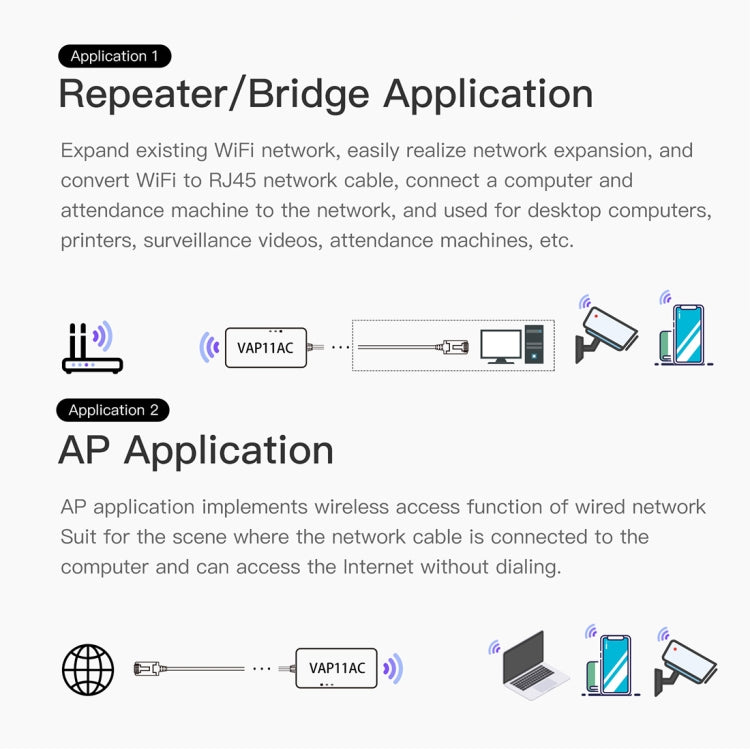

12. WiFi intelligent bridge function, wireless to wired, wired to wireless intelligent switching.
13. Support manually close SSID broadcast, manually close WiFi hardware.
14. Support WEB management, Chinese and English configuration interface.
15. Support SSA signal strength detection and reporting function to realize WiFi mobile positioning.
16. Working environment temperature: -40 degrees Celsius to 55 degrees Celsius.
17. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications:
- IP layer transparent transmission (factory default), transparent transmission of IP layer data, can meet most of the bridge applications.
- MAC layer transparently transmits all data above the MAC layer (link layer) and the MAC layer, including IP layer data.
- MAC transparent transmission can solve some special applications for MAC layer encryption, such as GoPro camera, Cisco AP, Hikvision monitoring system, etc.

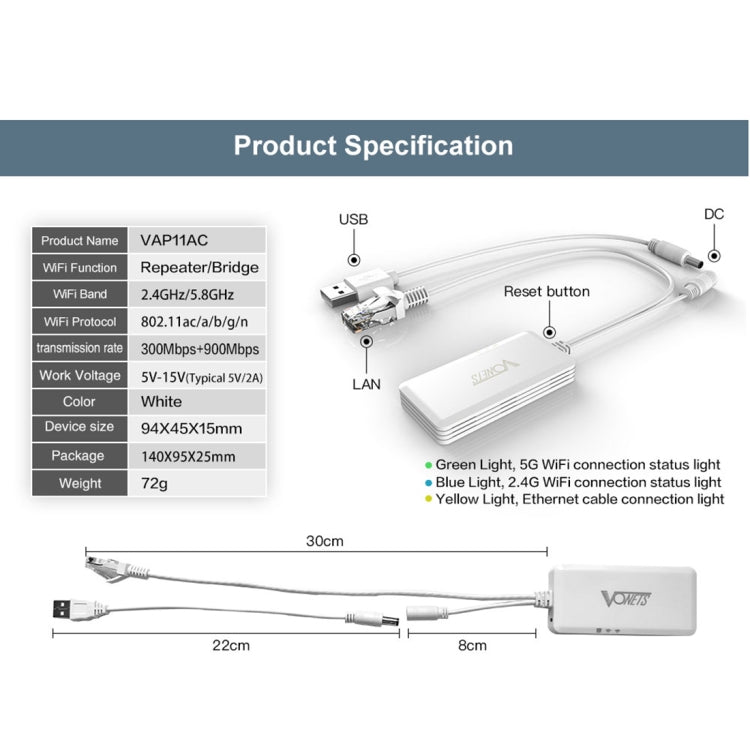

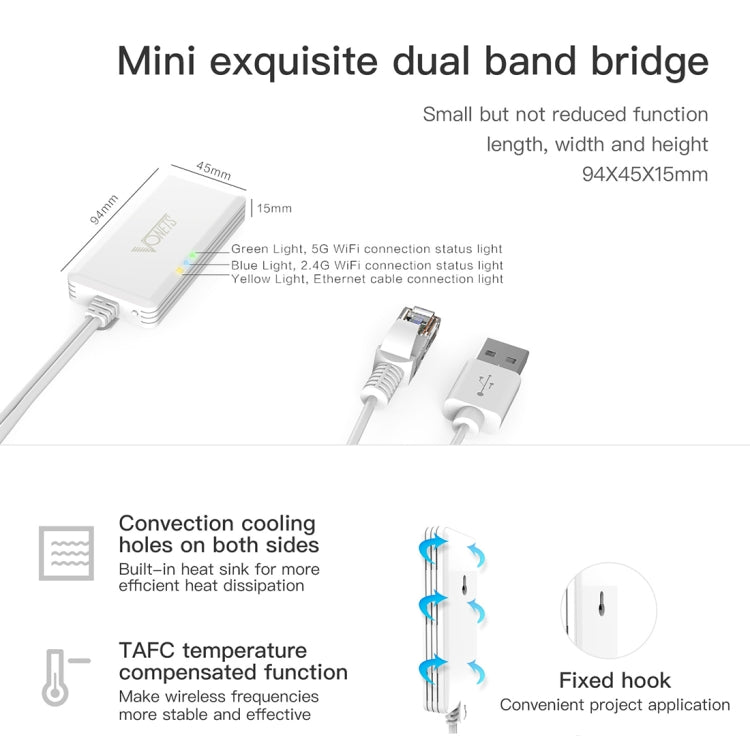

18. Size: 9.4*4.5*1.5cm
19. Weight: 72g
