Specifications:
1. Brand Name: Wavlink
2. Model Number: WL-WN570HN2
3. Function: Firewall
4. With Modem Function: No
5. Wi-Fi Transmission Standard: 802.11b
6. Max. LAN Data Rate: 300Mbps
7. Wi-Fi Supported Frequency: 2.4G
8. Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n
9. Supports WDS: Yes
10. Supports WPS: Yes
11. Type: Wireless
12. WAN Ports: 1x10/100Mbps
13. VPN: No
14. Voltage: 100-240V
15. Operating temperature: -30 ~ 70°C (-22 ~158°F)
16. Storage temperature: -40 ~ 70°C (-40 ~ 158°F)
17. Voltage: 100 – 240 V
18. Support 2.4 GHz
19. Standard: 802.11b/g/n
20. Maximum WLAN security with WPA2,WPA and WEP (128/64)
Features:
1. Weatherproof enclosure with IP65 certification: Waterproof and dustproof enclosure and high temperature durability material protect it against harsh outdoor conditions
2. 15KV ESD protection: Built-in ESD protection circuit prevents damage from high electrostatic voltages and ensures reliable operation
3. 4KV lightning protection: Built-in lightning protection prevents storm/lightning surges
4. Flexible installation with Power over Ethernet (PoE): The PoE power supply simplifies the setup by combining your power and data connection into a single cable.
The DC adapter provides power and network access through your home/business router or network connection and combines them into a single RJ-45 connection.
This makes outdoor deployment simple and fast.
Reminders:
1) Select the wireless network with a signal strength greater than 70% to get the most reliable connection.

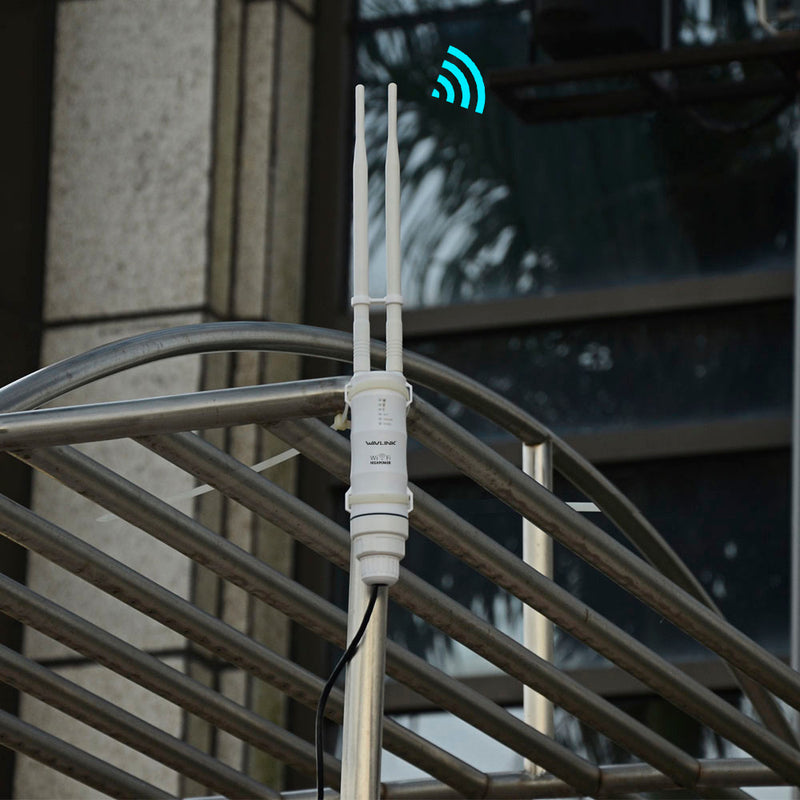

2) The outdoor antennas should be installed at a height of 2 meters above the roof, or in a high open place for better reception.
3) Passive PoE power supply though Ethernet cable does not work over 60 meters.

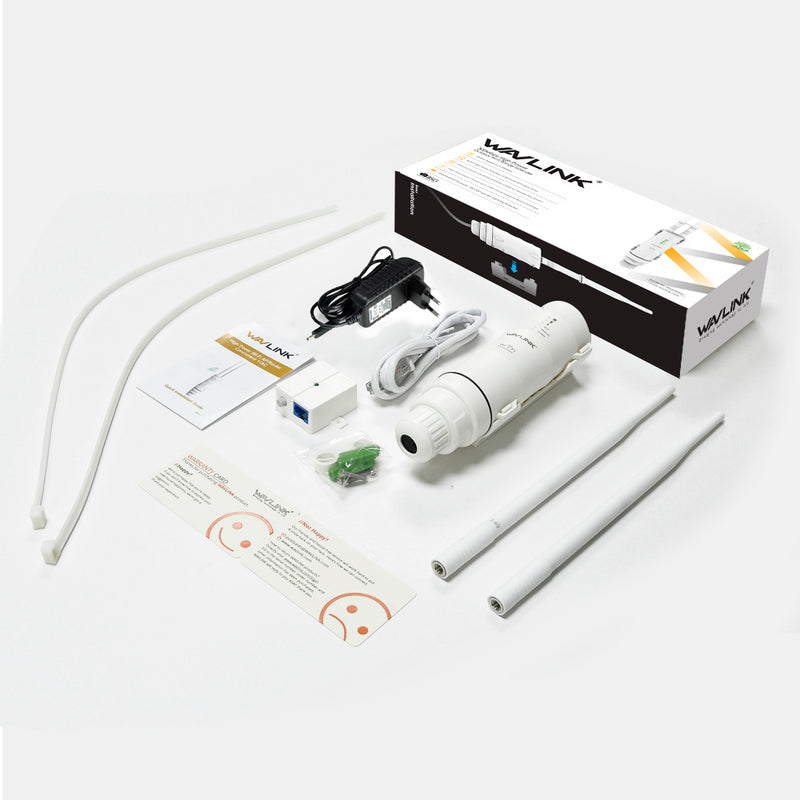

Package includes:

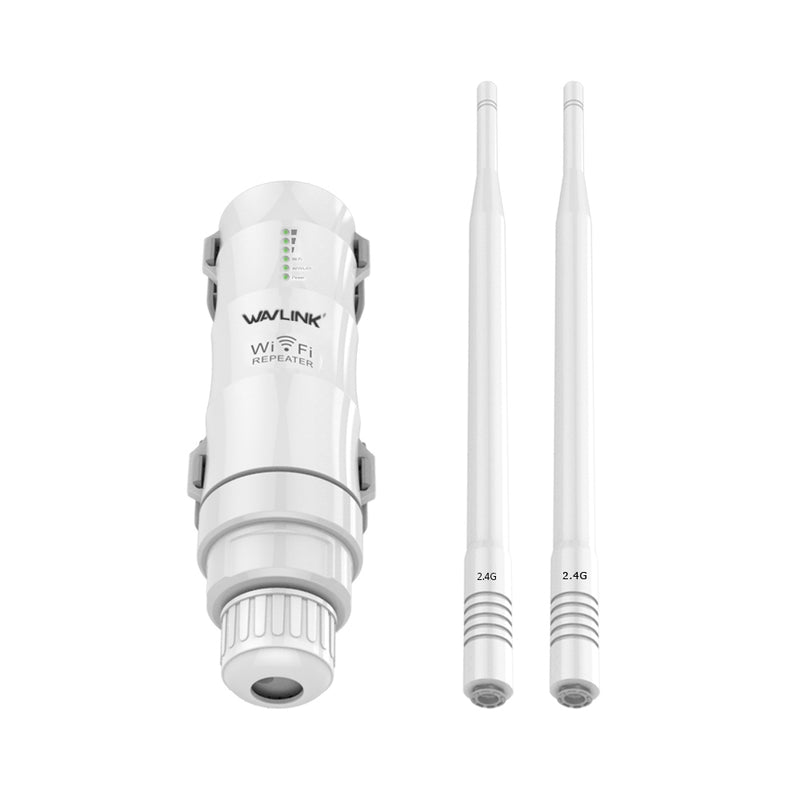

1 x Outdoor Wi-Fi range extender
2 x Omni antenna
1 x Power adapter
1 x POE converter
1 x RJ-45 networking cable
1 x Main body holder
1 x Screw fitting
2 x Cable ties
1 x Screw fitting kit
1 x Quick installation
