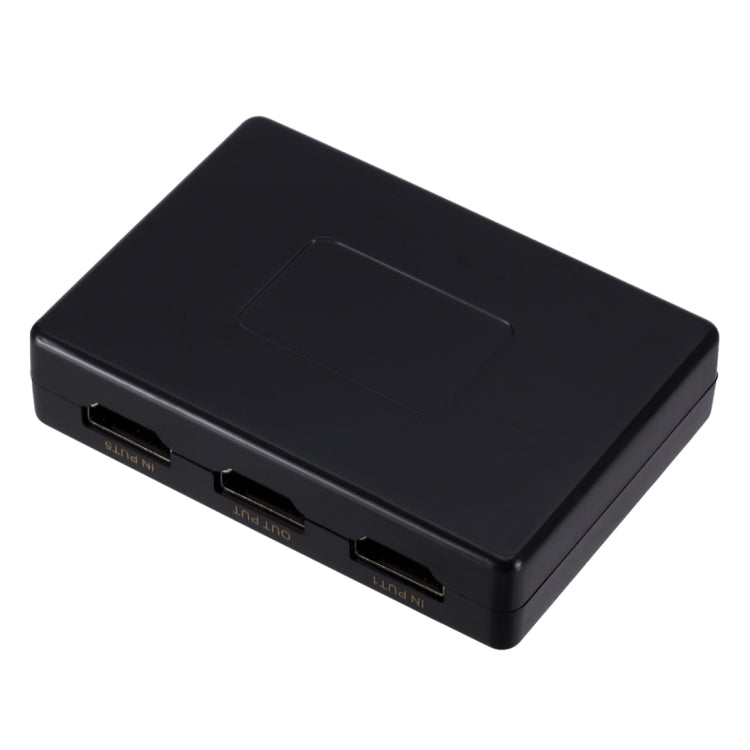

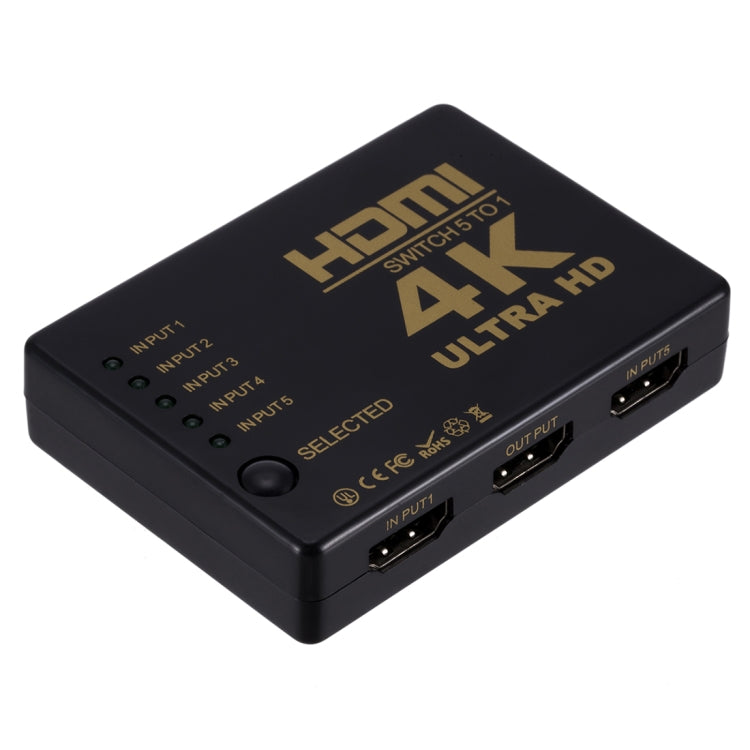

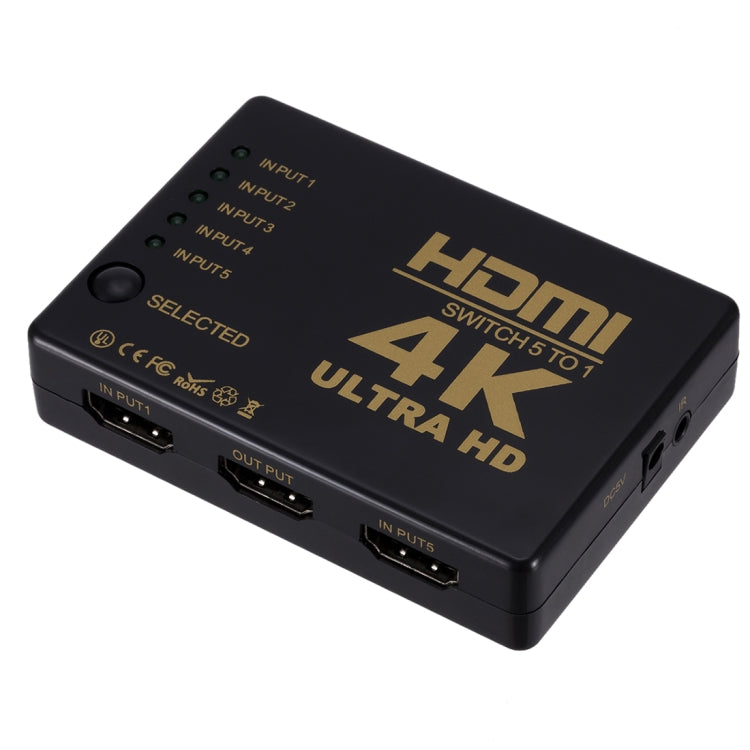

1. The HDMI5 port switch is a product that can switch multiple HDMI signals to a high-definition display device such as HDTV with a manual button. Optimized home theater system by avoiding frequent unplugging of cable plugs and cables.
2. Support 4K x 2K, 3840 x 2160P
3. Multi-function switch: smart or mechanical
4. Support HDMI 1.4b.
5. High performance up to 2.5Gps
6. Maintain high resolution (up to 2160p), 4K x 2K
7. Function: Signal amplification, image transformation and image selection.
8. Interface 25 meters at both ends of the transmission distance.
9. Compatible with HDCP devices.

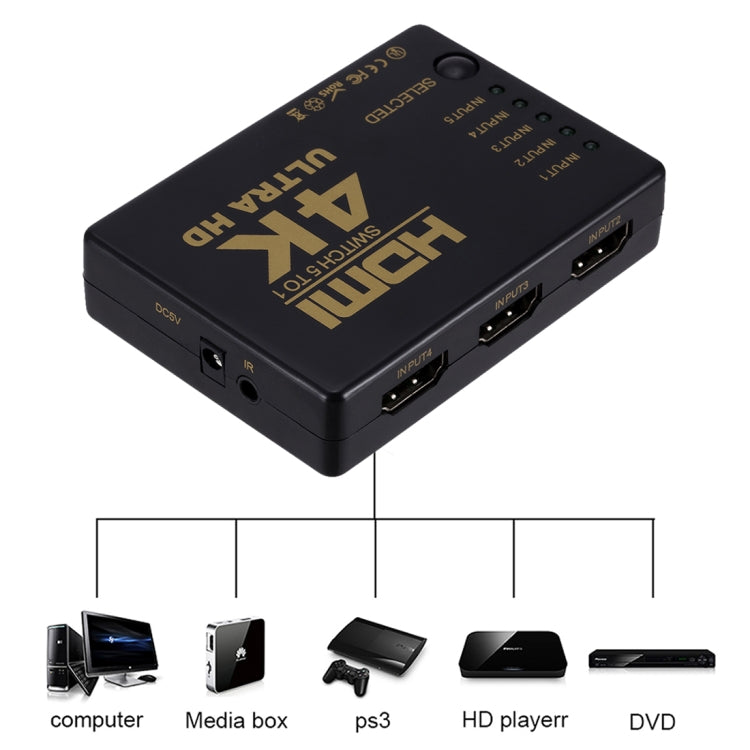

10.For digital HDTV, plasma display, LCD, set-top box, DVD player, Blu-ray player, digital camera, audio / video receiver, home video, video projector.
11.Parameter:
Input video signal: 0.5-1.0 volts p-p
Input DDC signal: 5 volt p-p (TTL)
Video output signal: HDMI1.4b + HDCP1.0 / 1.1
VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 200
DTV / HDTV: 480i / 576i / 480P / 576P / 720P / 1080i / 1080P
HDMI: HDMI 1.4
Frequency: up to 250MHz
Field frequency: 60Hz
Bandwidth: 2.5Gpbs / 250MHz
HDTV: support
Interlaced (50 & 60Hz): 480i, 576i, 1080i
Progressive scan (50 & 60Hz): 480P, 576P, 720P, 1080P
Note: The IR remote is powered by a lithium battery (CR2025) but is not included.

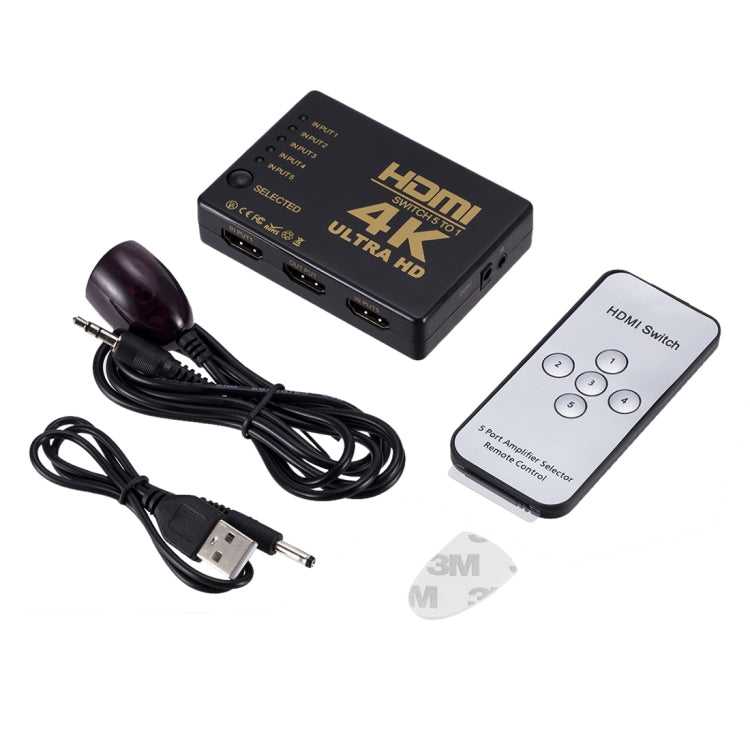

Package Included :
1 x HDMI switch
1 x remote control
1 x infrared
1 x power cord
