Description:
Primary Function: USB Vag-Com interface cable

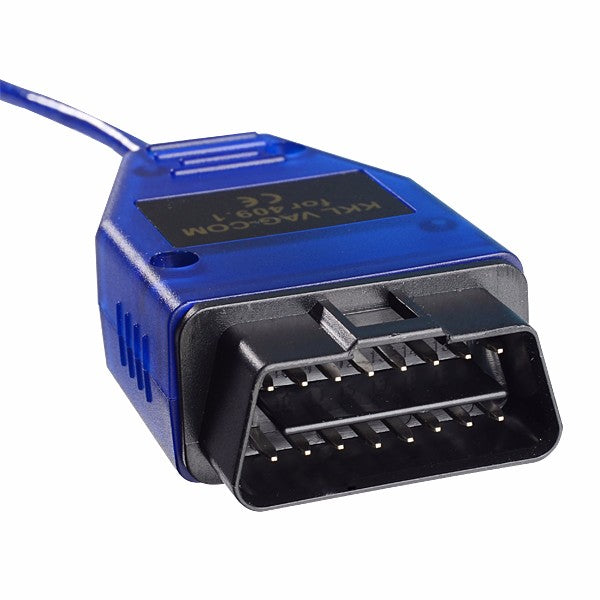

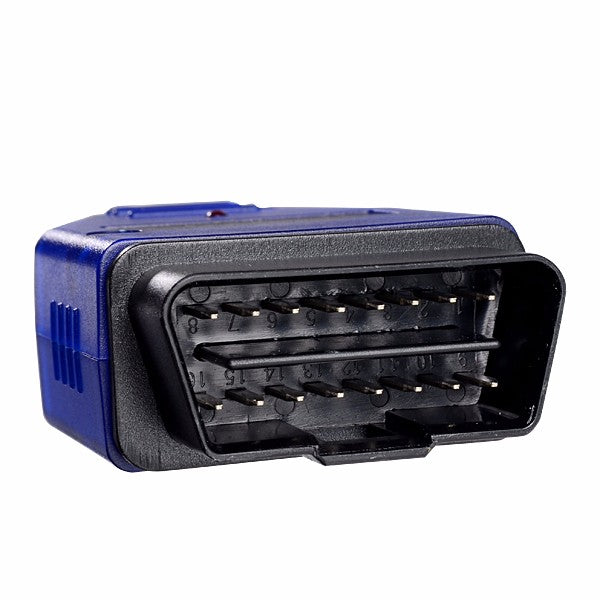

OBDII Plug: J1962 16-Pin Male (to Car)
USB Port enabled
Operating Software Compatibility: Windows 98SE / ME / 2000 / NT and XP
Supports terminal (K) bus communication
Terminal (L) ignition for waking up car computing system (ECU) engine control unit
Has 3 different protocols with same OBD2 connector including ISO/KWP, VPW, PMW
Refer to your car user manual or check with your car dealer or local mechanic whether your car is compatible with this product
Compatible Vehicles: Volkswagen, Audi, Skoda, Seat
Feature:
Also supports ISO9141 protocol
No DC or alternate power supply needed, just connect to your car and computer
Work with most Volkswagen and A-u-d-i models sold worldwide from 1998 to current year
The CVFG-A11 cable cannot work if your car uses a protocol bus system like VPW, PWM or CAN -bus
The K/L Diagnostic interface cables works on ISO/KWP (Key Word Protocol) that were launched after 1996
Support vehicles:
1. Audi Models:
1)Compatible: A-2 / A-3 / A-4 Cabriolet / A-6 / A-8 / S-2 / S-3 / T-T
2)Not Compatible: 80 / 100 / 200 / A-3(8P) / A-4(B7) / A-6(C6/4F) / A-8 / A-8L(D3/4E) / Q7
2.SEAT Models:
1)Compatible: A-lhambra / A-ltea / A-rosa / C-ordoba / I-biza / I-nca / L-eon MK 1 / L-eon M-K 2 / T-oledo
2)Not Compatible: Al-tea (5P) / L-eon (1P) / T-oledo (5P)
3.Skoda:
1)Compatible: F-abia / F-elicia / O-ctavia MK 1 / O-ctavia MK 2 / S-uperb
2)Not Compatible: O-ctavia (1Z)
4.VW:
1)Compatible: B-eetle / B-ora / C-addy / C-orrado / G-olf MK2 / G-olf MK3 / G-olf MK4 / J-etta MK3 / J-etta MK4/ Lupo /
P-assat MK3 / P-assat MK4 / P-olo MK3 / P-olo MK4 / T-ouran / T-ouareg / T-ransporter T3 / T-ransporter T4 / T-ransporter T5.
2)Not Compatible: C-addy (2K) / G-olf MK5 (1K) / G-olf Plus / J-etta MK5 (1K) / P-assat MK5 (B6) / P-assat MK6 (B6) / P-haeton /
Specification:
Chip Type: FT232RL
Language: English
OS: XP
Support 1996-2009 Year
Support Car: K-line
Catalog Ref: Car accessories, cable fault code, VAG-COM, OBD2 cable
Package Included:

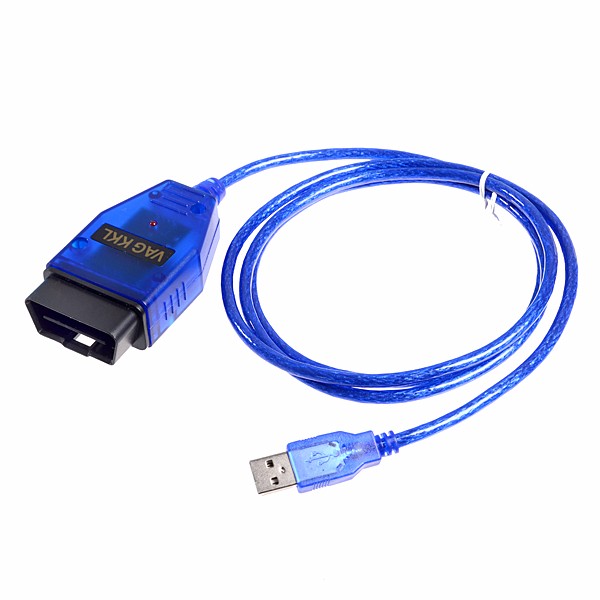

1 X OBD2 USB KKL Cable
