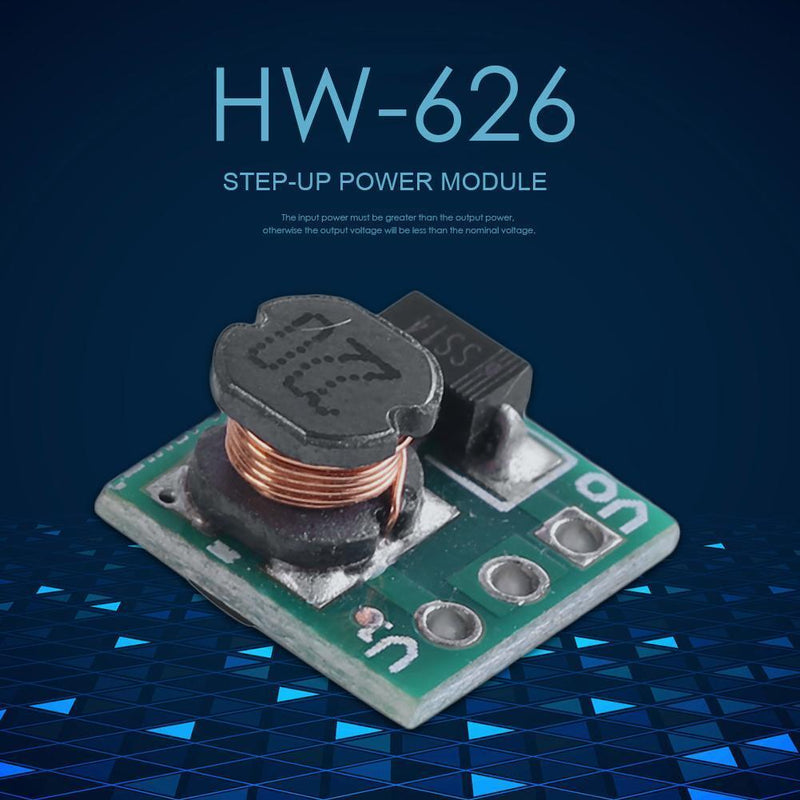

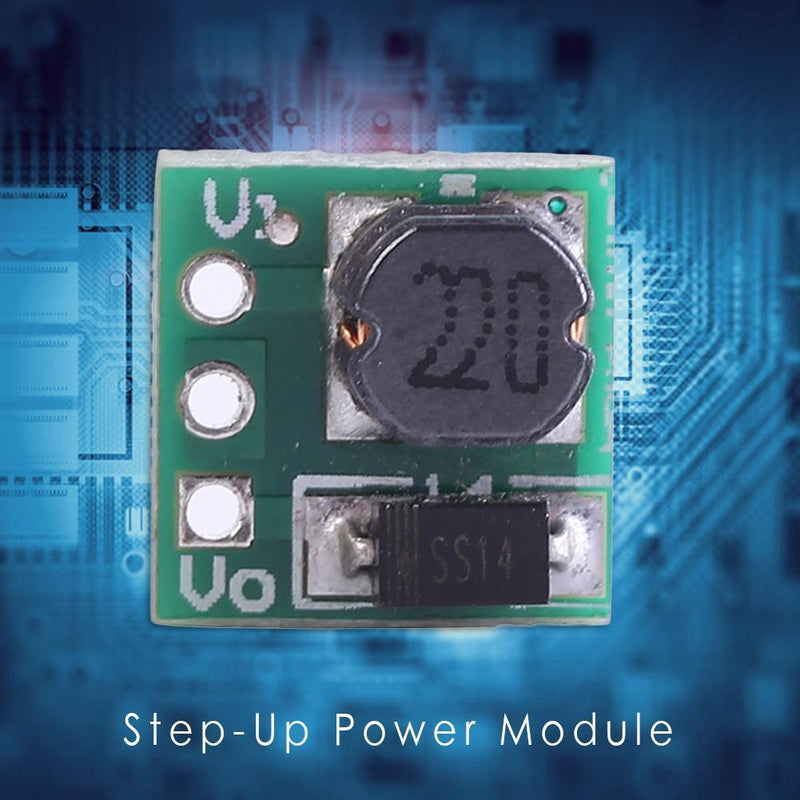

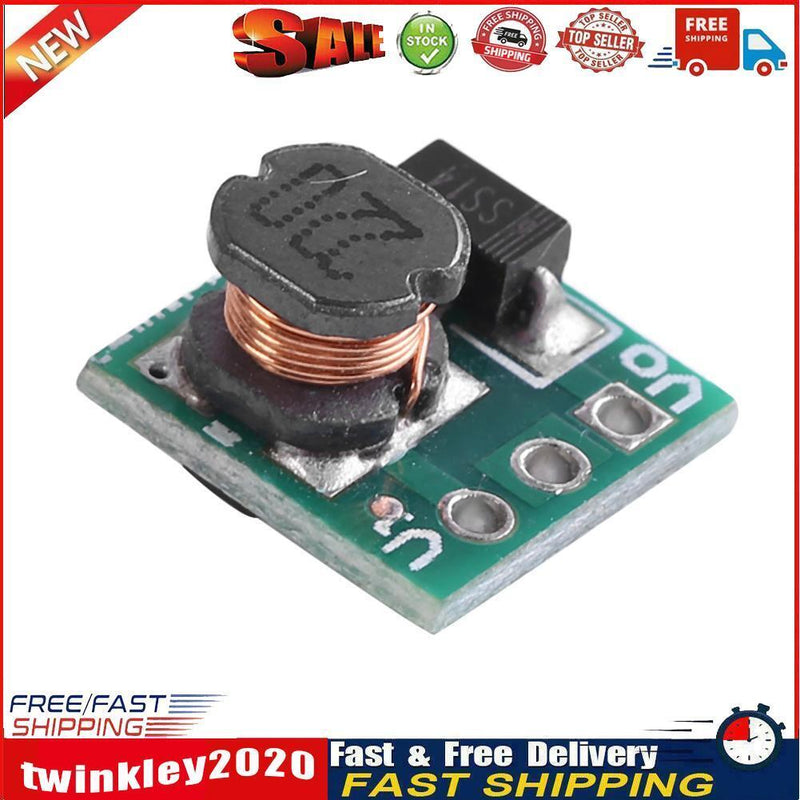

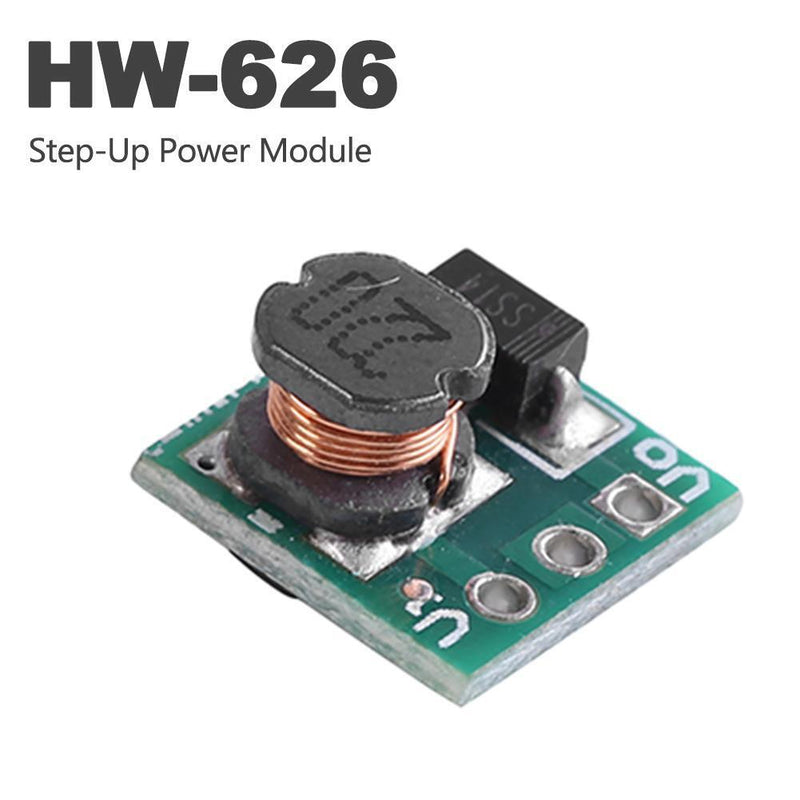

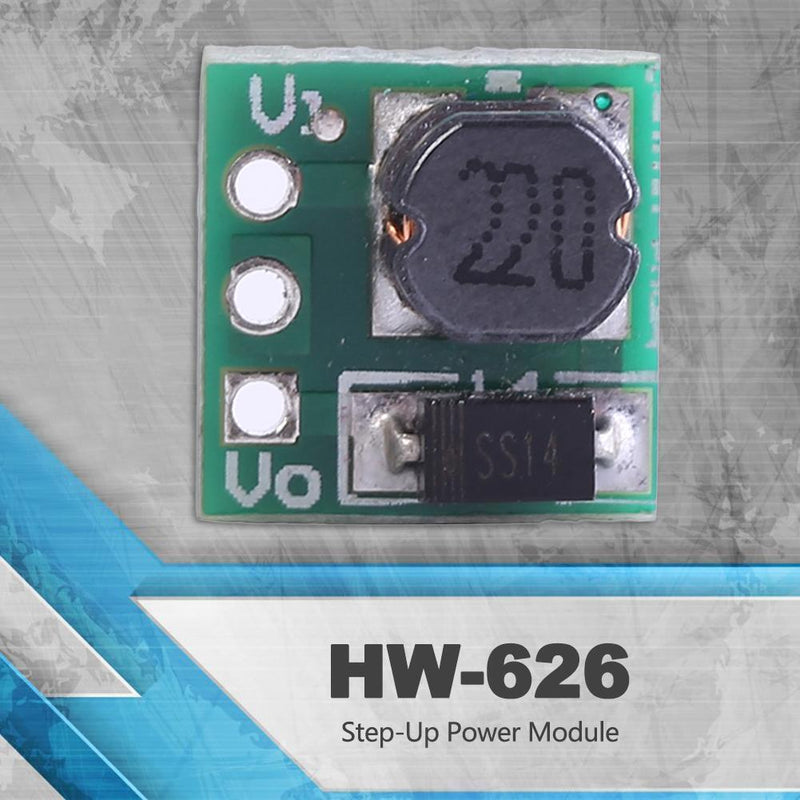

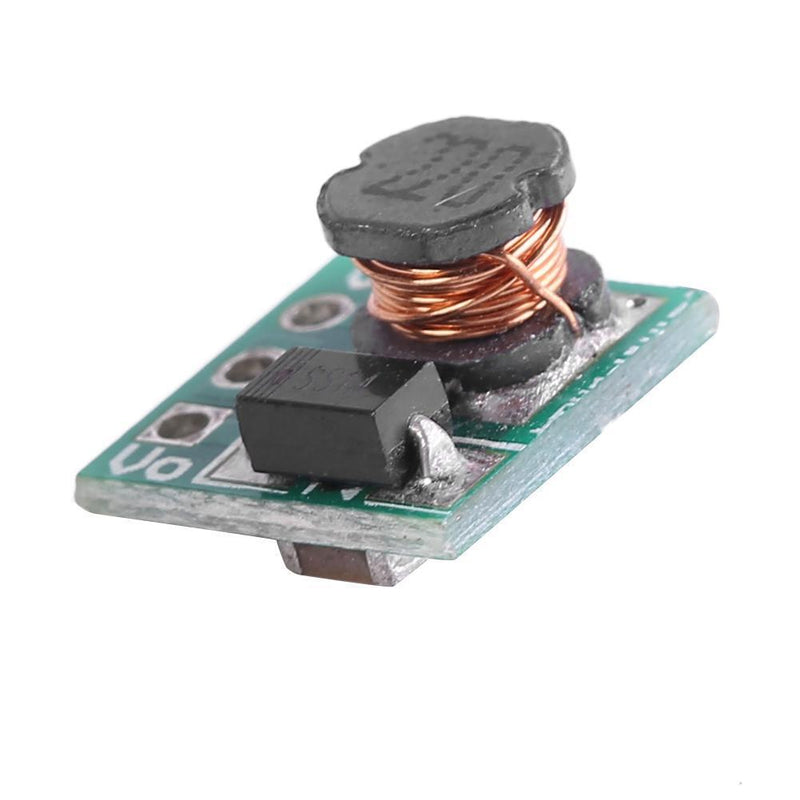

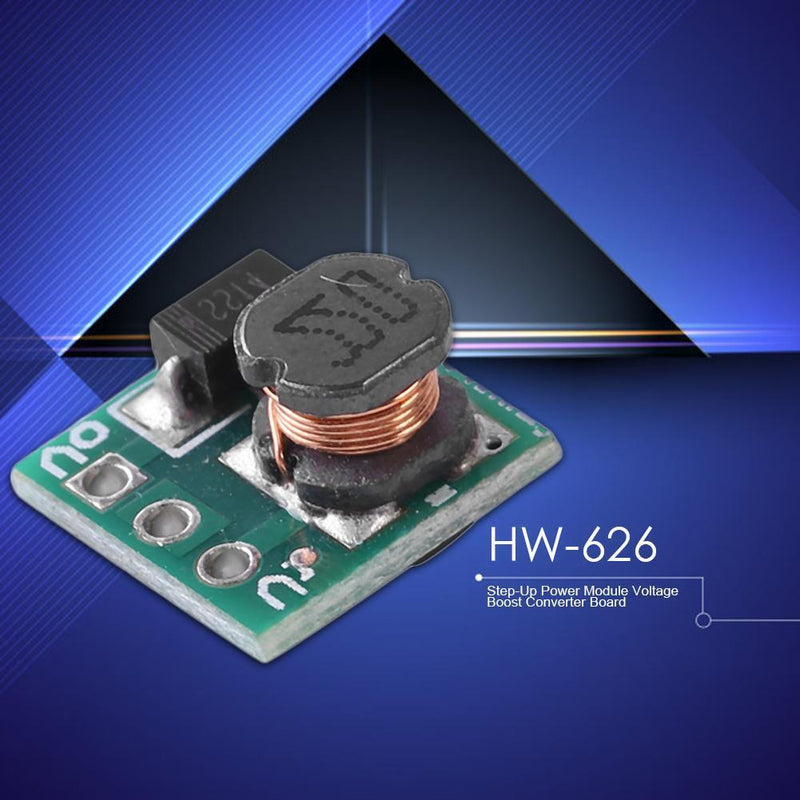

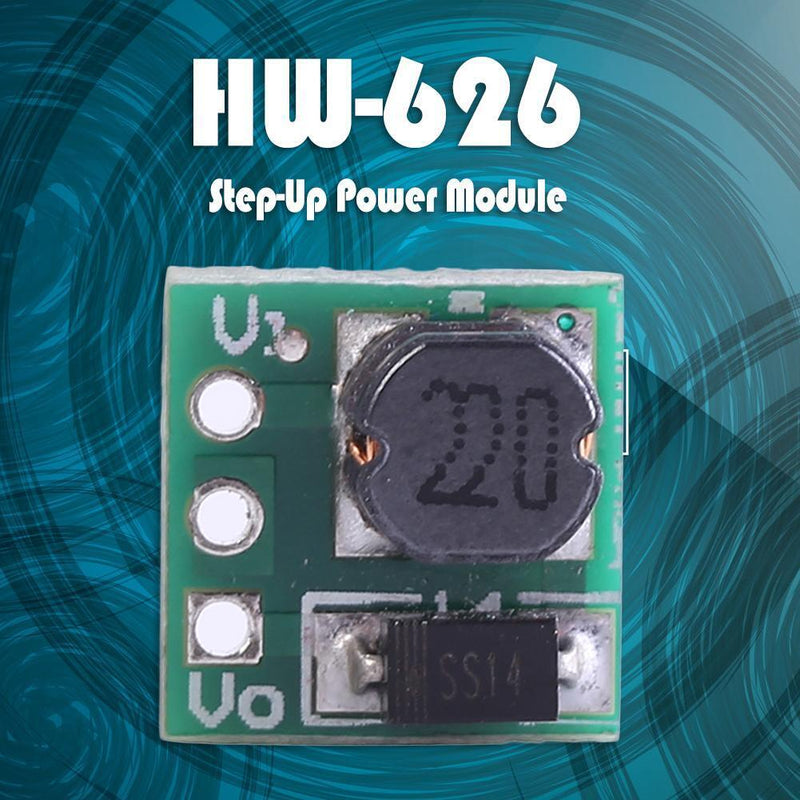

Item Name: 0.9V-5V to 5V DC-DC Step-Up Power Module Voltage Boost Converter Board Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Specification:
5V Output Version:
Input voltage 0.9-5V Output voltage 5V
Maximum output current: 480 mA
Start-up voltage 0.8V, output current 7mA
Input 1-1.5V, output 5V 40-100mA
Input 1.5-2V, output 5V 100-150mA
Input 2-3V, output 5V 150-380mA
Input over 3V, output 5V 380-480mA
DC-DC boost conversion module, working frequency 150KHZ, typical conversion efficiency 85%.
Pin 2.54mm Spacing
Size: 11mm*10.5mm*7.5mm/0.43*0.41*0.29''
Weight: 3g
This is a voltage boost conversion module. When using it, the following
