1/2inch AC 220V Automatic Electronic Timed Valve Air Compressed Gas Drain Valve

1/2inch AC 220V Automatic Electronic Timed Valve Air Compressed Gas Drain Valve

Name: 1/2inch AC 220V Automatic Electronic Timed Valve Air Compressed Gas Drain Valve
Brand: Banggood
SKU: U2I-BG-1109682
Price: 5,993.00 INR
Availability: InStock

SKU: U2I-BG-1109682

Share this product

Description:

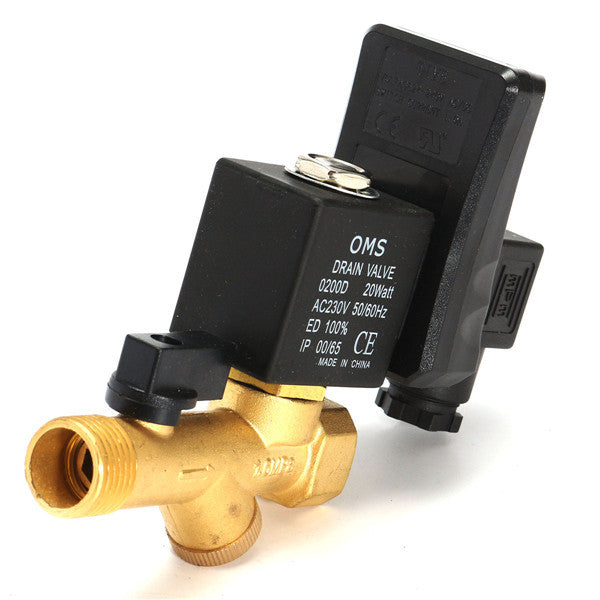

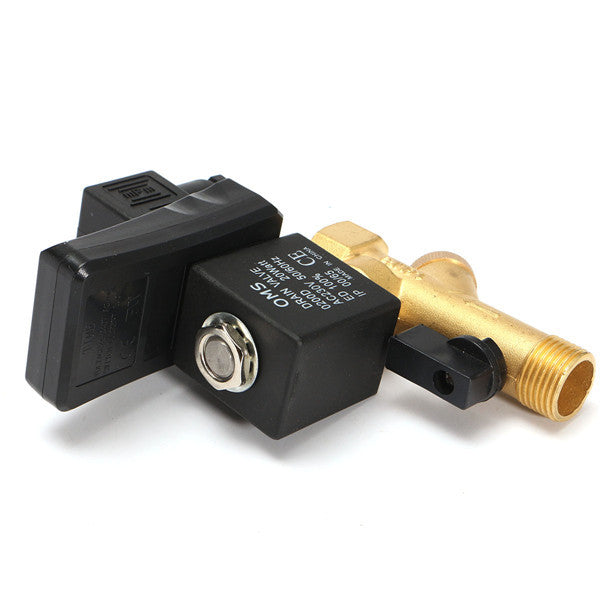

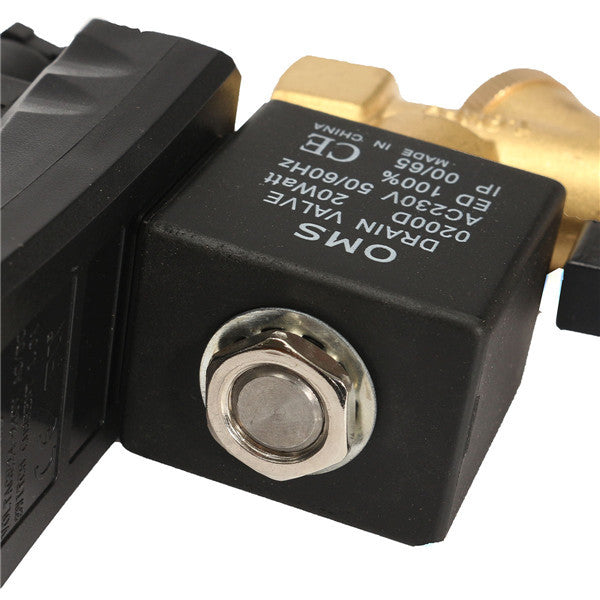

Electronic drain valve to solid-state electronic timer and solenoid valve to match the time to achieve automatic discharge of compressed air condensate.
Widely used in filters, oil-water separator, refrigerated dryers, cold and dry machines, air compressors, air cylinders, dripping feet and other compressed air system components, discharge time and interval time can be adjusted according to different needs.
Easy to install, fully automatic operation.

Specifications:

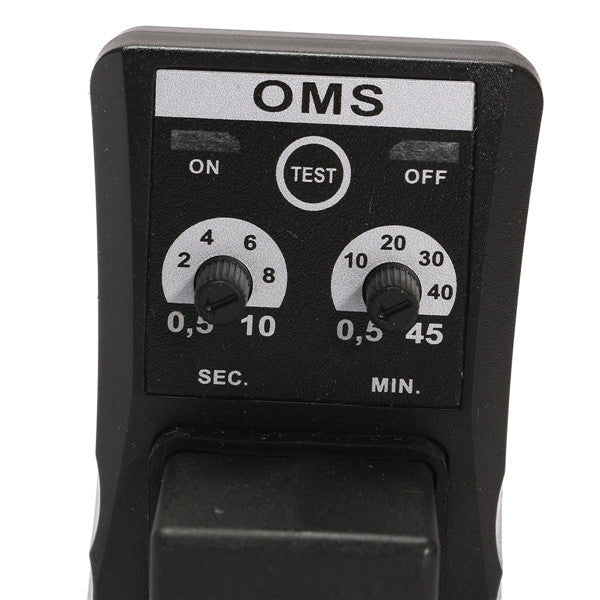

Time interval (OFF): 0.5--45 minutes
Discharge time (ON): 0.5--10 seconds
Manual test button ( micro switch )
Power supply voltage: DC24/AC240V 50/60Hz
The current consumption of the largest 4mA
Ambient temperature: -40°C to 60°C
Shell material: Flame retardant ABS plastic

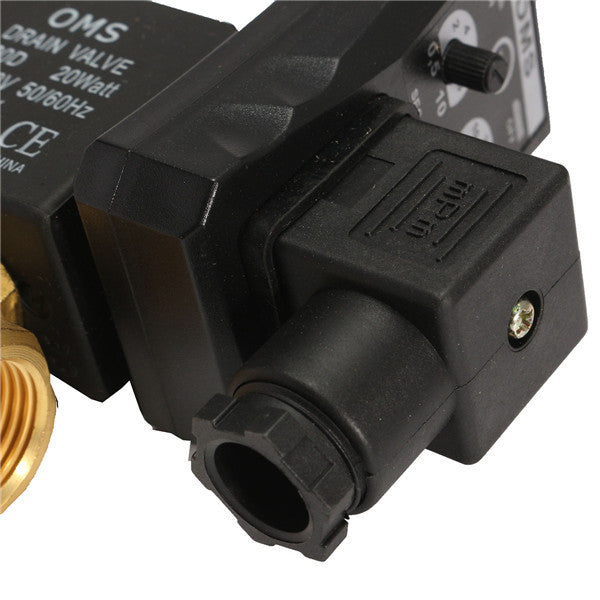

Electrical connection: DIN43650A
Type: two two direct-acting valve
Interface: G1 / 2 "internal thread
Maximum working pressure: 1.6Mpa
Maximum temperature: 90°C
Forging brass valve, flow aperture of 5 mm
Insulation class: H level
Protection grade: IP65
Voltage range: ±10%

Applications: Widely used in air compressors, coolers, separators, dryers, filters,
air cylinders, dripping feet and other compressed air system components.

Package included:
1 x Automatic Electronic Timed Drain Valve
