Specifications:
Material: Cold-rolled Steel+PC Plastic + Phosphor Bronze Gold-plated
Size: Approxi.253x43x30mm
Color: Black
Port number: 12 ports
Type: Cat6/Cat5e(option)
Port Presentation: RJ45 Socket
Metal Thickness: 1.5mm
Process: metal stamping
Mating cycles: not less than 750 times (times)
Applicable cable type: for 22,24 and 26AWG (0.64,0.5 and 0.4mm) cable
Return loss: 10(dB)
Scope: for the erection of network lines and layout, as well as the connection between the network.
Style Note:

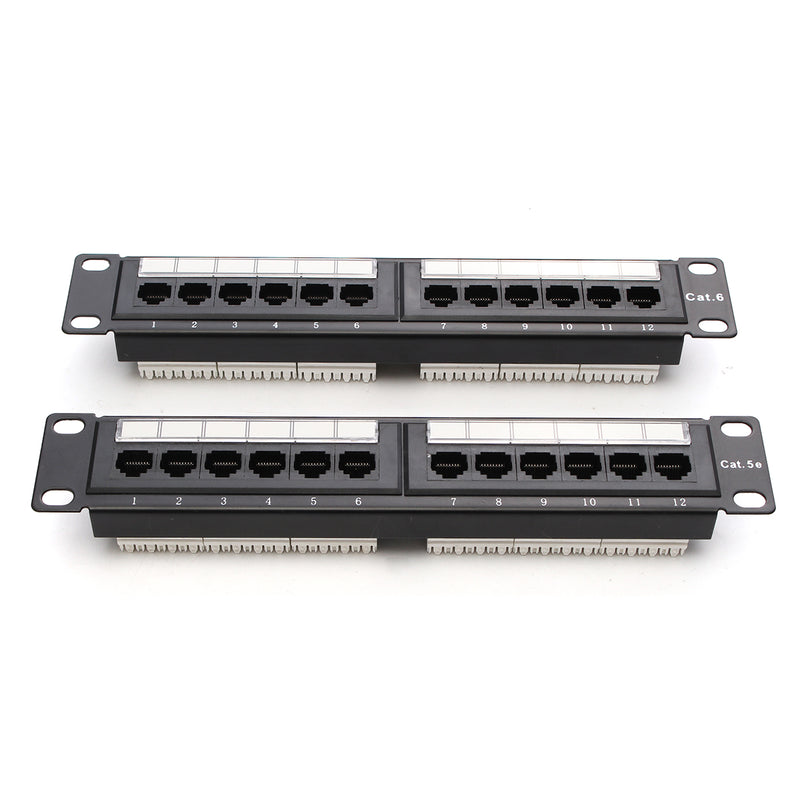

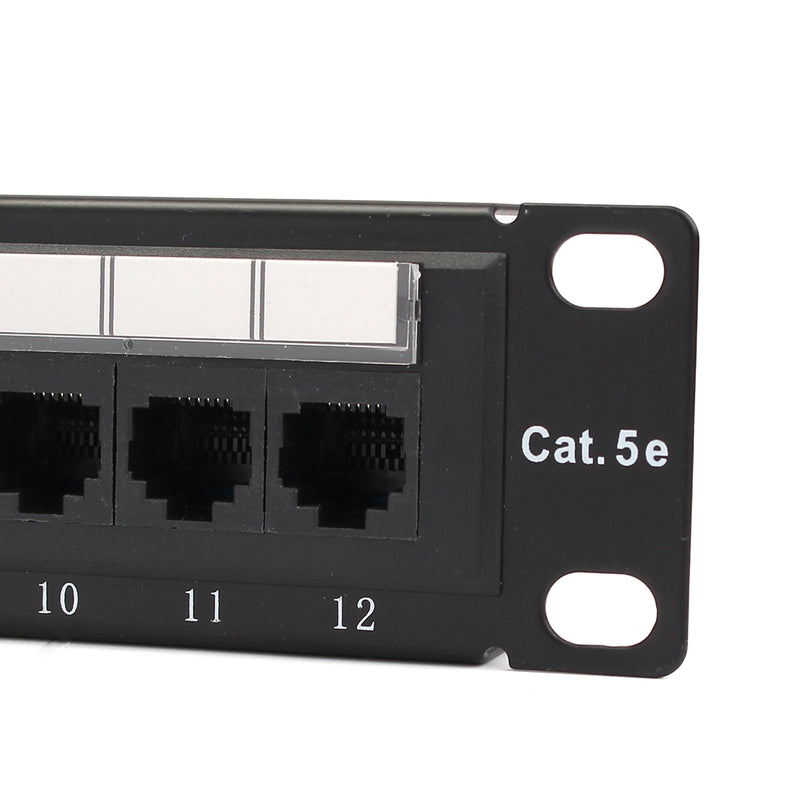

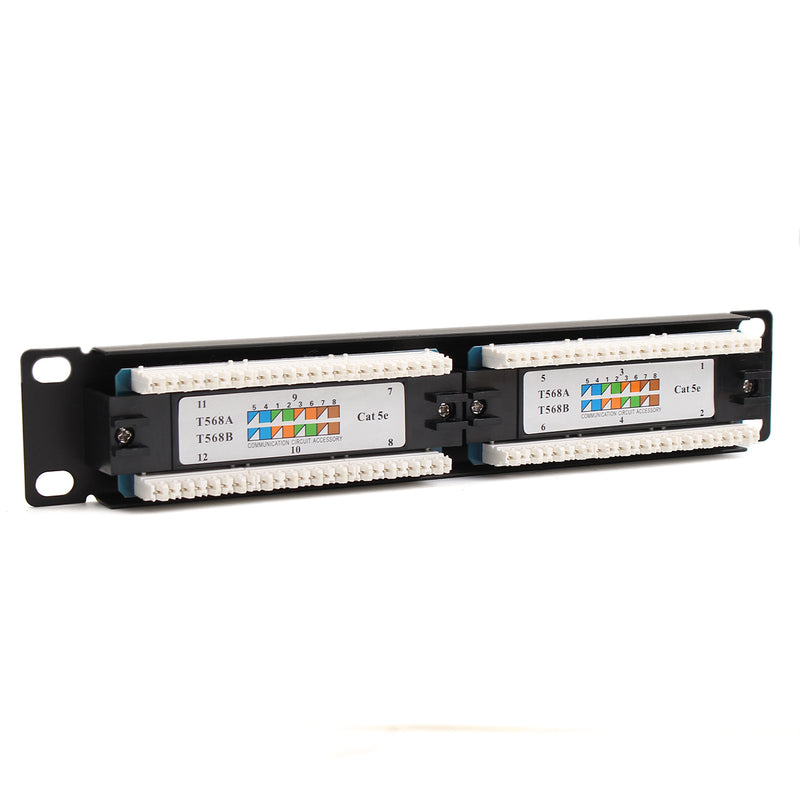

#1: Cat5e
#2: Cat6
Features:

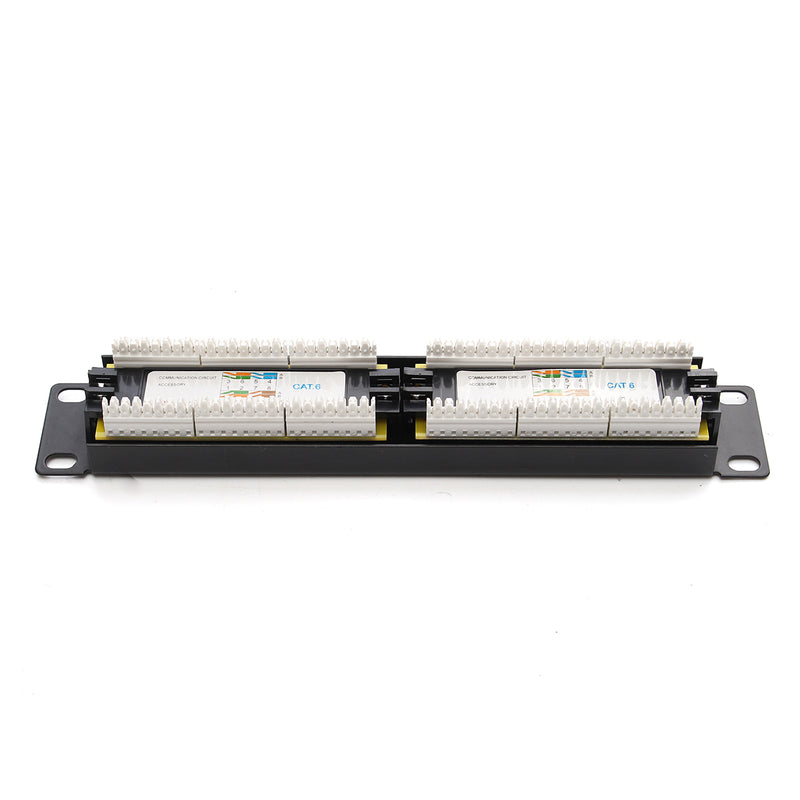

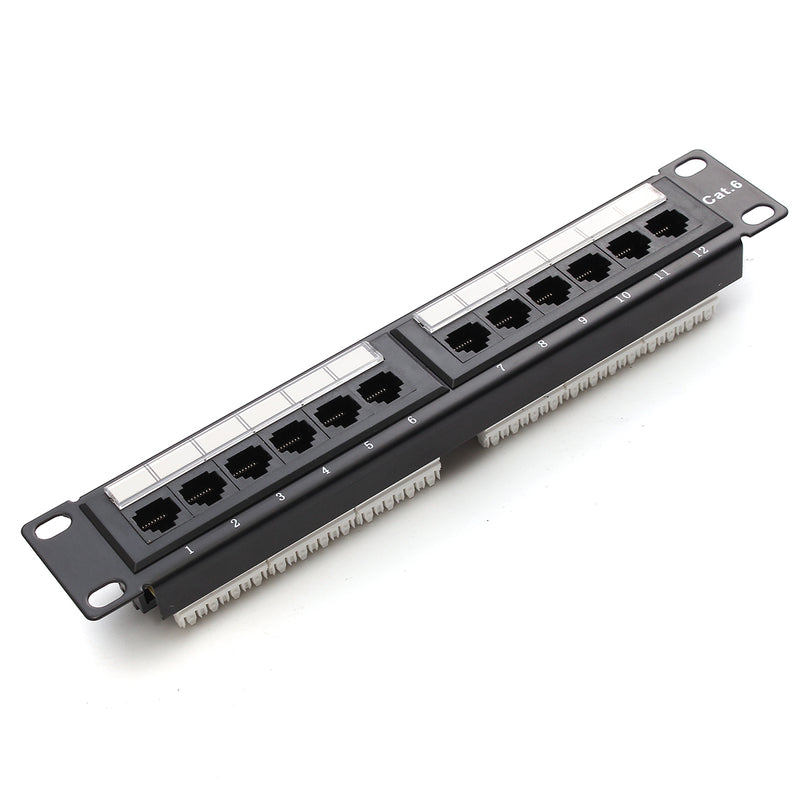

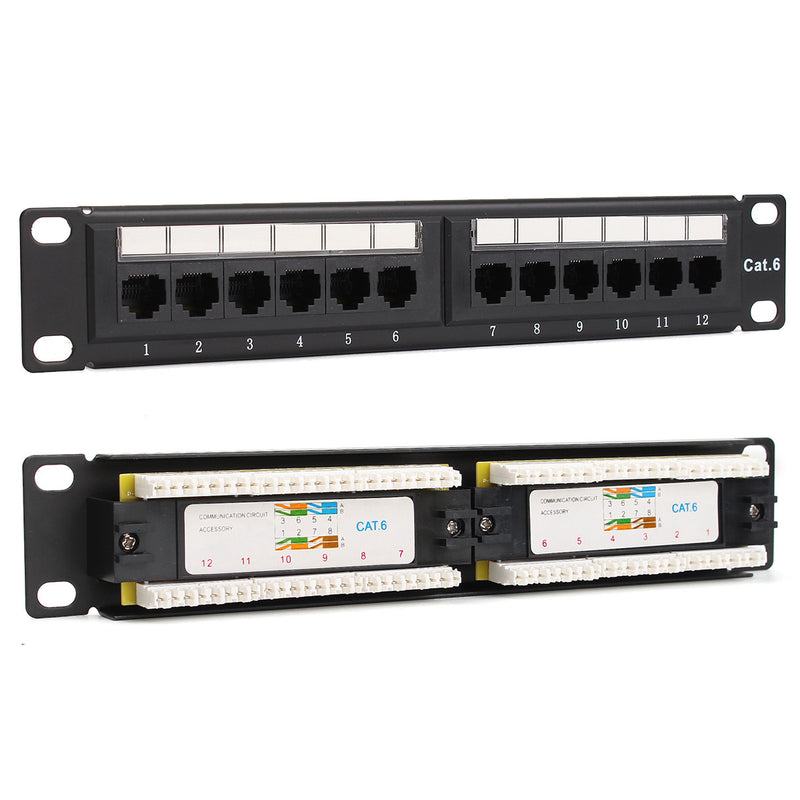

Cat6/Cat5e 12-port patch panel.
Rugged and easy to install design, reduce installation and operation costs, large positive identification space, easy port identification, easy to manage.
The surface is made of tin-plated die-casting process, which is totally enclosed and shielded to effectively prevent electromagnetic interference.
Package Included:
1 x Cat6 12-port patch panel

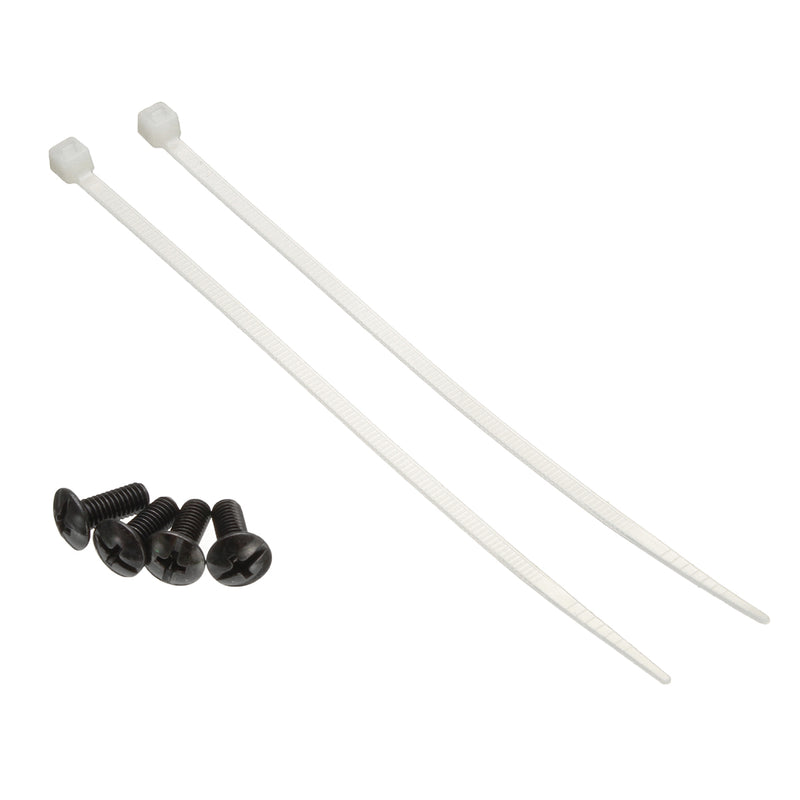

1 pack Screw & Cable Ties
More Details:
