Specifications:

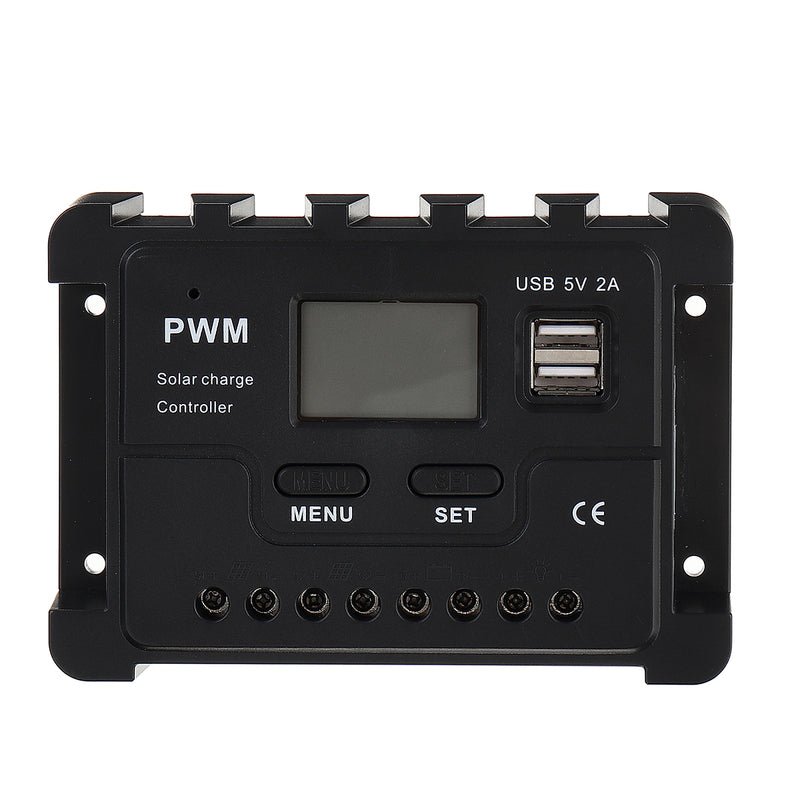

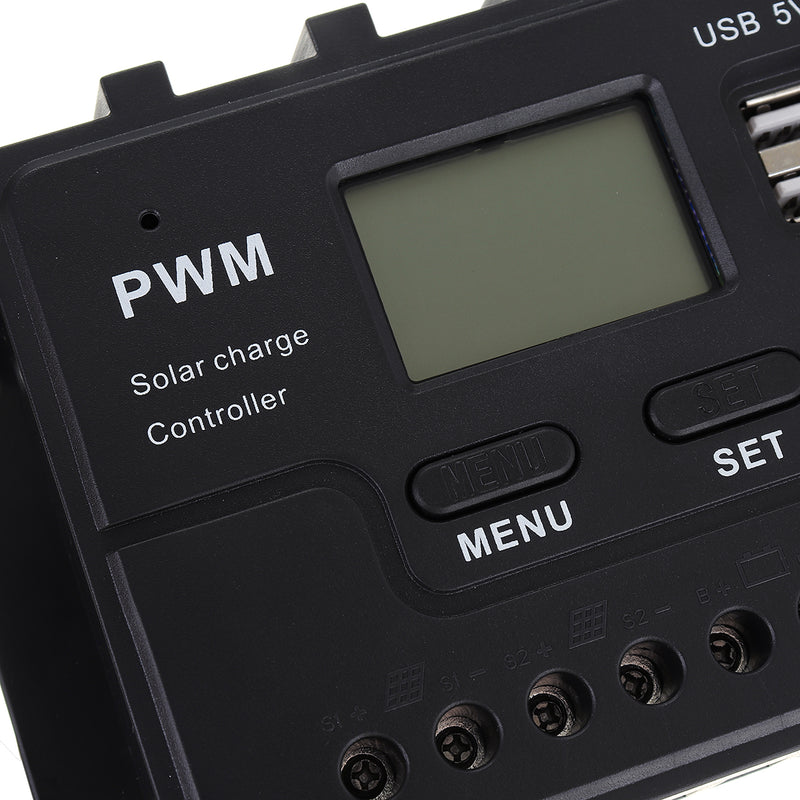

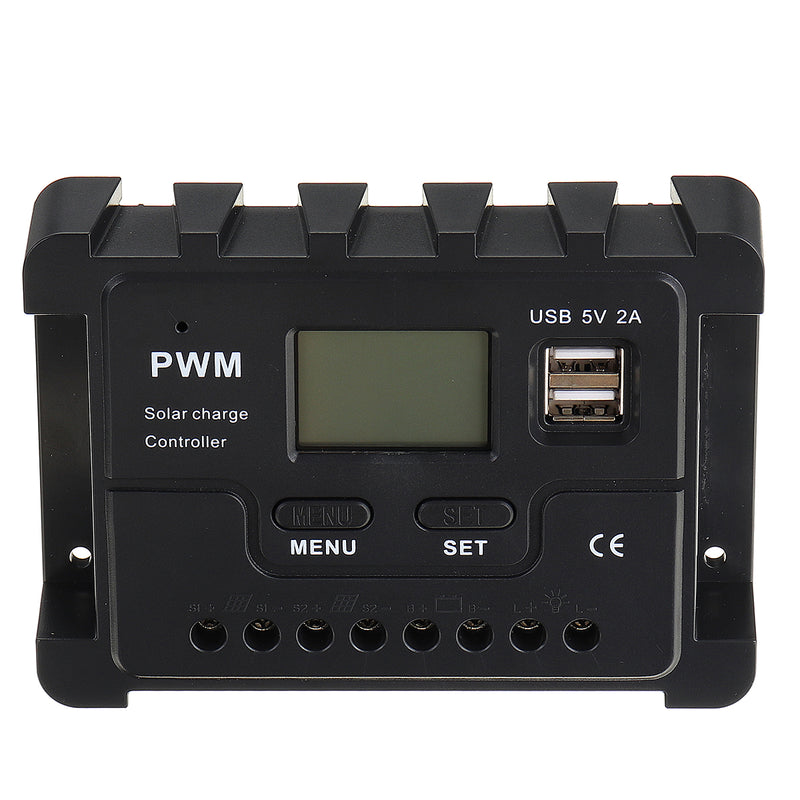

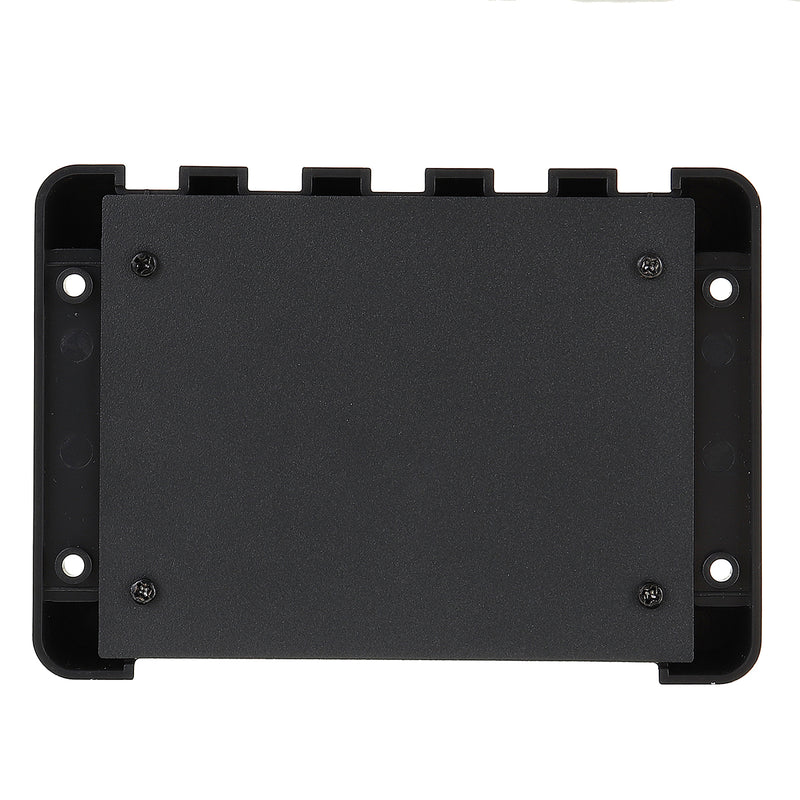

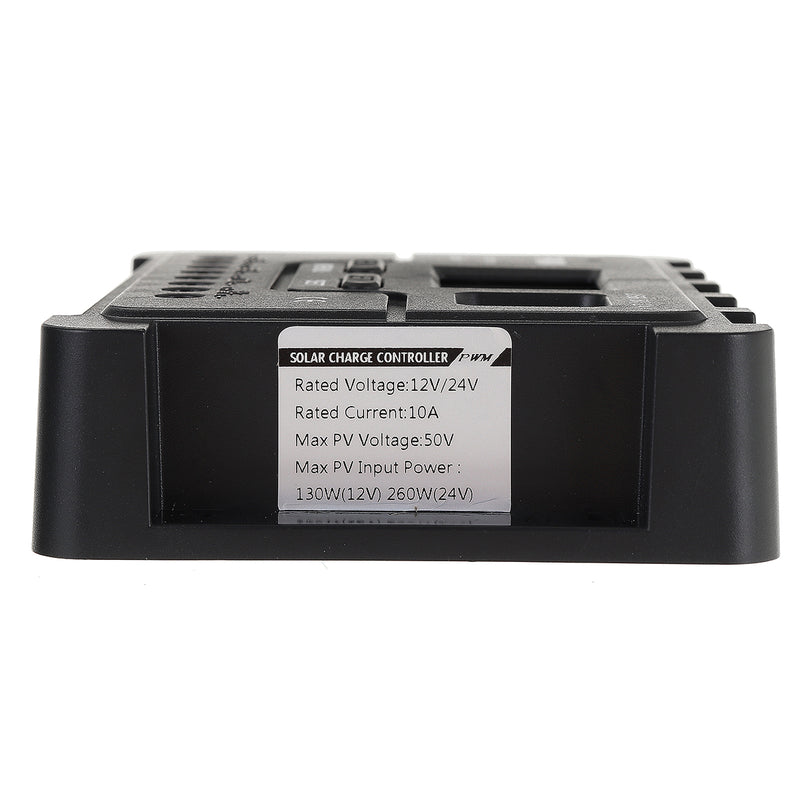

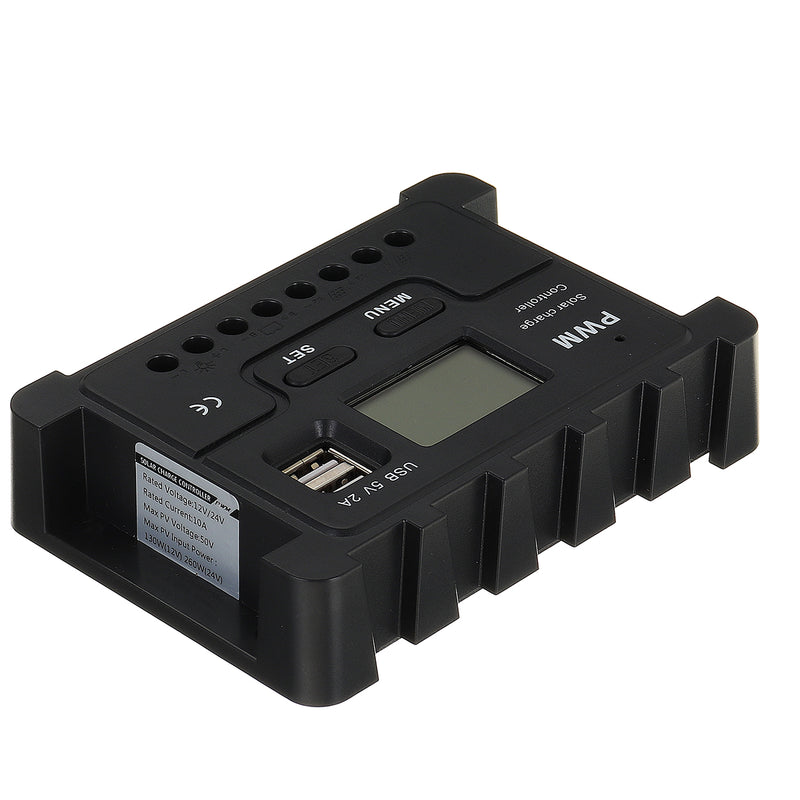

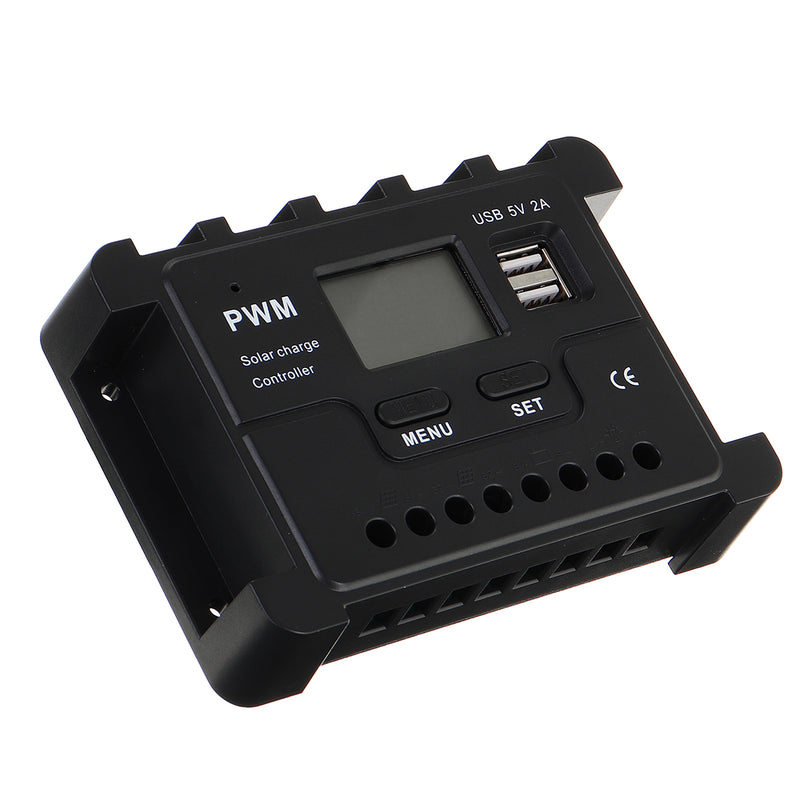

Product Name: 12V / 24V Solar Controller PWM Controller Charge Controller Dual USB
Material: PVC
Color: Black
Rated Charge: 10A/20A/30A
Voltage: 12/24VDC Auto
Maximum Generating Current:5A
Max PV Voltage: 50V
Max PV Input Power: 130W(12V)/260W(24V)
Size: 13.5*9 cm/ 5.31* 3.54"
Waterproof Level: IP30
Charging Mode:PWM
Features:
- Build-in industrial micro controler
-3-Stage intelligent PWM charging:Bulk,Boost,Float
-Support 4 charging options:Sealed,Gel,Floooded and User
-LCD display design,dynamically displaying device operating data and working condition

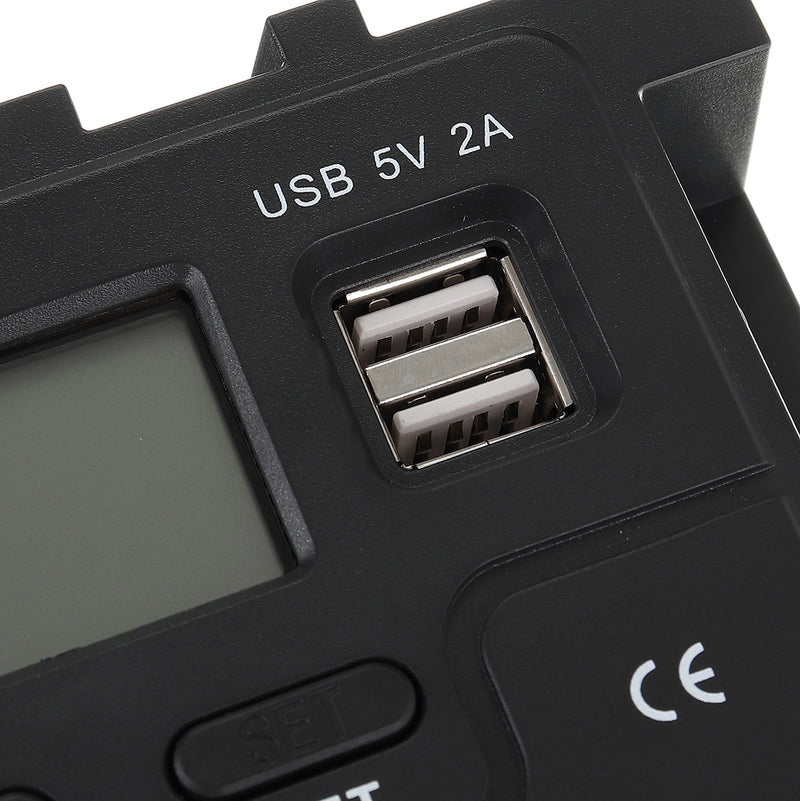

-Dual USB design,the power supply charge for electrionic equipment
- Build- in short-circuit protection,open-circuit protection,reverse protection,over-load proteciton
Package Included:
1 x Solar Controller
1 x Instructions
