Specification:
Material: ABS
Color: As shown
Size: 75*34.5mm
Weight: 105g

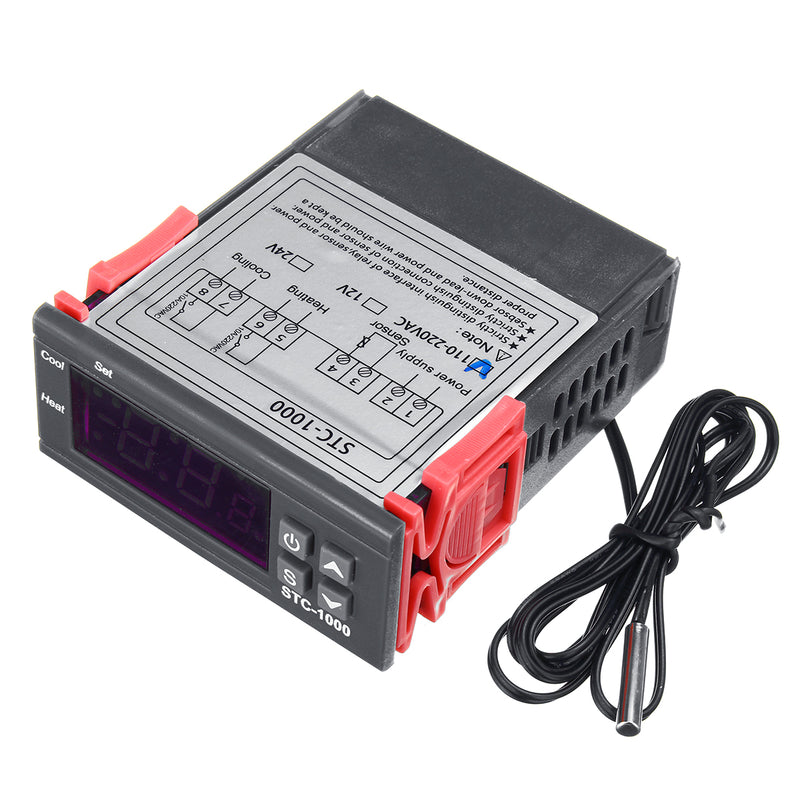

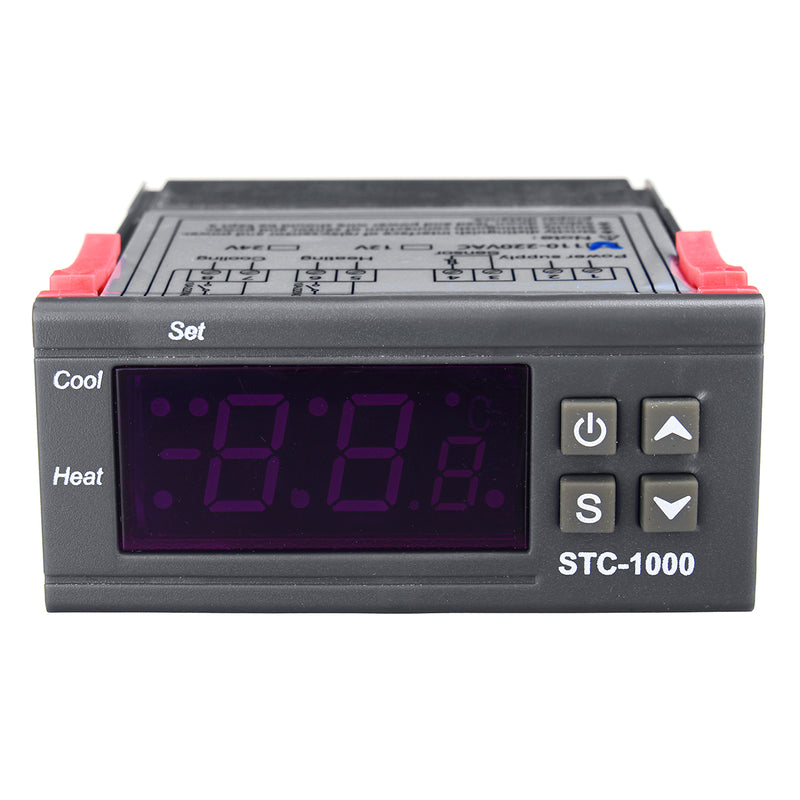

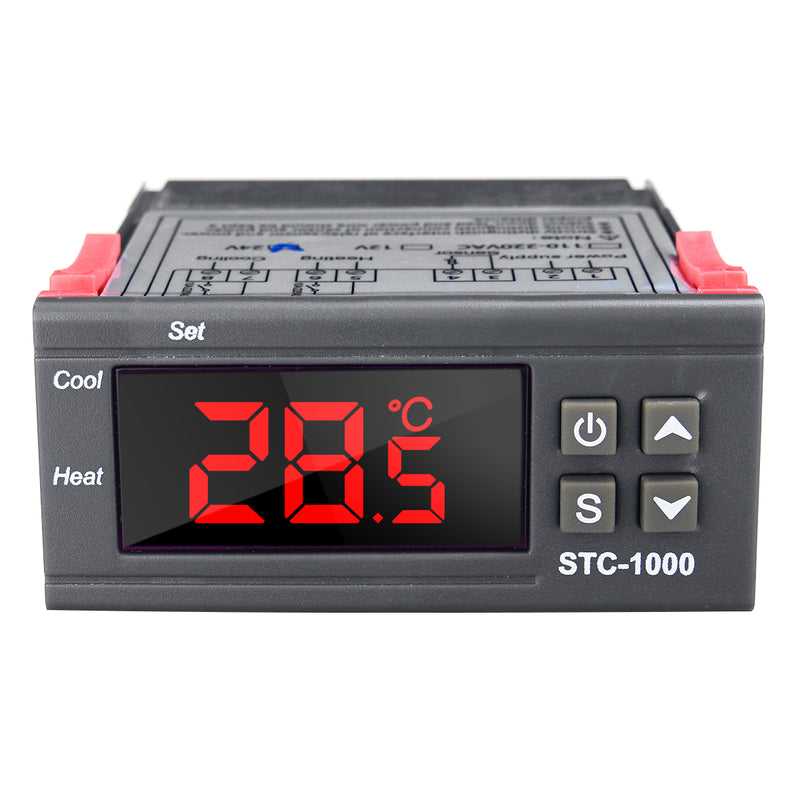

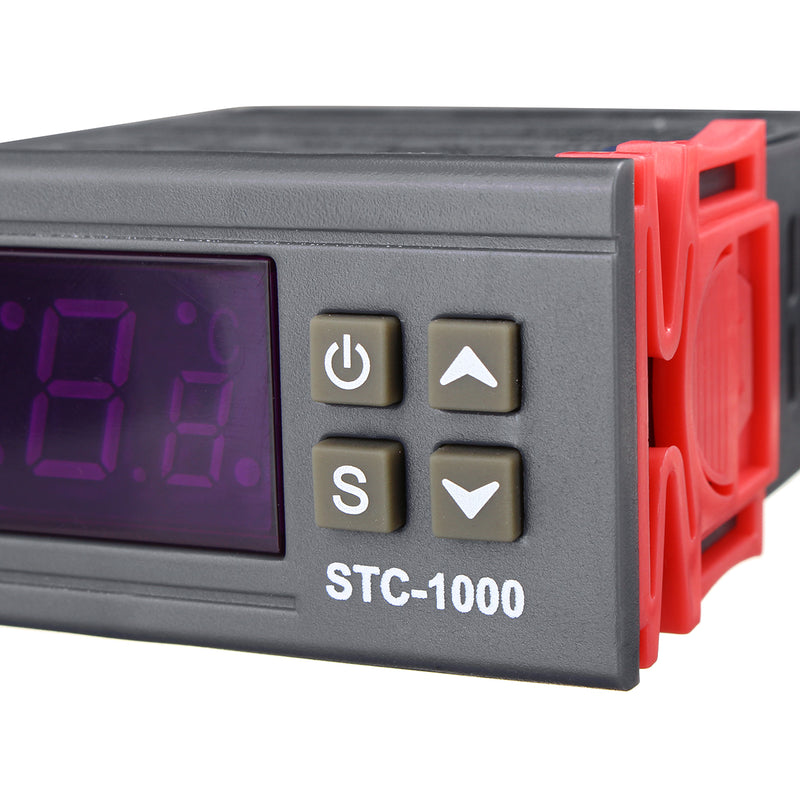

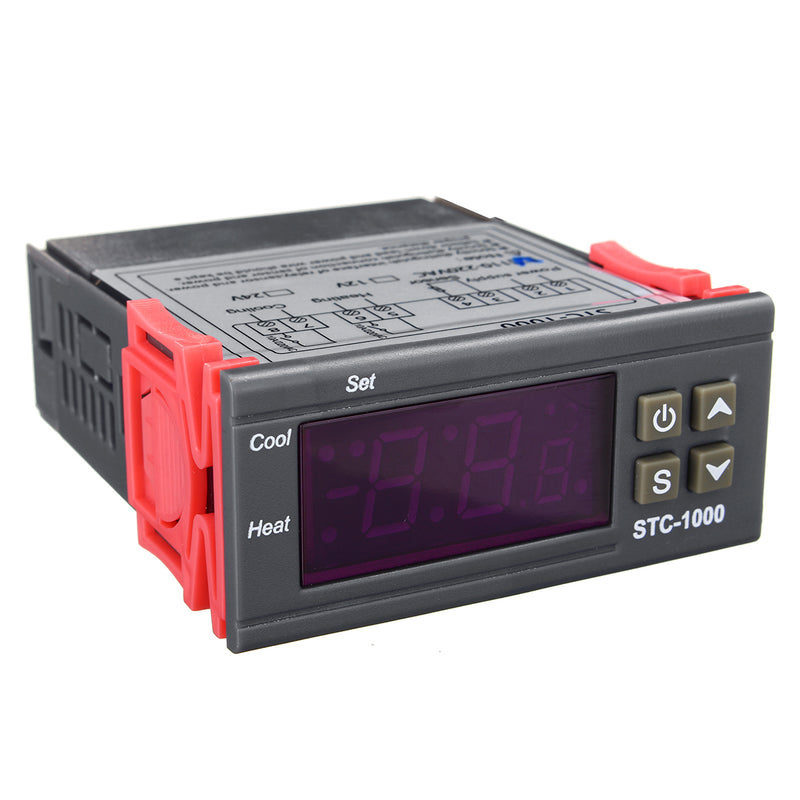

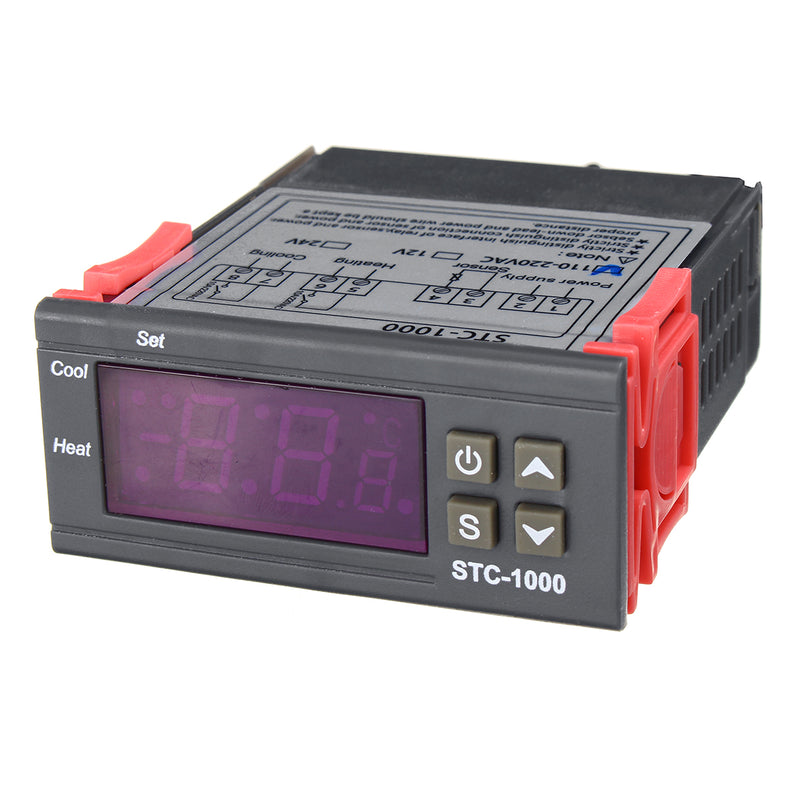

STC-1000--12V
Specifications:
Front Panel Size: 75(L)×34.5(W) mm.
Mounting Size: 71(L)×29(W) mm.
Product Size: 75(L)×34.5(W)×85(D) mm.
Sensor Cable Length: Approx 2m in all.
Specifications:
Temperature measuring range: -50~99℃.
Resolution: 0.1℃.
Accuracy: ±1℃ (-50~70℃).
Sensor error delay: 1 minute.
Power supply: 12V AC/DC.
Power consumption: 3W.
Sensor: NTC sensor (1Pcs).

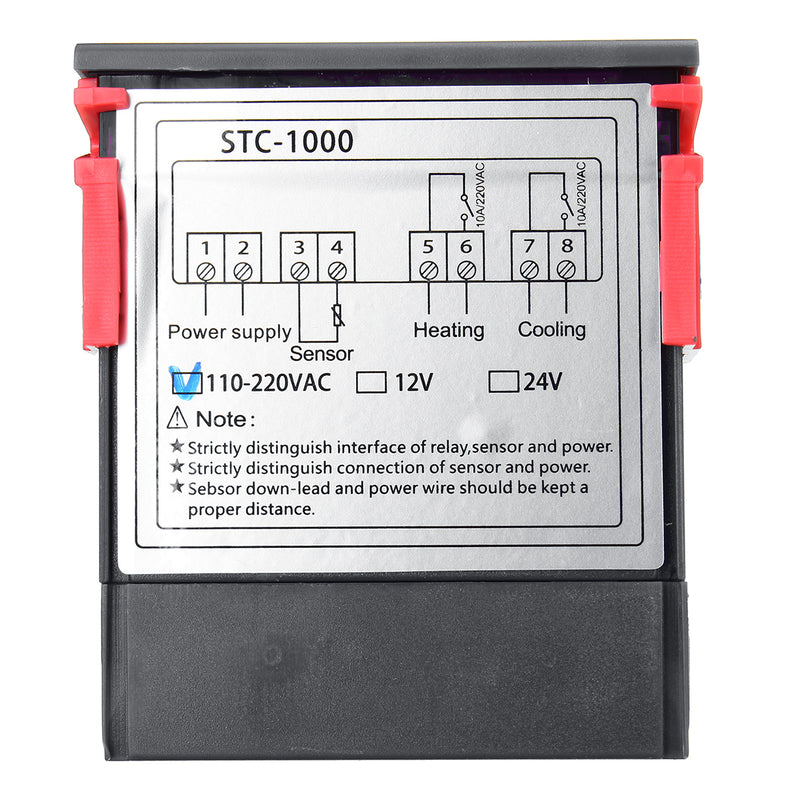

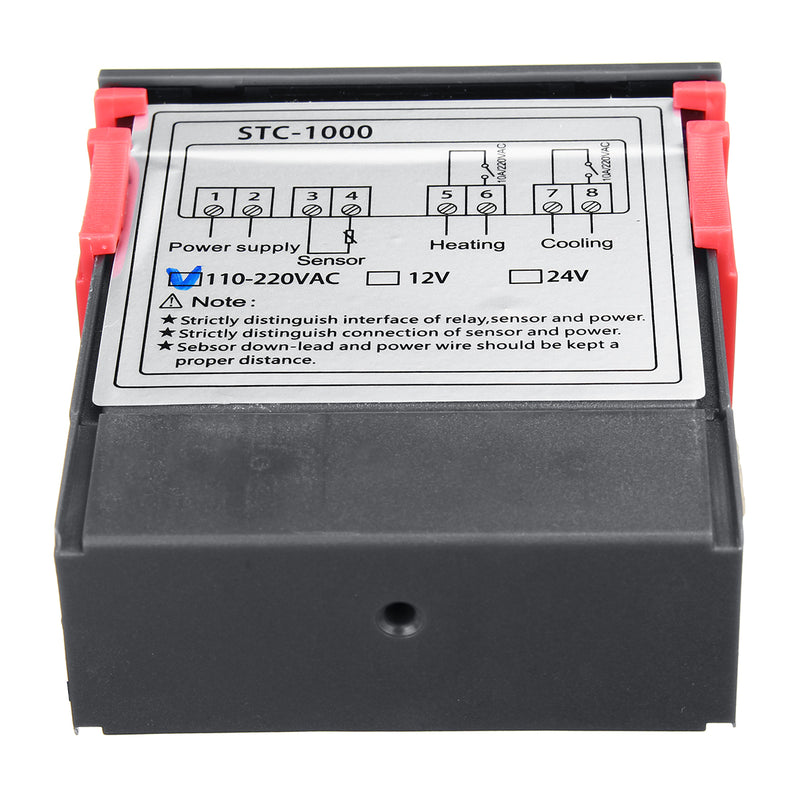

Relay contact capacity: Cool 10A/250VAC; Heat 10A/250VAC.
Ambient temperature: 0~60℃.
Storage temperature: -30~75℃.
Relative humidity: 20%~85% (No condensate).
