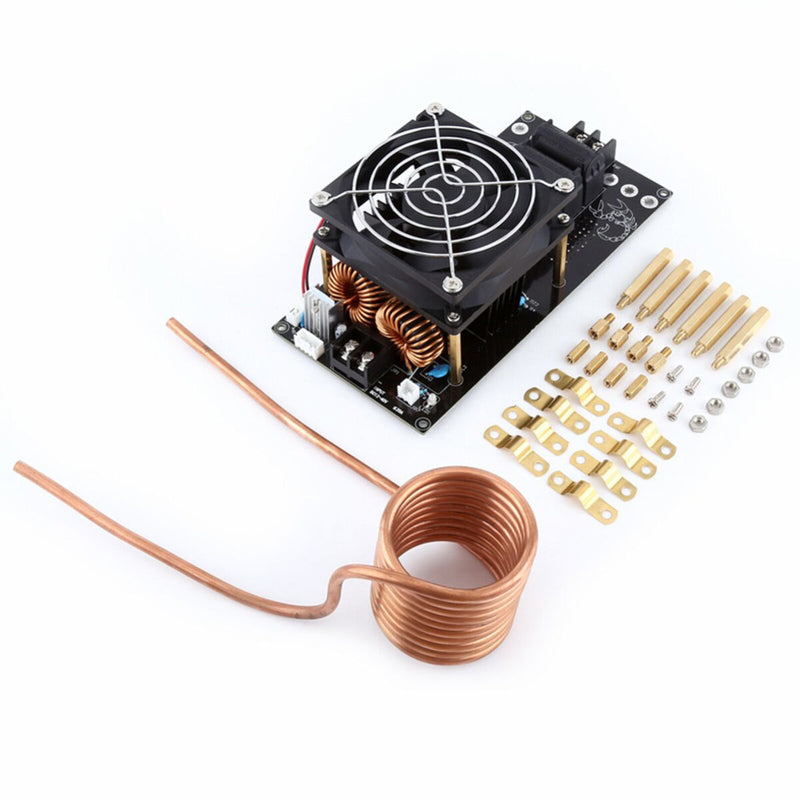

Item Name: 20A 1000W 12-36V Assembled ZVS Heating Module with Fan Coil Plate Module. Product Description

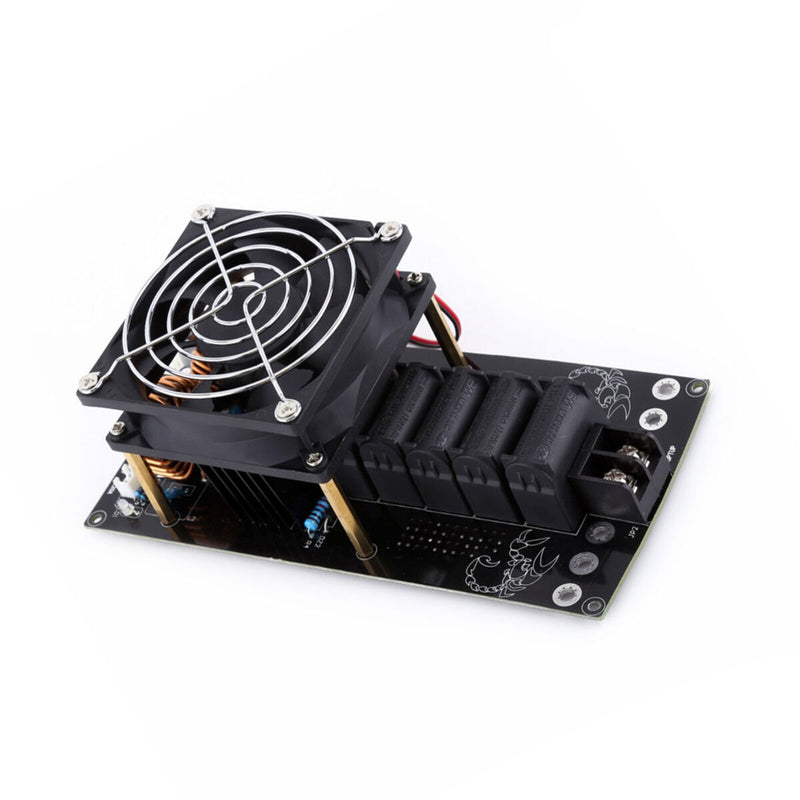

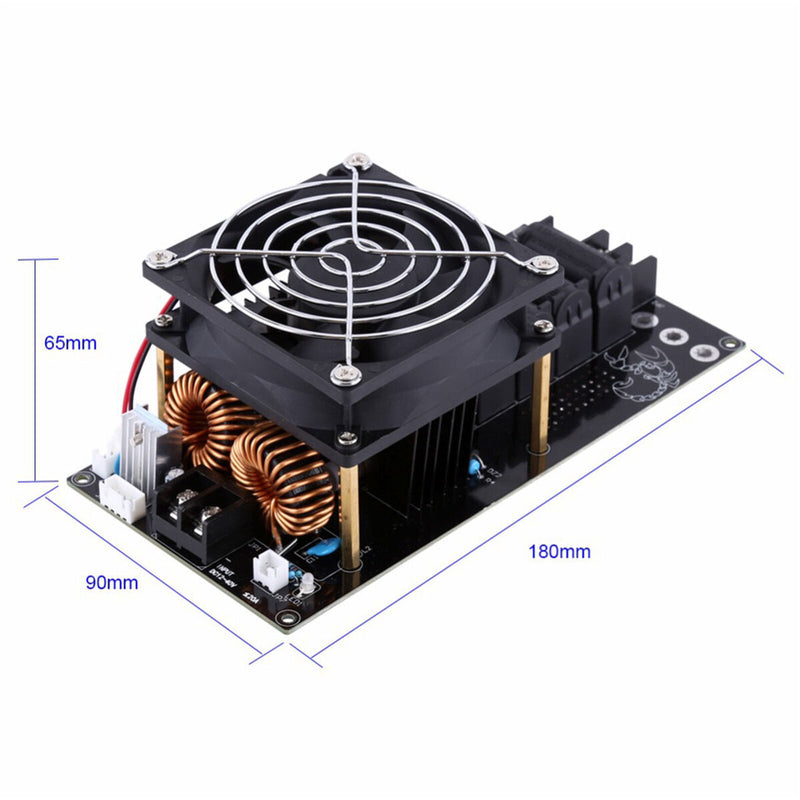

20A 1000W 12-36V Assembled ZVS Heating Module with Fan Coil Plate Module20A 1000W 12-36V Assembled ZVS Heating Module with Fan Coil Induction Heating Plate Module Cooling Fan KitDescription:lThis heating module uses a large PCB layout design which ensures a good heat dissipation and high power. lThere is a built-in cooling fan. lIt can work for DIY players and meet need for small parts quenching, annealing and other heat treatment. lIt can also be used with a graphite crucible to smelt gold, aluminum and other metals. lRapid and uniform heating is very convenient. lThe induction heating power supply is recommended to use more than 24V 10A switching power supply. lThe greater the voltage, the greater the current, the greater the heating power, the faster the heating rate.Feature:lHeating plate with large PCB design, component layout is sparse to heat dissipation.lPower line design can increase the current heat radiation and makes the board smaller and more stable.lAnti-static 42*35 large heat sink ensures a good heat dissipation effect.lThe output end of the three pillars of parallel and 300V/25A terminals, two output modes, easy to use under different requirements.lThe positioning hole and the positioning hole of the heat radiating fan of the board and the 9*9cm are exactly matched with the positioning hole of the board, and the 12V power supply is directly inserted on the board.Specification:lInput Voltage: 12V-36V ( Recommended 24V)lPower Requirements: Less than 12V 5A More than 15V 10AlAssembled Size: Approx. 90x180x65mm / 3.54x7.08x2.56"Package:l1x Assembled ZVSHeating Module with Fan
