Item Name: 230V Adjustable Digital Over Under Voltage Current Protective Limit (40A). Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

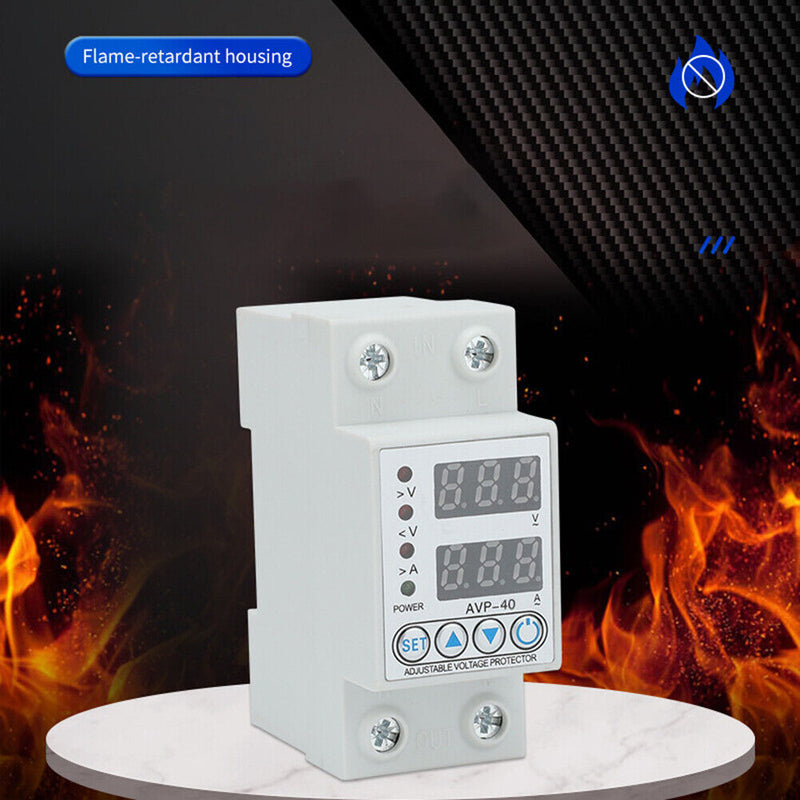

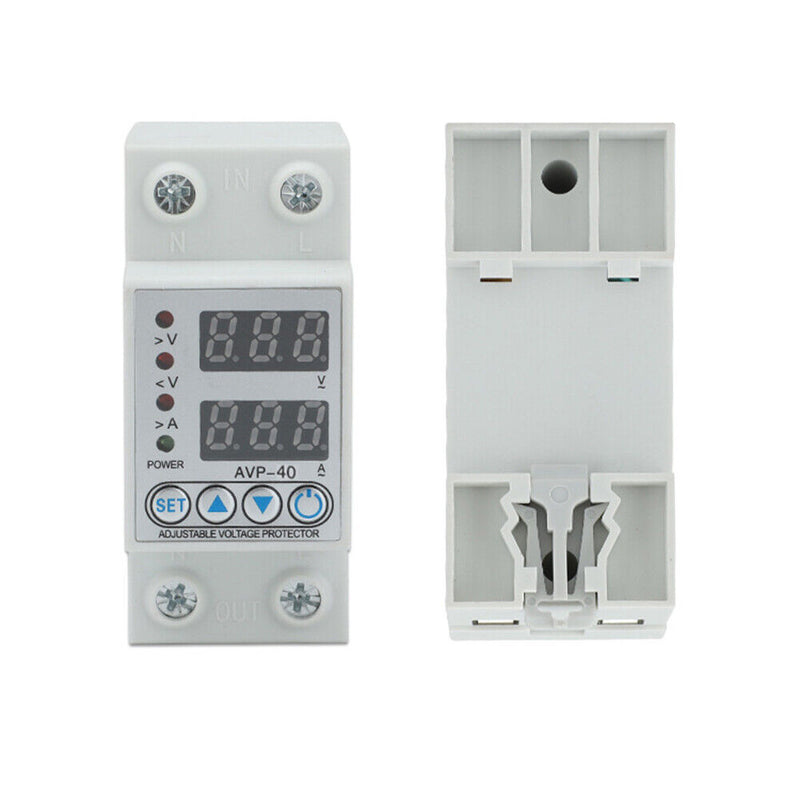

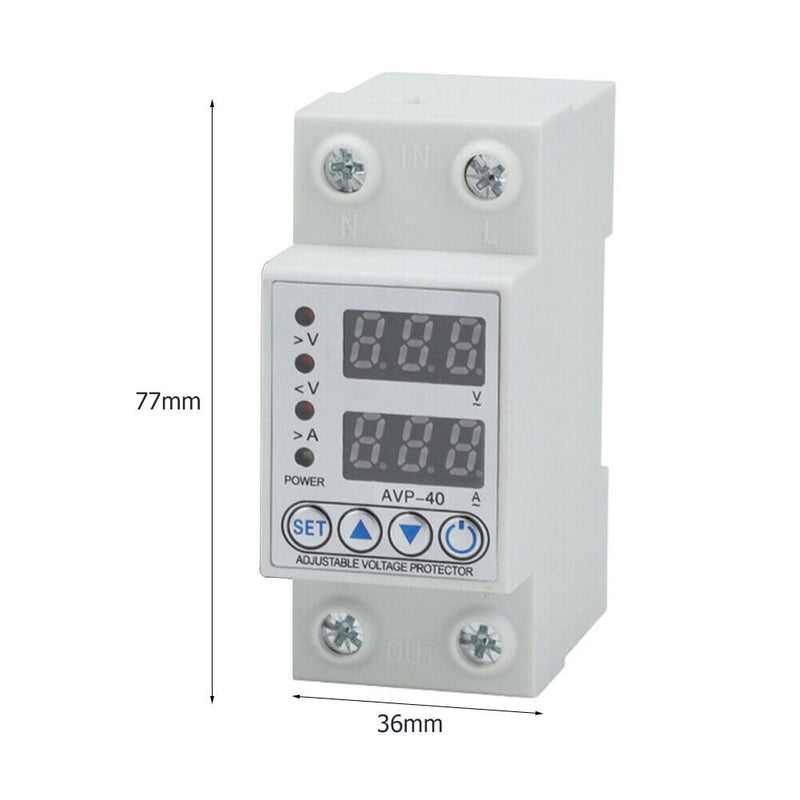

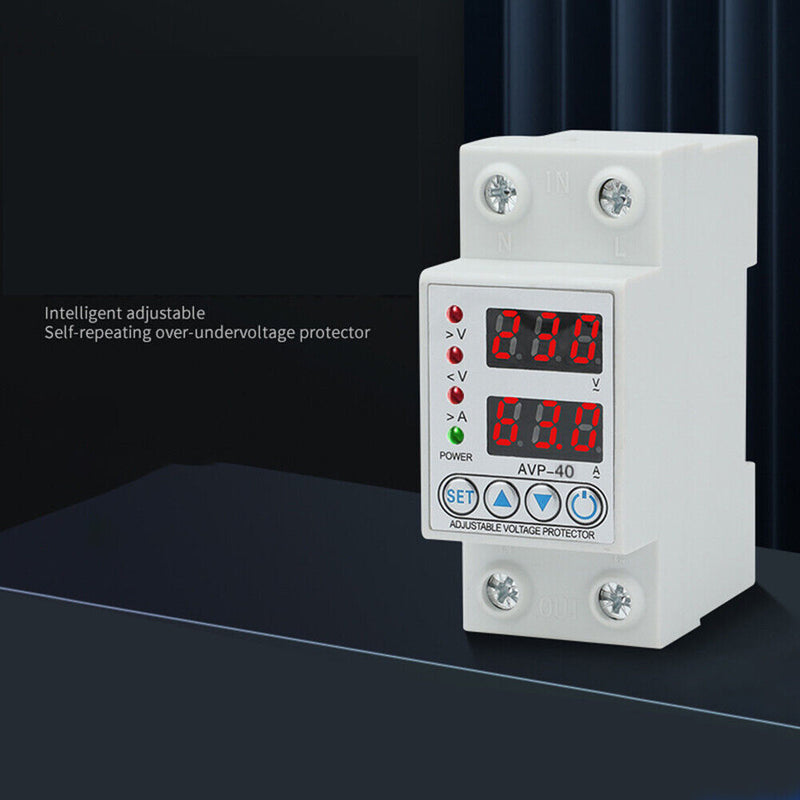

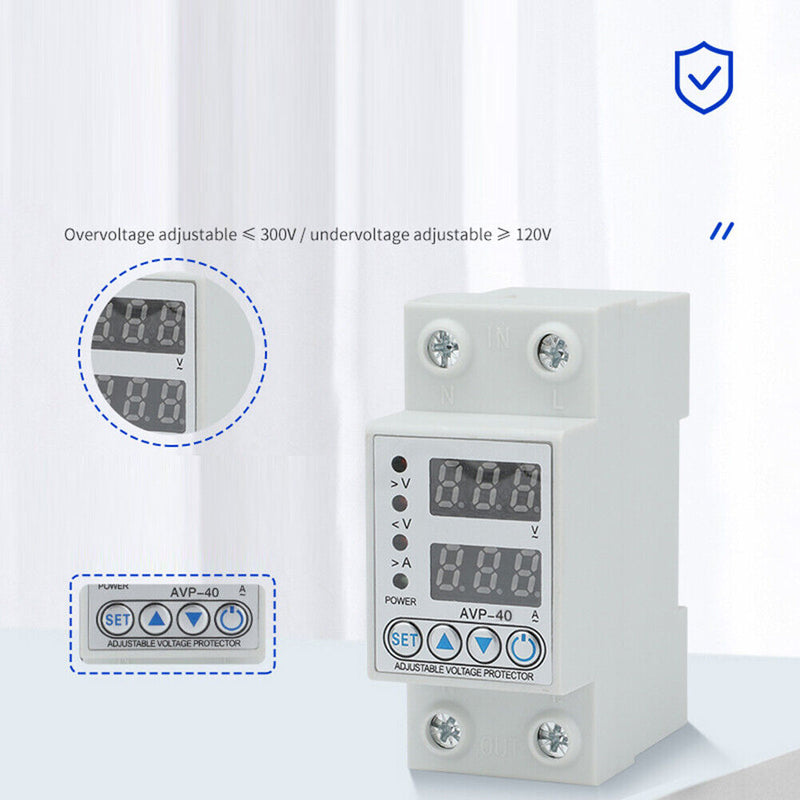

40A 63A 230V Adjustable Digital Over Voltage Current and Under Voltage Protective Device Protector Relay Current Protection Limit
Feature:
Wide range of applications, stable and reliable quality, and automatic functions are used in mass-produced household appliances.
Specification:
Rated voltage: 220V Frequency: 50Hz/60HZ
Overcurrent protection: 1A-40A/63A (adjustable) (default: 20A)
Undervoltage action shutdown value: 210V-145V (adjustable) (default 160V)
Overvoltage action shutdown value: 230V-300V (adjustable) (default value: 280V)
Reconnect time (delayed on time): 1s-300s (default: 5s)
Real-time current and voltage error: 5%

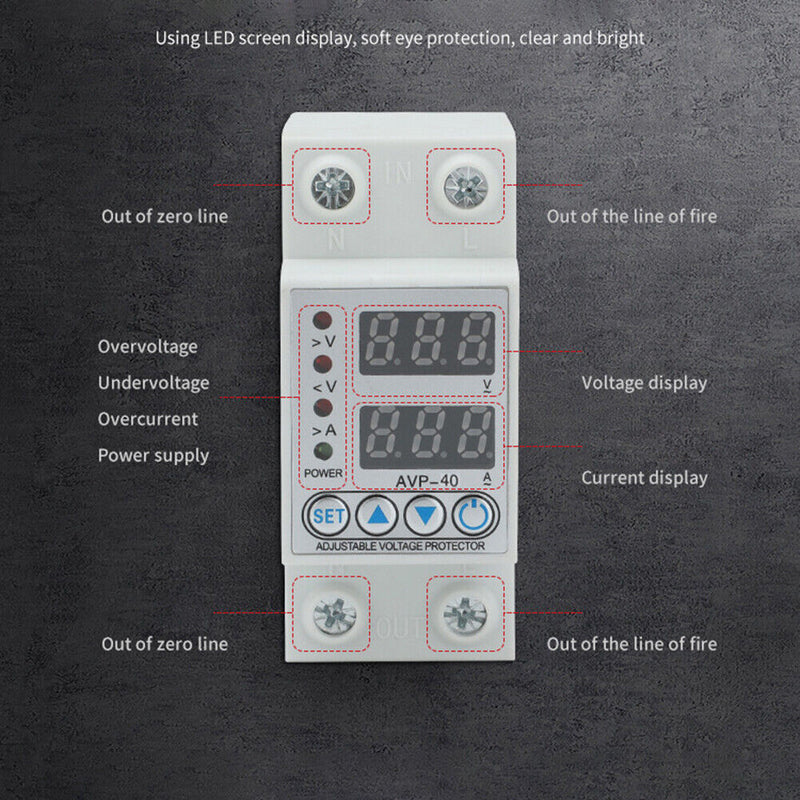

Function:
1. Undervoltage protection 210V-140V (adjustable) (default: 160V)
2. Overvoltage protection 230V-300V (adjustable) (default 280V)
3. Overcurrent protection 1A-40A/63A (adjustable) (default 20A)
4. Reconnection time (delay start time): 1s-300s (default: 5s)
5. Voltmeter
6. Ammeter
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
