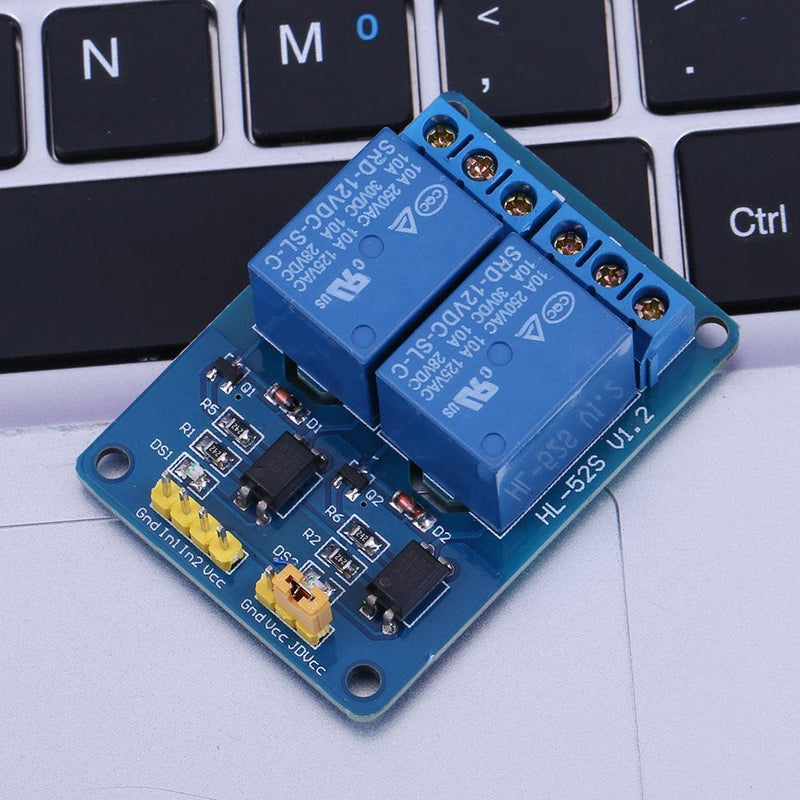

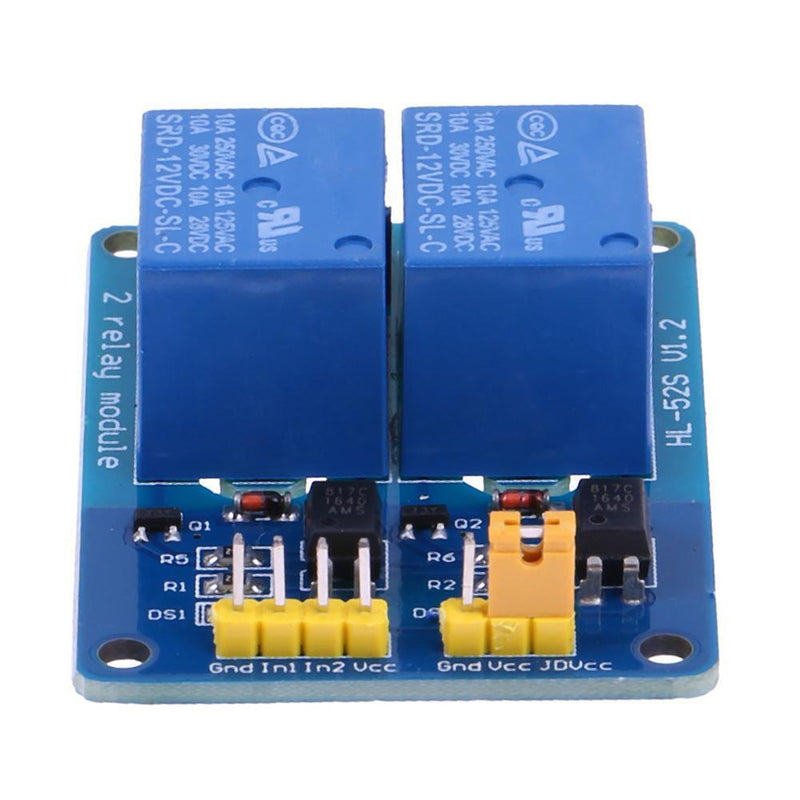

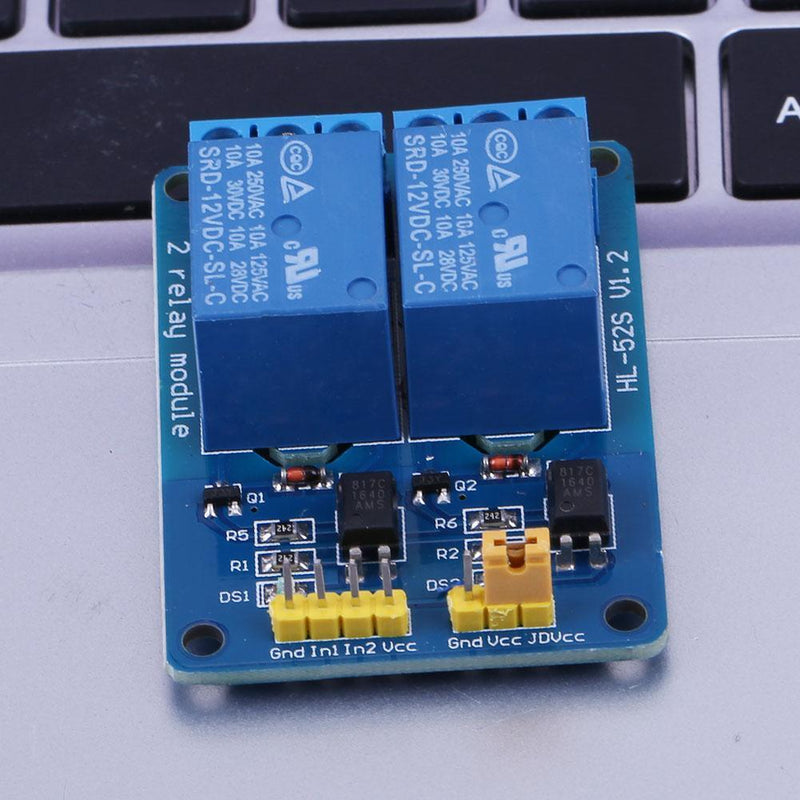

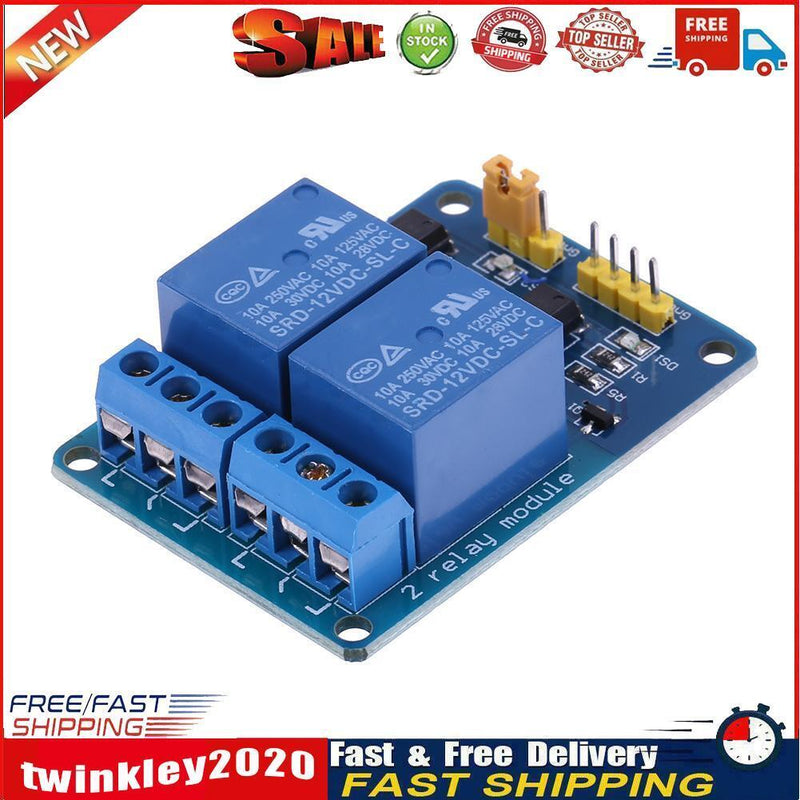

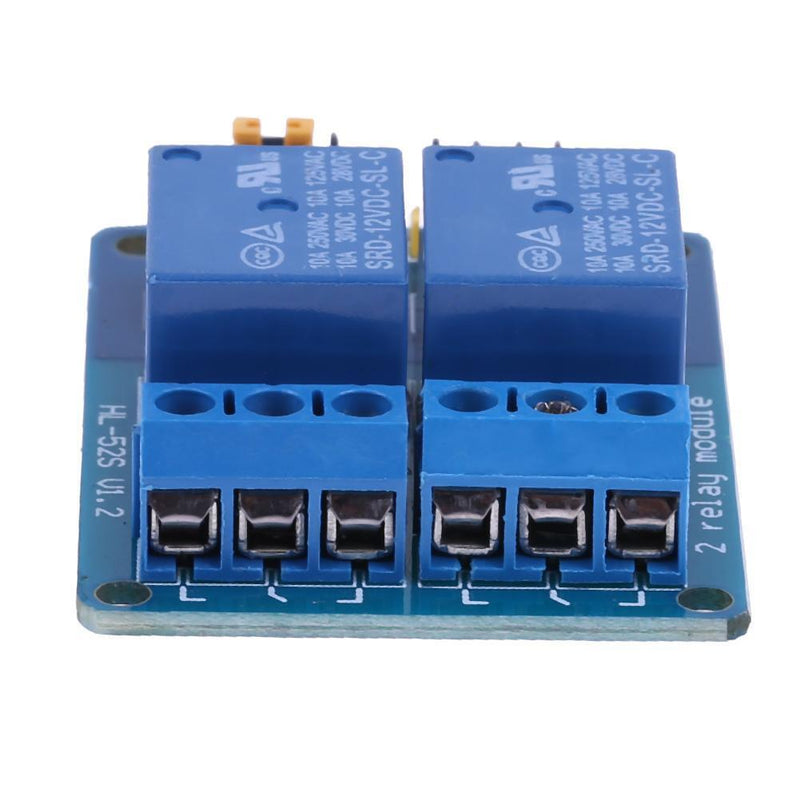

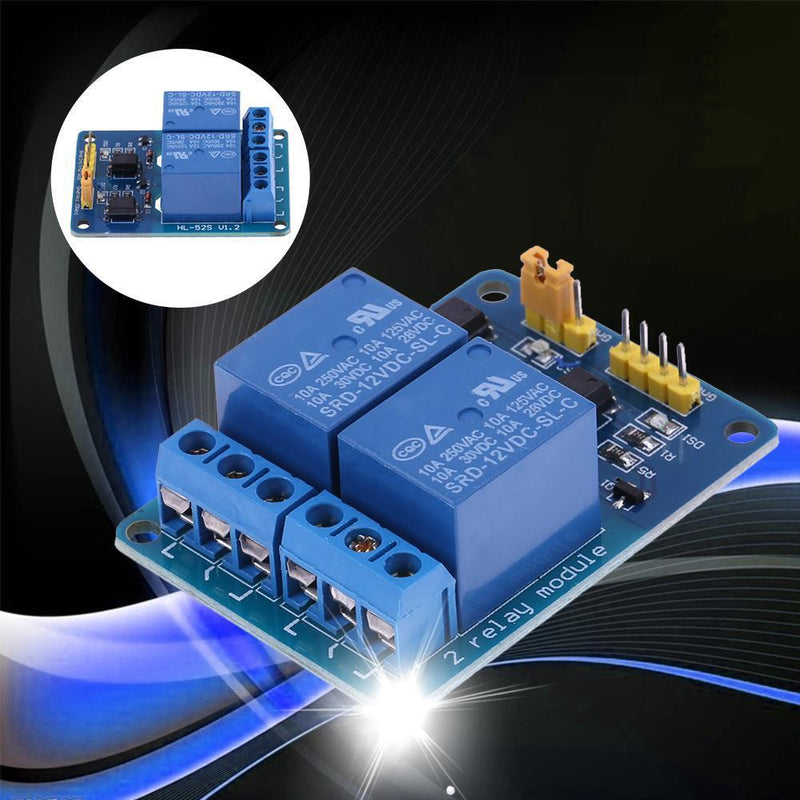

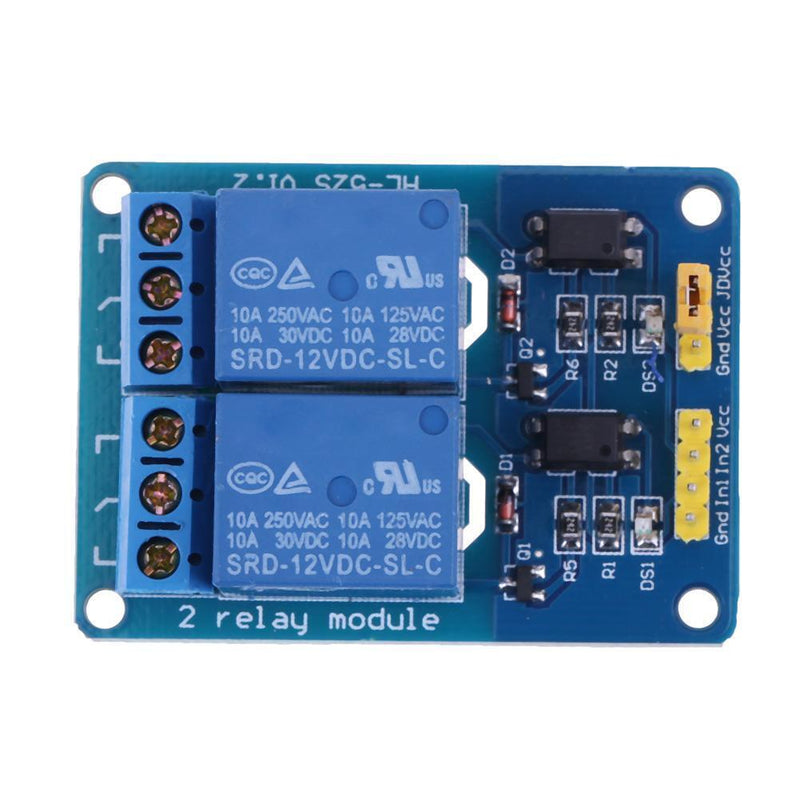

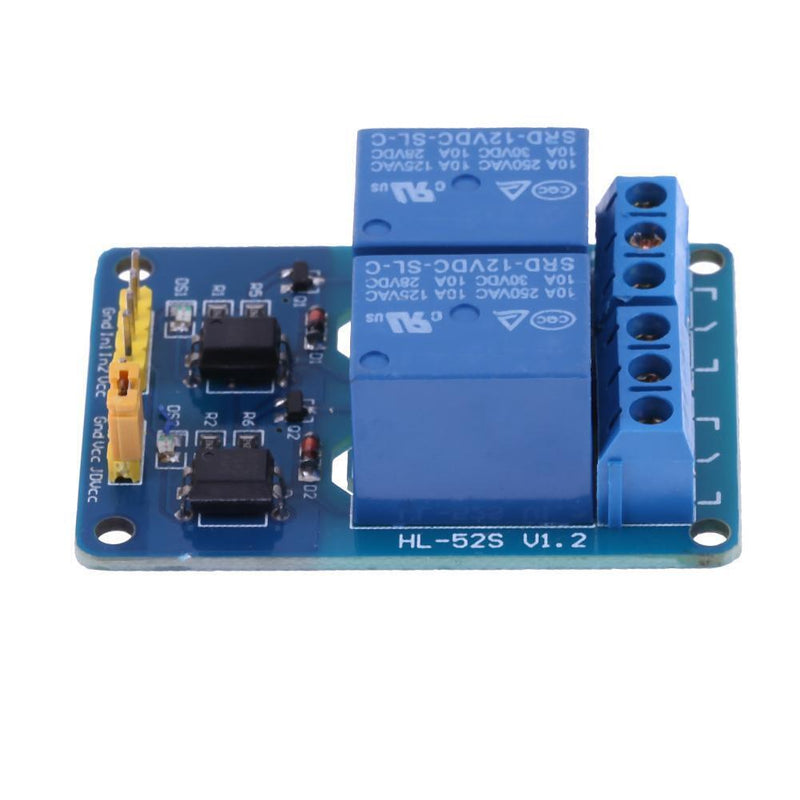

Item Name: 2CH 12V Relay Module with Optocoupler Insulating LED Light PLC Control Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Features:
With optocoupler insulating and PLC control.
Controls AC 250V 10A, DC 30V 10A.
Triode driver.
With holder screw holes for easy installation.
Small PCB Board: 53 X 40 X 18 mm/2.09 X 1.57 X 0.71 in
With red indicator light.
Low/High level trigger.
Ports:
Left:
JD-VC: Relay power port
VCC: Module power port
GND: Connect ground cord
Right:
VCC: 12V module power
GND: Connect ground cord
1N1-1N82: Relay control port
