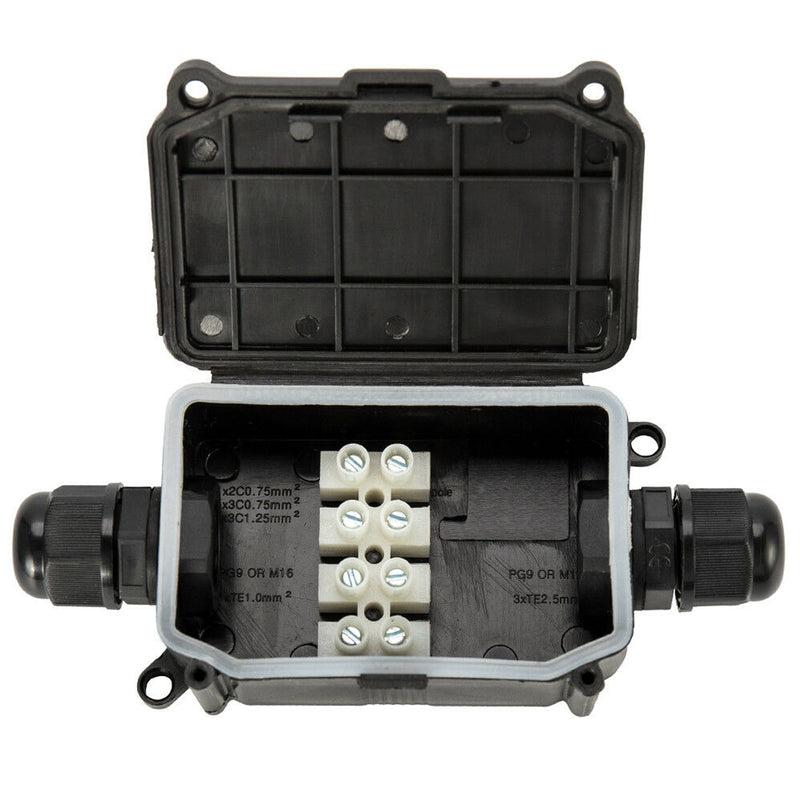

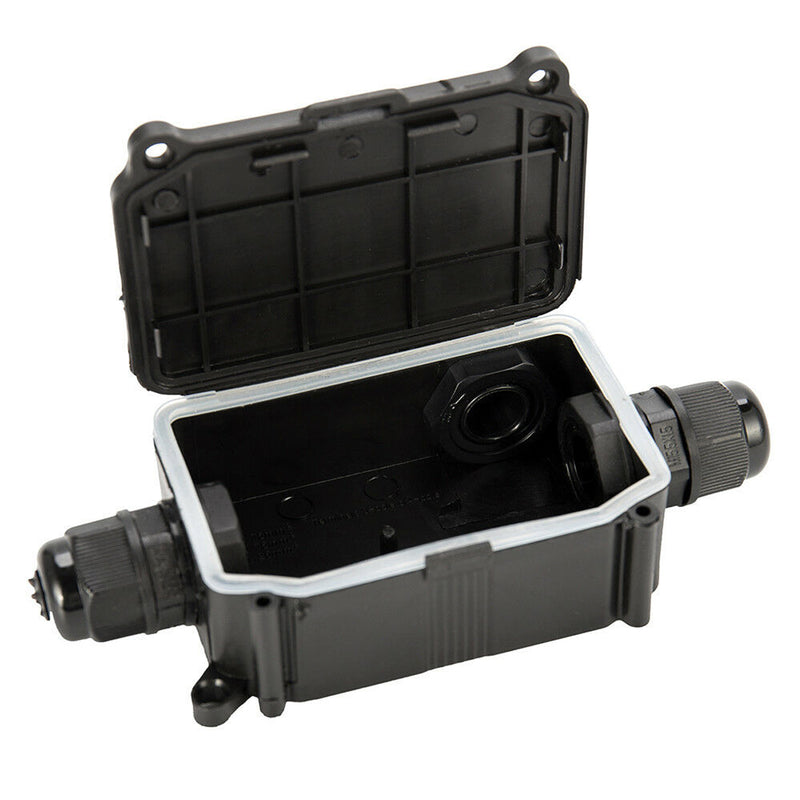

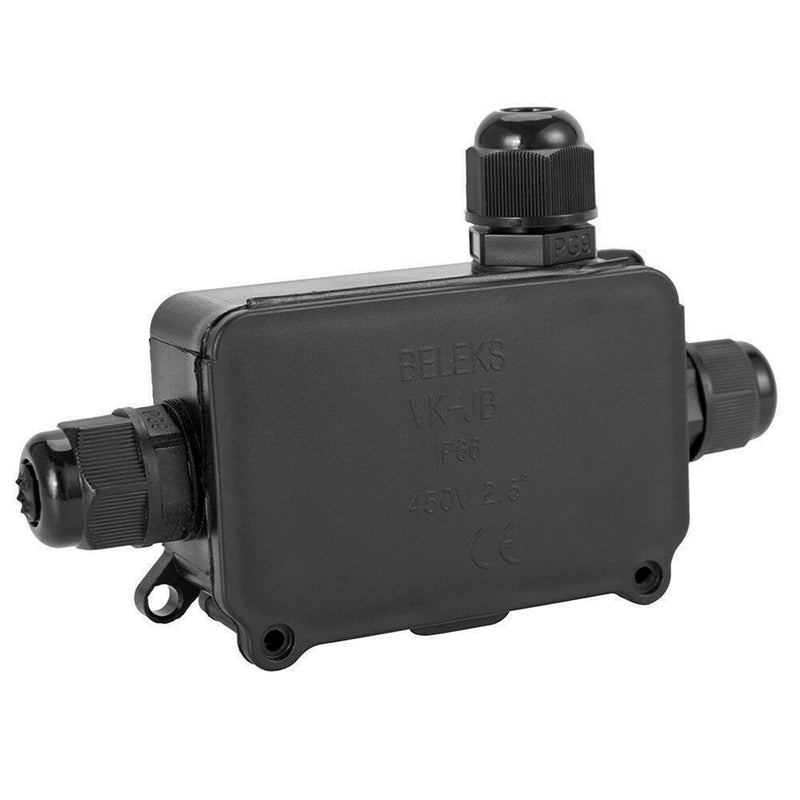

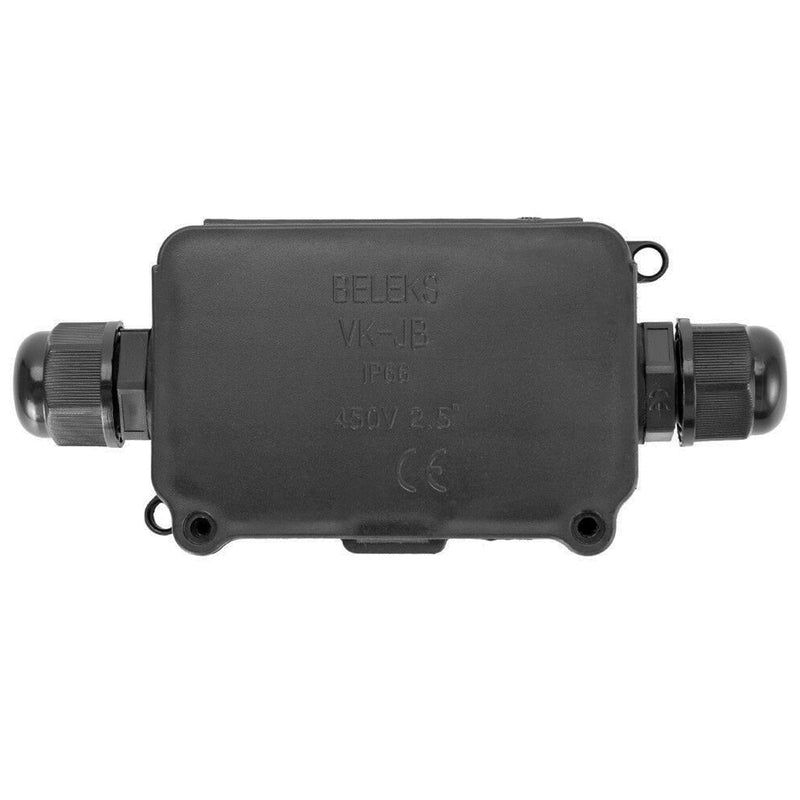

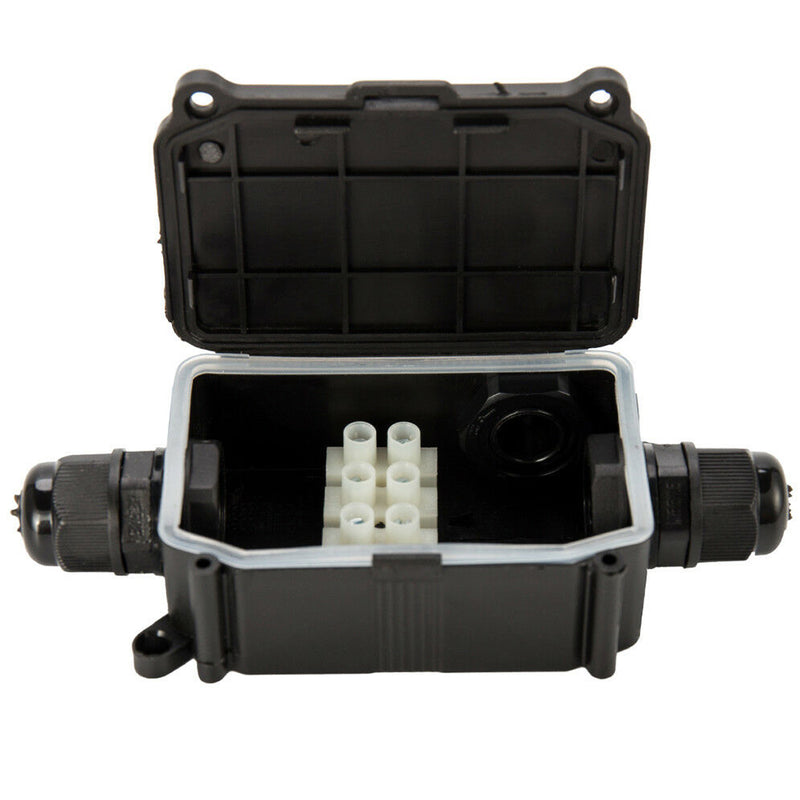

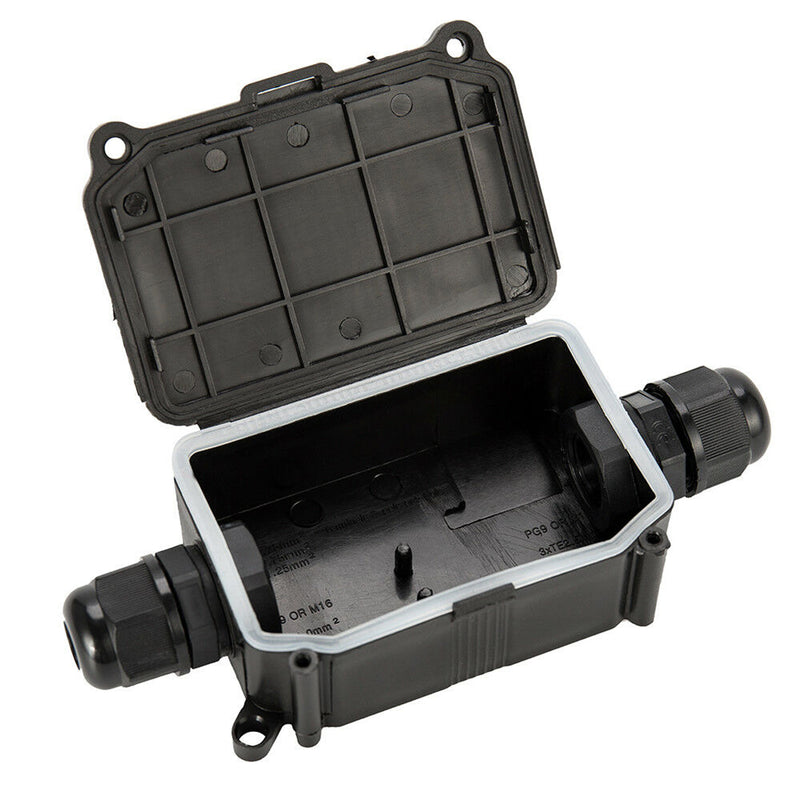

2/3 Way Outdoor Waterproof IP66 Underground Cable Connectors Junction Box
Specification:
Color: Matte Black
Waterproof: IP66
Optional Type: A: 2 Way / B: 3 Way
2 Way Size: 130 x 56 x 32 mm
3 Way Size: 130 x 80 x 32 mm

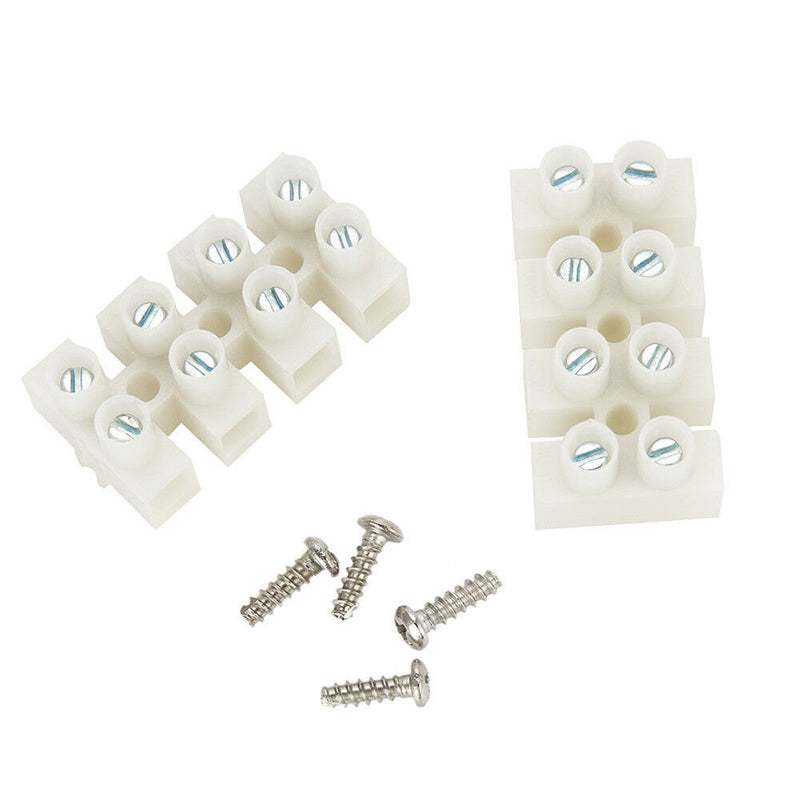

Matched Terminal: Standard P02 - D4/9
Electric Current: 16A
Voltage: 450V
Cable Diameter: φ 4mm ~ 8 mm
for Cable Max Dia: 5~10.5 mm
Relative Humidity: ≤90%
Working Temperature: -35℃~120℃
Storage Temperature: -25℃~85℃
Atmospheric pressure: 86~106KPa
Cable Connector Type: Screw Fixed
Use: Underground cable line connections, for outdoor lamps and lanterns connection
Features:

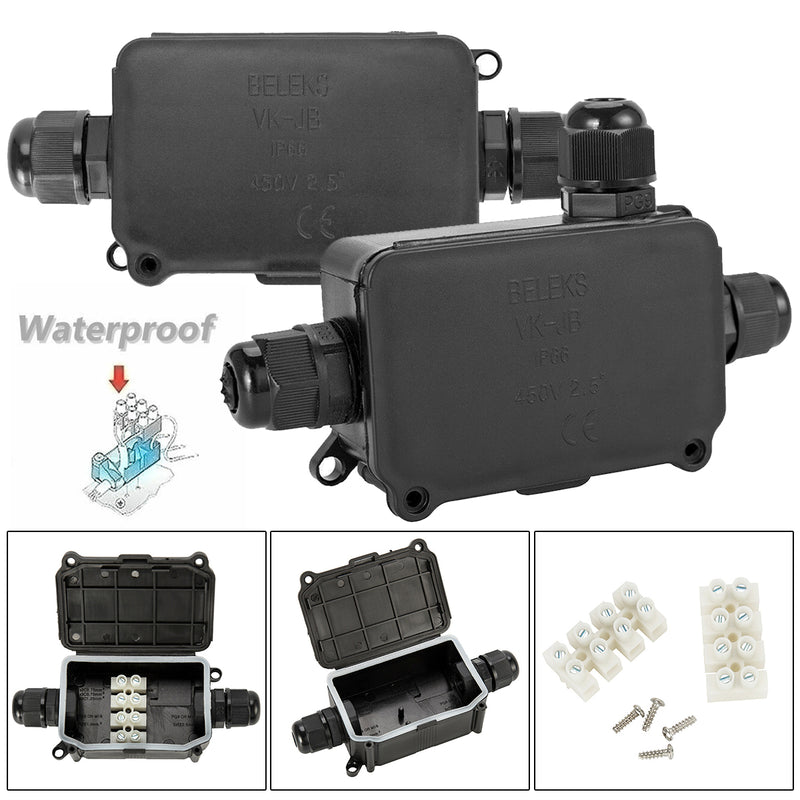

Available in 2 way and 3 way.
This will not crack or fade in Sunlight.
The junction box can easily be installed under the ground. Gives you full protection of the Cable Line.
It is used to install Outdoor lamps and lanterns connection, wiring is easy to operate, more convenient and safer.
The Junction Box IP66 is Waterproof and Weatherproof. This can be installed Horizontal and Vertical as external junction box to hide electrical connections around your home and any property.
Package Included:
1 x Waterproof Junction Box
Notes:
1.Manual measuring, please allow 1 ~ 5 mm error,thank you.
2.Please leave us a message about your prefer Type,or we will send by random.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.Please understand, thank you!
