Item Name: 3.7V to 12V DC-DC Step Up Board 5V/8V/9V/12V Output Lithium Battery Boost. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

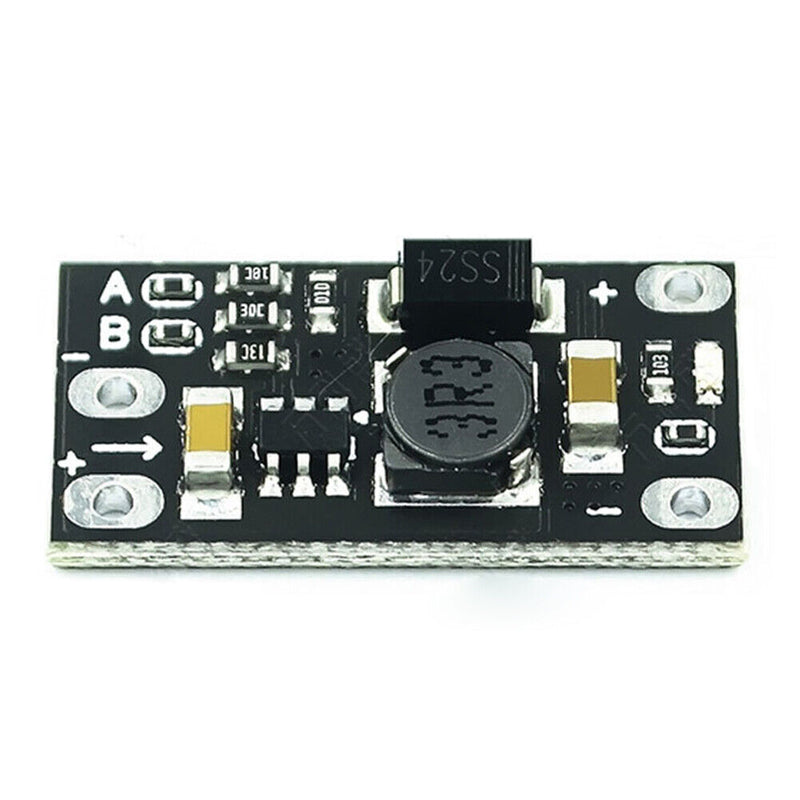

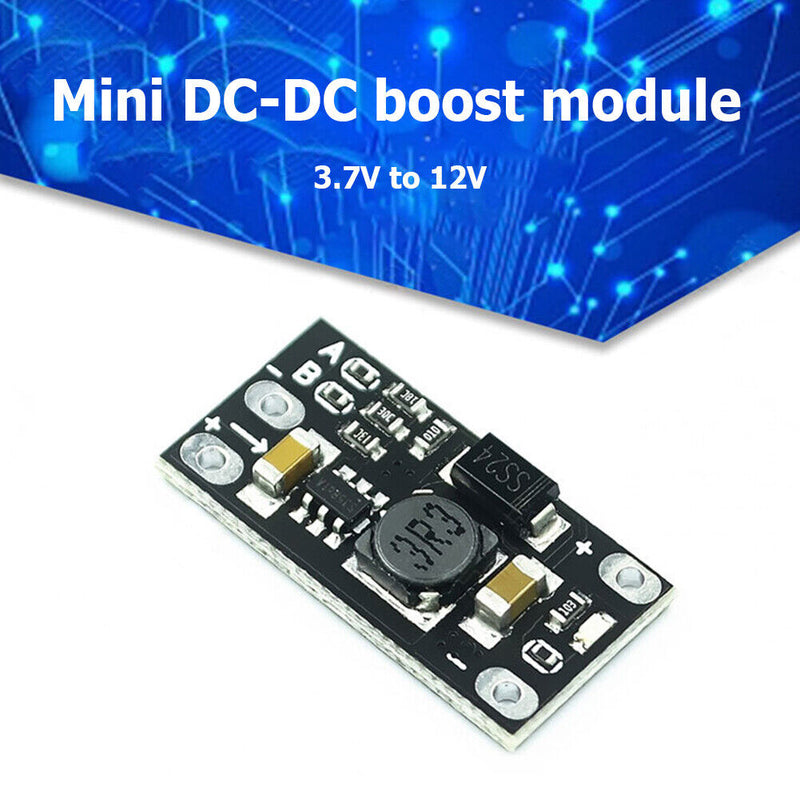

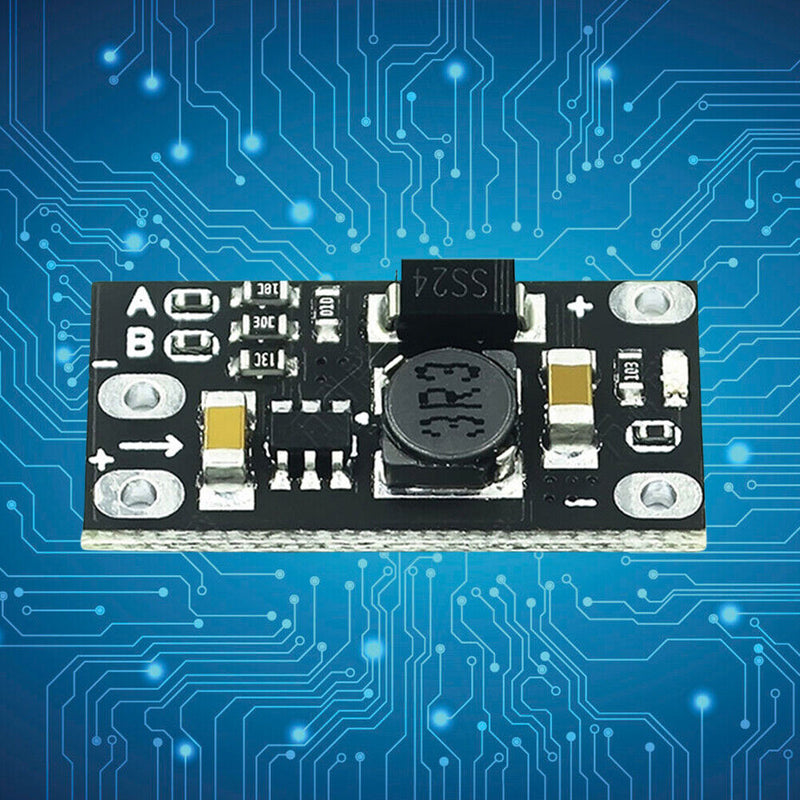

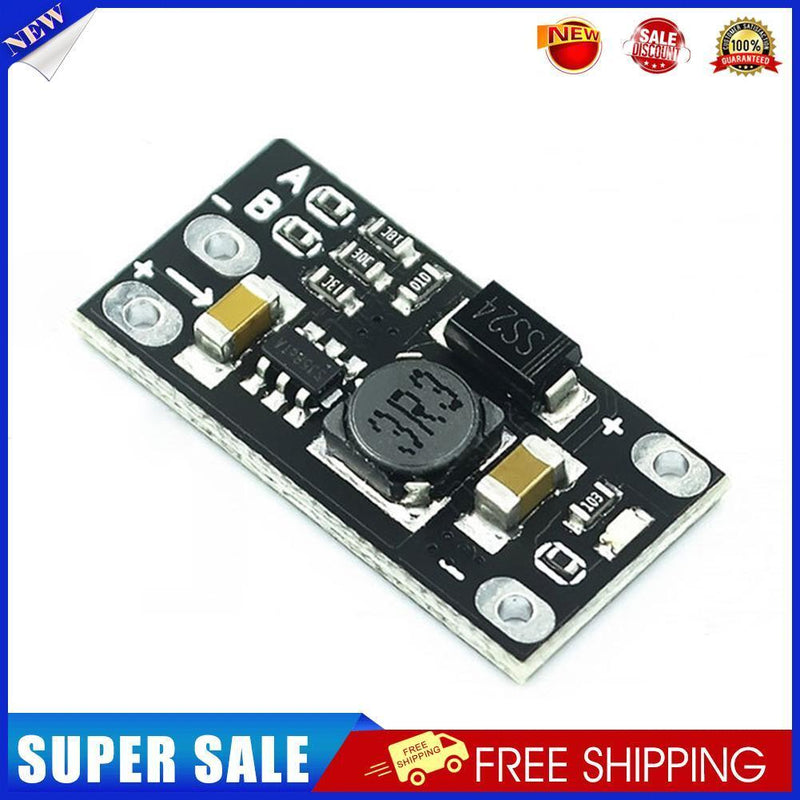

LED Indicator 3.7V to 12V DC-DC Step Up Converter Booster Support 5V/8V/9V/12V Output Lithium Battery Boost Module Board
Feature:
1. The output voltage can be set to 5V/8V/9V/12V, the default is 12V
2. Input voltage range: 25V OUT
3. The input voltage needs to be lower than the set output voltage
4. Output capability:
A. When input by 3.7V lithium battery, it can output 5V1A, 8V0.5A, 9V0.45A, 12V0.3A
B. When input with 5V, it can output 8V0.7A, 9V0.7A, 12V0.5A
When the default 12V output, the LED indicator consumes about 1mA of current
If the indicator light is turned off, the input current is less than 1mA at no load
Specification:
Product Name: Mini DC-DC Lithium Battery Booster Module
Product size: 22mm*11mm*3.6mm
Output voltage: support 5V/8V/9V/12V (default 12V)

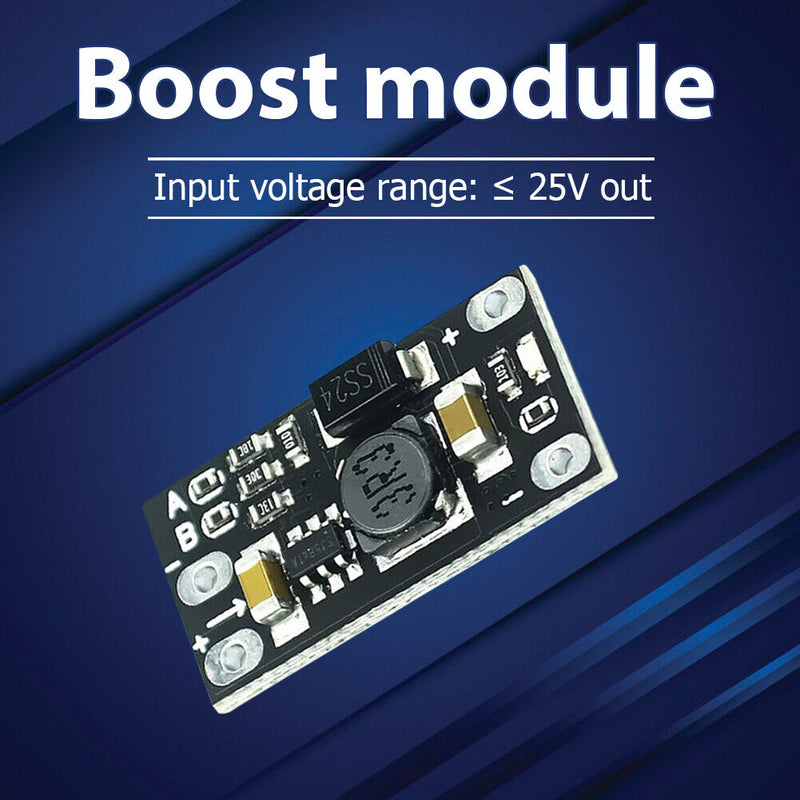

Input voltage range: 25V OUT

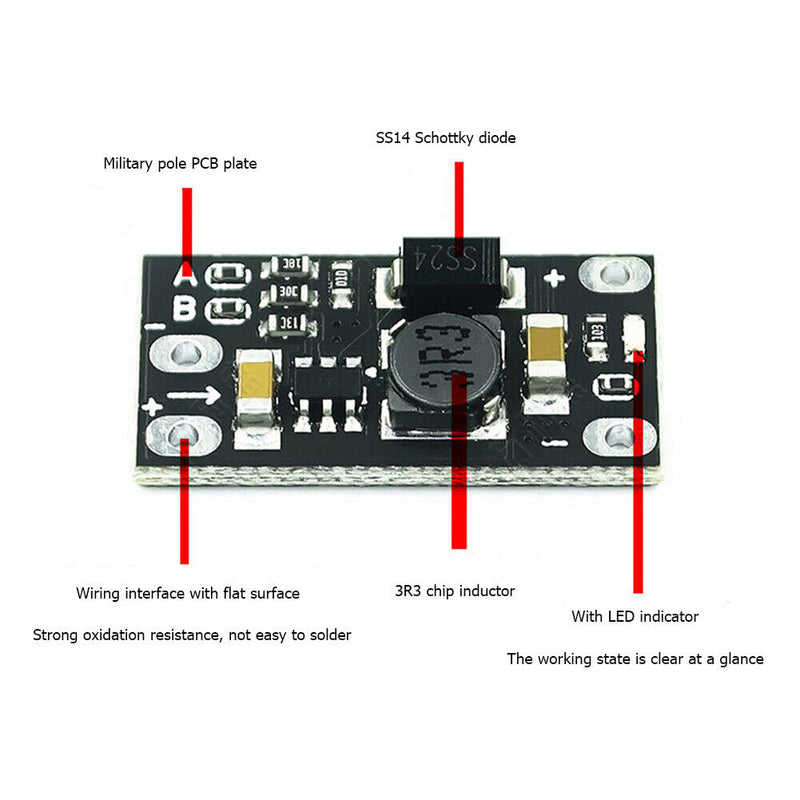

With working indicator light: the working status is clear at a glance
Product weight 1.3g

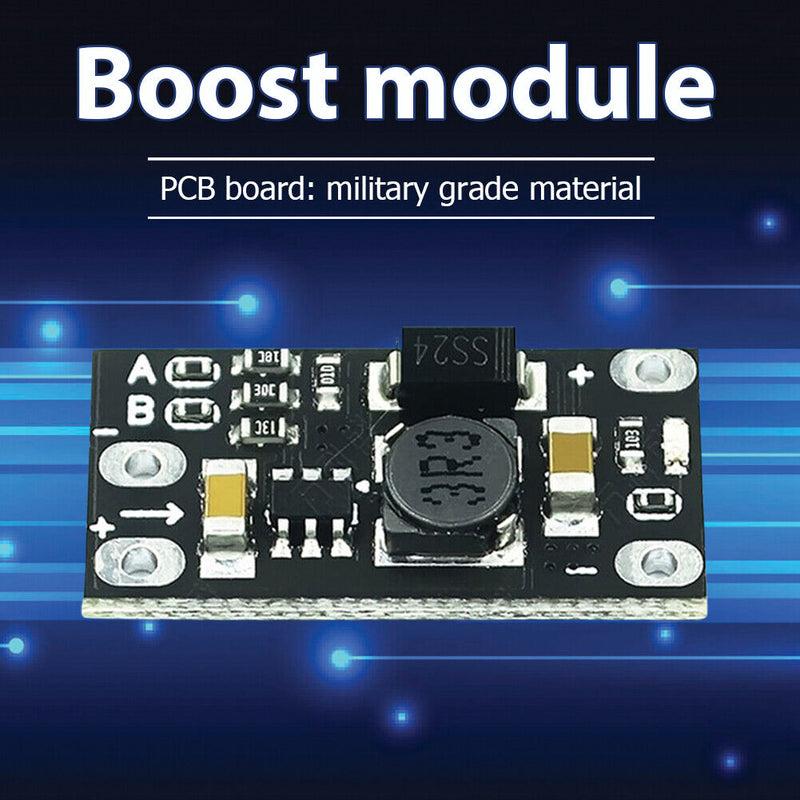

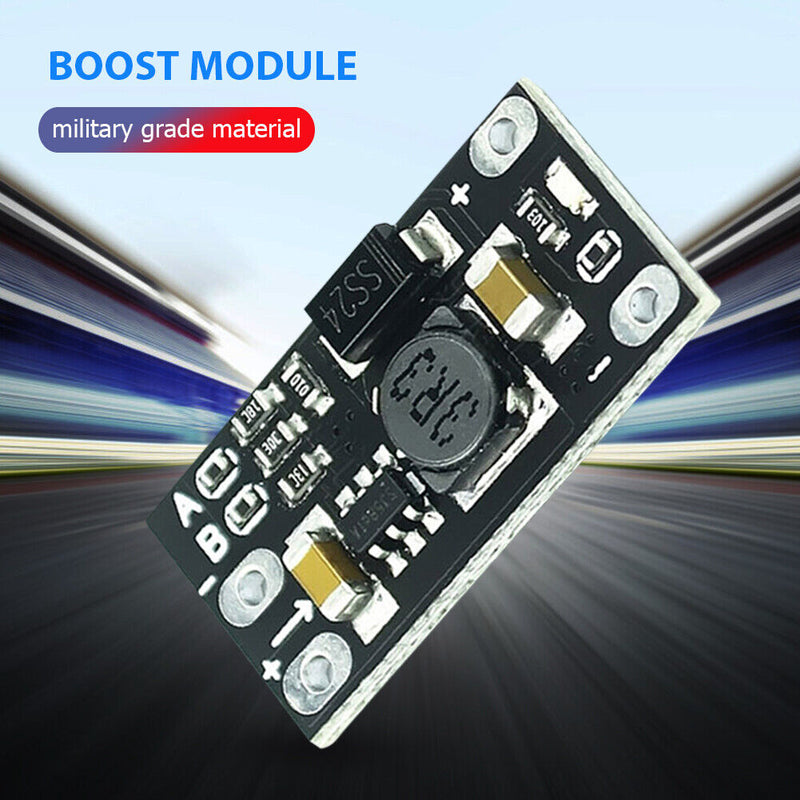

PCB board: MIL material
