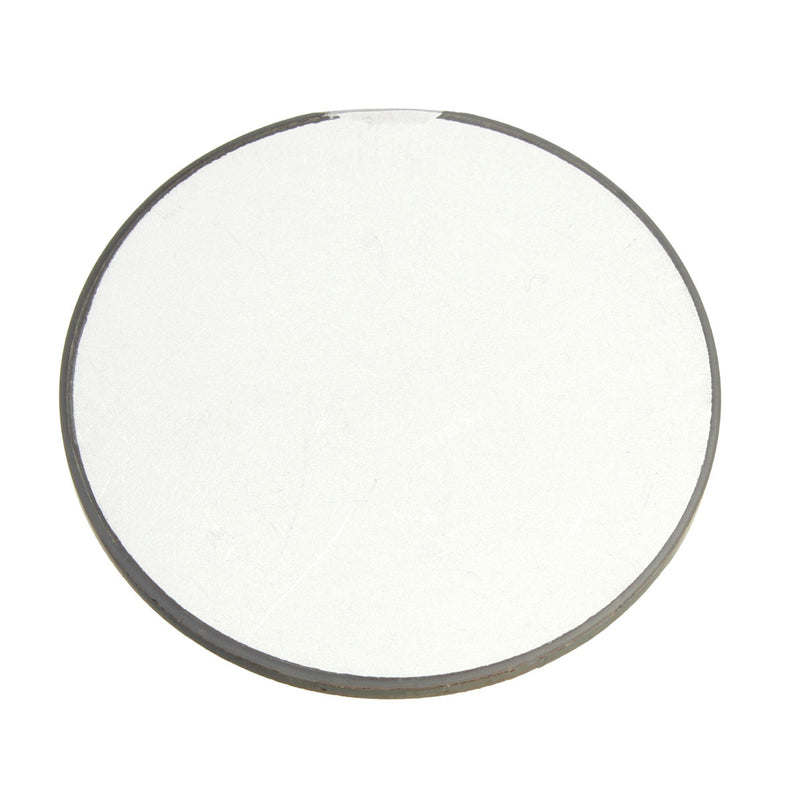

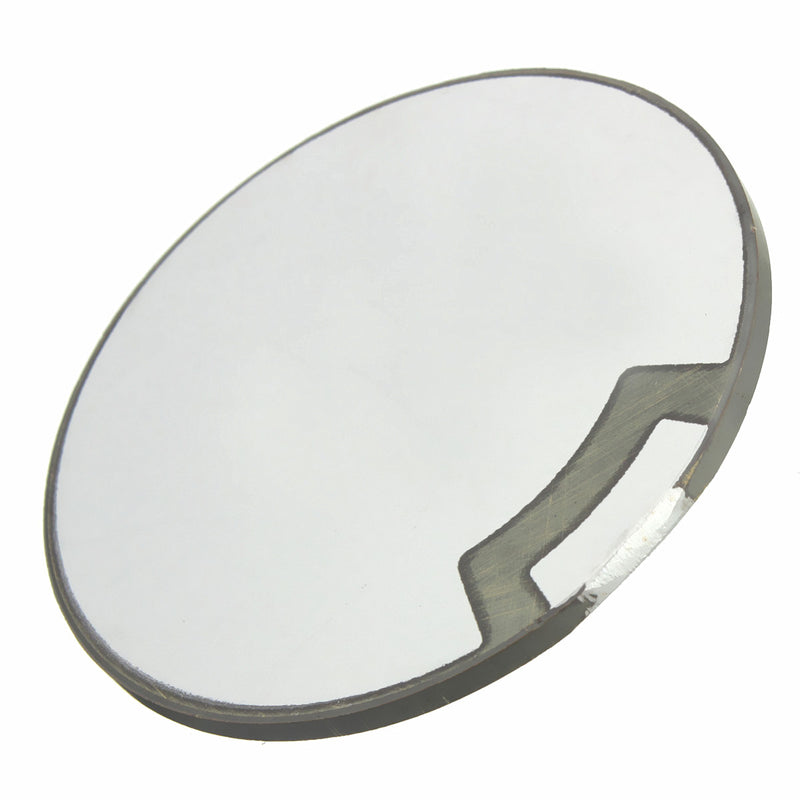

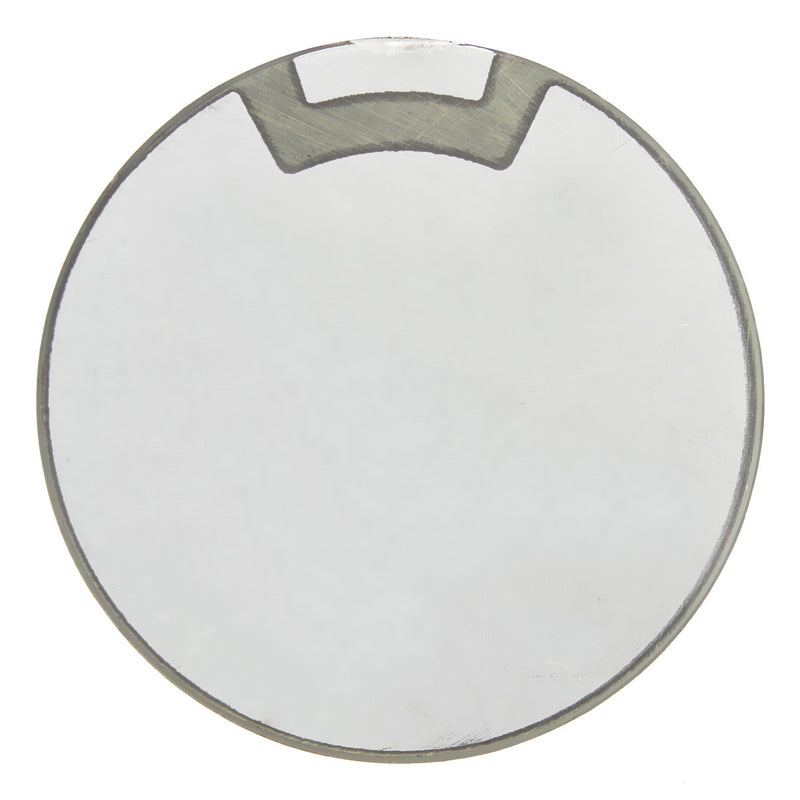

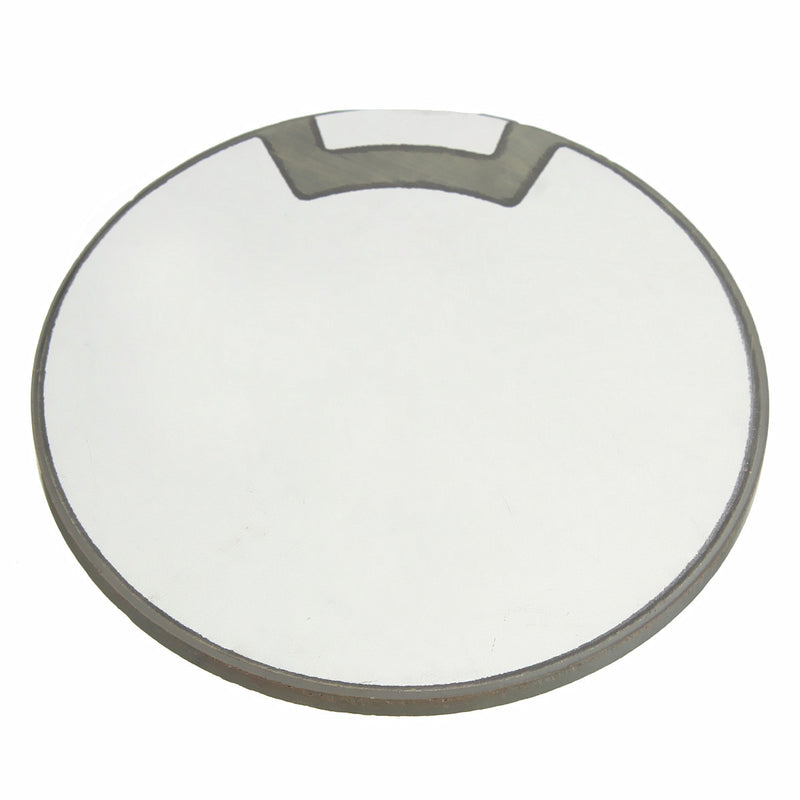

40khz 35W Ultrasonic Piezoelectric Cleaning Transducer Ultrasonic Plate

40khz 35W Ultrasonic Piezoelectric Cleaning Transducer Ultrasonic Plate

Name: 40khz 35W Ultrasonic Piezoelectric Cleaning Transducer Ultrasonic Plate
Brand: Banggood
SKU: U2I-BG-1046712
Price: 1,793.00 INR
Availability: InStock

SKU: U2I-BG-1046712

Share this product

Specifications:

Model: CH-S42-50x2.6
Resonant frequency (KHz): 40 ± 1
Static capacitance (pF): 8000 ± 10%
Resonance impedance (Ω): ≤20Ω

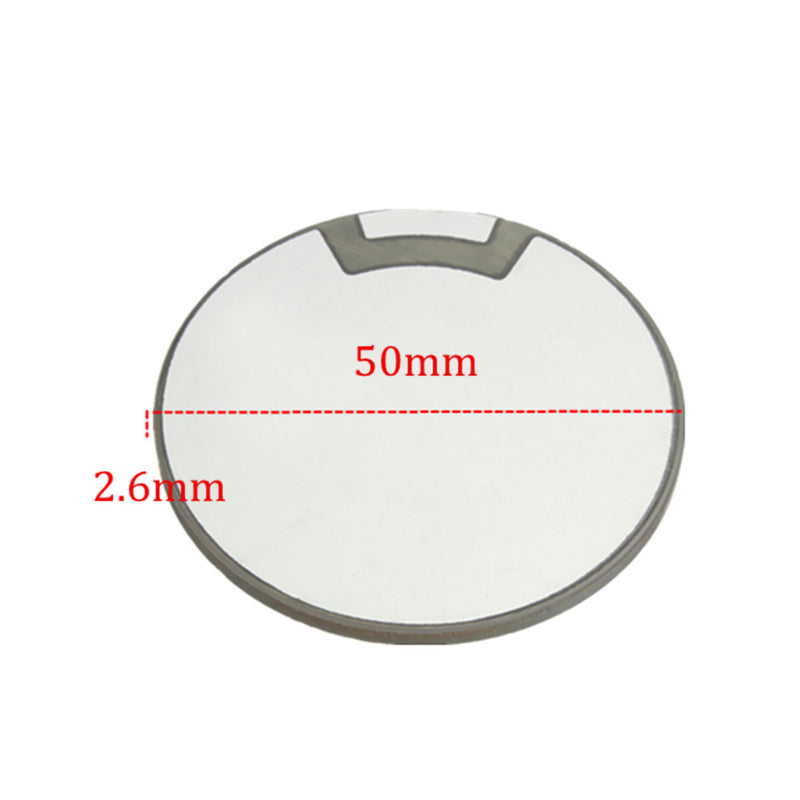

Dimensions: 50 * 2.6mm (diameter * height)
Power (W): 35w
Insulation resistance (2500V DC): ≥ 100MΩ

Features:

1. Low heat. 2. Good thermal stability.
3. Frequency and static capacitance strong consistency.
4. Resonant impedance is low. 5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency

Note: Received ceramic sheet is not terminal and connecting terminals

Package included:

1 x Uelectric ceramic sheet
