Specifications:
Color: Black / red
Wire Thickness: 10 AWG
Insulation Thickness: 0.075 inches
Nominal Outer Diameter: 0.28 inches
Length: 5 m / 196.85 inches
Approximate Net Weight : 17.54 ft/lbs
Ampacity 90ºC Wet/Dry: 40A
Conductors: Fully annealed stranded bare copper per ASTM B3. Class B Stranding
Insulation Jacket: Chemically crosslinked polyethylene
Features:
- UL Listed as XLP USE-2 or RHH/RHW-2
- RoHS Compliant
- Wet/Dry Temperature: -40C to 90C
- Sunlight resistant
- Direct burial
Package Includes:

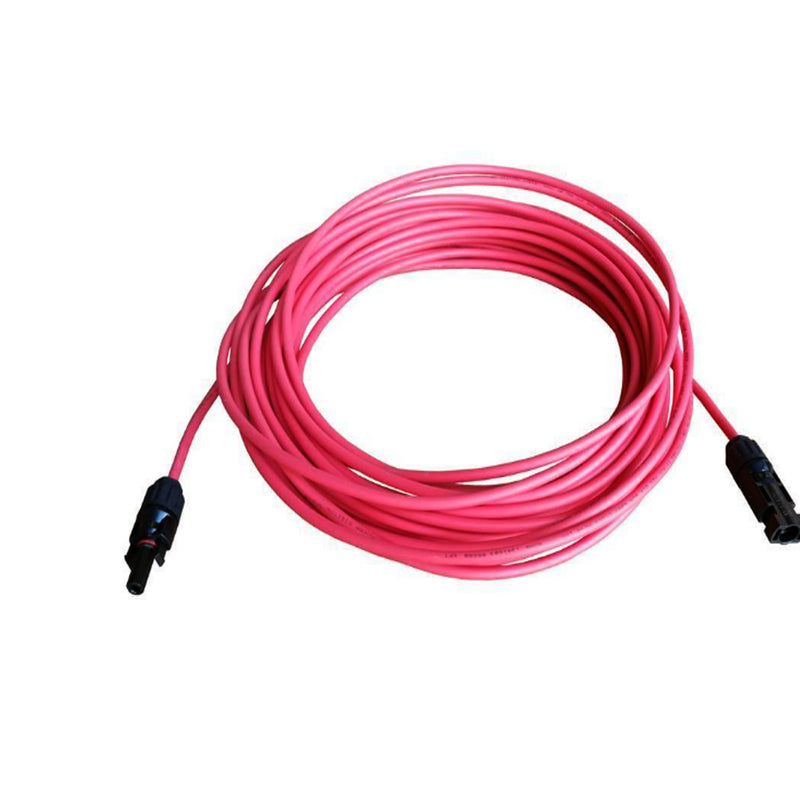

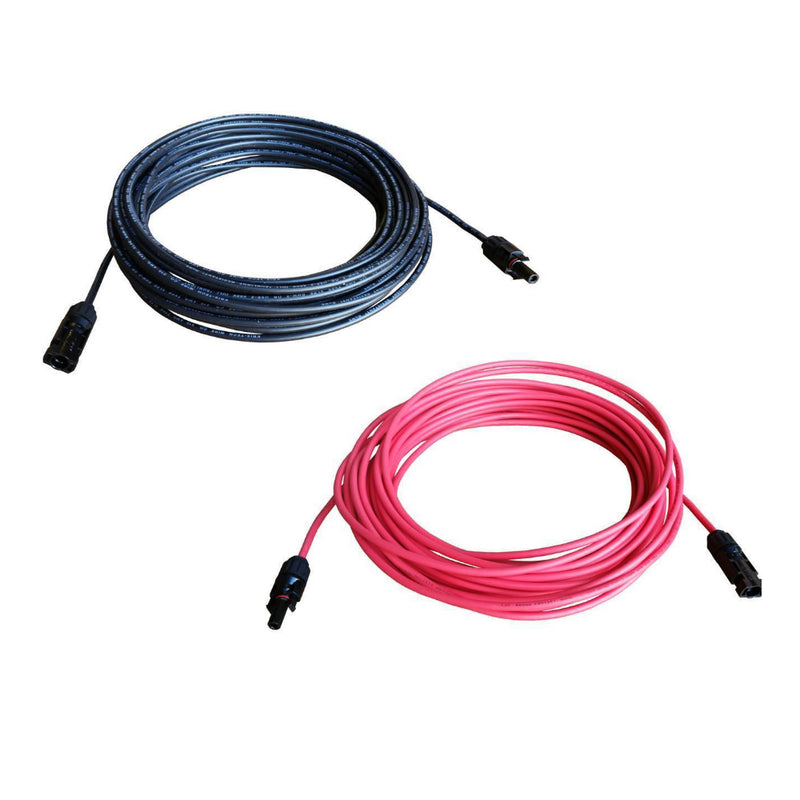

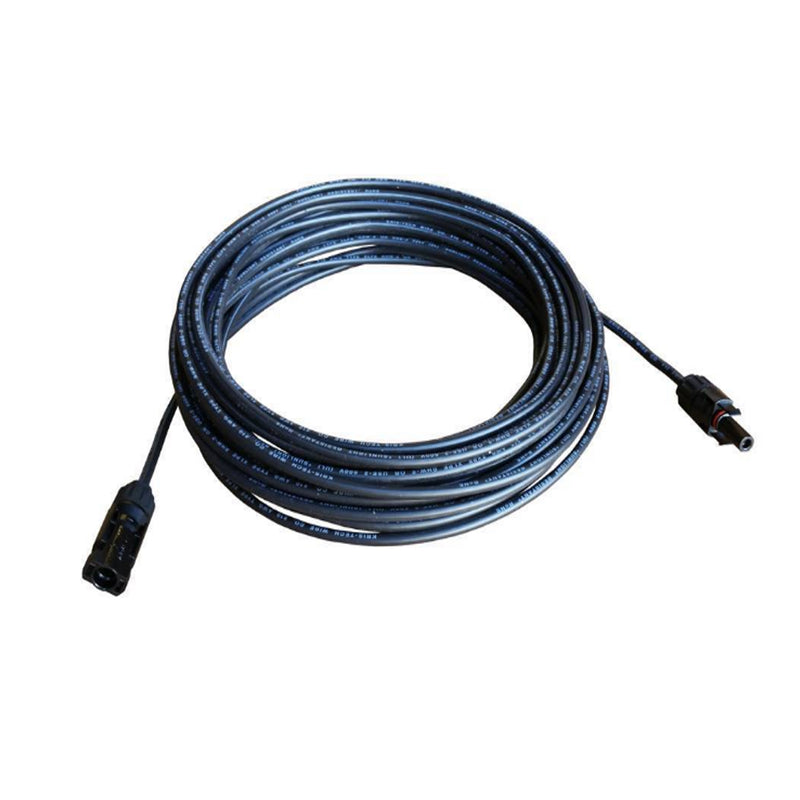

1 x 10 AWG Solar Cable
