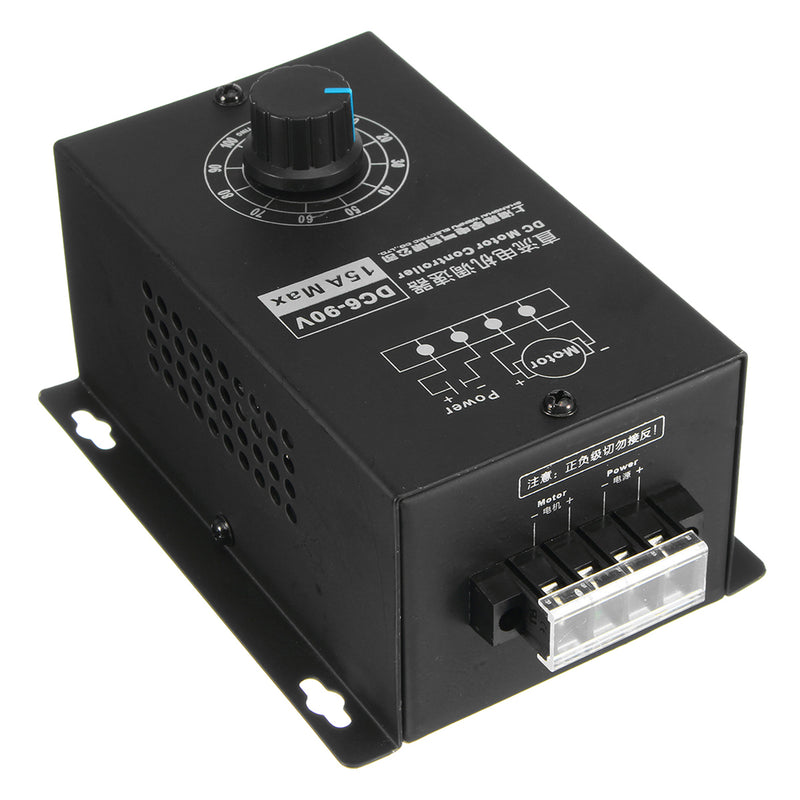

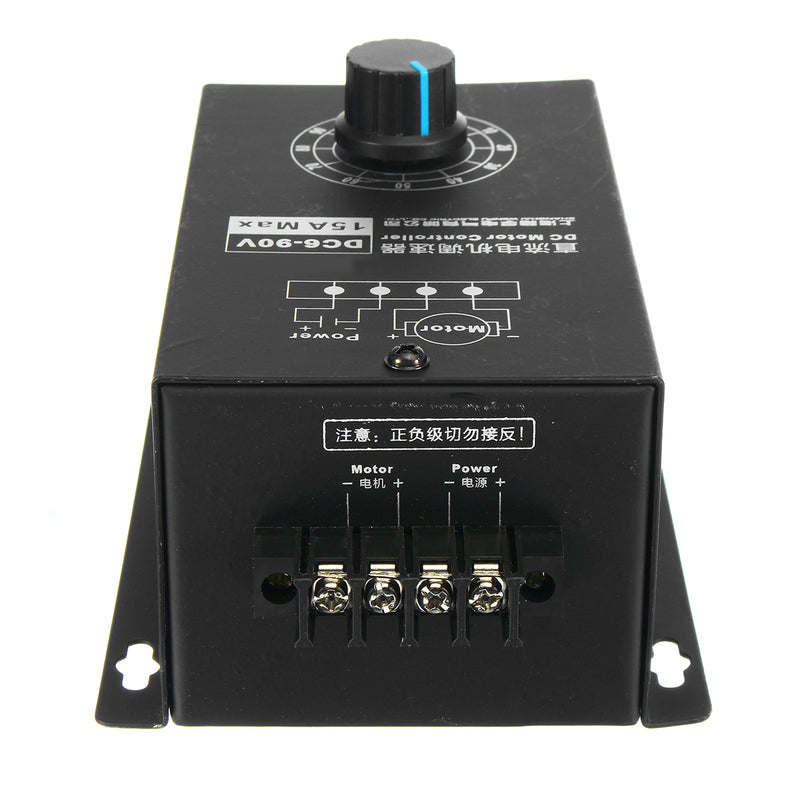

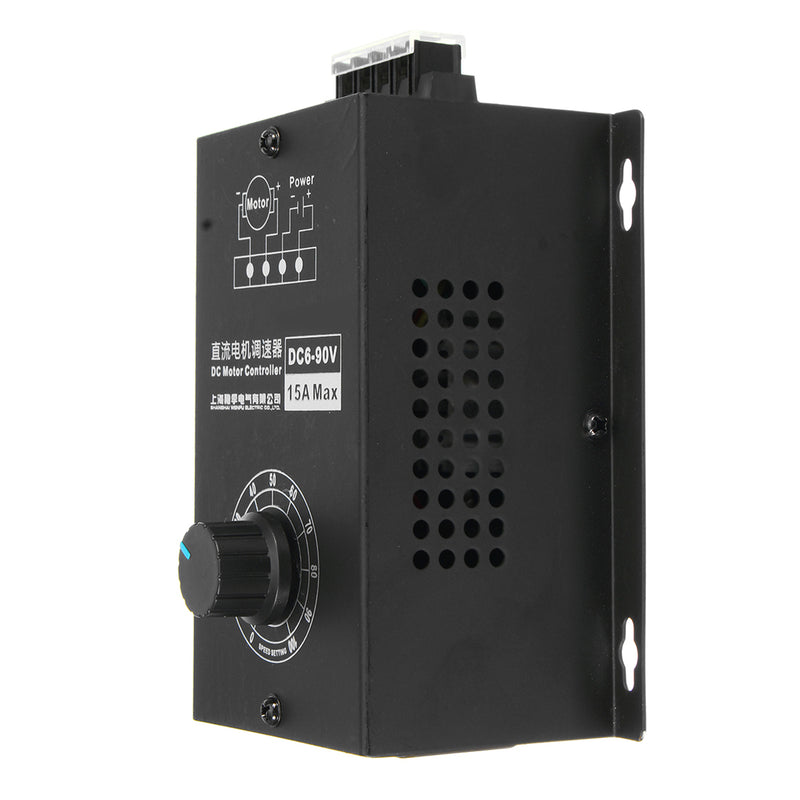

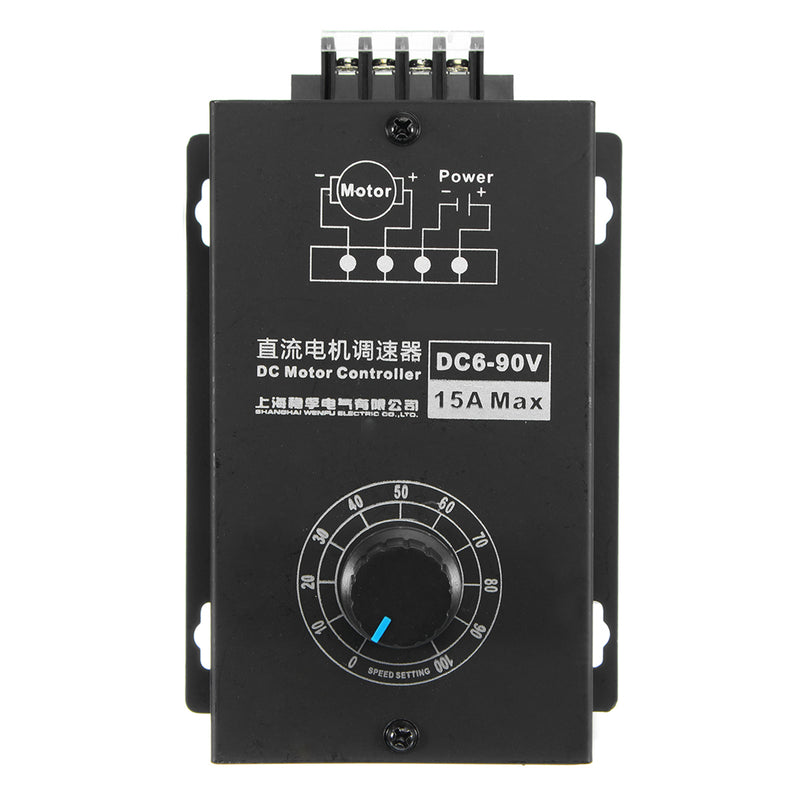

6V-90V 15A DC Motor Controller Speed Regulator PWM Module Controller Switch w/Shell
Save 0
SKU: U2I-BG-1260569
Share this product
Description

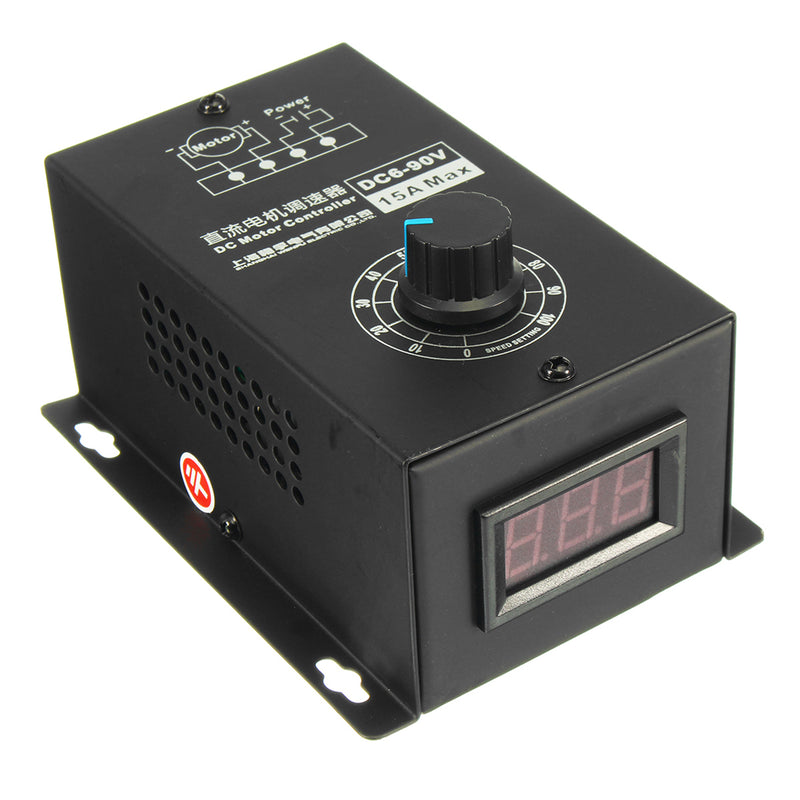

Feature: -Name: DC Motor Controller - Import IC chip - Hook design - Adjustable knobs - Display voltage display - Support PLC control - Large power 15A max - Flame retardant insulation shell - Power supply reverse connect protection - Built-in 15A fuse,reversing connecting protection - High standard multi-gear none-pole speed adjust 0%-100% PWM output - It is merely suitable for brush motor.(you can not use it for brushless motor)
Specification: - Voltage:DC 6V-90V wide voltage,you can not connect AC. - Current:rated current 8A (the max current 15A)Quiescent current 0.005A(standby state) - Power range:0.01-1000W - Voltage adjusting range:PWM output range:0%-100% motor adjut to stop and the max rotate speed - PWM frequency:16kHz - Fuse:15A ceramic arc quenching melting 1 - Motor forward/reverse position:It is Irrespective of forward and reverse when connecting motor.You can change the direction through adjusting cable order.

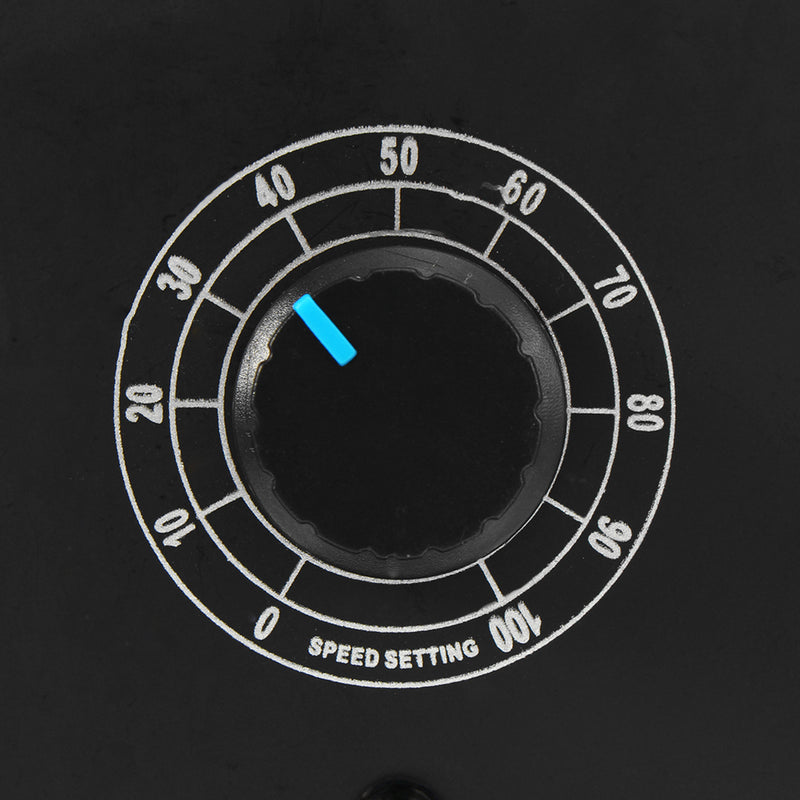

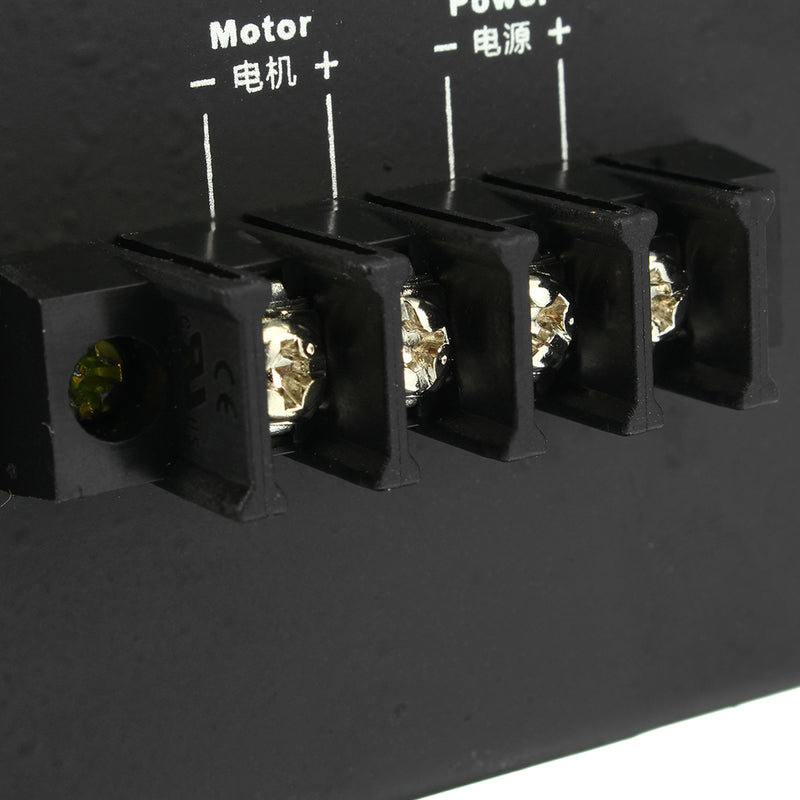

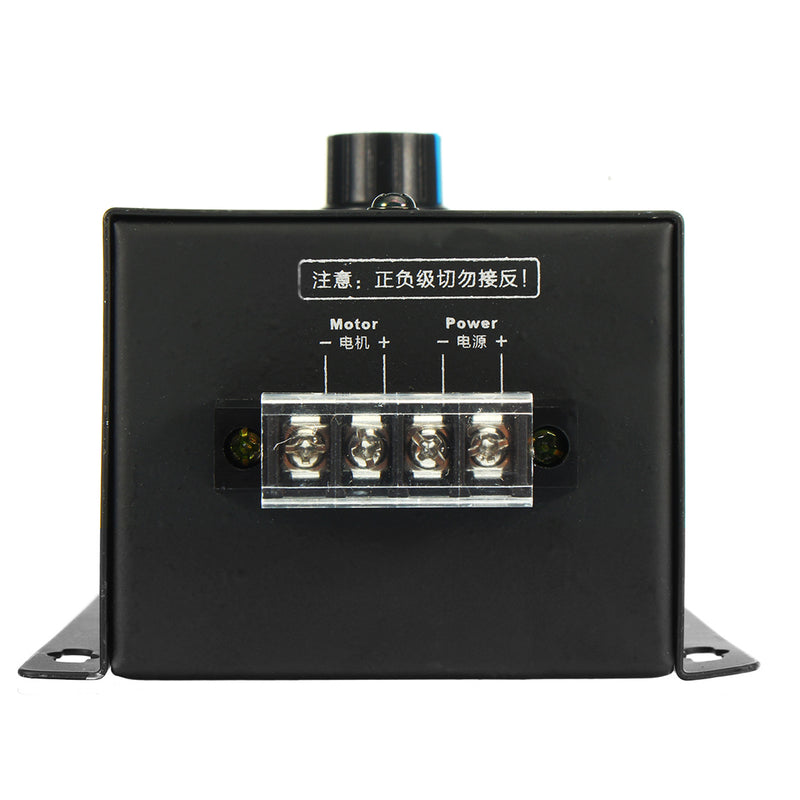

Tips: 1.DC motor speed governor input is DC.you can not directly connect AC (home-use 220V AC),or you will damage the machine. 2.The DC power positive negative pole can not reverse connect.or you will damage the speed governor. 3.The motor It is irrespective of positive negative pole,when the operation direction may not match the intended ,you can adjust the cable order to change the direction. 4.Adjust the potentiometer knob to change speed governor output speed governor duty cycle and change the motor rotate speed.
Different voltage input match power range: DC 6V<=60W DC12V<=120W DC24V<=240W DC 36V<=360W DC48V<=480W DC60V<=600W DC72V<=720W DC90V<=900W
Package included: 1 x DC Motor Controller 6V-90V
