Name: 8-50VDC Photocell Sensor Daylight Dusk To Dawn Sensor Photoelectric Switch Sensor Automatic Light C
Brand: Banggood
SKU: U2I-BG-1239793
Price: 2,139.00 INR
Availability: InStock

SKU: U2I-BG-1239793

Share this product

Specification:
Model: NK-BB/F50
Color: Black
Voltage Range: 12V 24V 36V 48V
Supply Voltage: DC 8V to 50V (module normal operating voltage range)
Standby Current: 0.3ma (silent state)
Output Power: High Power. Load current 3.5A. The pressure drop is negligible.
Environment Temperature: 25℃ ~ 70℃
Size(L*W*H):37 x 19 x 36 mm

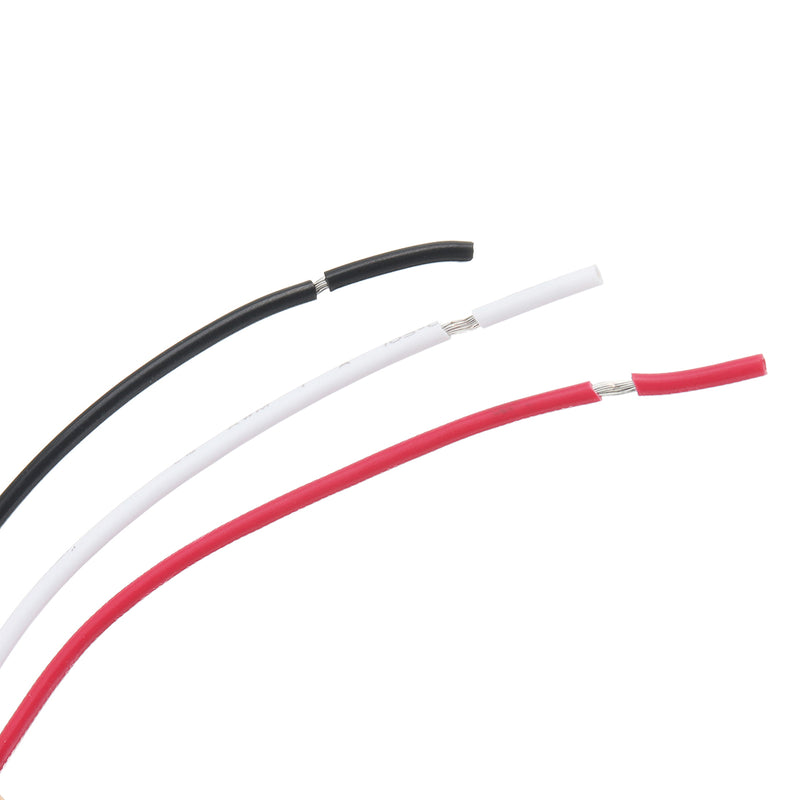

Leads Length: 145 mm

Features:
Saving energy, long life, safe and reliable.
Using three-wire system, compatible with resistance.
Control of the lighting time according to the illumination value of the environment automatically.
The internal environment with automatic illumination detection circuit, shut down during the day and open during the night automatically.
Suitable for the LED lighting and outdoor monitoring, advertising gallery, garden lights and other automatic switching lights control.

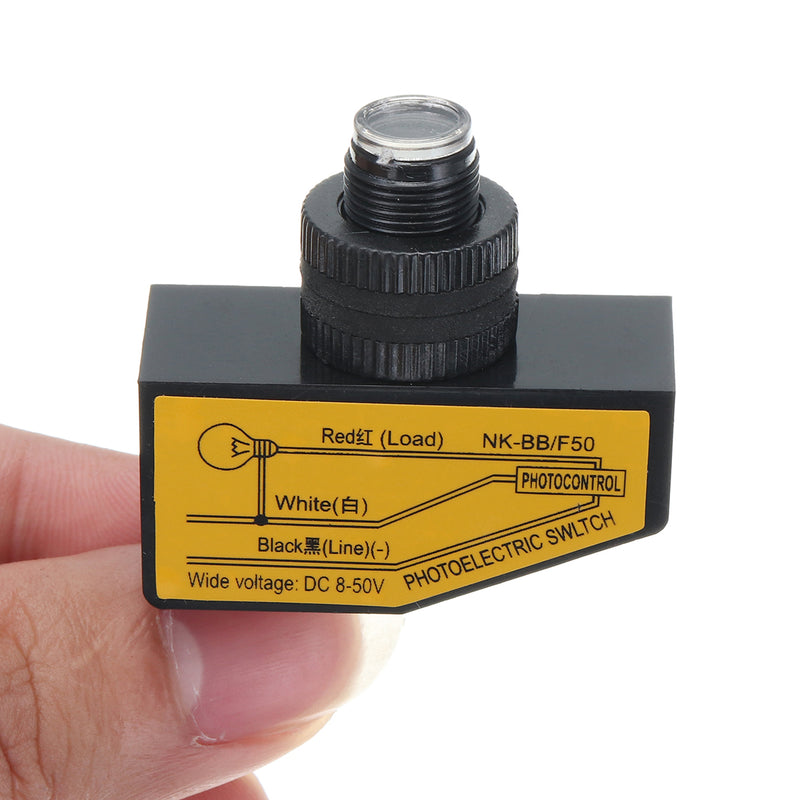

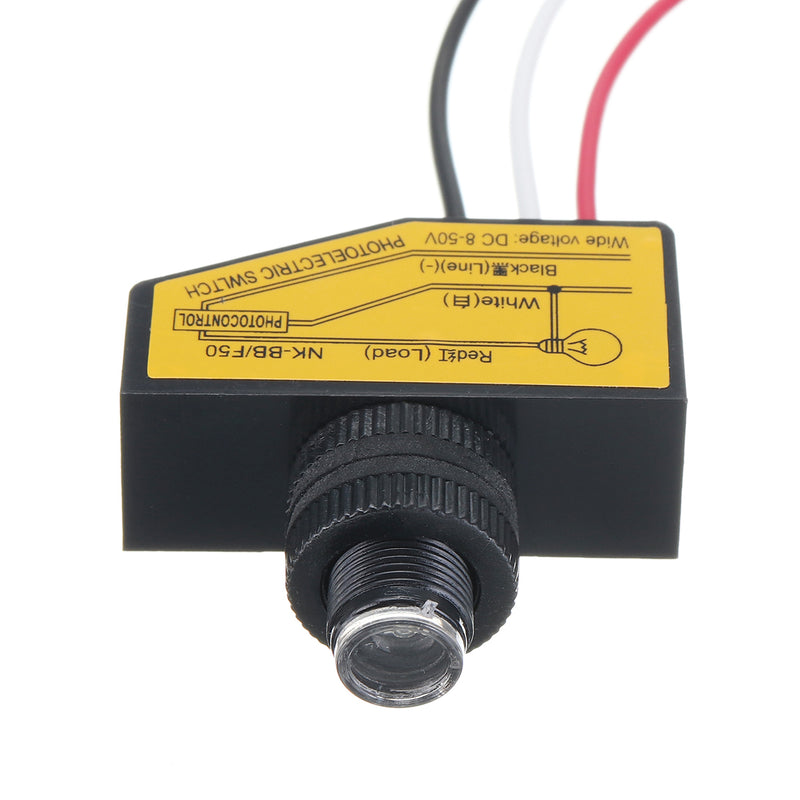

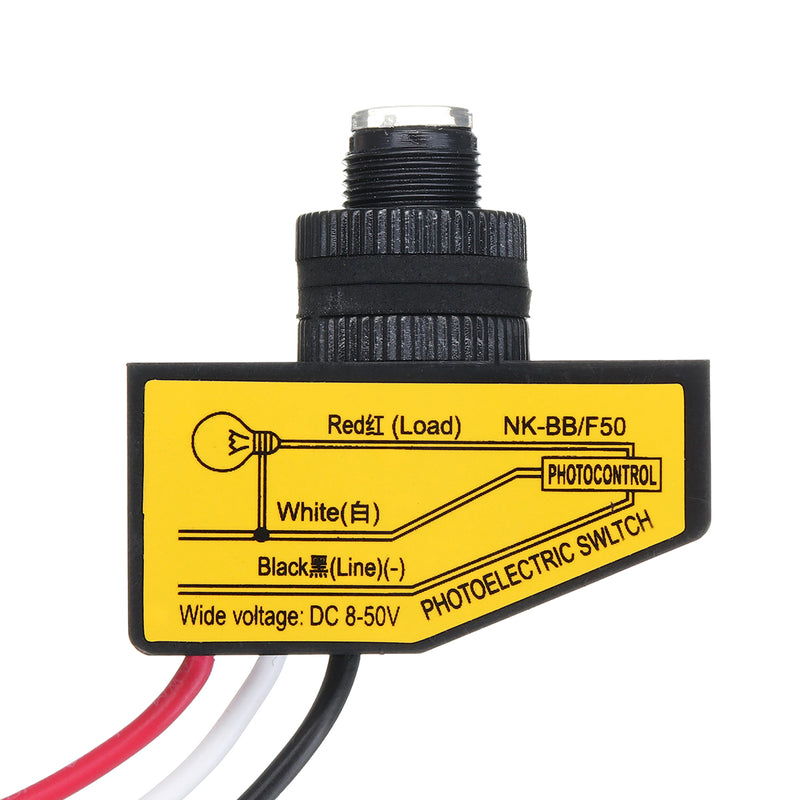

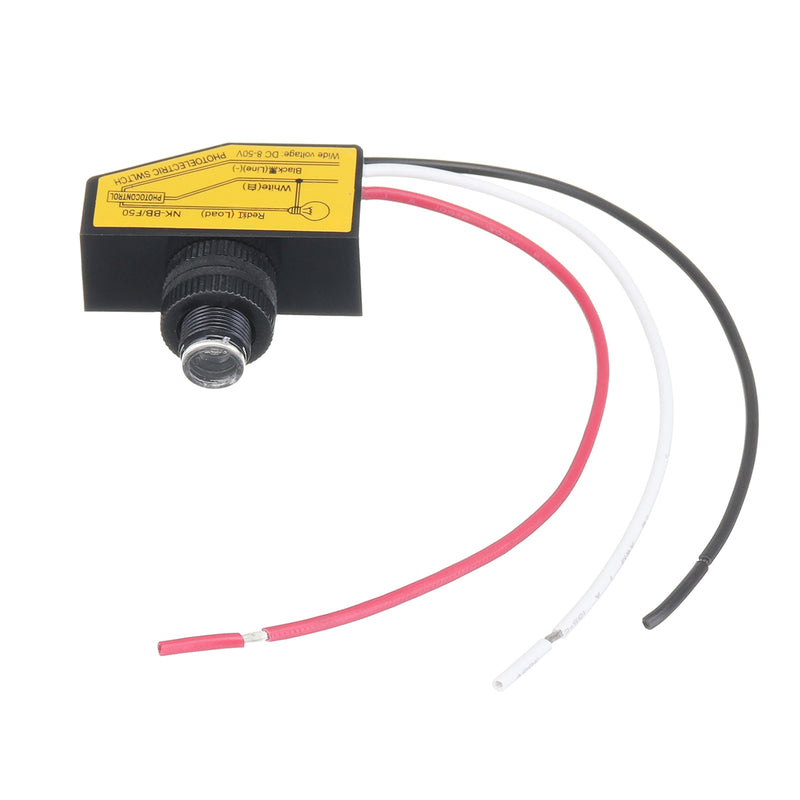

Wiring Method:
White Line + Black Line Connection (Input)
White Line + Red Line Connection (Output)
The White Line is the common line

Package Included:

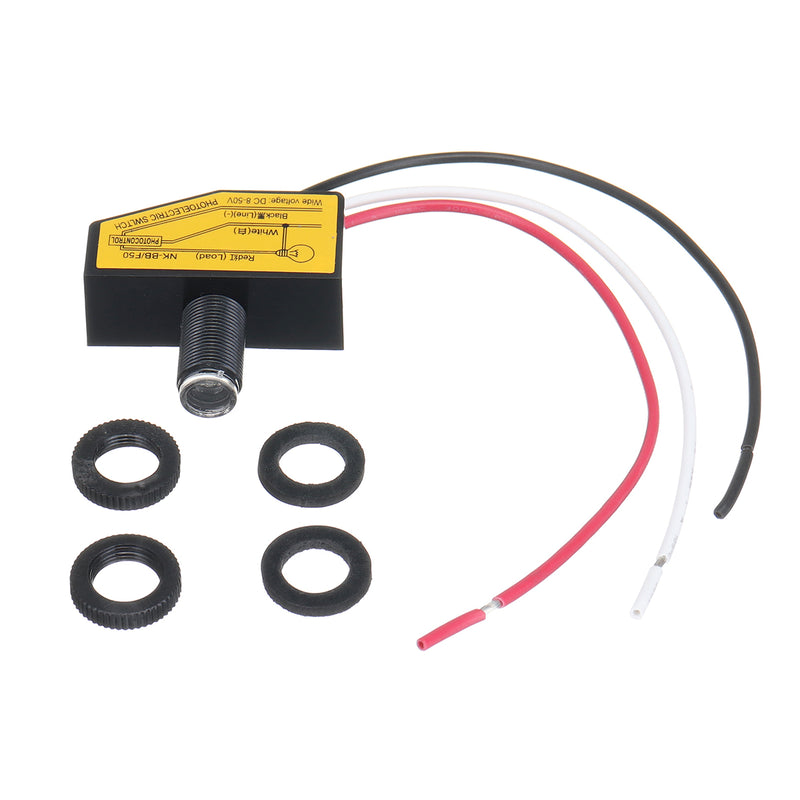

1 x Photoelectric Switch
