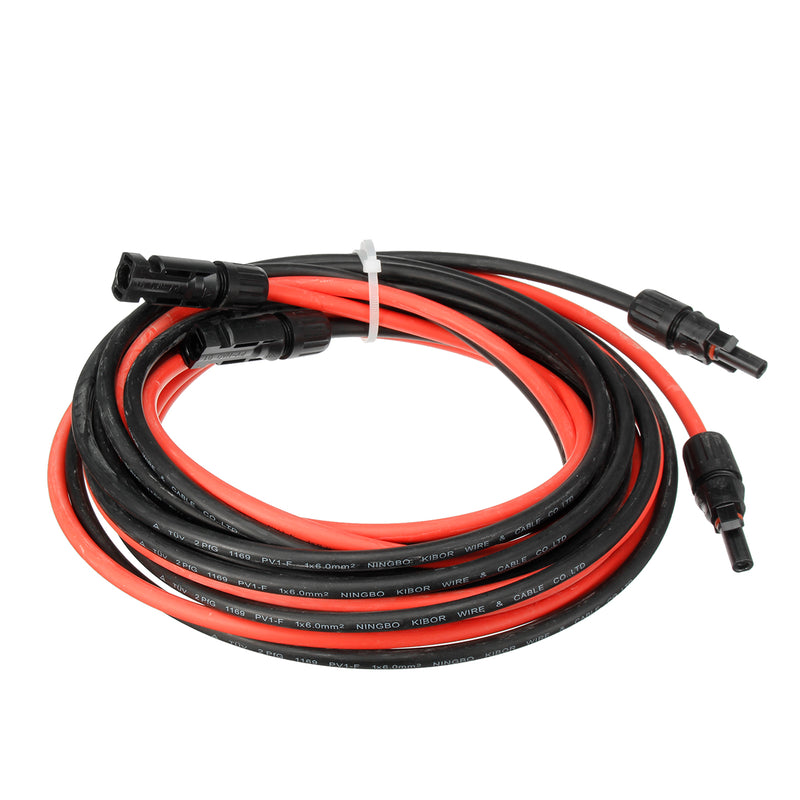

9M/8M/5M 10AWG Solar Panel Extension Cord MC4 Cable Line Connector Cable

9M/8M/5M 10AWG Solar Panel Extension Cord MC4 Cable Line Connector Cable

Name: 9M/8M/5M 10AWG Solar Panel Extension Cord MC4 Cable Line Connector Cable
Brand: Banggood
SKU: U2I-BG-1612280
Price: 12,044.00 INR
Availability: InStock

SKU: U2I-BG-1612280

Length: 5M

Variant

Price:

Rs. 12,044

Quantity:

Share this product

Specification:
Color: Black+Red
Wire Thickness: 10 AWG
Nominal Cross-Section: 6mm²
Operating temperature: -40°C ~ 90°C
Rated voltage: DC: 1.8KV ACU /U: 0.6/1KV
Rated current: 25~32A
Weather resistance: UV
Flame retardant: single vertical combustion (IEC60332-1)
Rated Voltage DC: 1/1.8kV
Rated Voltage AC: 0.6kV
Number of cores: NO.1
Conductor: Copper wire structure 51/0.25 (NO./MM)
Insulation minimum wall thickness: 0.5mm
Sheath minimum wall thickness: 0.5mm
Test voltage: 6.5/5 KV/min No breakdown
Material: PVC + Copper core + PPO connector
Optional Size: 9M / 8M / 5M

Features:
♥ Suitable for using in solar panels, DC circuits, inverter wiring.
♥ Compatible with MC4, high quality, waterproof grade up to IP67
♥ Good for protecting against short circuits and ground leakages.
♥ Easily expand the distance between your panel or solar controller
♥ Can be also used for inside and connected to insulated equipment.
♥ Material of durable PPO, good performance in high heat resistance, wear resistance and flame resistance

Package included:
1 X 9M / 8M / 5M Red Solar Panel Extension Cord + 1 X 9M / 8M / 5M Black Solar Panel Extension Cord
