Description:

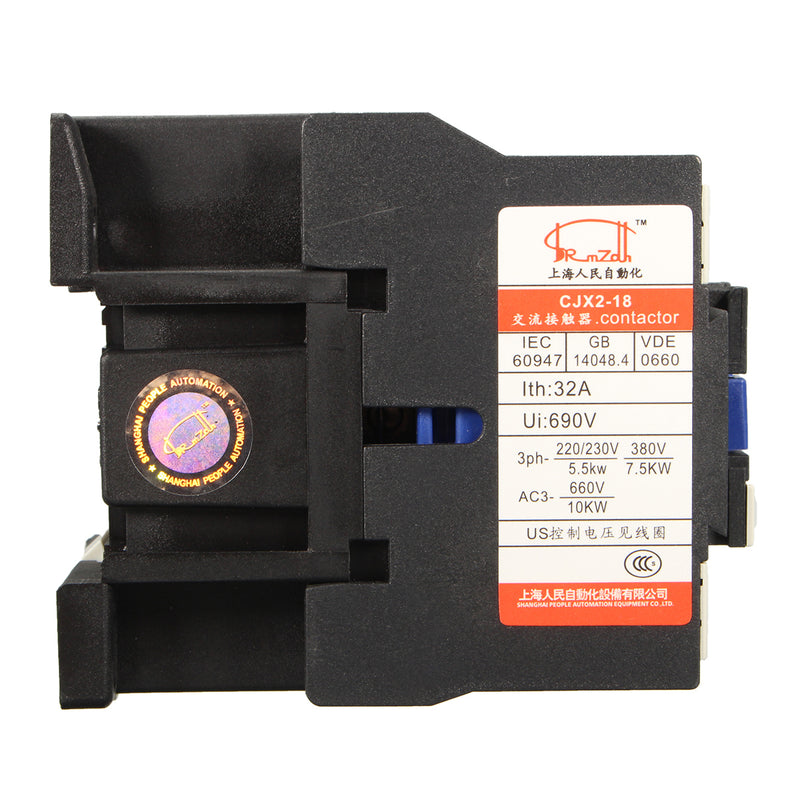

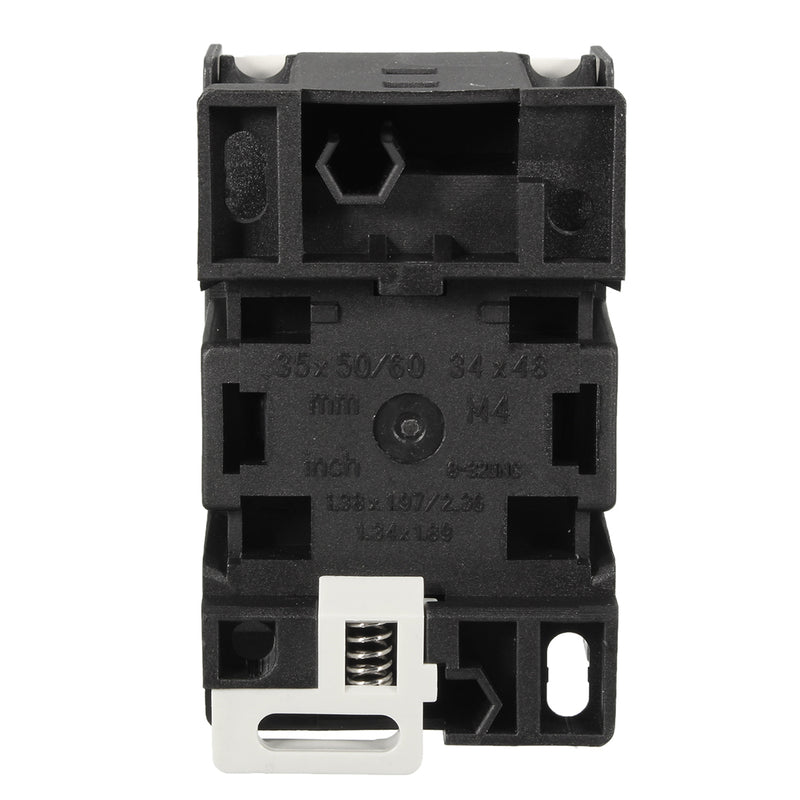

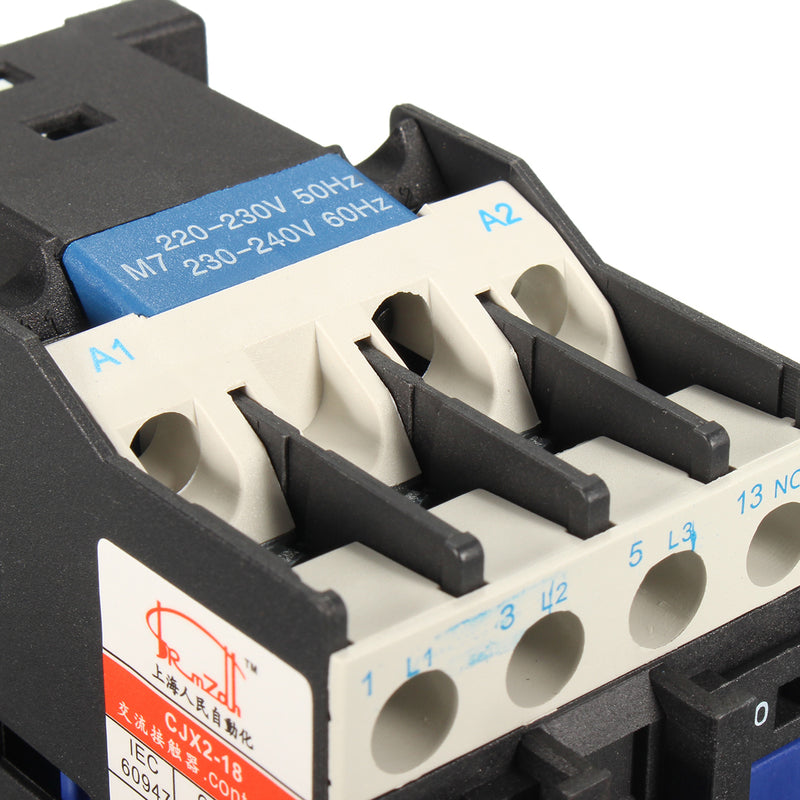

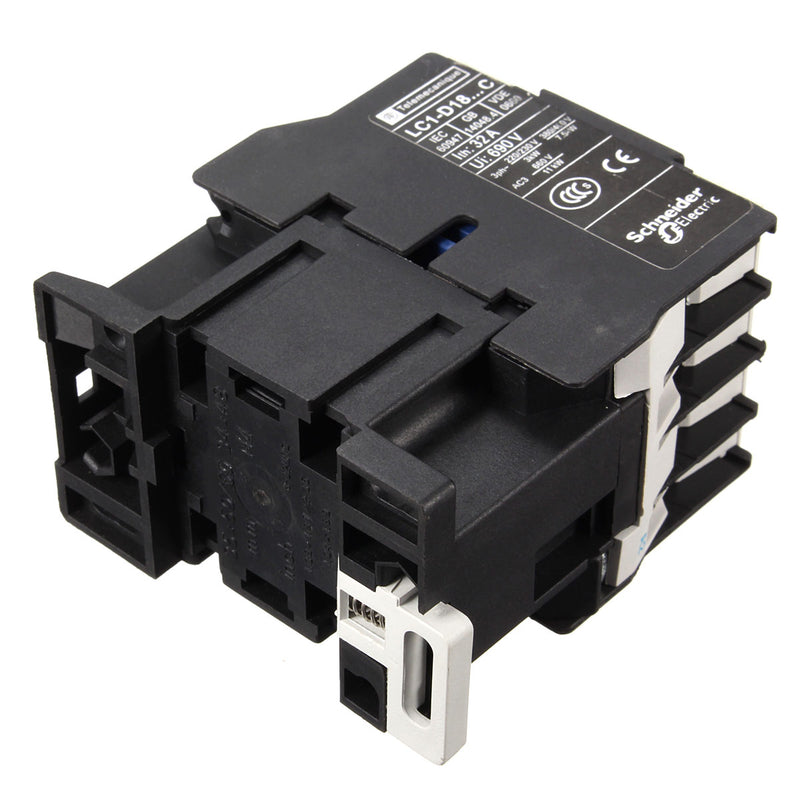

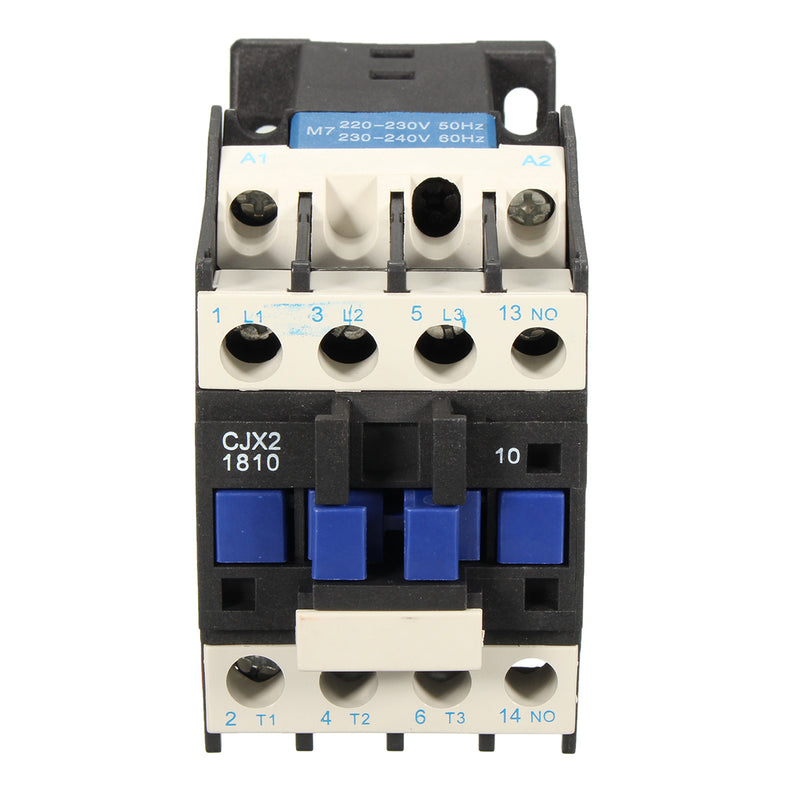

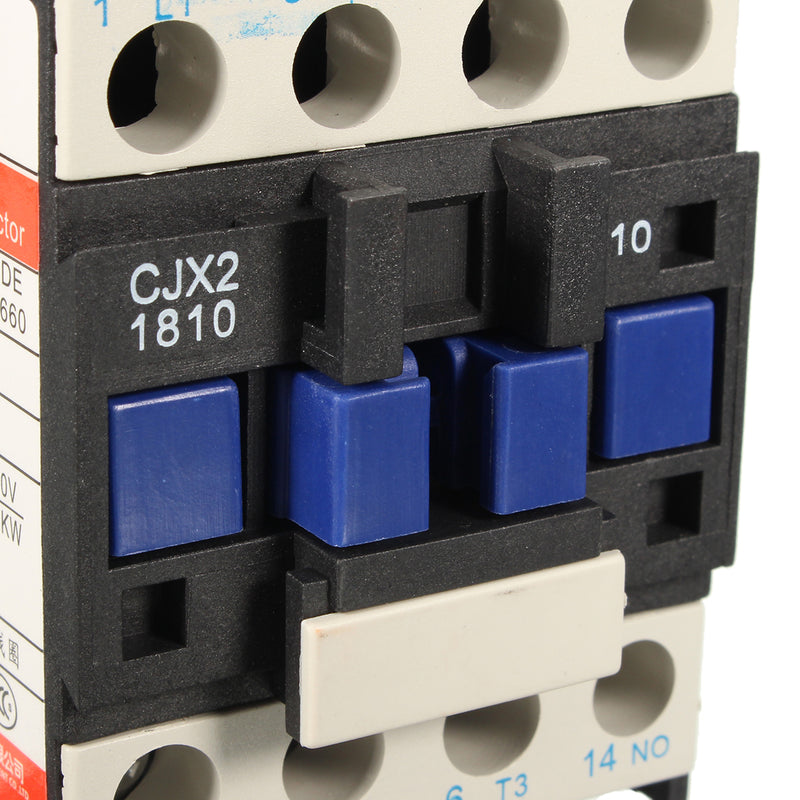

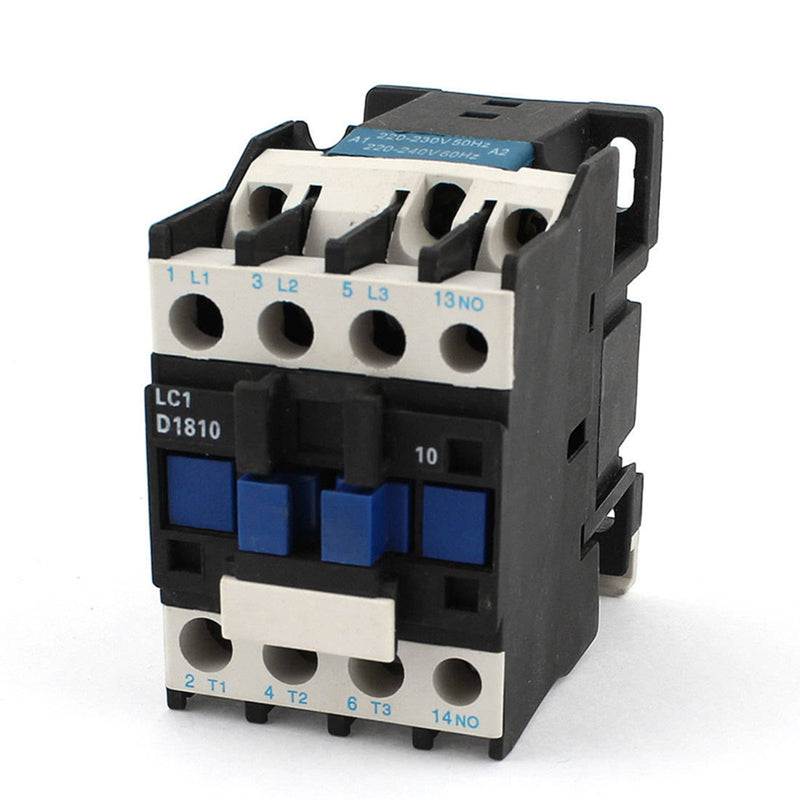

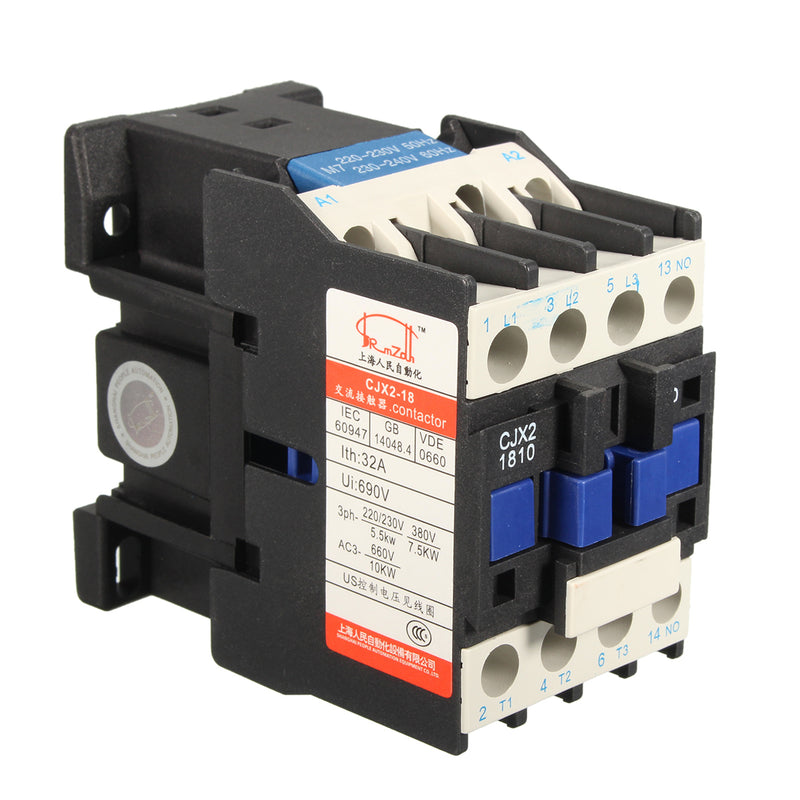

AC Contactor AC220V Coil 32A 3-Phase 1NO 50/60Hz Motor Starter Relay LC1 D1810
Features:
1.High strength PC flame retardancy,AC220V copper coil.
2.A contactor (motor starter) is a high capacity relay that has built-in auxiliary contact to work with momentary push buttons.
3.It is versatile and is often used to control a motor or as a main power switch, sometimes from distance.
4.It is design allows for frequency switching.
5.It is mainly used for AC 50 Hz or 60 Hz, the voltage to 660V, current to 95A
Specification:
1.Ambient temperature:-5C to +40C.
2.3PH: AC 220V/230V 4KW, 380V/400V 7.5KW
3.AC3:AC 660V 11KW
4.Coil: 220V-230V 50Hz, 220V-240V 60Hz
5.Ith:32A
6.Ui:AC 690V
7.Rated Current:18A
8.Auxiliary Contact:1NO
9.Overall Size: 74 x 45 x 84mm(L*W*H)
10.Material: Metal, Plastic
Package includes:
1 x AC Contactor
