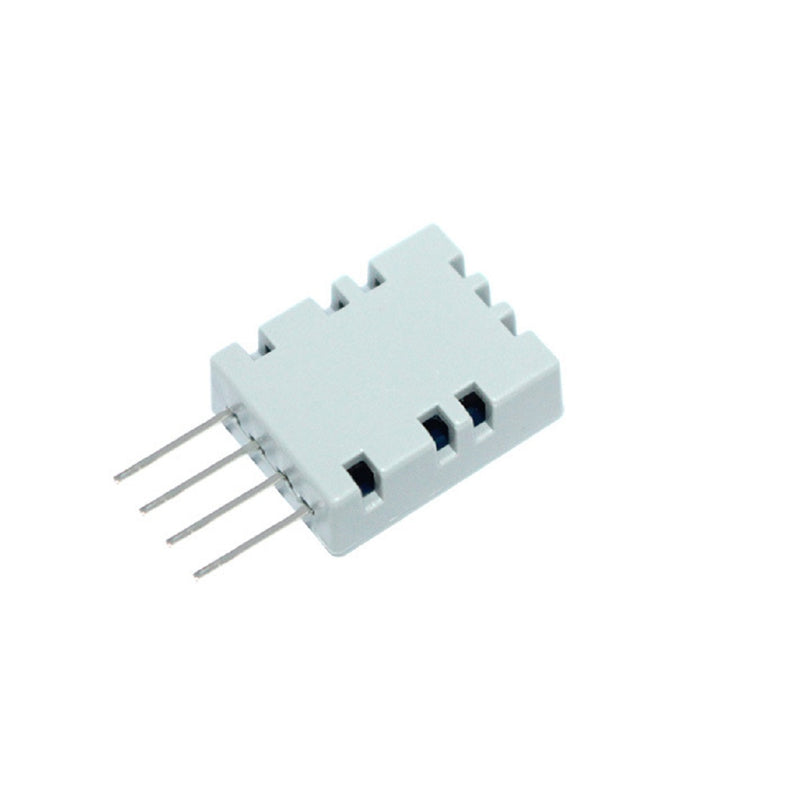

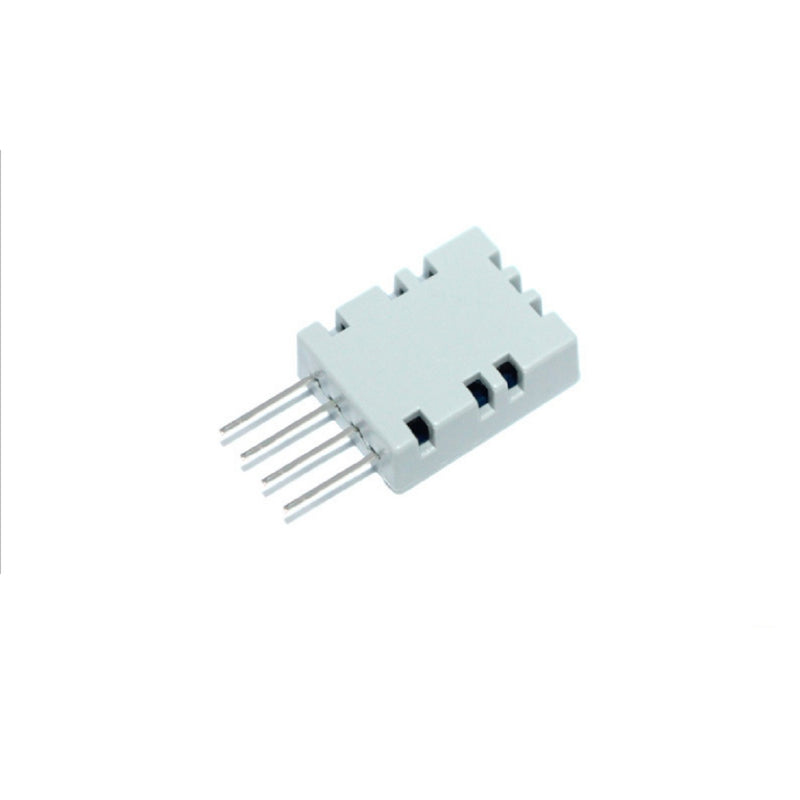

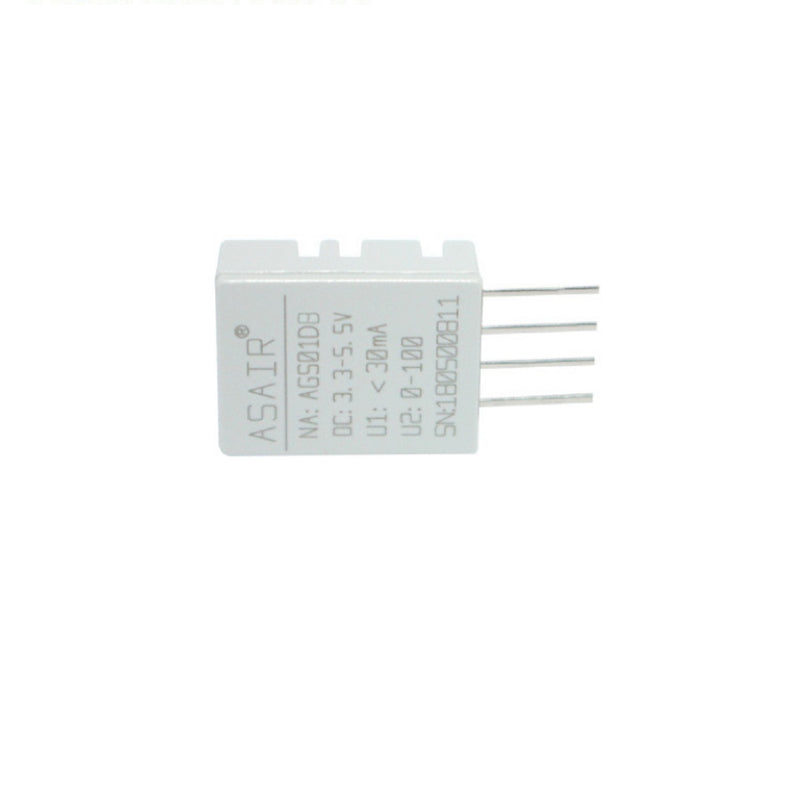

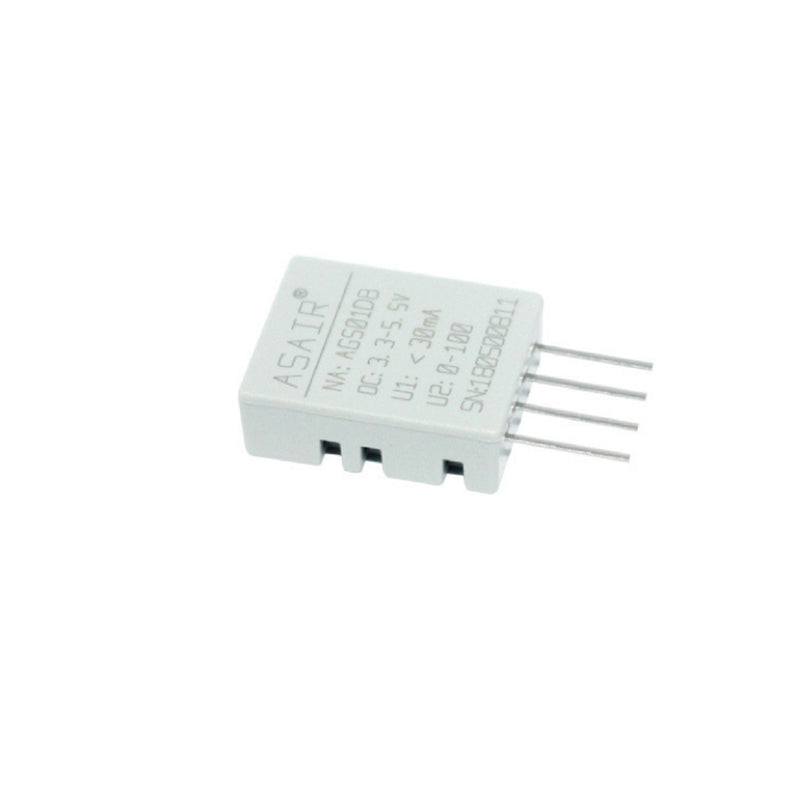

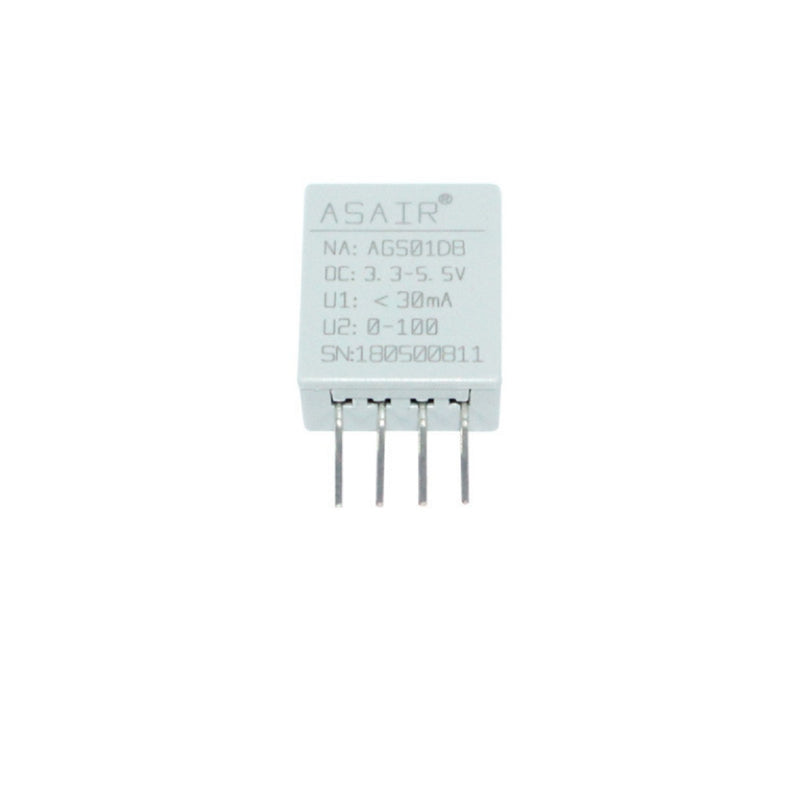

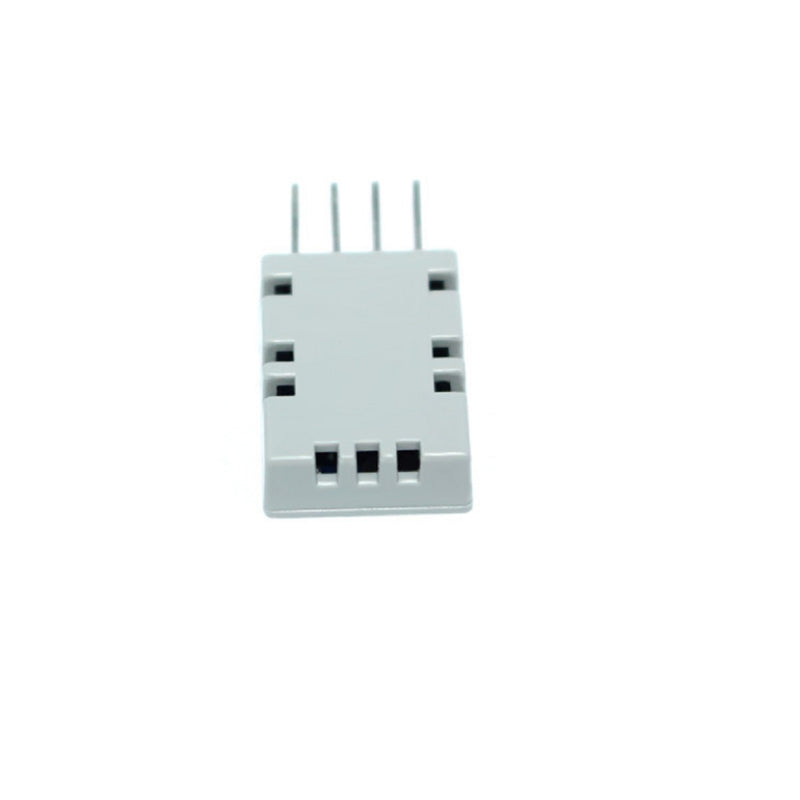

AGS01DB Air Quality Sensor MEMS Technology of VOC Gas Sensor Module
Save 0
SKU: U2I-BG-1557260
Share this product
Description

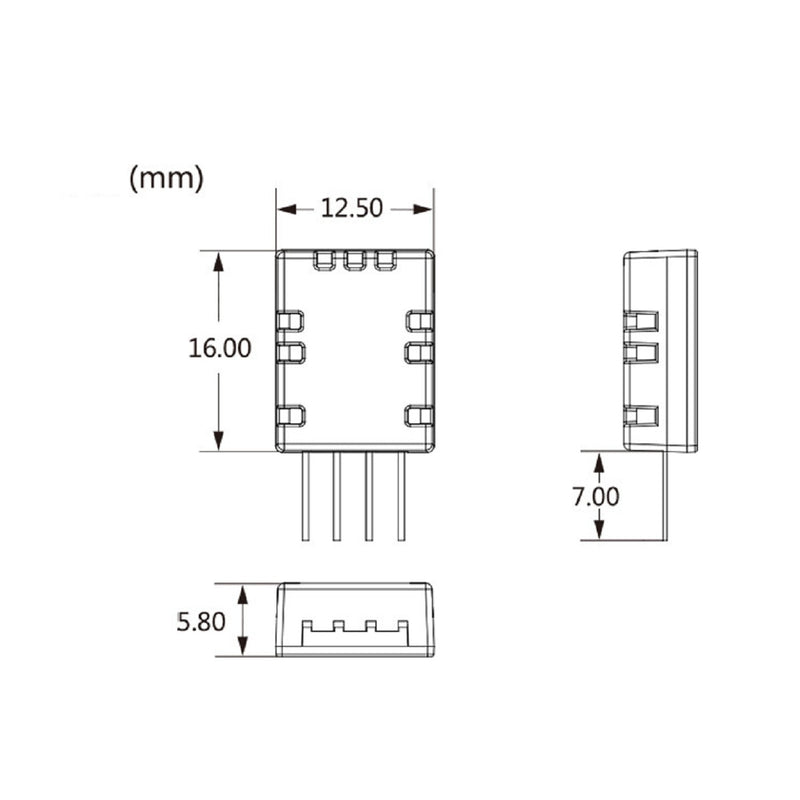

Specification: Model: VOC Gas Sensor - AGS01DB Measurement objects: ethanol, ammonia, sulfide, benzene vapor, smoke, polluted gas, harmful gas, volatile organic compounds, etc. Size: 16*12.5*5.8 (mm) Supply Voltage: 3.3-5.5V DC Mini supply current: 24mA Maximum supply current: 30mA Typical power supply current: 26mA Typical output power (3.3V power supply): 86 mW Typical output power (5V power supply): 130 mW Sampling period: >= 2S/time Output mode: IIC slave mode Preheating time: 120 seconds Working temperature: 0C~50°C Working humidity: 0-95% RH Sensor Category: MEMS Semiconductor Metal Oxide Sensors Output unit: PPM Measurement limit: 0-100PPM Measurement accuracy: 20% (F. S) Standard test gas: ethanol Resolution: 0.1 PPM Packaging: 4PIN pin
Description: AGSO1DB is a MEMS VOC gas sensor with calibrated digital signal output. It uses special digital module acquisition technology and gas sensing technology to ensure that the product has high reliability and excellent long-term stability. This kind of MEMS gas sensor has the characteristics of low power consumption, high sensitivity, quick response, high reliability and stability, low cost and simple driving circuit.
Package Includes: 1 X AGSO1DB is a MEMS VOC gas sensor
