Features:
◆ Small size, high energy, low noise, long life, AC / DC dual-use

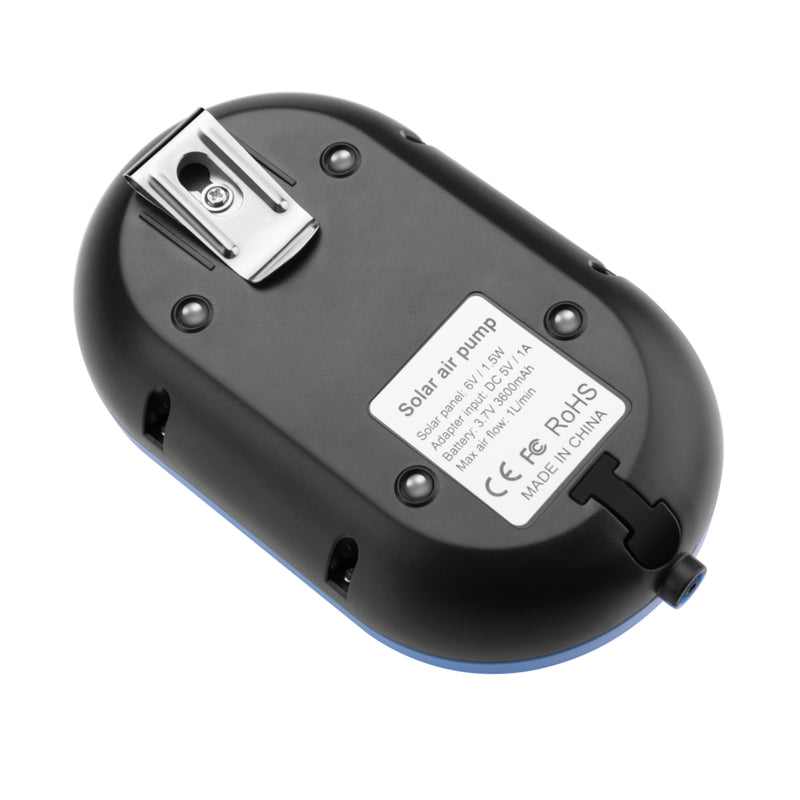

◆ With a belt buckle,easy to carry
◆Stable performance,strong volume
◆Built-in high quality rechargeable lithium battery,cycle life>=500 times
◆Less than 150mA ultra-low power,full power continuous supply of oxygen for more then 48 hours
◆External 5V power supply input,can simultaneously oxygen and charging,longer batter life
◆Using waterproof technology, effective protection of the product safety.
◆ Fish market,fish transport oxygen,fishing and other outdoor places of fish of oxygen

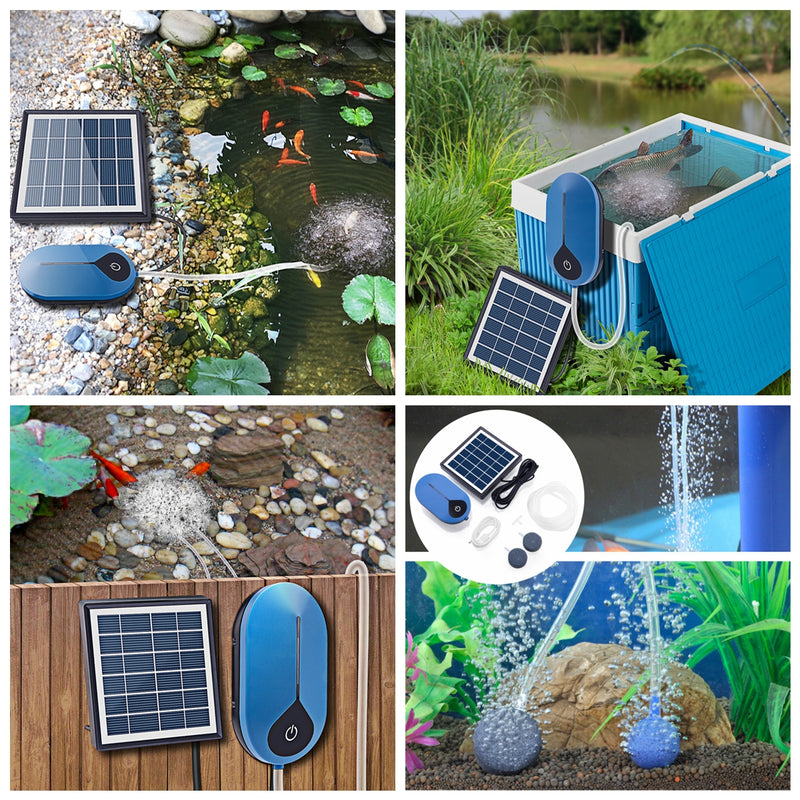

◆Uses: Emergency power for indoor aquanum oxygen, aquatic markets, fish transport oxygen supply, field fishing and other places of fish oxygen supply.
Specification:
1. Cell standard:
Cell type: 18650 lithium battery
Nominal voltage / capacity: 3.7V 3600mAH (two 1800mAH in parallel)
2. Solar panel parameters:
Solar voltage: 6V / 1.5W
Solar current: 420MA
Process: Polycrystalline solar glass plate
3. Oxygen pump parameters:
Air pump type: DC miniature air pump
Rated voltage: 3.0V
Maximum current: 450MA
Noise: 60dB
Waterproof: IP44
Minimum air flow: 0.5L-0.9L / min

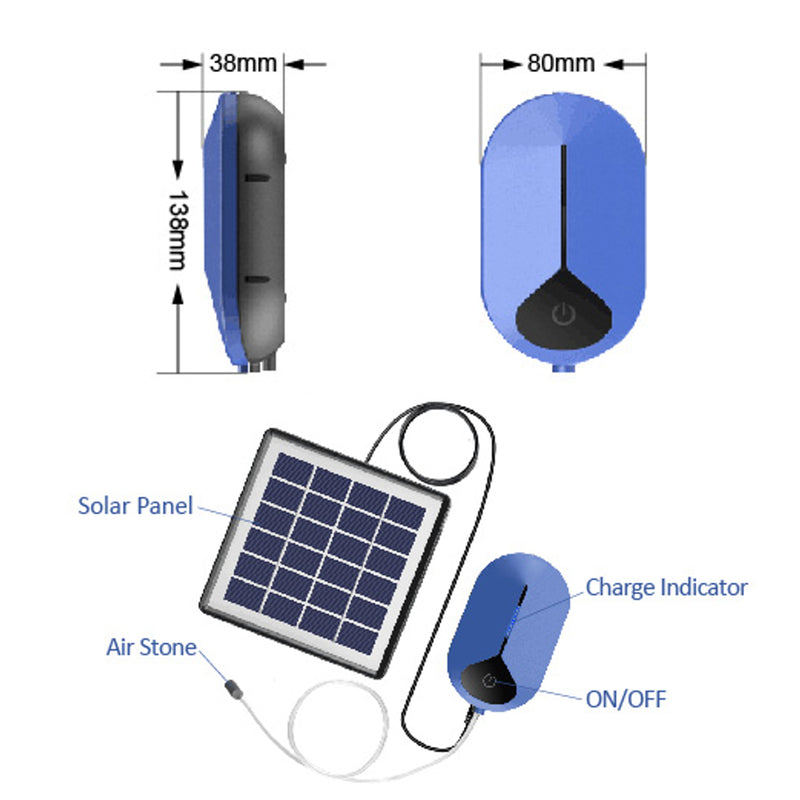

Size: 138x80x38mm/5.4x3.1x1.5in
4.Circuit parameters:
Working voltage range: 3.0V-4.25V
Maximum working current: less than 500MA
Discharge protection voltage: 3.0V
Charging protection voltage: 4.25V
Charging input: DC 5V / 1A
Charging time: 5-6H
Working time: about 48 hours
Product weight: 0.63Kg
Packing size: 15.3 * 14.5 * 82CM
5. Working mode:
Mode 1: High-speed 28H
Mode 2: Low-speed 48H
Mode 3: Low speed 96H opens for 10 seconds and stops for 10 seconds.
6: Shutdown
Work instructions: LED on display shows the remaining battery power, it is displayed in 5 levels, the last LED flashes at low power (3.2V)
7. Charging method:
Method 1: Solar Panel Charging Time: 15H
Method 2: USB charging (1A charging) Charging time: 5H
Charging indication: During the charging process, the LED lights indicate the charging process, and the 5 LEDs are fully lit when fully charged.

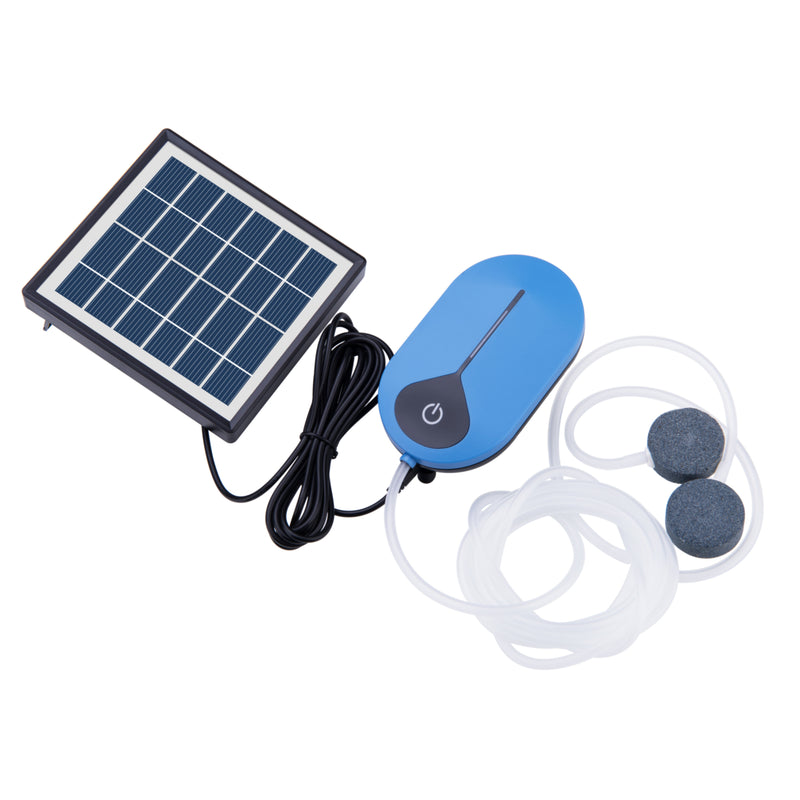

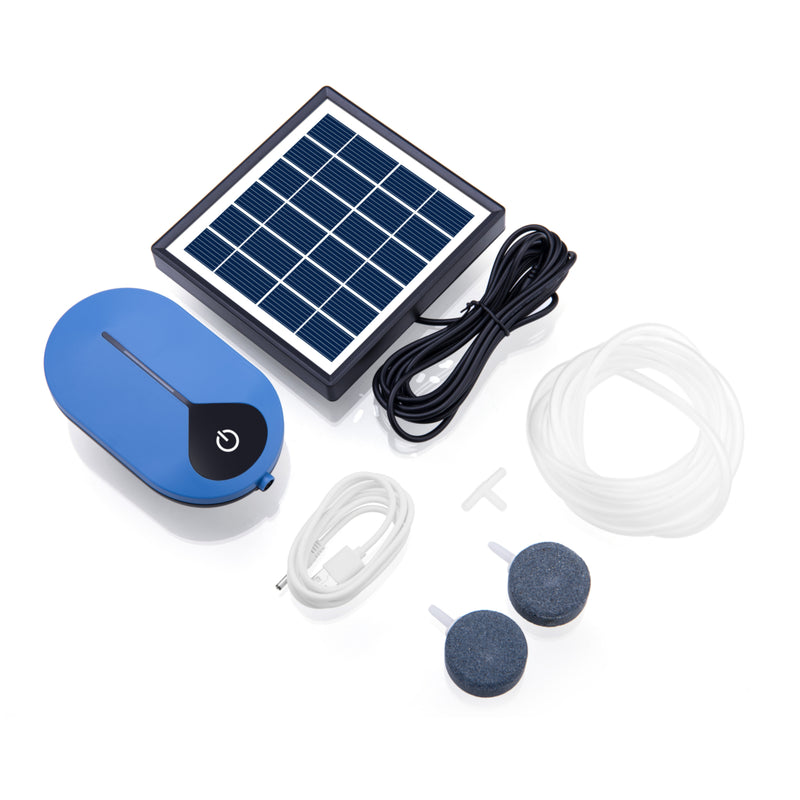

Package Includes:
1 x Solar panel
1 x Air pump
1 x Hose
2 x Air stone
1 x Check valve
1 x Charging cable
1 x Hanging buckle
1 x Screw
Instructions:

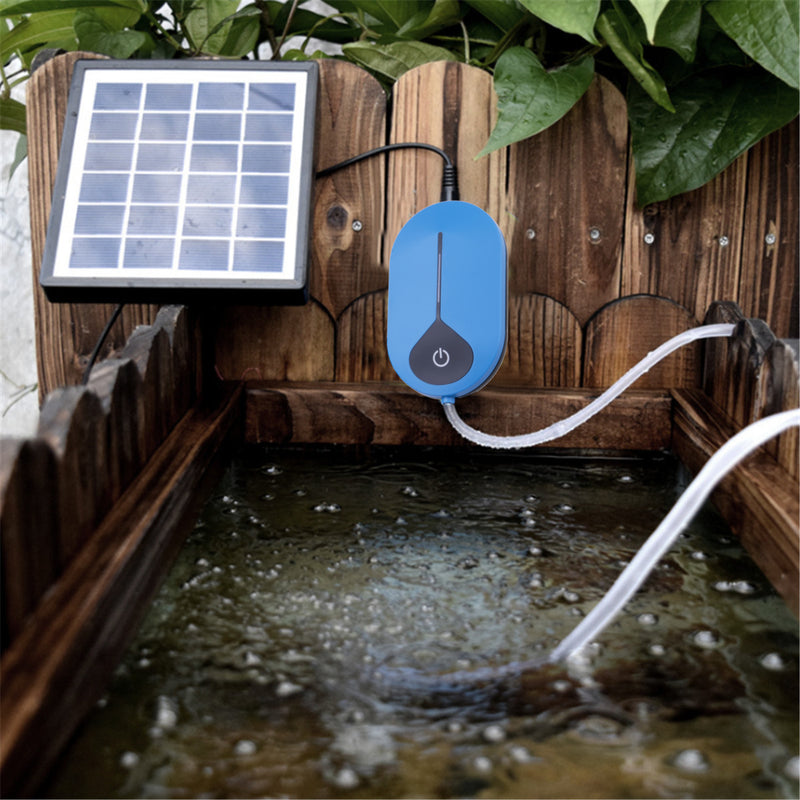

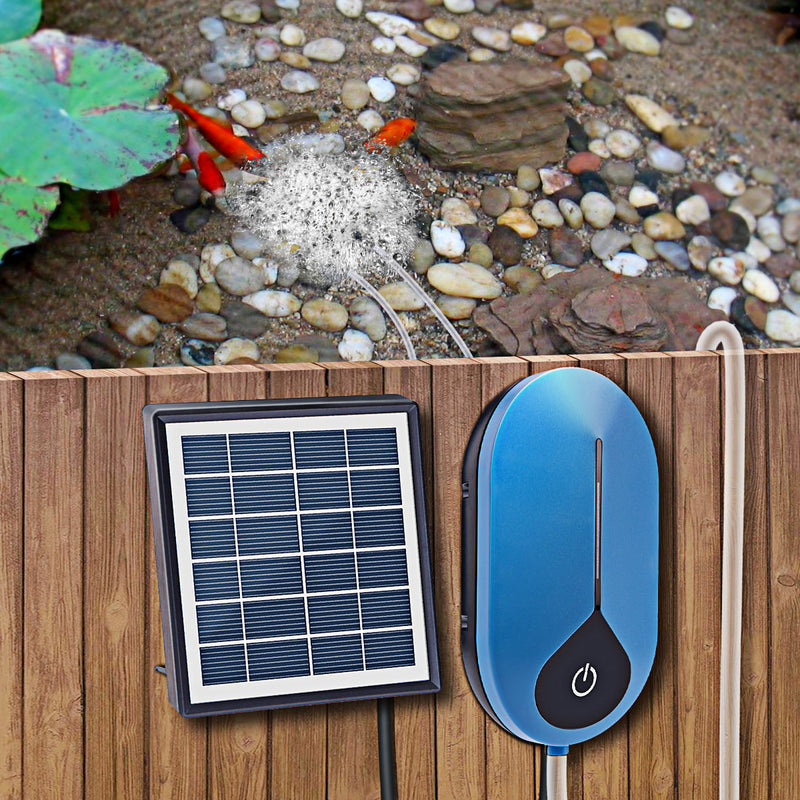

Connect the bubble stone to the exhaust hole and put it into the water body that needs to be oxygenated. The solar cell is facing the sunlight. There is no obstruction between the solar cell and the sunlight. Press the POWER switch and the oxygenation pump starts to work.
1. This product is an electronic product. The aeration device cannot be placed in water, and the diversion holes cannot be blocked.
2. This product is a solar product. The charging speed is related to the intensity of sunlight. Regularly cleaning the dirt on the solar cell can improve the charging efficiency.
Note:
1. This product is an electronic product. The aeration device cannot be placed in water, and the diversion holes cannot be blocked.
2. This product is a solar product. The charging speed is related to the intensity of sunlight. Regularly clean the dirt on the solar cell to improve the charging efficiency.
3. Please allow 0.5-1cm differences due to manual measurement.
4. Due to the light and screen difference, the item's color may be slightly different from the pictures.
