Item Name: C6T6 STM32F103C6T6 Mini System Board 32-Bit Development ARM Core Board Part. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

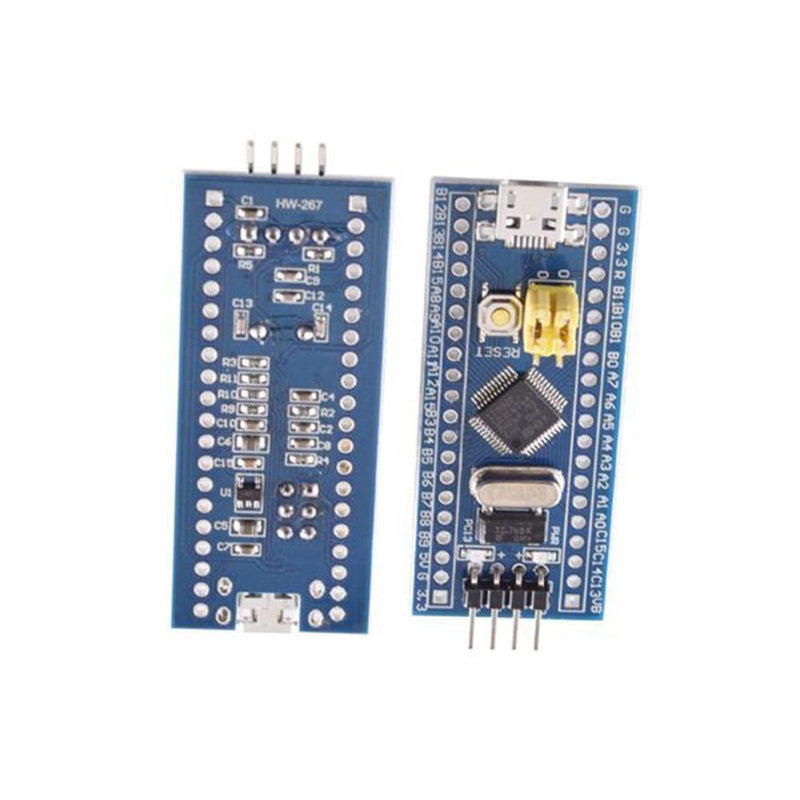

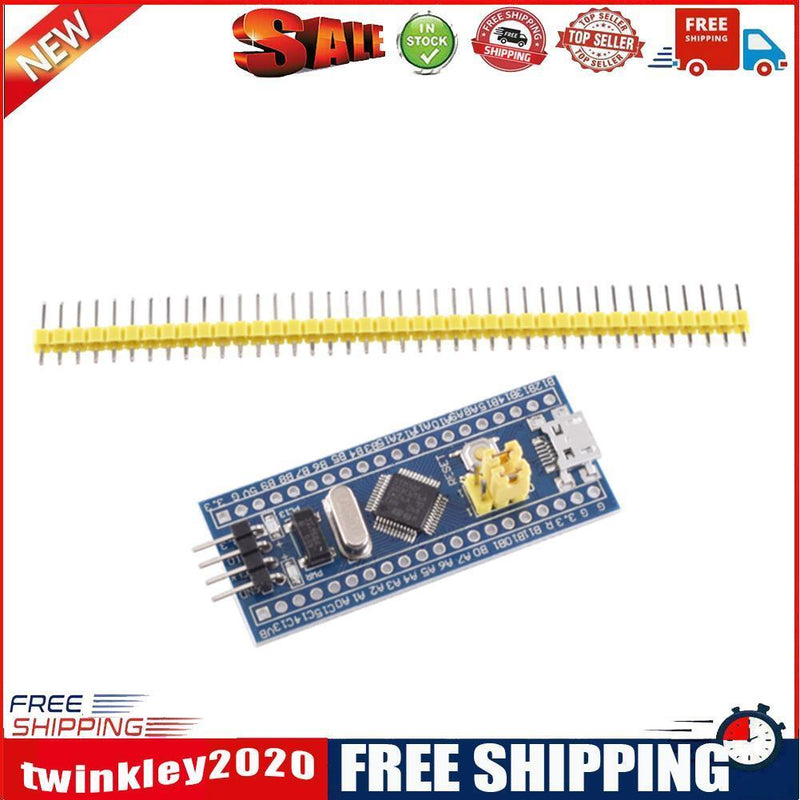

C6T6 STM32F103C6T6 Mini System Board 32-Bit Development ARM Core Learning Board High-Performance Microcomputer Module
Specification:

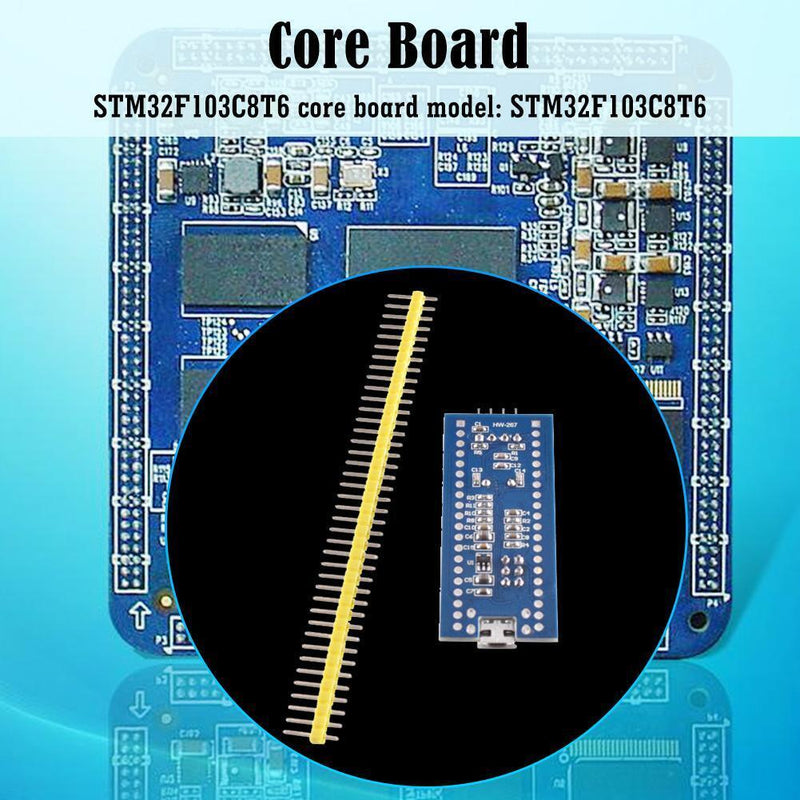

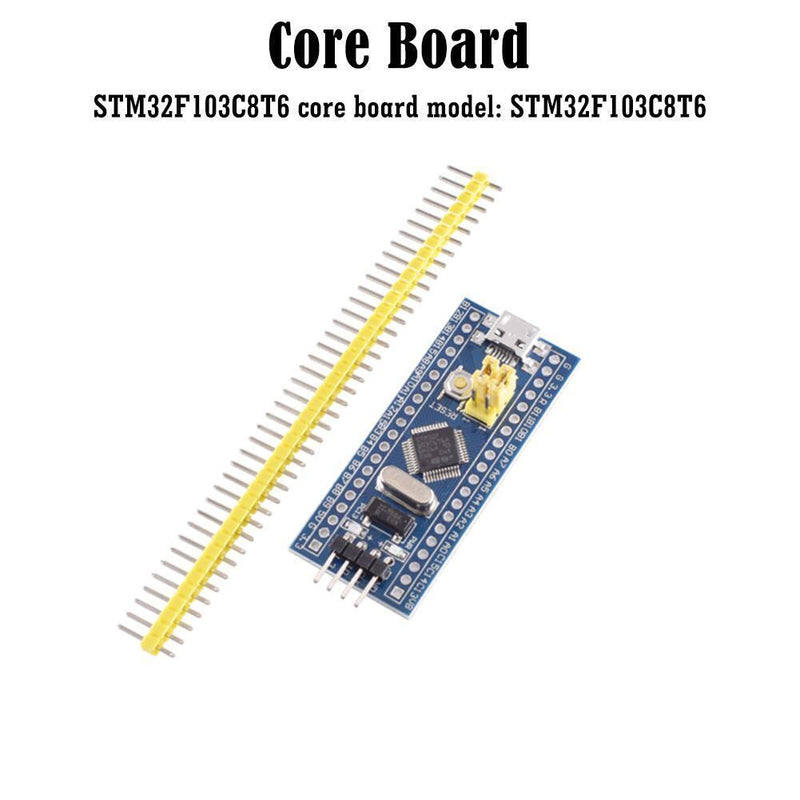

STM32F103C6T6 core board model: STM32F103C6T6
Core: ARM 32-bit Cortex"-M3 CPU
Commissioning mode: SWD
Introduction of MCU:
1. The highest working frequency of 72MHz, in the memory of 0, etc. Up to 1.25DMips/MHz for periodic access.
2. Single cycle multiplication and hardware division.
3. 64K flash memory.
4. 20K byte SRAM.
5. 2.0 ~ 3.6 volt power supply and I/O pins.
6. Power-on/power-off reset (POR/PDR) and programmable voltage monitor (PVD).
7. 4 ~ 16 MHz crystal oscillator.
8. Built-in 8MHz RC oscillator calibrated by the factory.
9. 40kHz RC oscillator with calibration is embedded.
10. PLL for generating CPU clock.
11. 32kHz RTC oscillator with calibration function.
12. Sleep, stop and standby modes.
13. VBAT supplies power to RTC and backup register.
14. Two 12-bit analog-to-digital converters with 1s conversion time (up to 16 input channels).
15. DMA
16. 37 fast I/O ports, all of which can be mapped to 16 external interrupts Almost all ports can tolerate 5V signals.
17. Three general timers and one advanced timer.
18. 2 (SPI1, SPI2).
19. 2 (I2C1, I2C2).
20. 3 (
