Specifications:

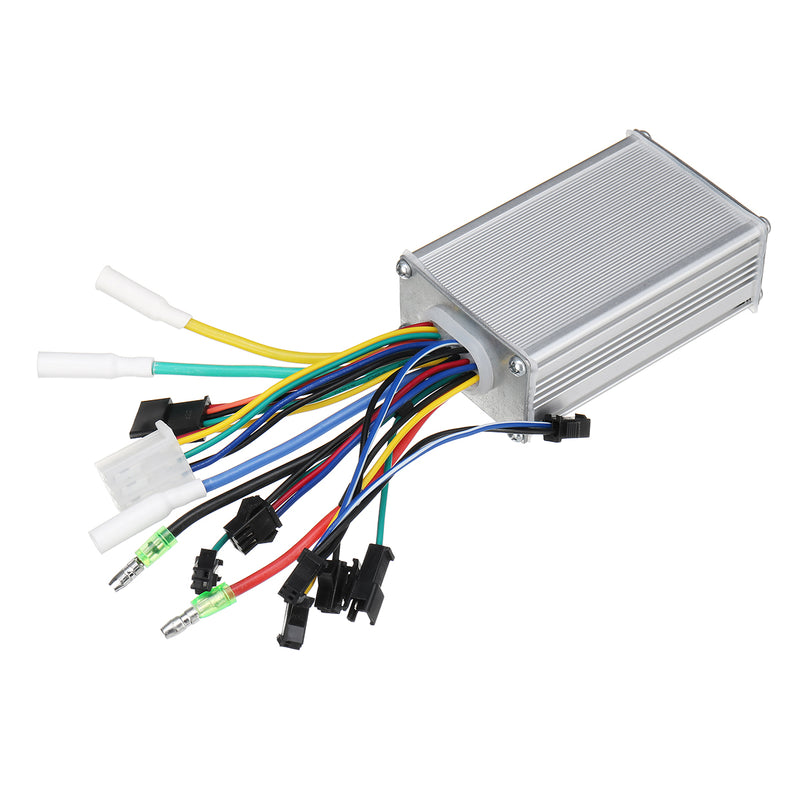

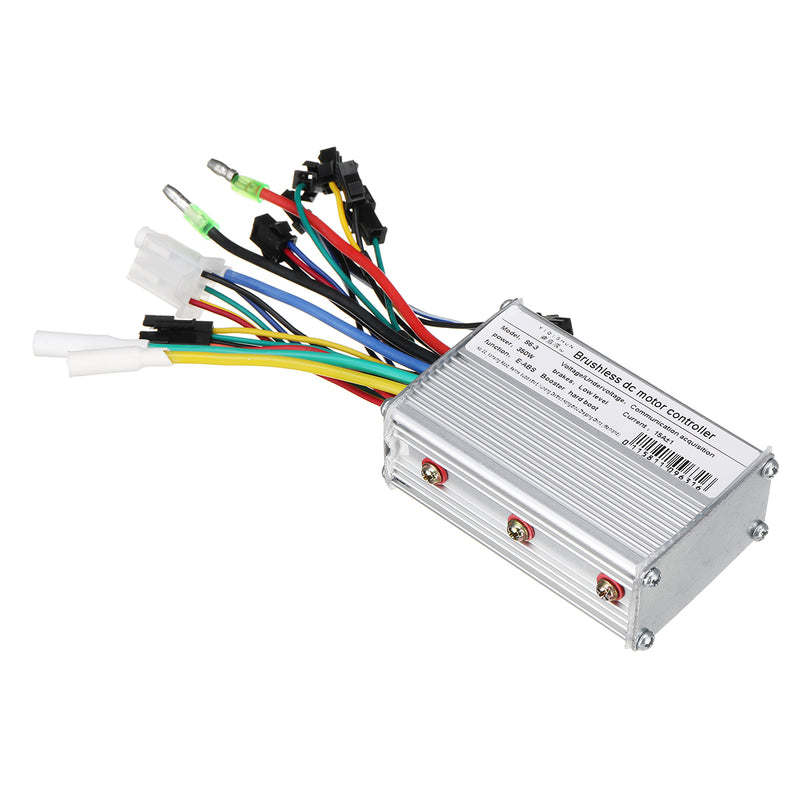

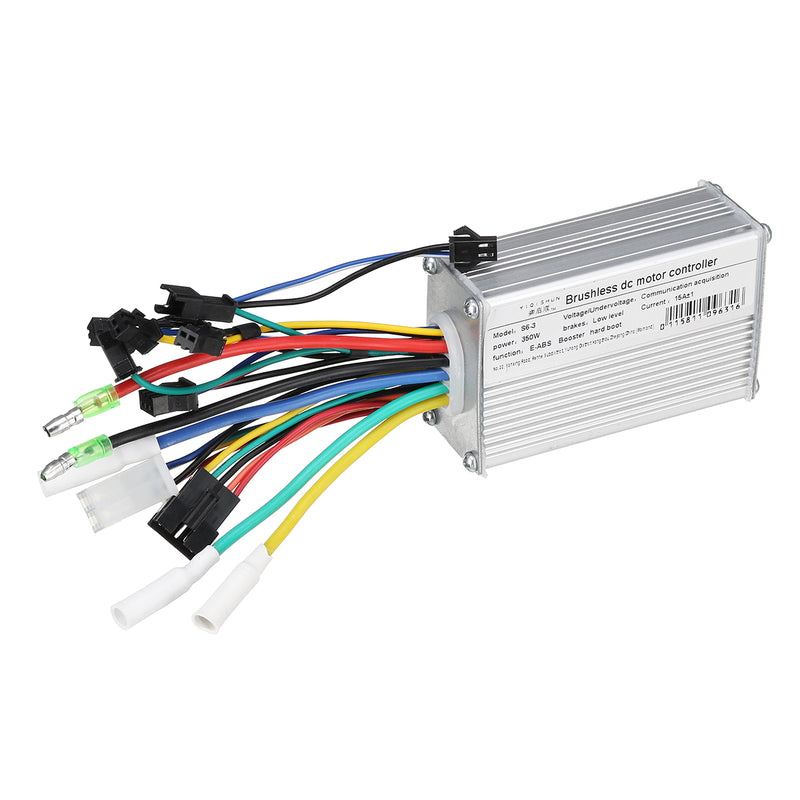

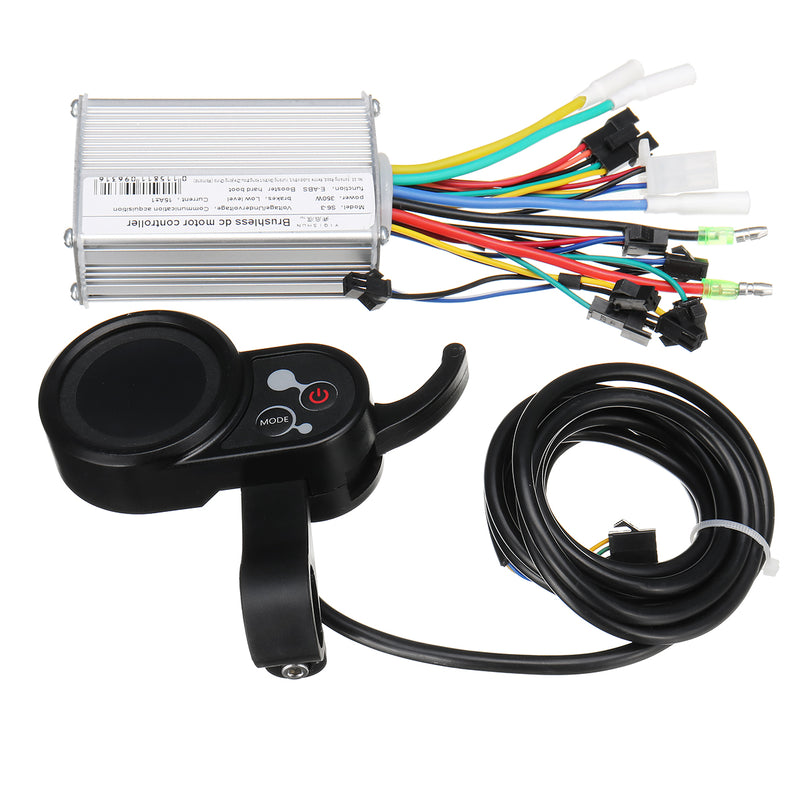

Brushless Motor Controller
Voltage:DC 24V/36V/48V
Low volts:DC 19V/29V/40V
Power:350W
Current:15A
Quiescent Current:22Ma
Angle:120/60
Material: Plastic + LCD + Metal
Controller Size:86x53x30MM
Features
- OVER-HEAT PROTECTION: Power will turn off when over-heat, and restart if the temperature is normal.
- OVER-LOAD PROTECTION: When overload happens,the motor stall more than 2 seconds, the controller will cut off the current out-put to protect the motor and battery.
- DUAL MODE: If the hall motor sensors are broken, controller will operate to None-Hall mode.
- EABS Function:better brake,extend the riding mileage without damaging the motor.
- LOW-VOLTAGE PROTECTION FUNCTION helps to extend the battery life.
- BRUSHLESS CONTROLLE: working silently and sensitive.
Self-learning matching steps:
- Connect Motor Phase Line and Hall Motor Phase line
- Connect the battery
- Link Two green learning lines together
- Connect the LCD/Smart Display and turn it to the highest level
THE MOTOR WILL ROTATE AFTER SELF-STUDY.
- If it rotates reversely, disconnect the learning line directly, and then plug it in, it will then rotate forward.
- Keep rotating forward for about 20 seconds, then directly disconnect the learning line.(DO NOT TURN OFF THE SWITCH)
- If it learns successfully which means the learning line will not be needed anymore,you can test the motor by plugging in the throttle.

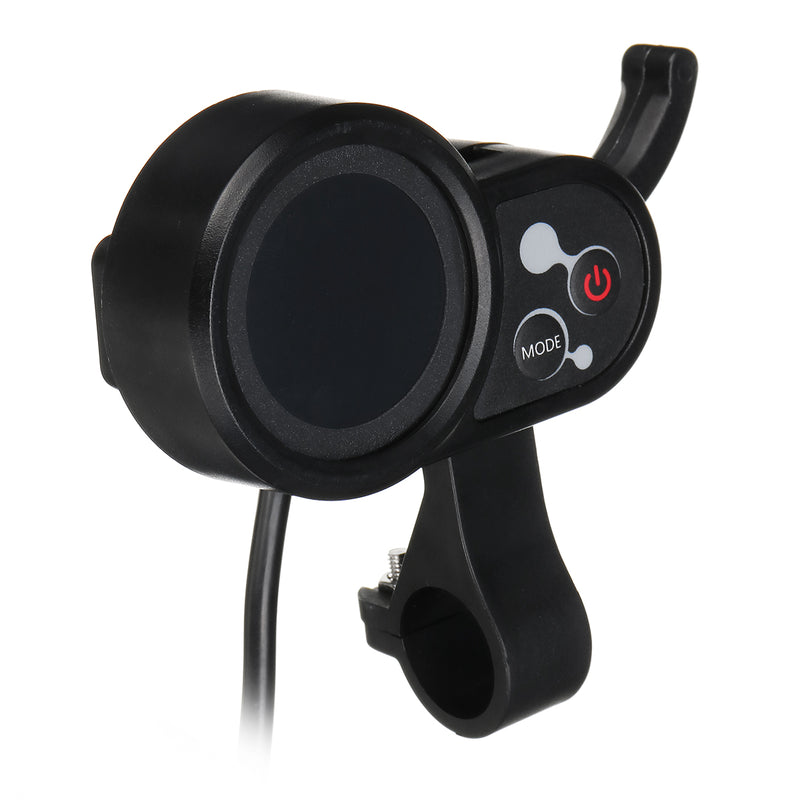

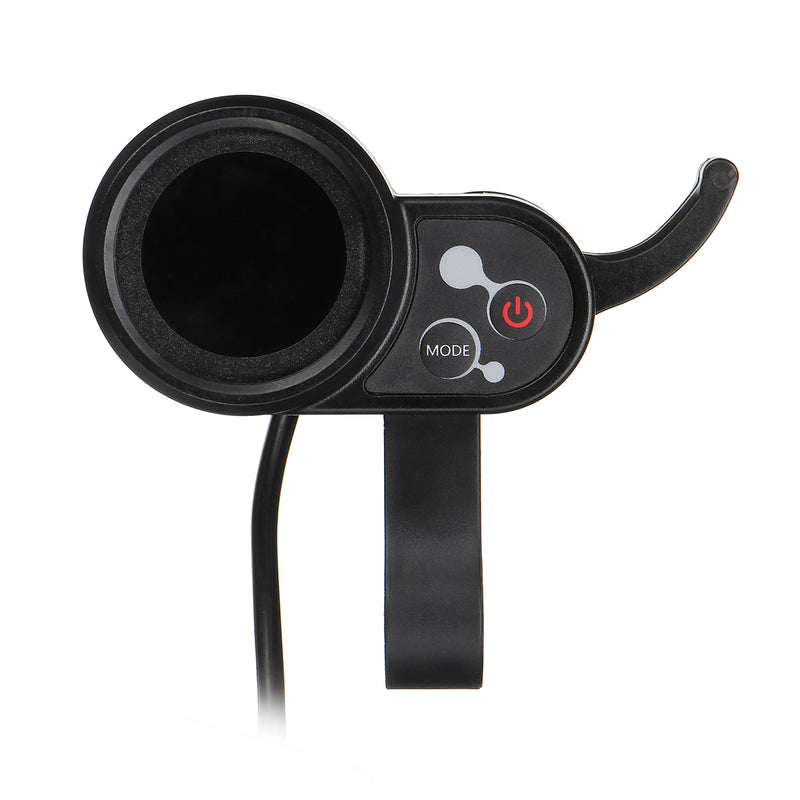

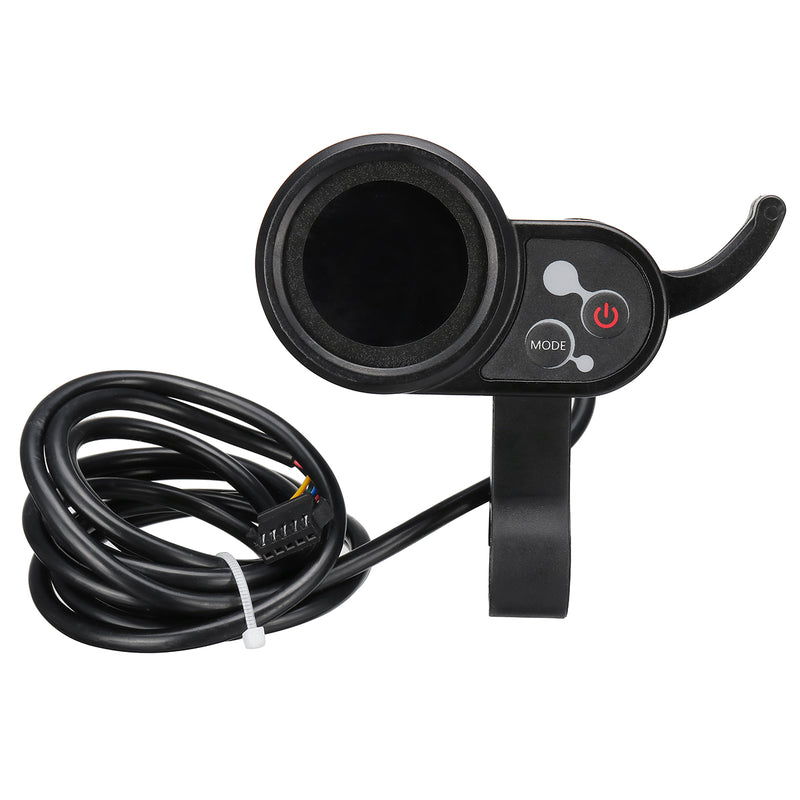

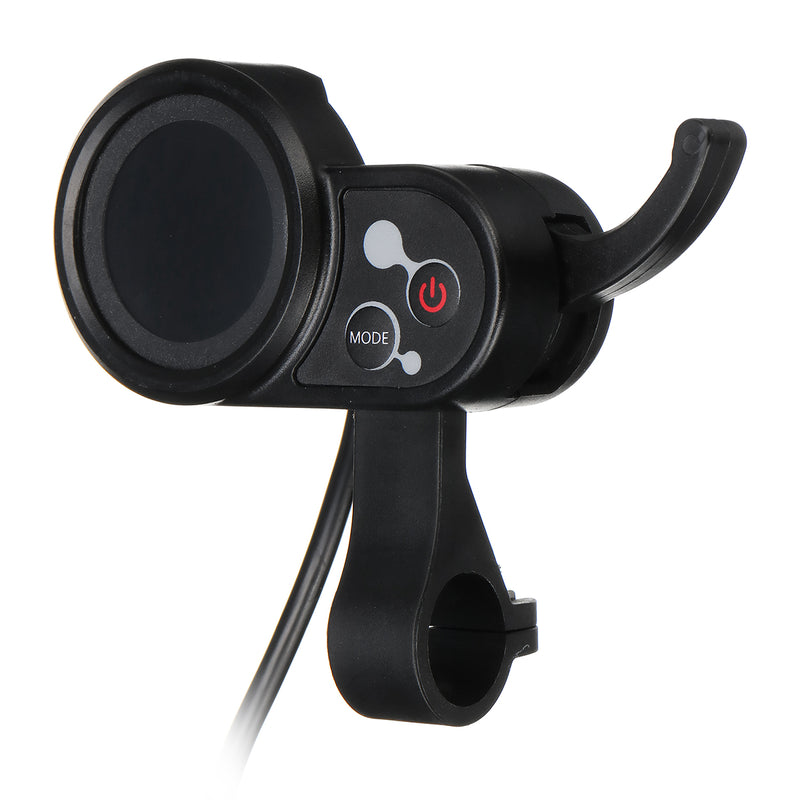

Display:
Material: ABS +High Hardness Acrylic
Voltage:DC 24V/36V/48V
Cord Length:180cm
Smart Display Size:112.4x67.3x48.3MM
Note:
- Keep pressing 3 seconds for turning on/off
- SPCP between Display and Controller, could not match other controllers
Notes
- Turn off the power before wiring, and connect each wire as shown in the wiring diagram.
- The controller should be installed in a place where is ventilated, waterproof, and shockproof.
- The controller connector should be plugged in, and it is forbidden to reverse the positive and negative terminals of the controller power supply.
- LCD/Smart display comes with mount ,suitable for 22mm handlebar.
- Suitable for LITHIUM BATTERY type electric bicycles

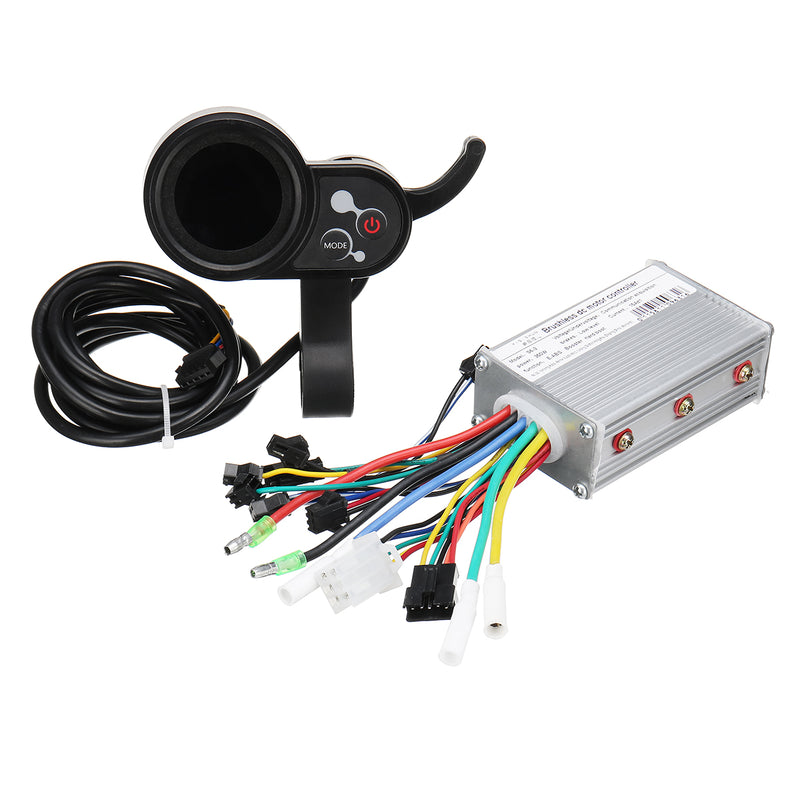

Package Includes:
1 x Motor Controller
1 x Smart Display
