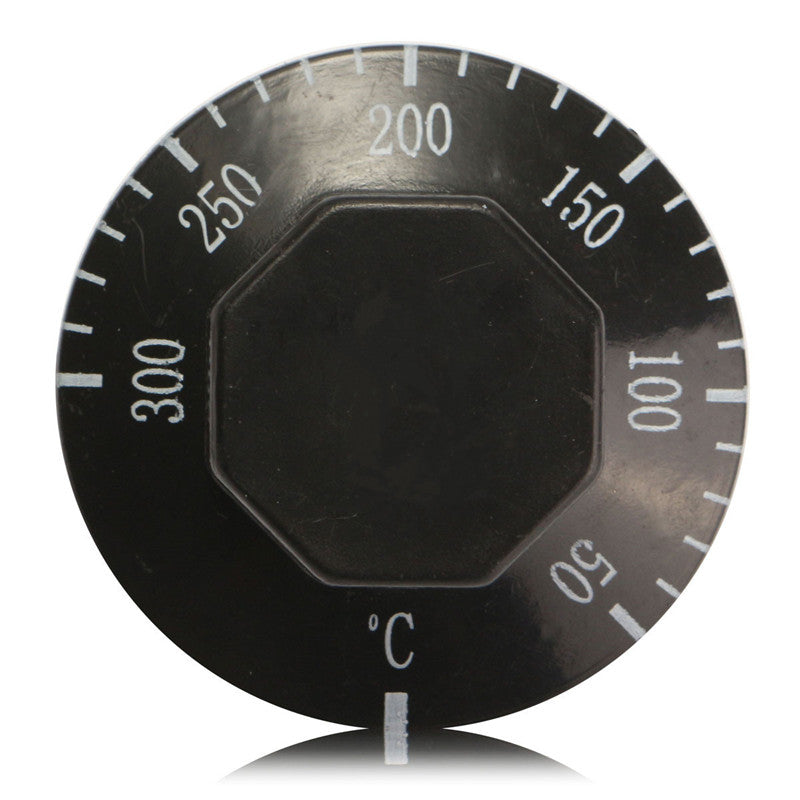

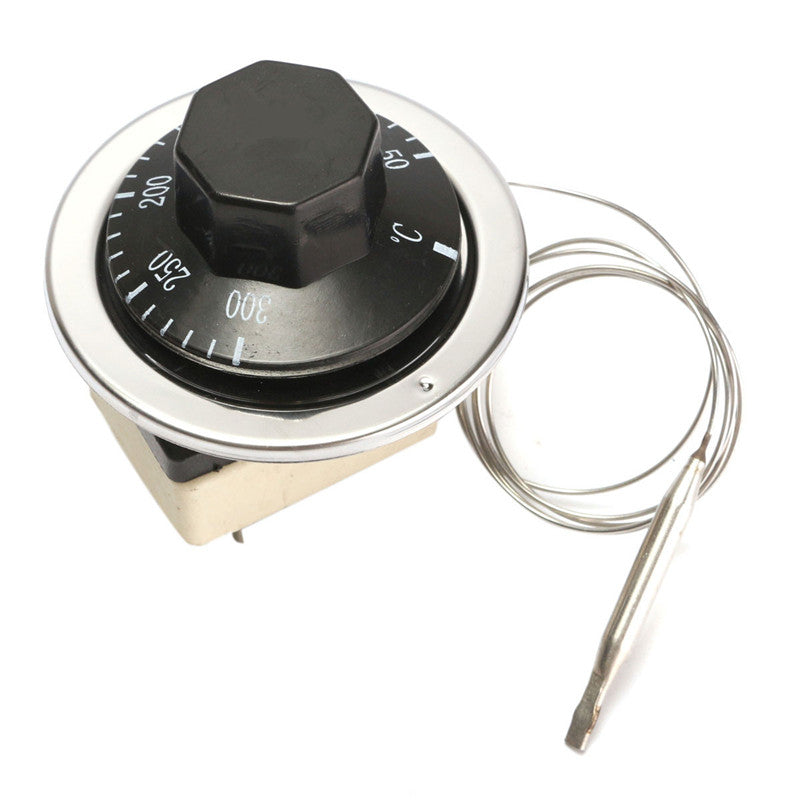

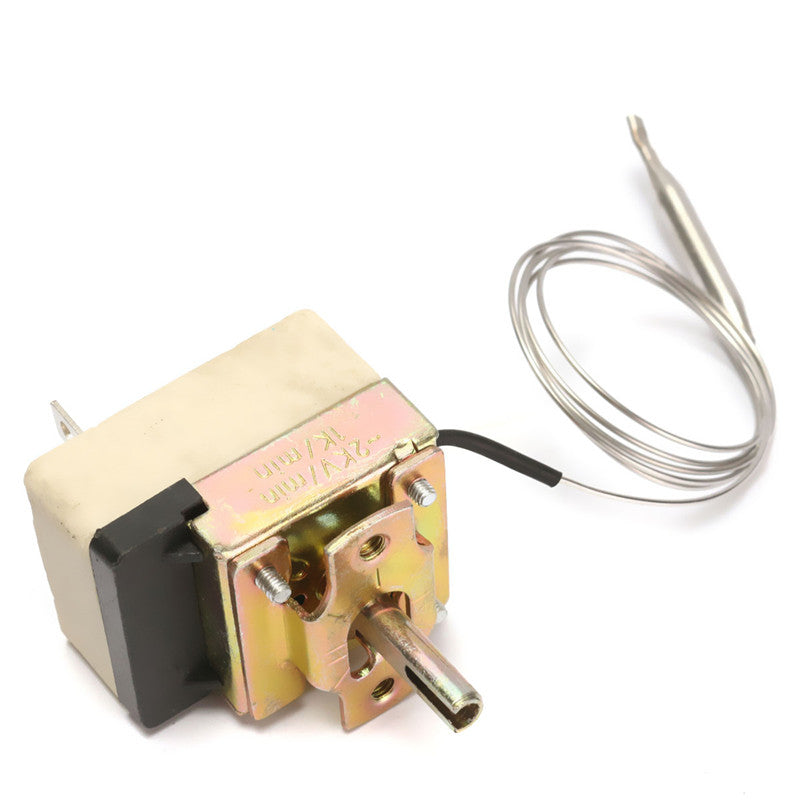

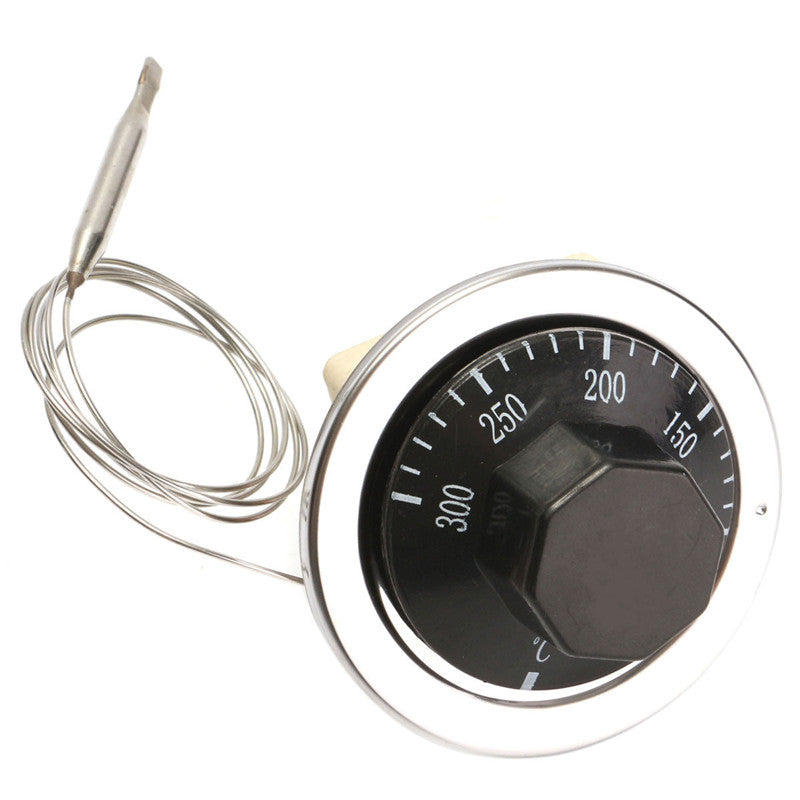

Temperature controller temperature control switch thermostat knob Adjustable thermostat AC 250V 16A 50-300°C
Three feet is a normally closed and a normally open function
Specifications:
Material: Metal, plastics, ceramics,
Rod rough: 5mm
Rod length: 54mm
Cable length: 70cm
Voltage: AC 250V
Current: 16A
Temperature: 50 ° C-300 ° C
Product Life:> 100,000 times
Electric strength: AC2000V / 1min
Normal insulation resistance: ≥100MΩ
Contact resistance: ≤50mΩ
For tide insulation resistance: ≥10MΩ
Temperature response rate: ≤1.0 C / min
Minimum Current: 200mA
Principle of performance:
-- When the object to be controlled temperature changes
-- So that the working fluid thermostat temperature to produce the corresponding portion of the thermal expansion and contraction
-- Physical phenomena (working fluid volume change)
-- Temperature sensing bellows portion communicating together produce expansion or contraction.
-- Through leverage, driven by the switch-off operation, to achieve the purpose of constant temperature.
Suitable for:
-- Mainly used in household appliances (shower, drum-type washing machines, heaters),
-- Electric equipment (stainless steel automatic water boilers, electric frying pans, food machinery, medical equipment),
-- The refrigeration industry (kitchen freezer, fresh cabinet, refrigerator, ice machine, fish pond, cold drink machine, heating machine) with temperature control.

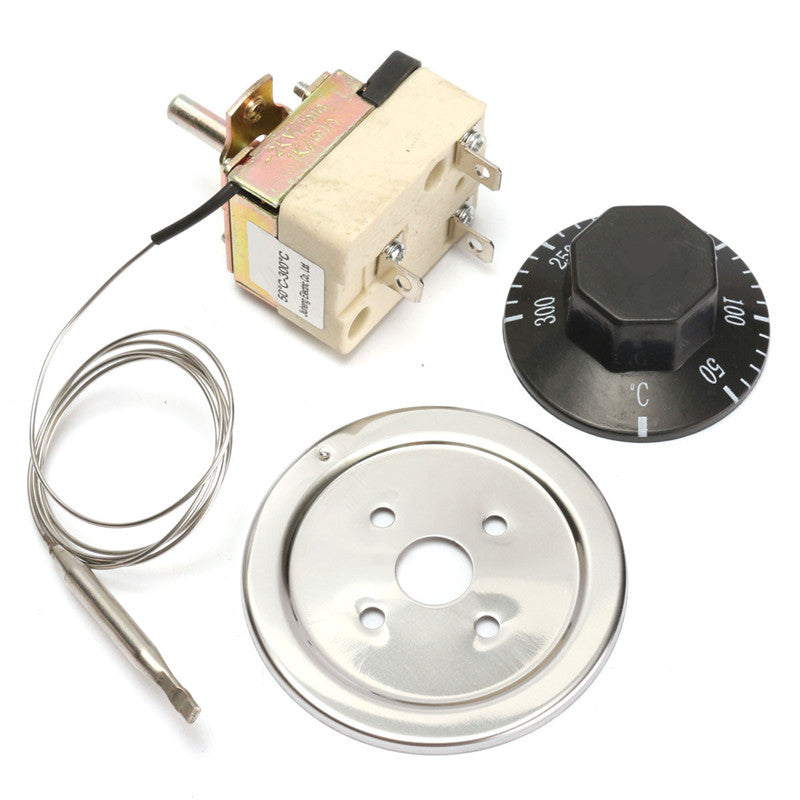

Package Included:
1 set of mechanical thermostat
