Specifications
1.Model: EQ89
2. Input voltage: DC10-55V (equal to the rated voltage of the motor)
3. Maximum current: 60A
4. Continuous current: 40A

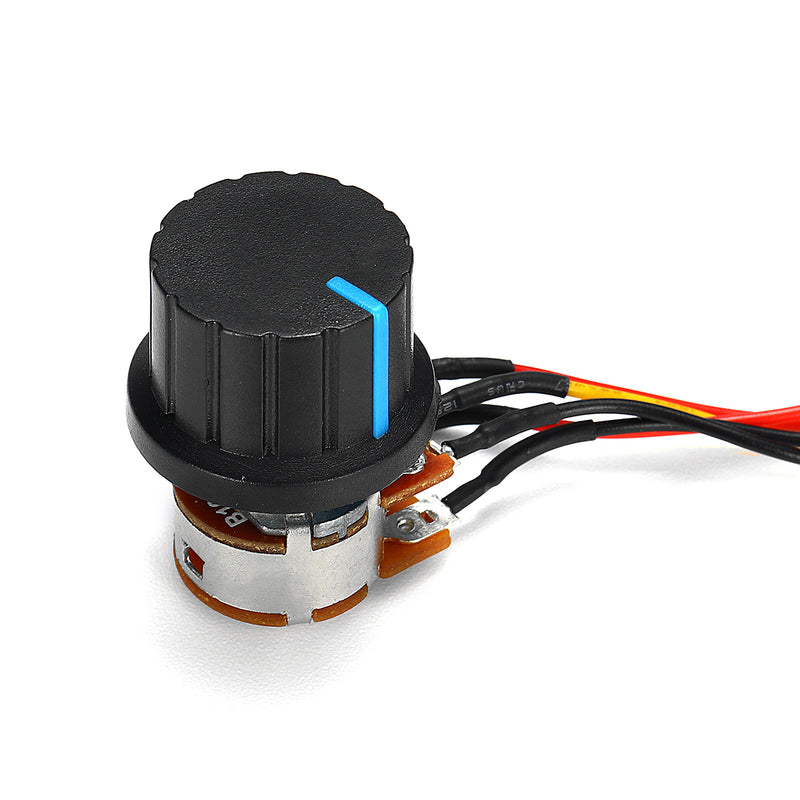

5. Speed regulation mode: Potentiometer(100K/with switch function)
6. Speed regulation type: Regulating current
7. Support motor: DC brushed
8. Forward and reverse rotation: Support
9. Speed range: 0 - 100%
10. Cooling fan: brushless fan
11. Wiring type: terminal

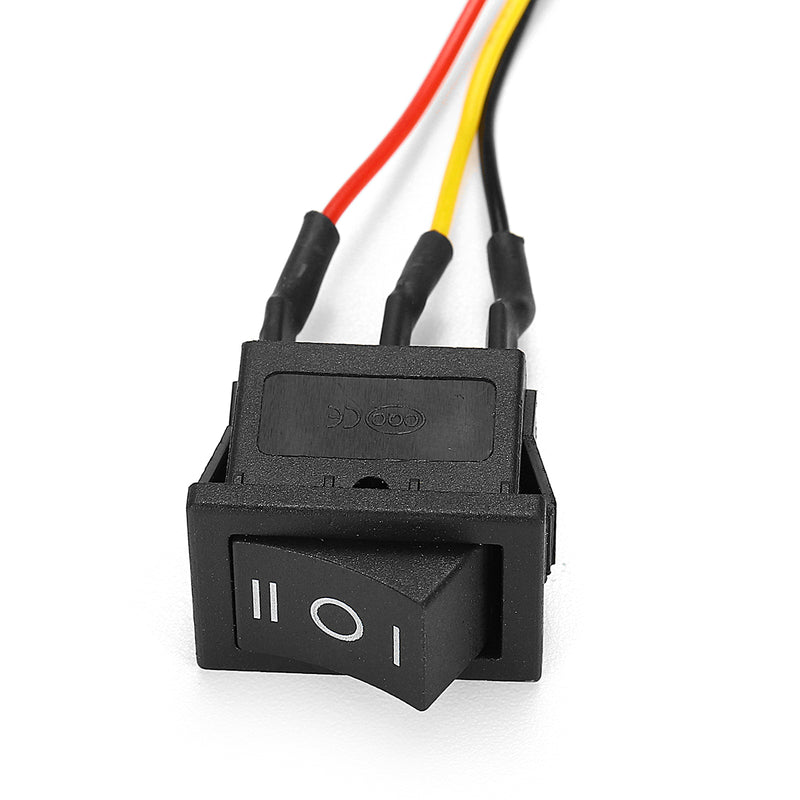

12. Reversible switch: CW/CCW

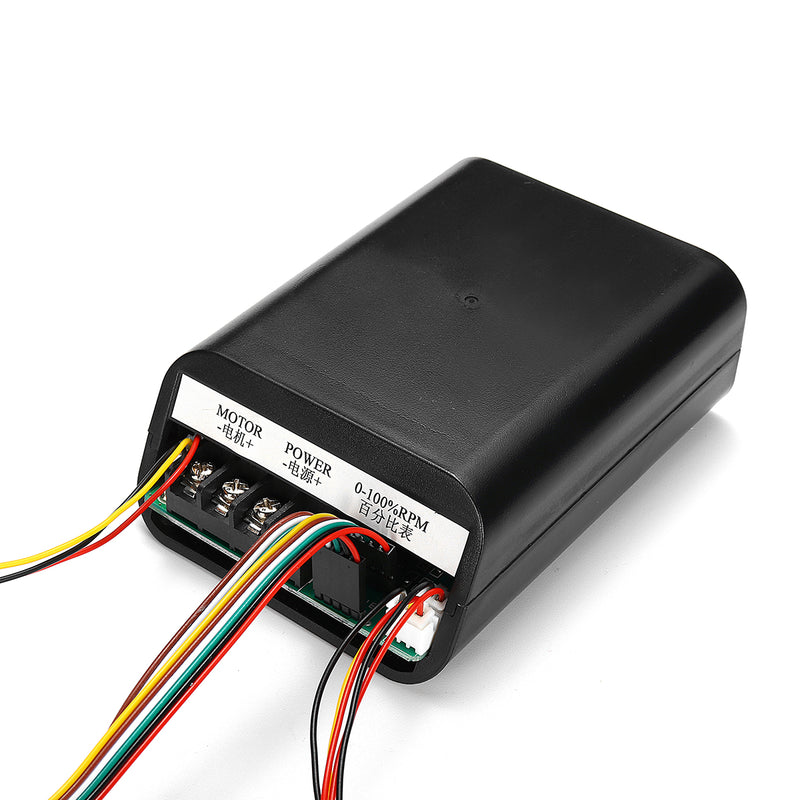

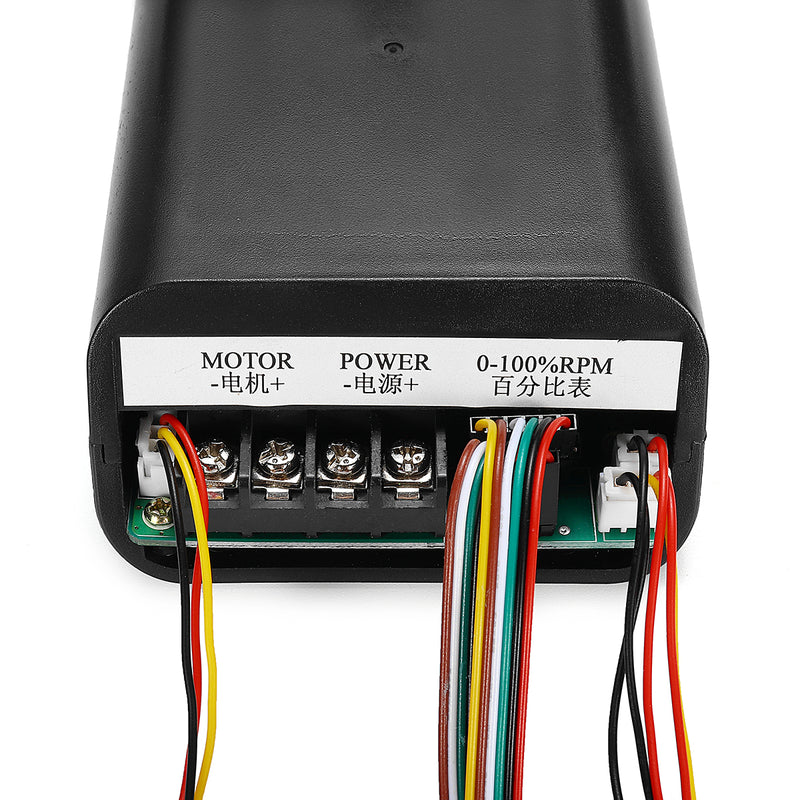

13. Wiring type: fence terminal block
14. Weight: 309g
15. Size: 125*90*45mm
Features

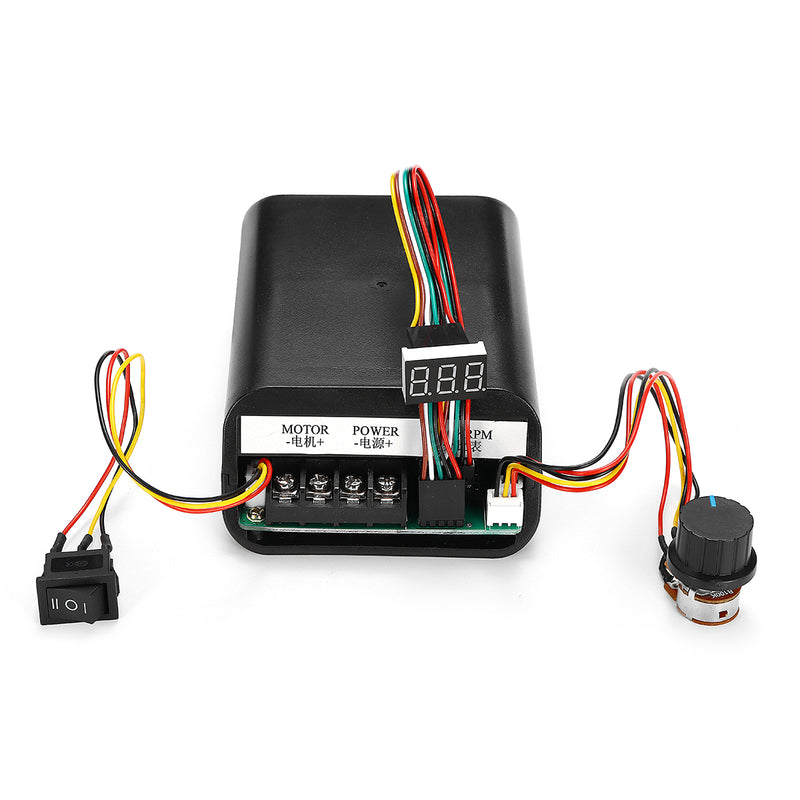

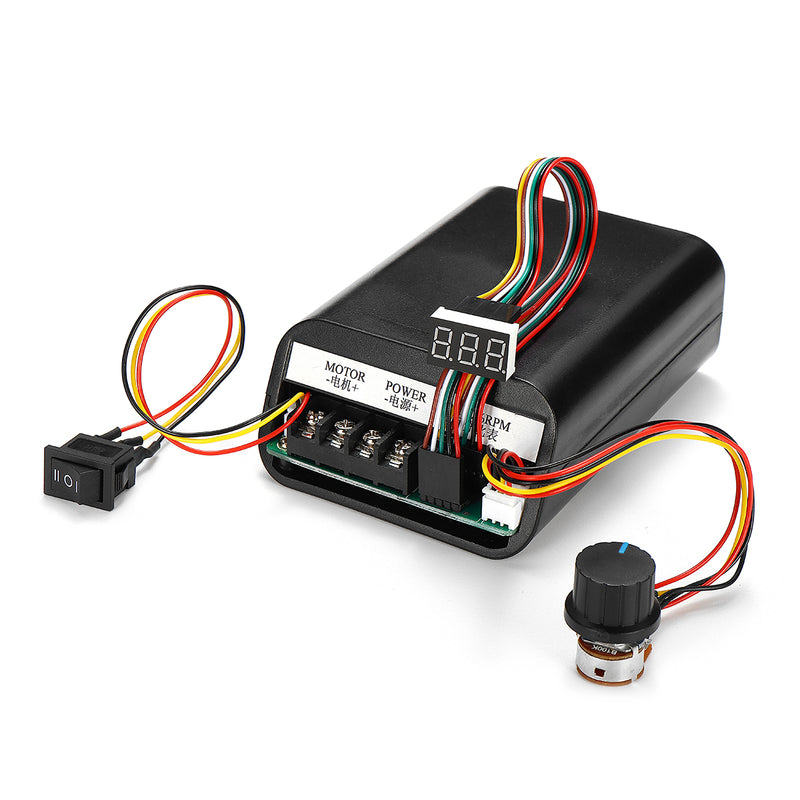

- 40A high power CW CCW Reversible speed controller
- Support large current start, protection for motor stall

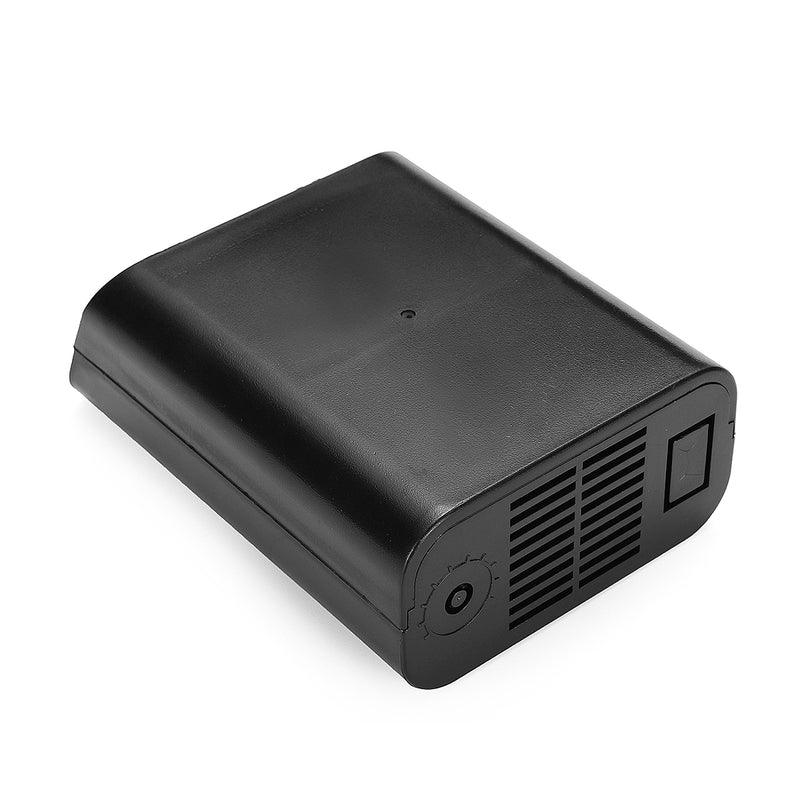

- Built-in heat dissipating fan, not easy to fever

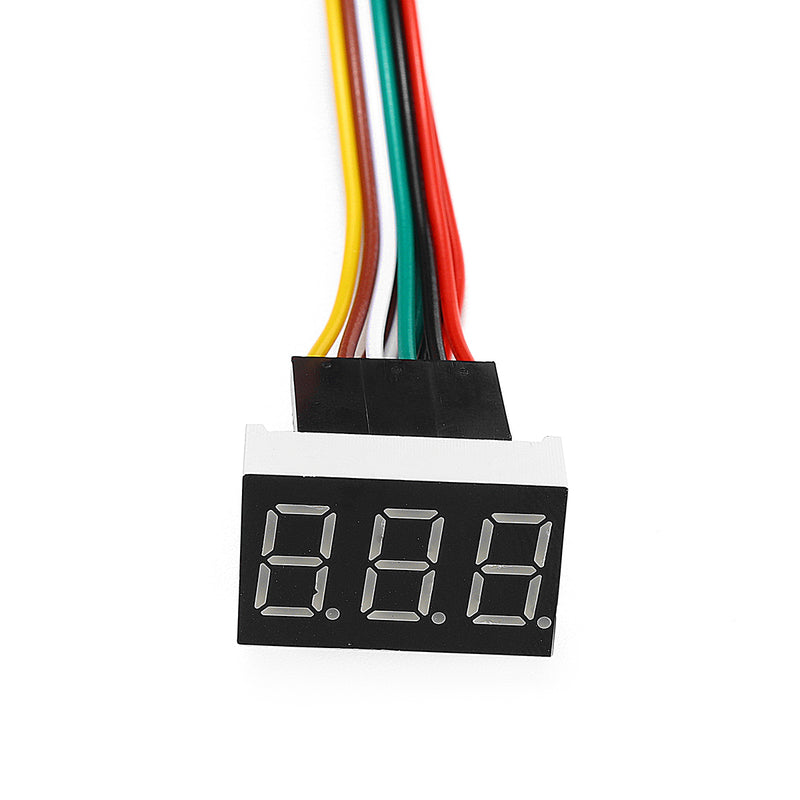

- Digital LED display of 0-100% speed percentage
Package include

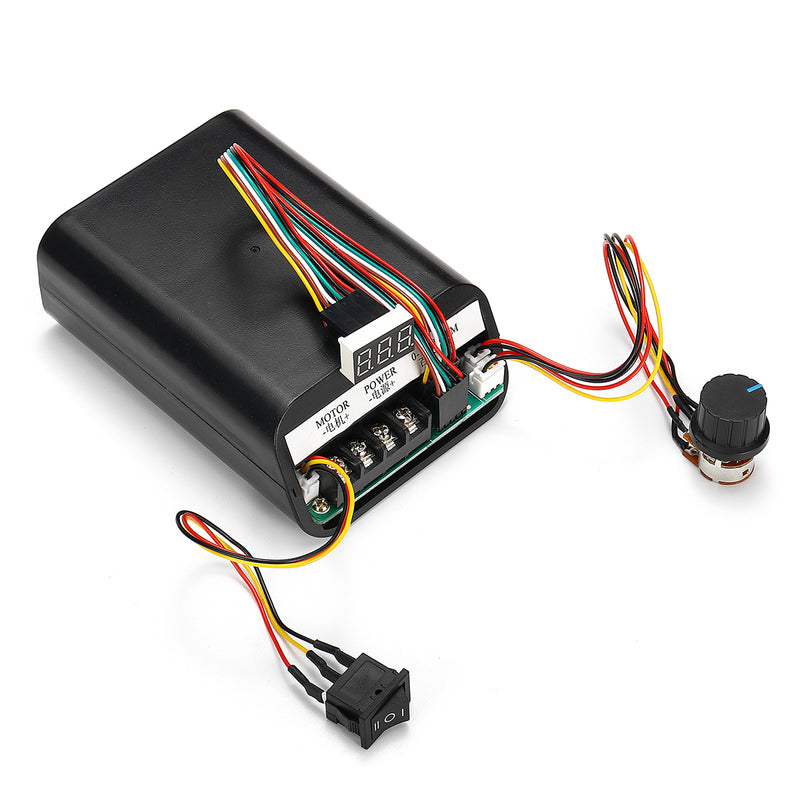

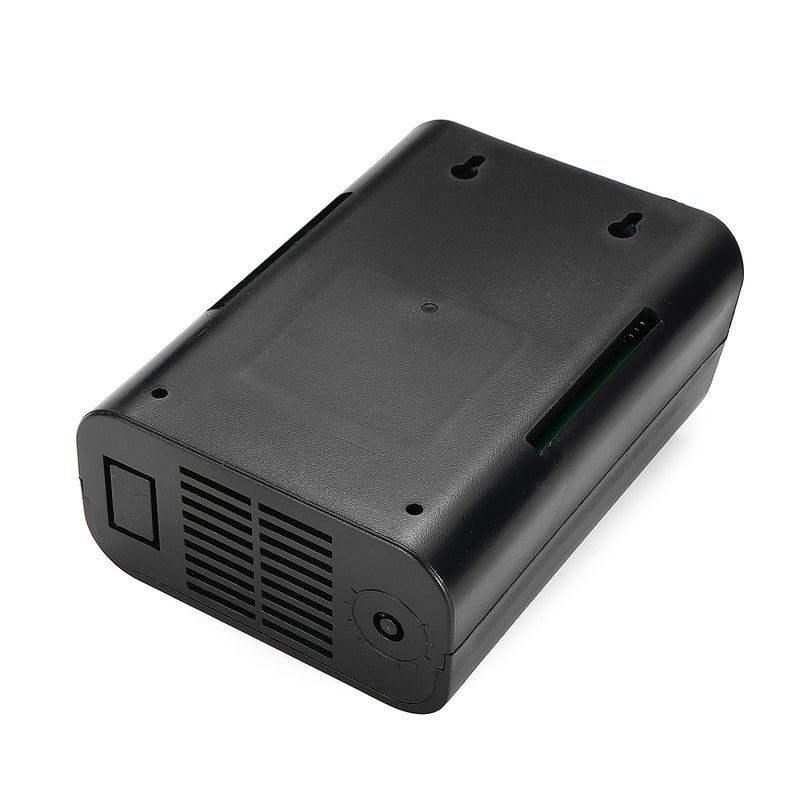

1x Motor Speed Controller
