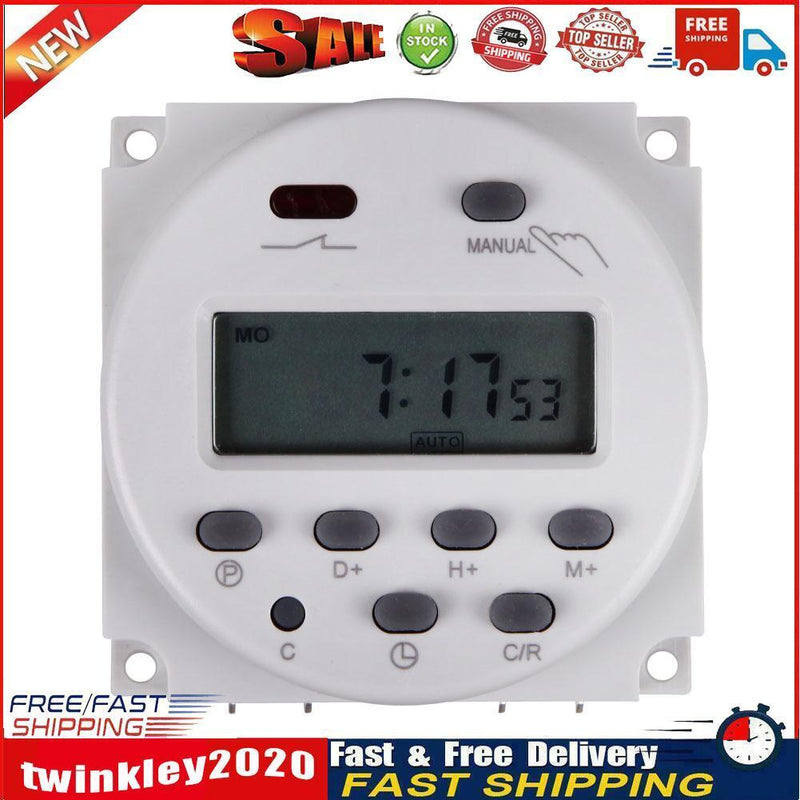

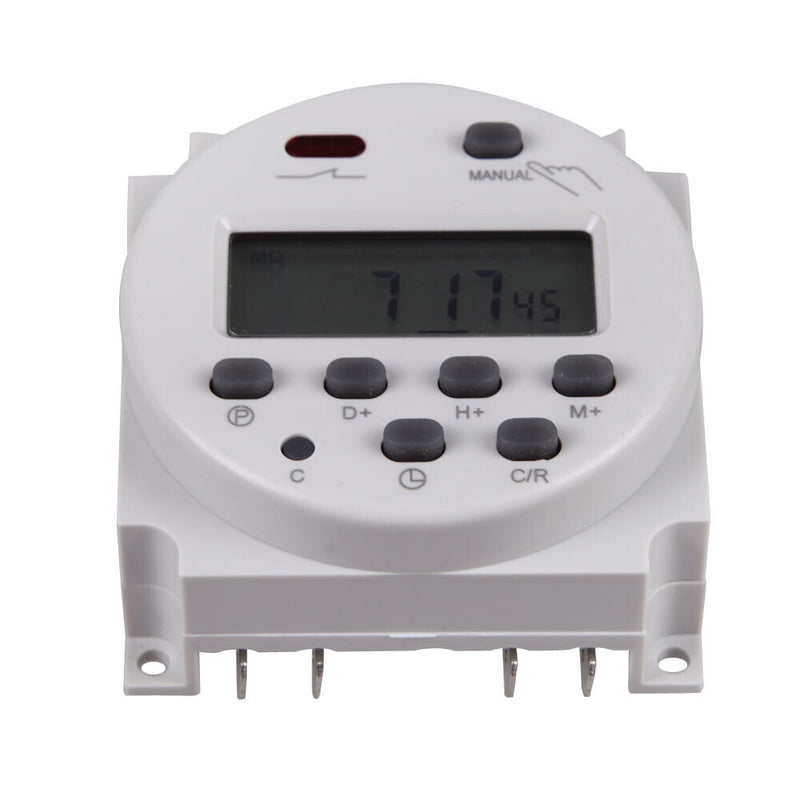

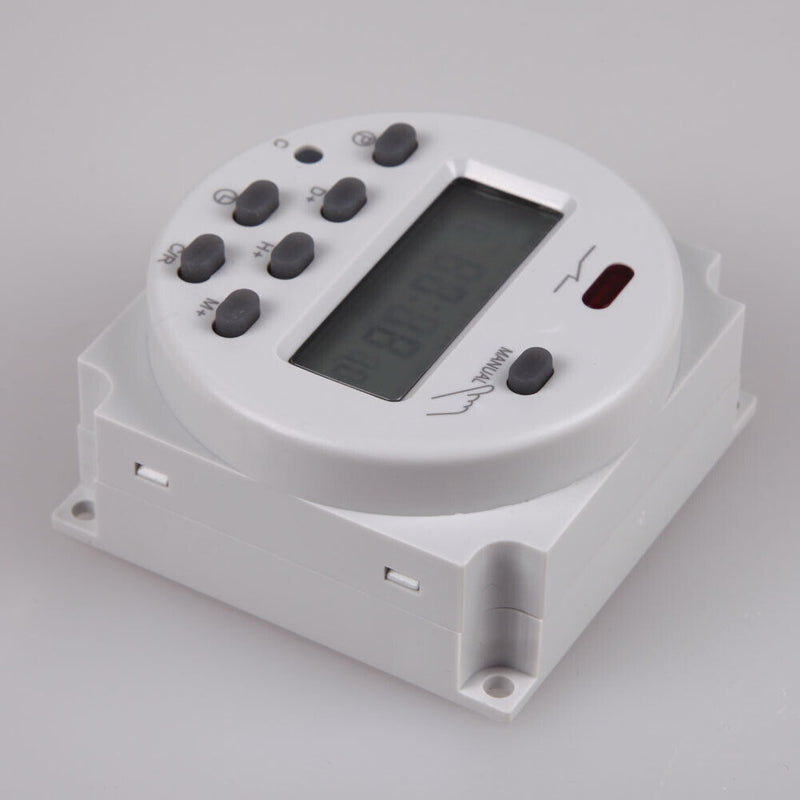

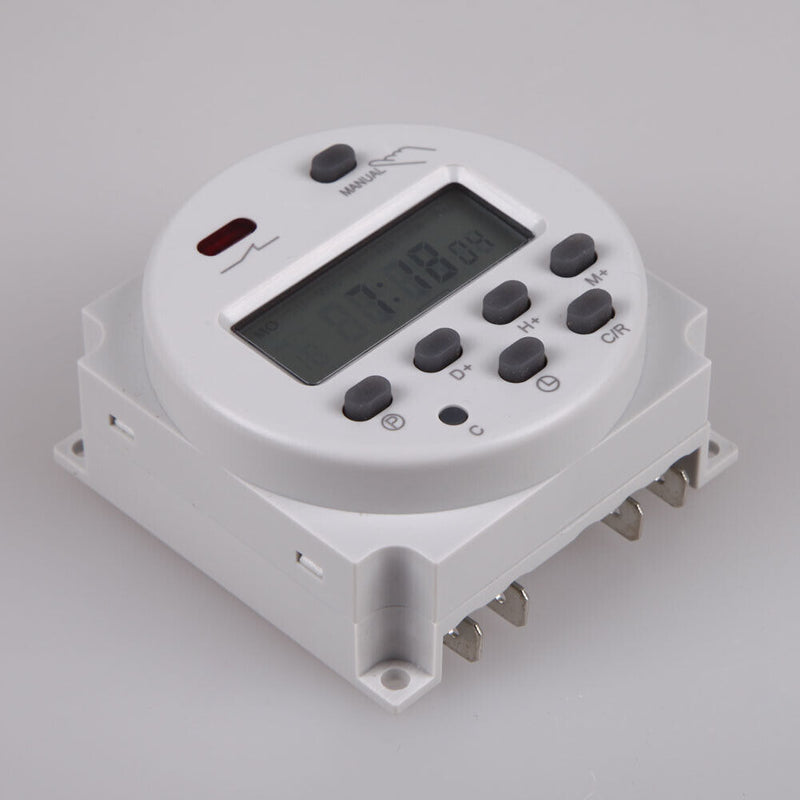

Item Name: DC-12V-16A Digital-LCD-Power-Programmable-Timer-Time-switch-Relay-16A Newly. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK
Detailed introduction:
Pannel mounted
Advanced pre-setting one week before
Digital electronic timer switch with daily programs
Repeat programs with 17 on/off setting and manual over-ride
Lithium battery power reserve when electric supply cut off
Auto timer error correction 30sec,weekly
Switching current ac
Notice:

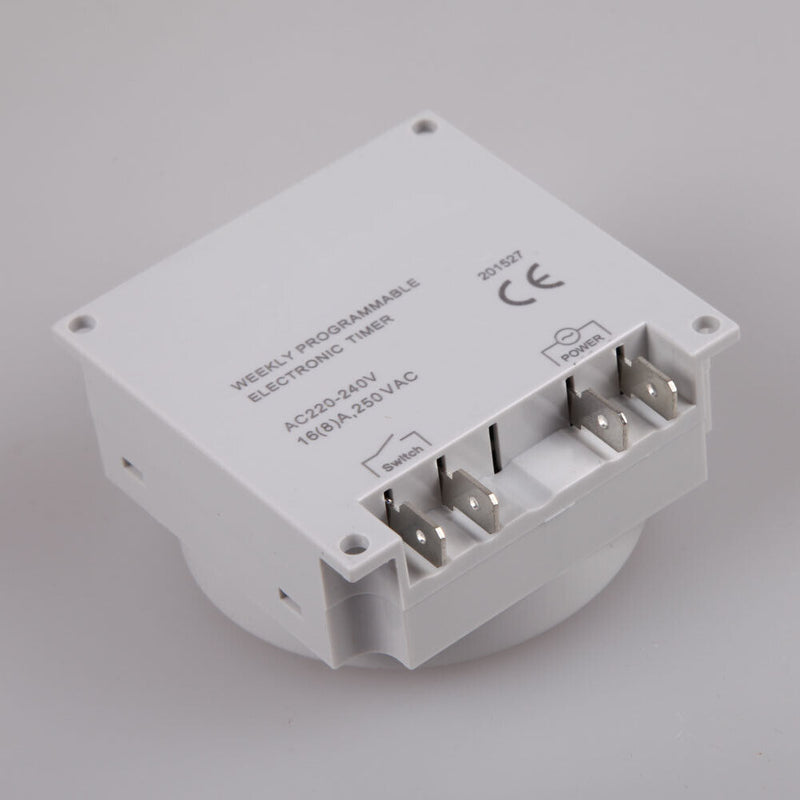

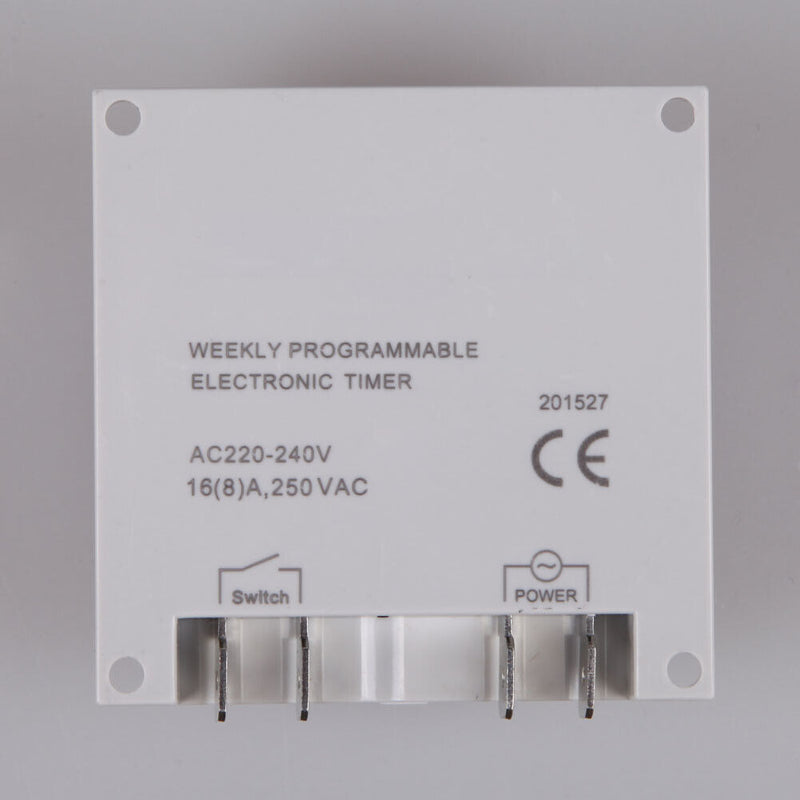

Shown on the Instruction Manual is "12V Wiring diagram"

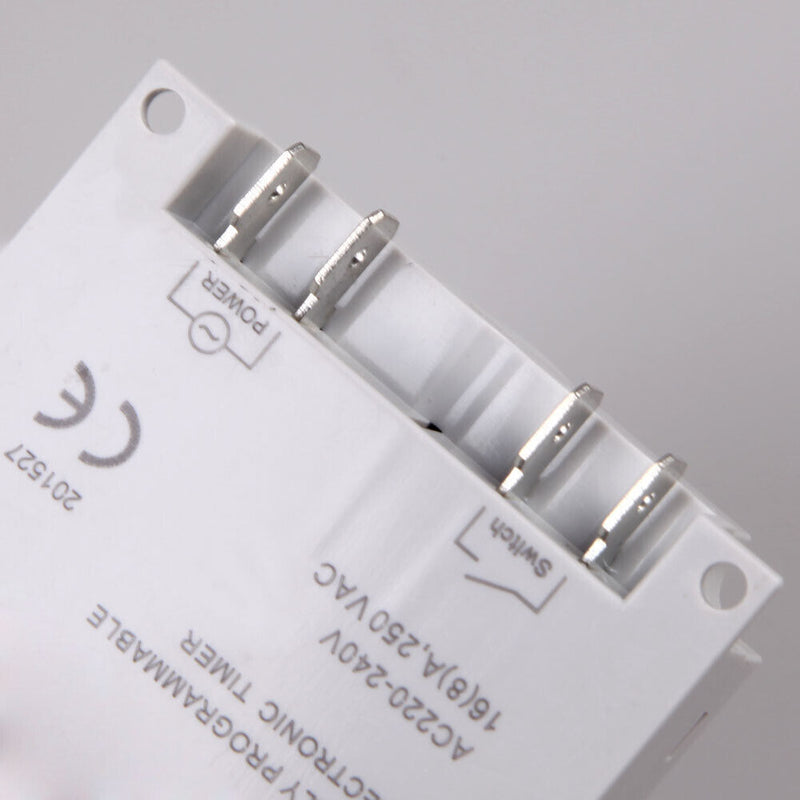

The "POWER" should to connect DC 12V power. Never connect any other power on. The other side can depending on your need
If want to connect 110V electrical equipment. Wiring is depending on "0-250V Wiring diagram"
No matter which Wiring diagram. The "POWER" only allow to connect DC 12V power
Power is not meaningful, custom-made voltage is DC12V
Specification:
DC: 12V
Color: White
Cut out (MM) : 64
Fitting Depths (mm) : 21
Power consumption : 4.4VA
current consumption without load : 0.015mA
Resistive Load (LVD .IEC) 16A /110 AC
Inductive load cos . 0.6 8A /110V AC
incandescent lamp load 1000W
SWITCHING CURRENT DC : 16A DC
Operation accuracy : Type(+-)1 s/day
Ambient temperature : -10-55
Shortest switching time : 1 min
Shortest switching interval: 1 min
Number of channels " 1
Number of memory spaces : 17
Type of connection : Plug in
