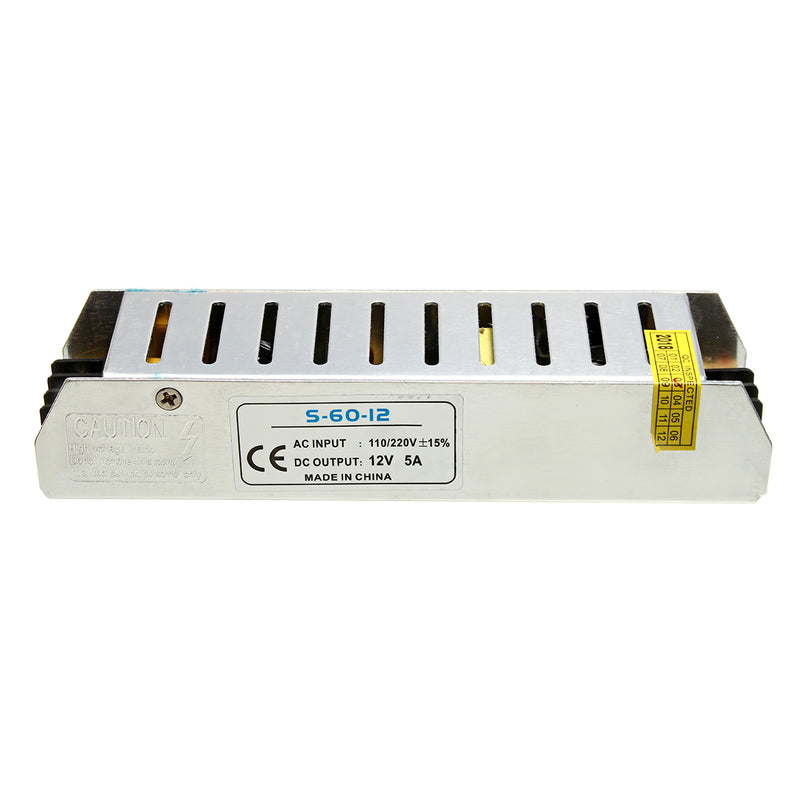

Specification:
Material: Iron
Color: Silver
DC Output: 12V
AC Input: 110/220V±15%
Frequency: 50/60Hz
Efficiency: 85 - 90%
Output Voltage Accuracy: ±1.0%
Voltage Regulation Rate: ±0.5%
Load Regulation Rate: ±0.5%
Working Temp: -10 ~ 60℃
Modulation Mode: PWM
Output Ripple Noise: 180mVp-p
Transistor Connection Mode: Single Ended
12.5A 150W Size: 186*45*33 mm / 7.32''x1.77''x1.30'' (appr.)

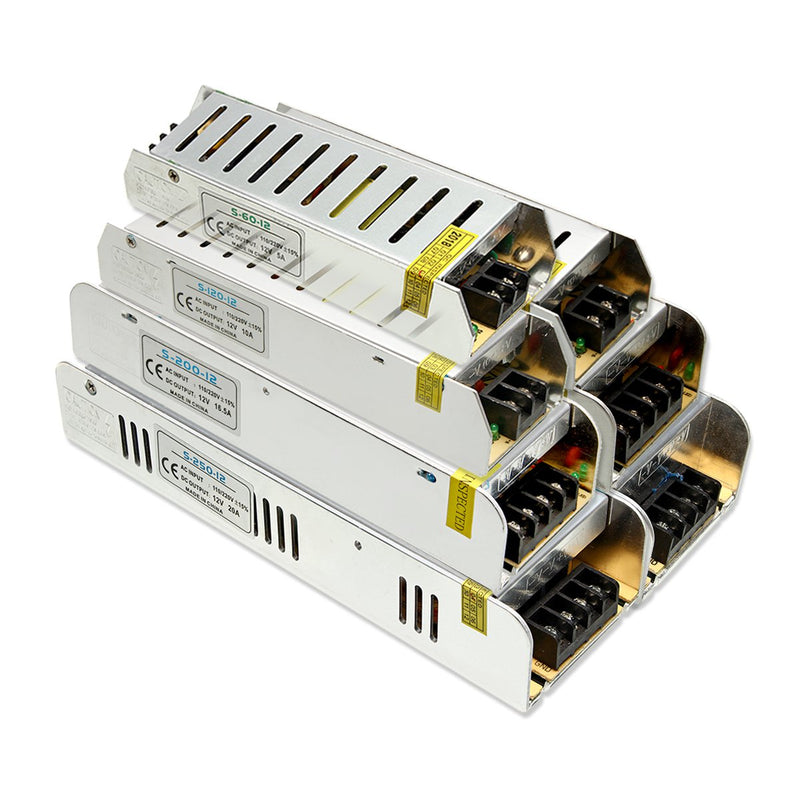

7 Power Option:
12V 5A 60W
12V 8.5A 100W
12V 10A 120W
12V 12.5A 150W
12V 16.5A 200W
12V 20A 240W
12V 30A 360W
Feature:
● high performance, stable operation.
● Protections: overload / over voltage / short circuit.
● Built-in WMI wave filter, effective interference immunity.
● Applied to LED lamp strip, lamp box, module, counter lamp, spotlight and monitoring.
Calculate Method:
If your LED strip 60LEDs/m, and each LED 0.2W, then calculate max LED Strip length: 0.2W/LED × 60LEDs/m=12W/m;
For example, 24W÷12W/m=2m, so, support the LED strip (60LEDs/m, 0.2W/LED) length (Max)=2m.
AC: Alternating Current
DC: Direct Current

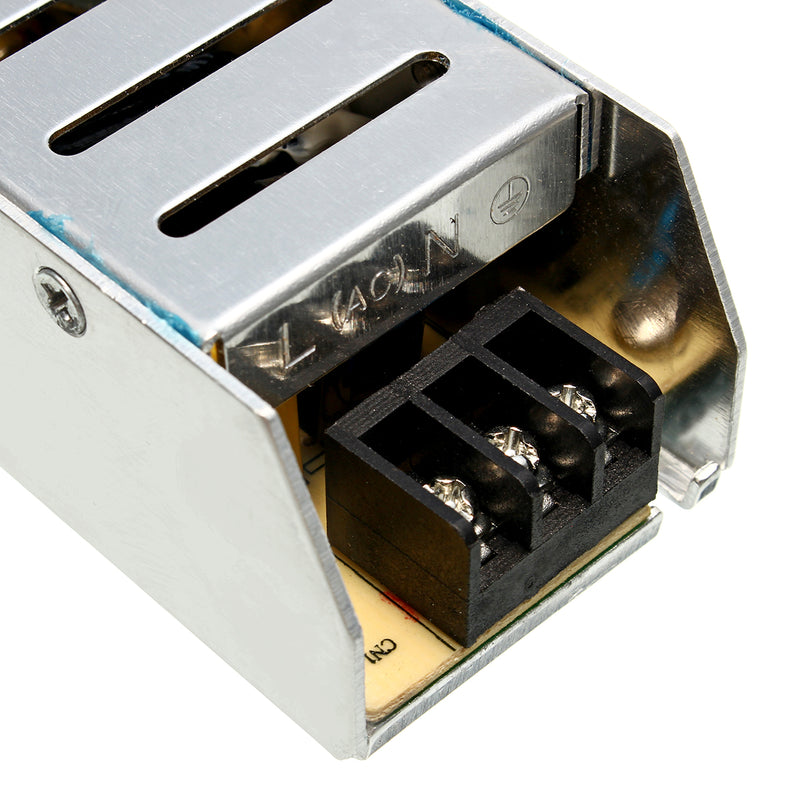

L/N: Connect Alternating Current

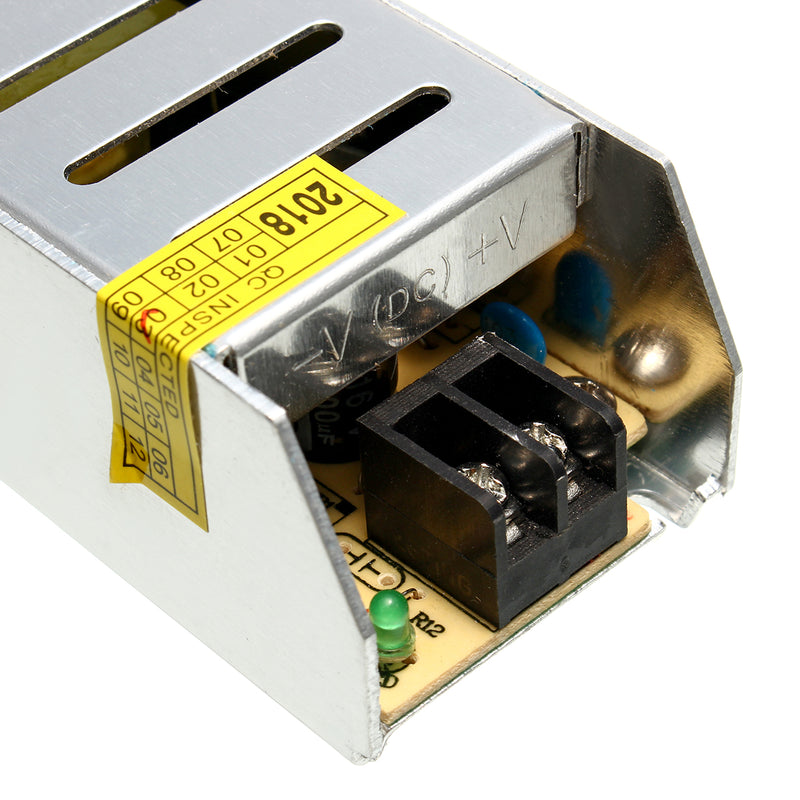

-V (COM): Output Negative
+ V: Output Positive (The output polarity cann't be reversed.)
FG: Connect Ground Wire
ADJ: Output Voltage Trimmer
Package Included:
1 X Power Supply
(This listing is for one Sub-Mini Switching Power Supply Transformer Regulated LED Lighting for CCTV Security Camera, LED.)
