Description :Automatic bilge pumps with Built-in switch. Removal of the motor cartridge allows for easy cleaning of the strainer and impeller in the event that the pump becomes clogged with debris. Electric Submersible Pumps are by far the most popular type of electric Bilge Pumps, submersibles give very high outputs, are cost effective, have low amp draw and are easy to install. Bilge pumps are designed to exhaust standing water only. They are not intended to prevent rapid accumulation of on-board water due to rough weather, hull damage, and/or other unsafe navigational conditions.All-in-one pump & switch - No float switch required
Pump turns on when water level rises & shuts off when water is removed
Water cooled motors for long life, with anti airlock design and moisture tight seals.
Output: Up to 1100 gallons/hour. Max. recommended discharge head 2.5m.
Heavy duty motors with stainless steel shafts and tough thermoplastic bodies.
Includes comprehensive user manual with installation instructions and wiring diagram
Snap-off strainer for easy cleaning
Connections: For 19mm (3/4") bore hose for 600GPH &750GPH, 29mm hore hose for 1100GPH
Totally submersible and ignition protected.
Compact pump for smaller vessels.
Tough plastic body.
Limited one year warranty
Can be used with switch panel for manual override
Includes comprehensive user manual with installation instructions and wiring diagram
Specification :
Material: ABS (Acrylonitrile Butadiene Styrene)+Metal
Color: White+Blue
Flow Rate:1100 GPH
Volt: 24V
Current: 3.8A
Head: 5.0 M
Wire Lead: Approx. 1m/ 39.34"
Outlet Dia : Approx. 28mm /1.10"
Package Includes :
1 x 24V Auto Bilge Pump

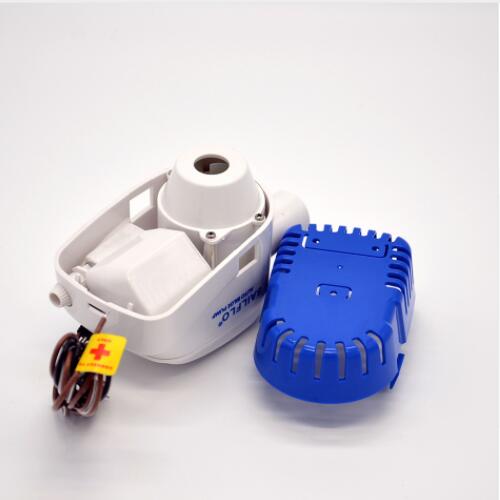

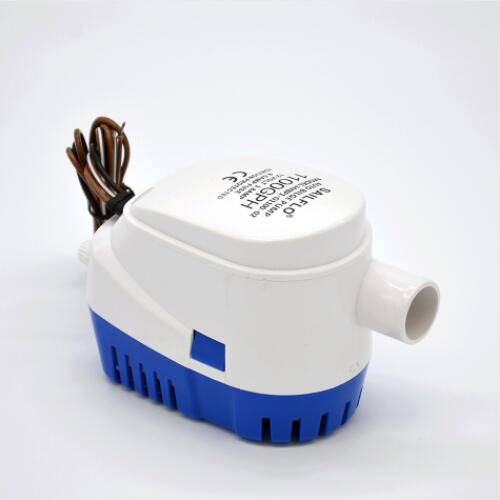

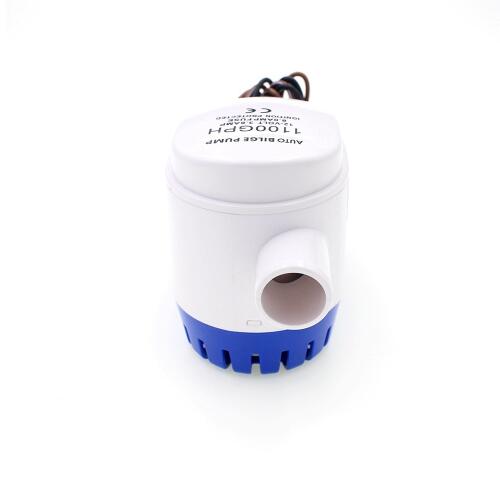

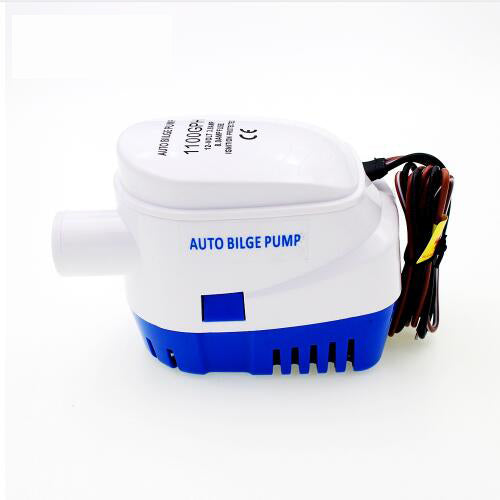

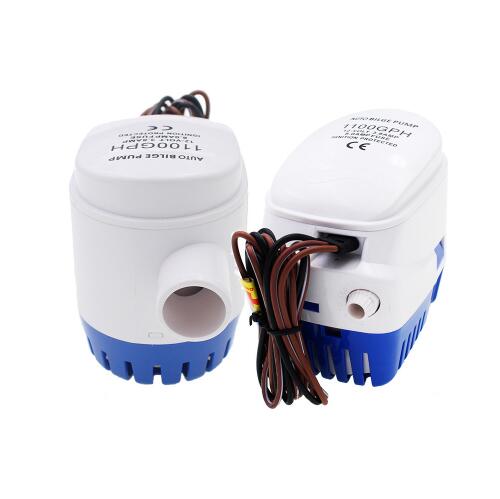

Details Pictures :
