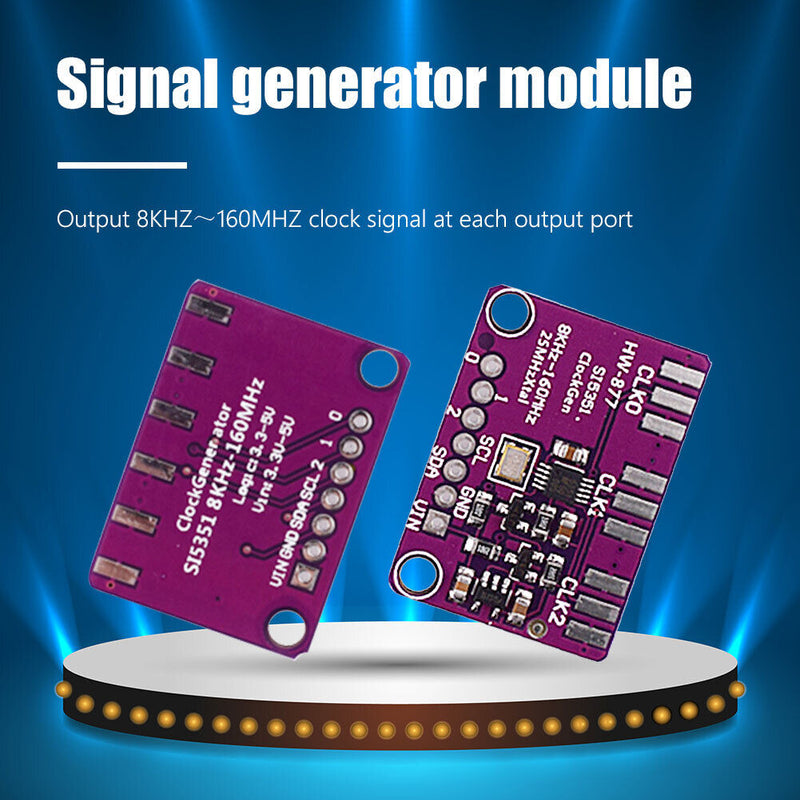

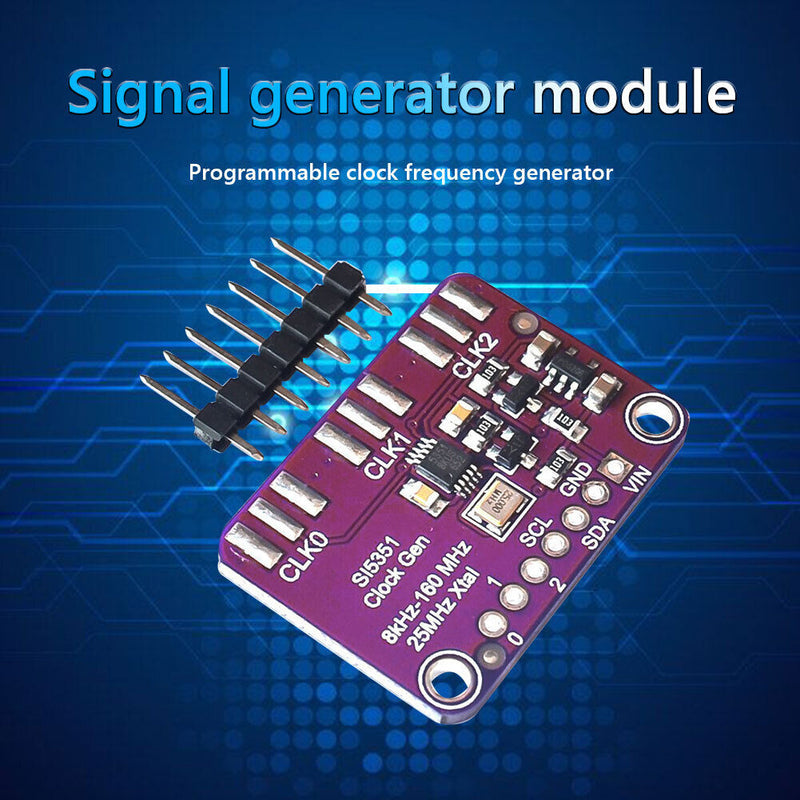

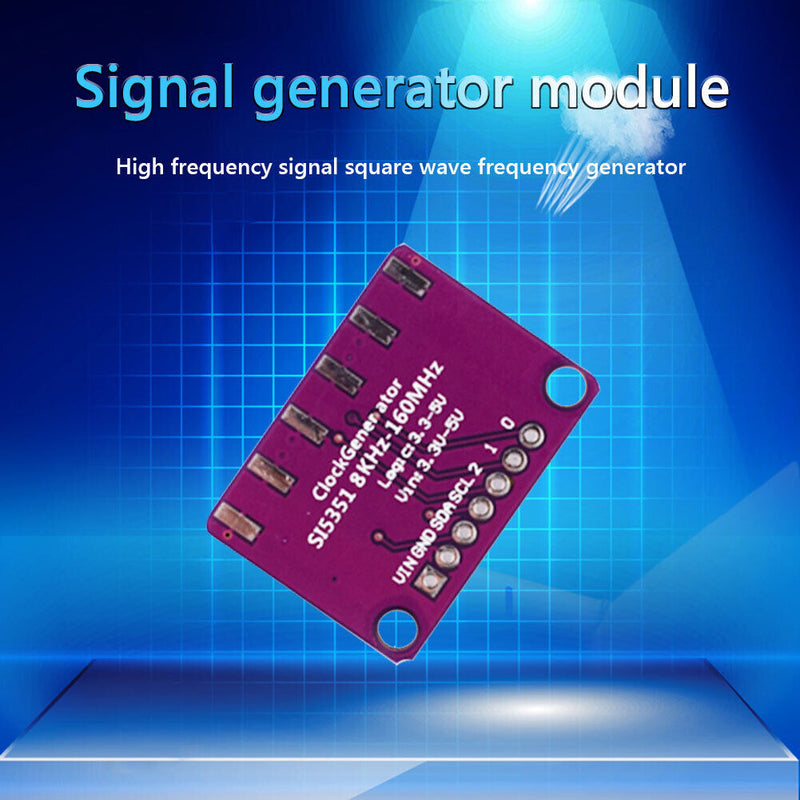

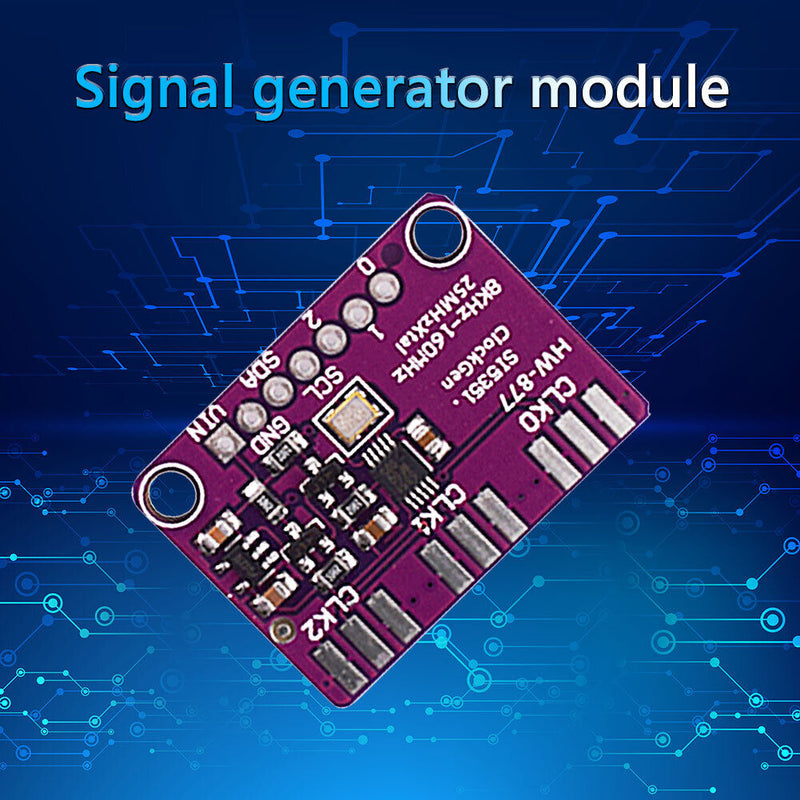

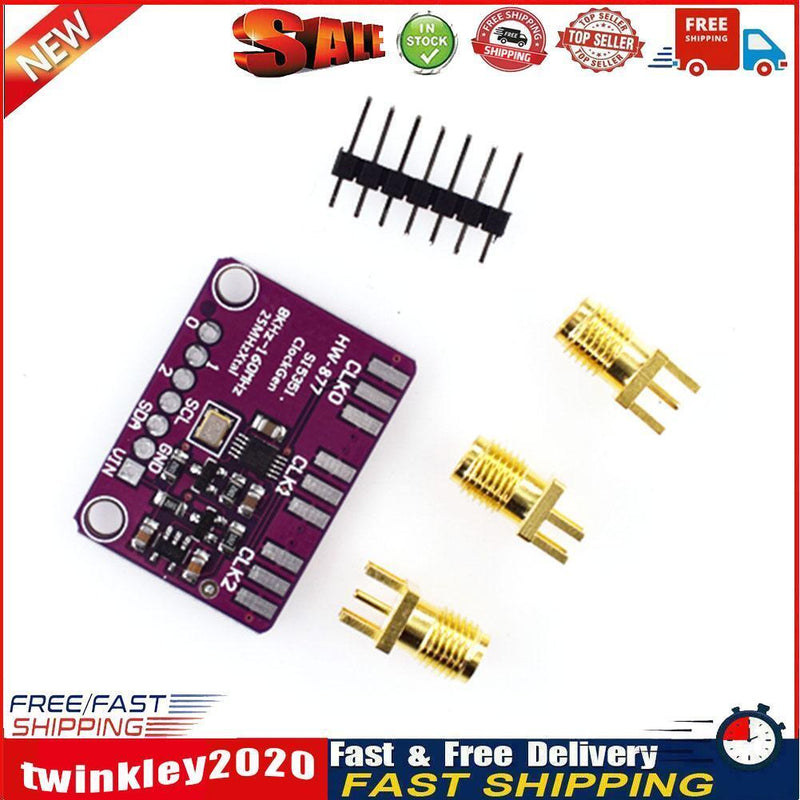

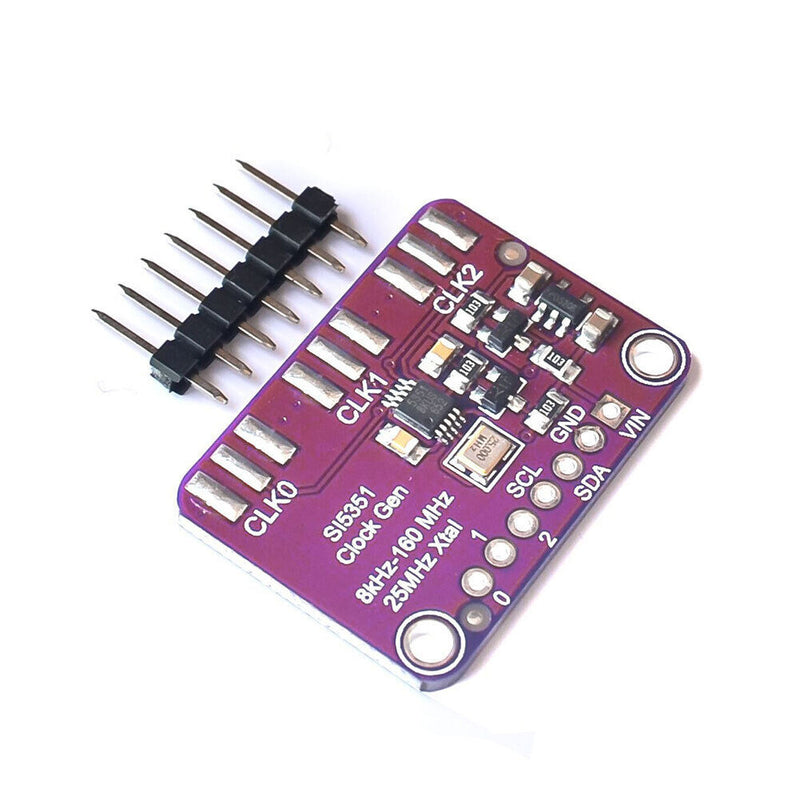

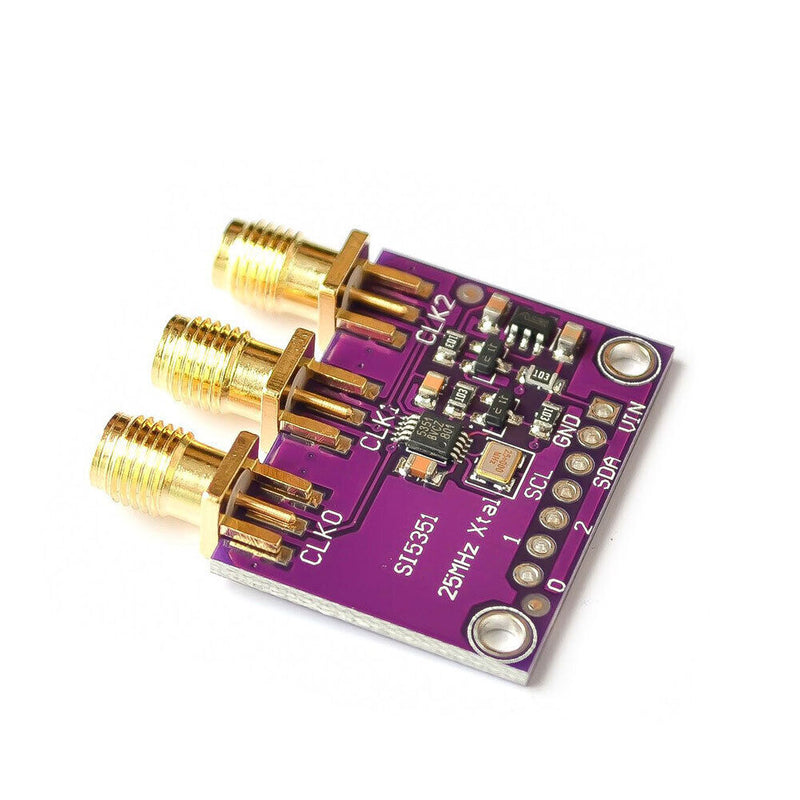

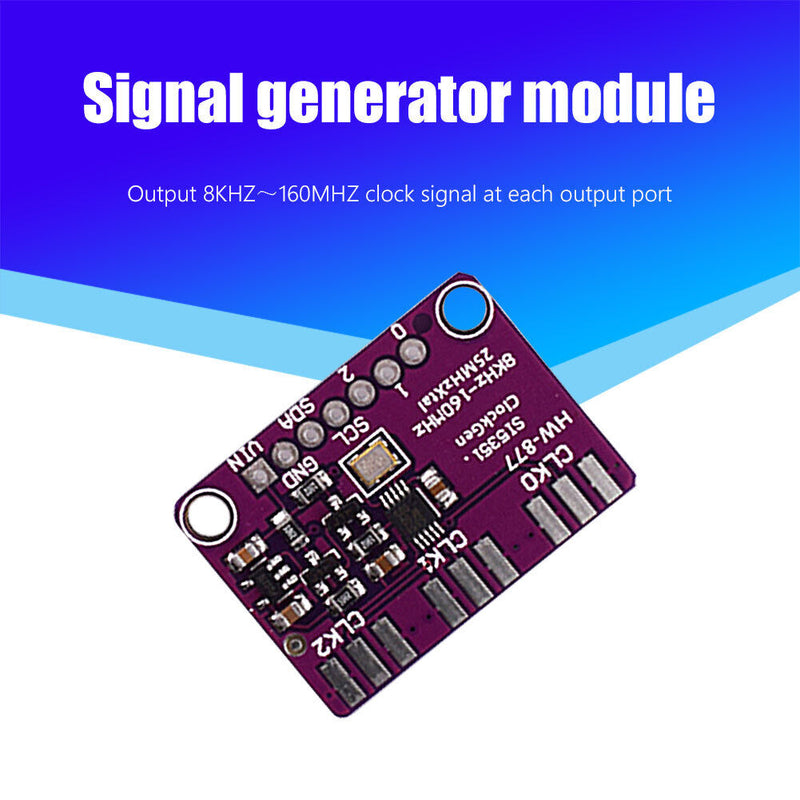

DC 3V-5V Si5351A Si5351 I2C IIC Clock Generator Breakout Board Module 8kHz~160MHz
Feature:
SI55351 is an IIC interface programmable clock frequency generator module, which can replace crystal oscillator, crystal oscillator, voltage-controlled oscillator, phase-locked loop, etc.
It can output 8kHz~160MHz at each output port by setting phase-locked loop and frequency divider Clock signal.
Specification:
Power supply voltage: DC 3.3~5.0V
Working temperature: -40~+85
Output impedance: 85
Output signal duty cycle: 50%
IIC rate: 100~400 Kbps
Rise time: 1ns
Product size: 30*22*3mm
Product weight: 8g
Packing size: 50*50*10mm
Gross weight: 11g
