Item Name: DC-DC Car Step Down Converter Module 6-32V to 24W USB Power Output Adapter. Smart TV Box Android Quad Core HDMI 1080P Wifi Streaming Media Player UK

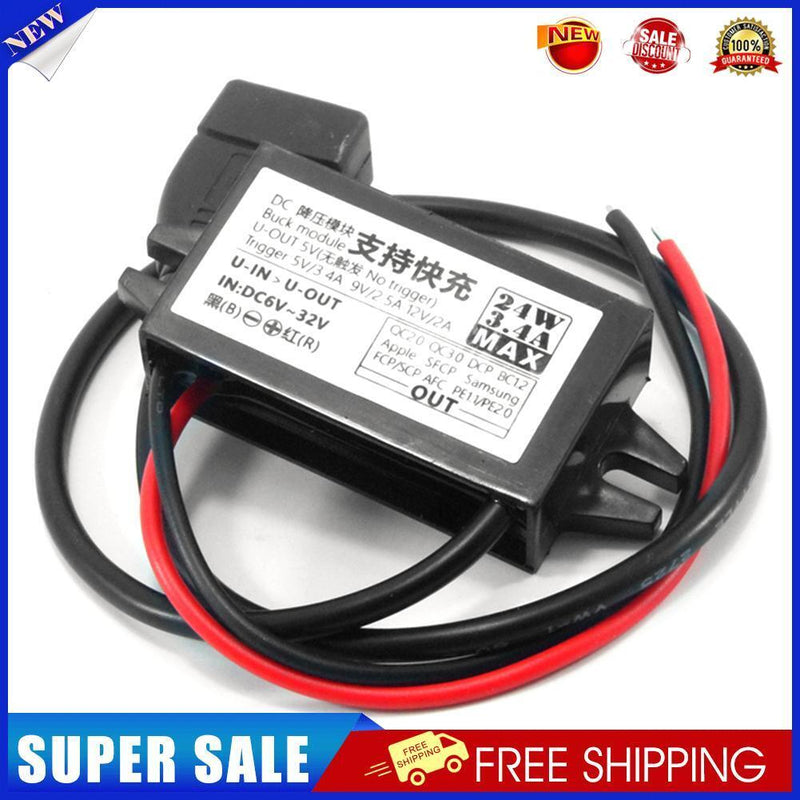

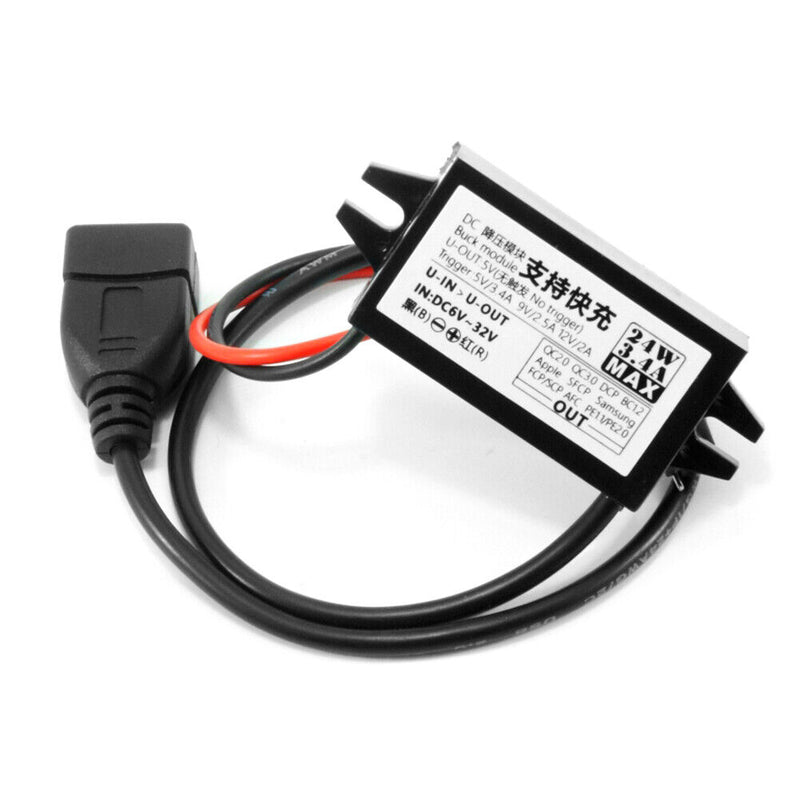

DC-DC Buck Converter Module 6-32V to 24W USB Step Down Power Output Adapter Car Power Supply Module
Specification:

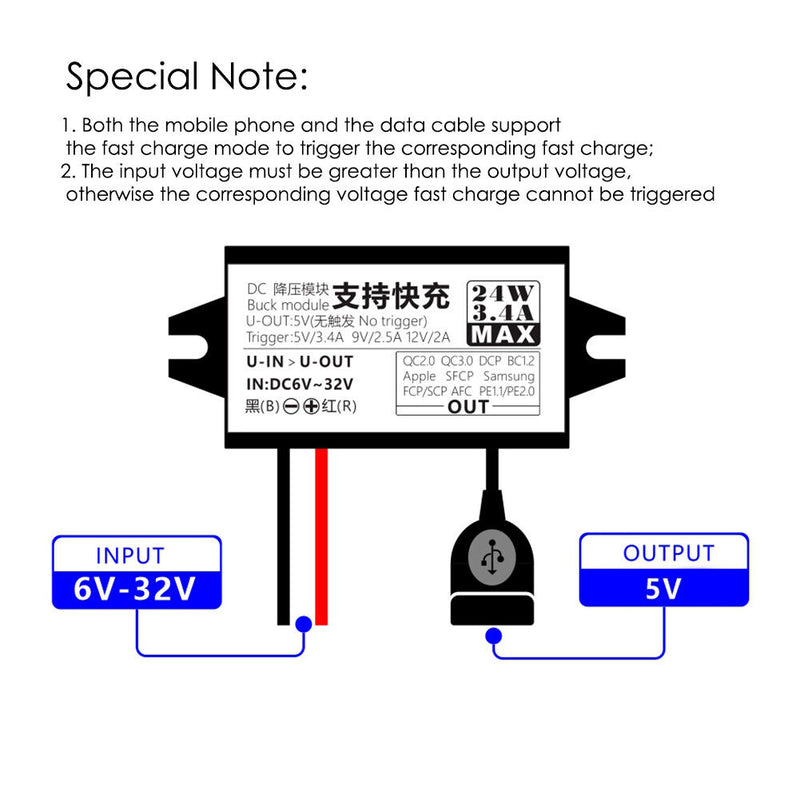

Input voltage: 6V~32V
Output voltage: 5V in silent state, the corresponding change occurs after triggering
Output power: 24W/3.4A (max), 5V/3.4A, 9V/2.5A, 12V/2A
Line compensation function: output voltage line compensation function
Conversion efficiency: 90%~97%

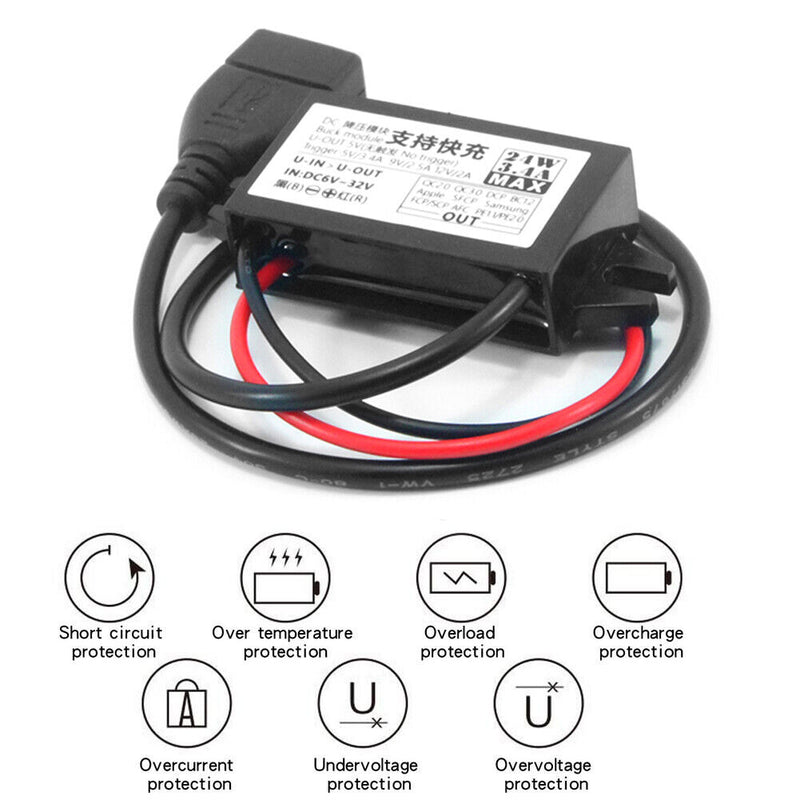

Module protection: input over-voltage and under-voltage protection, input over-current protection, output over-current, short-circuit protection, over-temperature protection

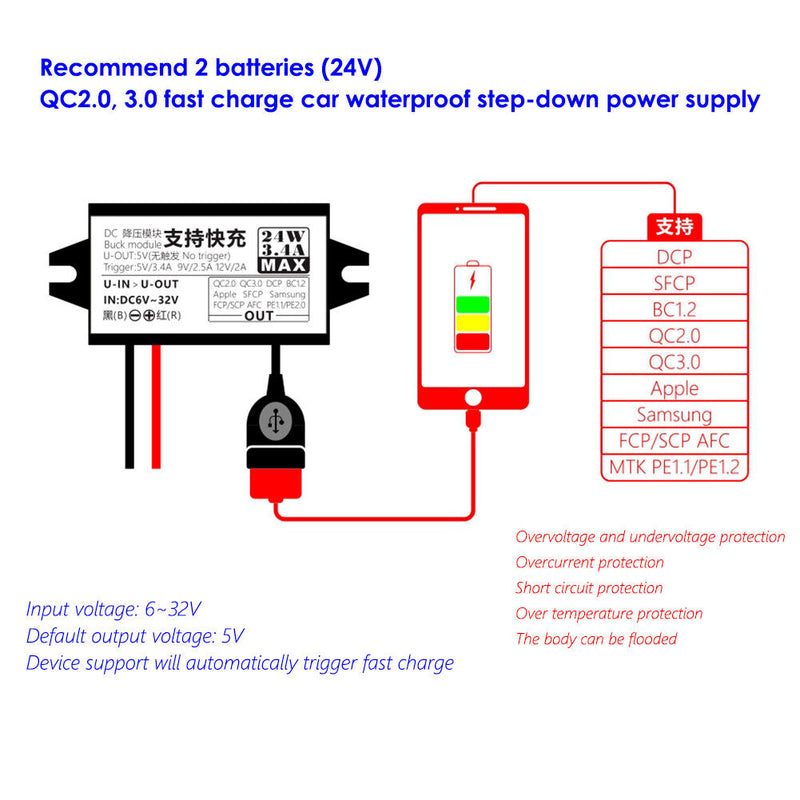

Supported type: DCP BC1.2 FCP/SCP AFC SFCP MTK PE1.1/PE2.0 QC2.0 QC3.0
Note:

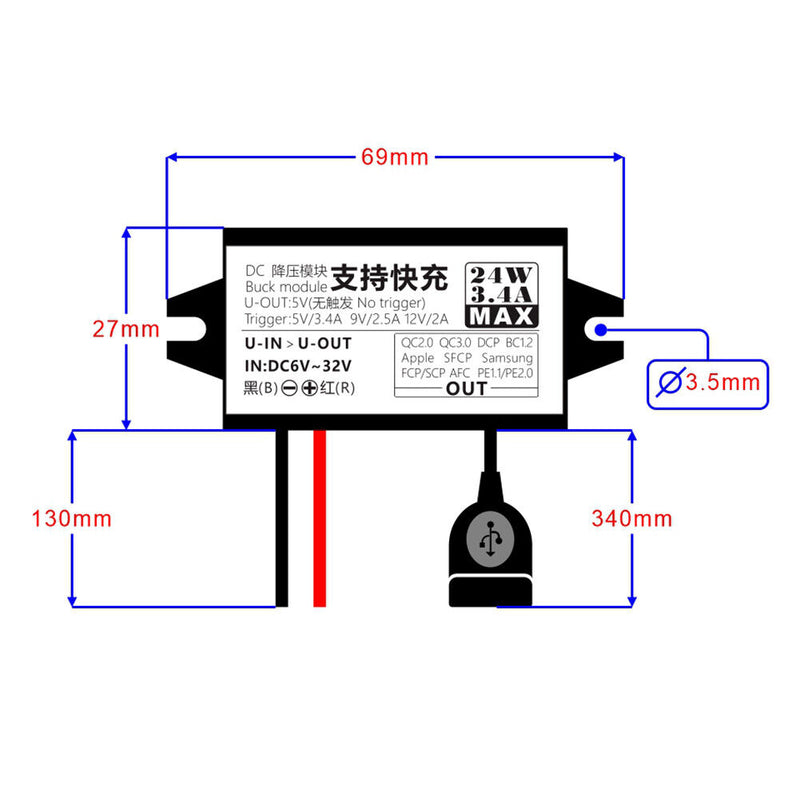

1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
