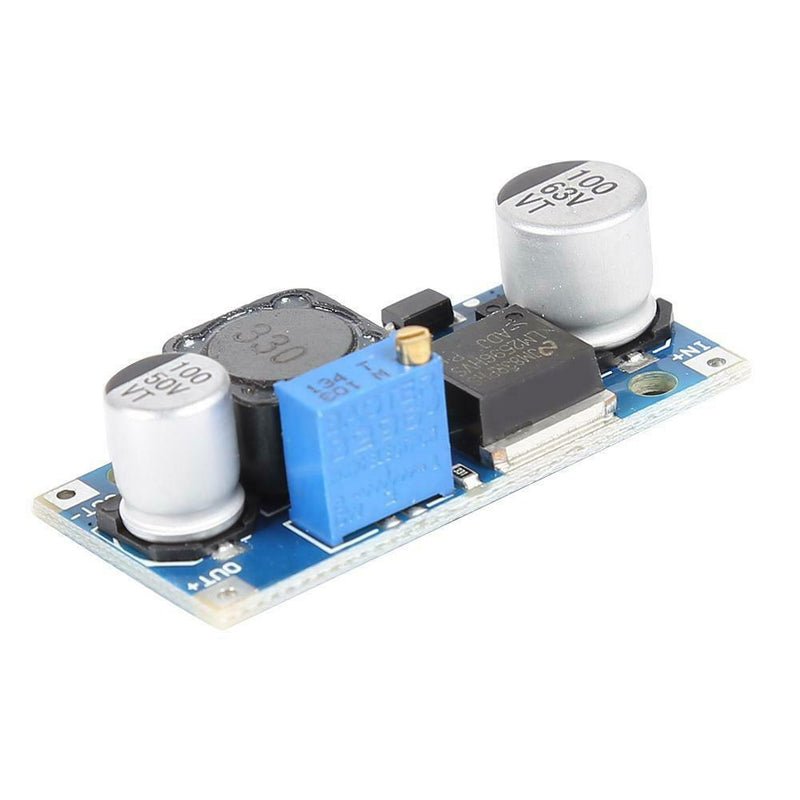

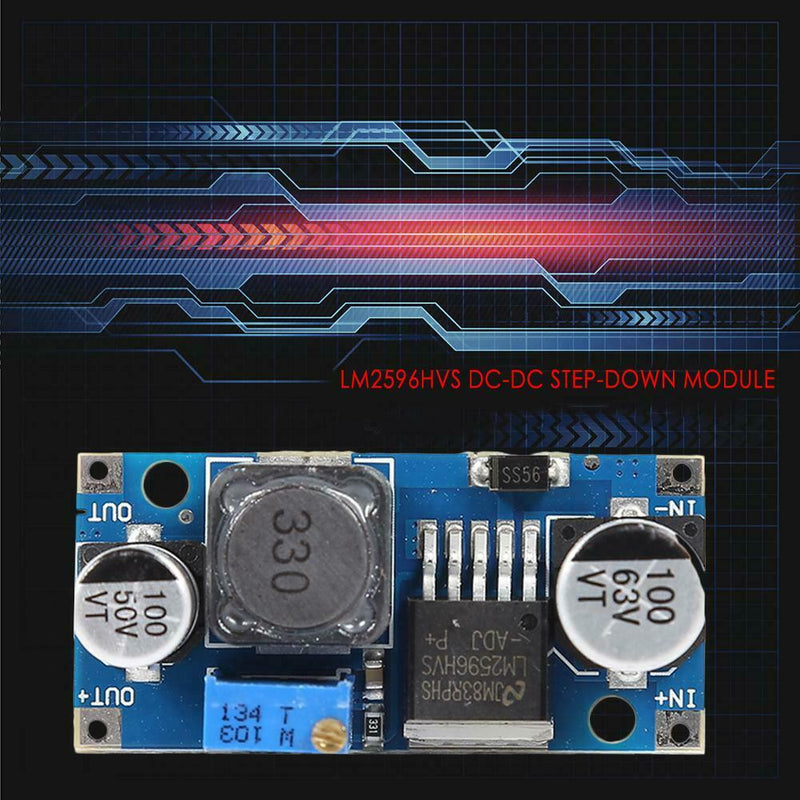

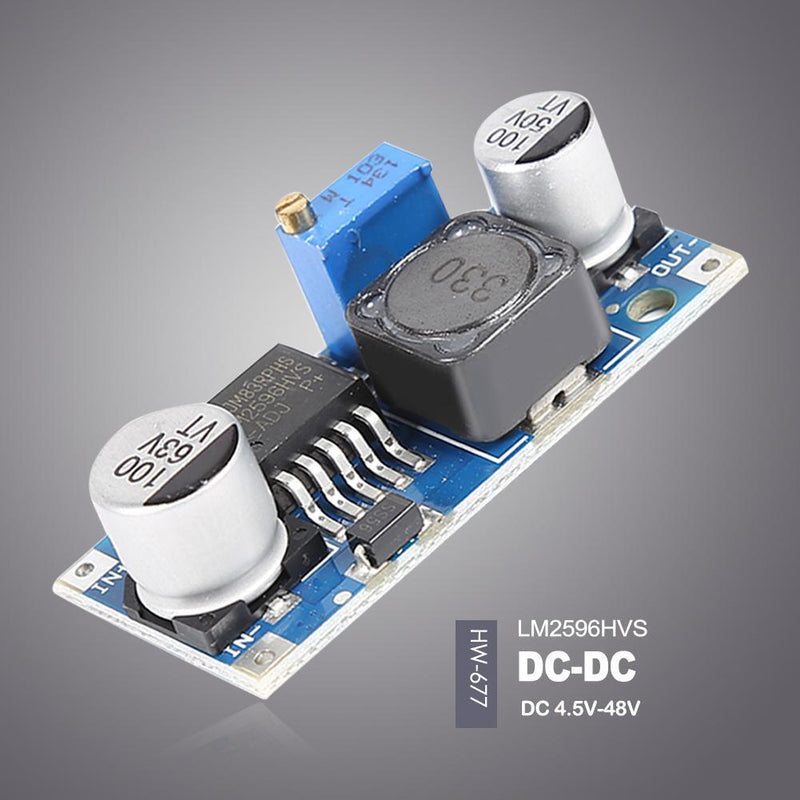

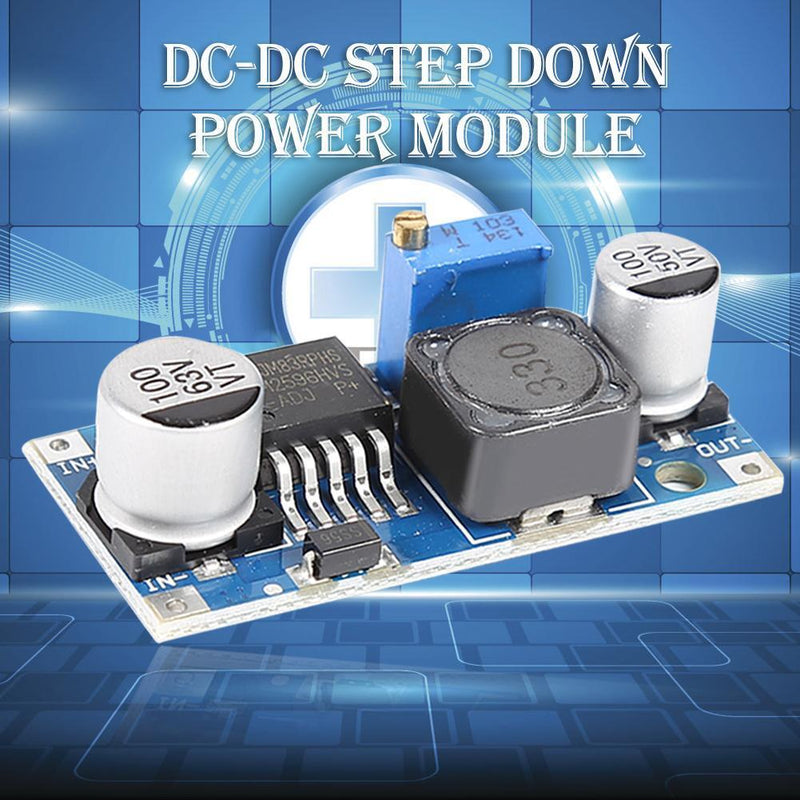

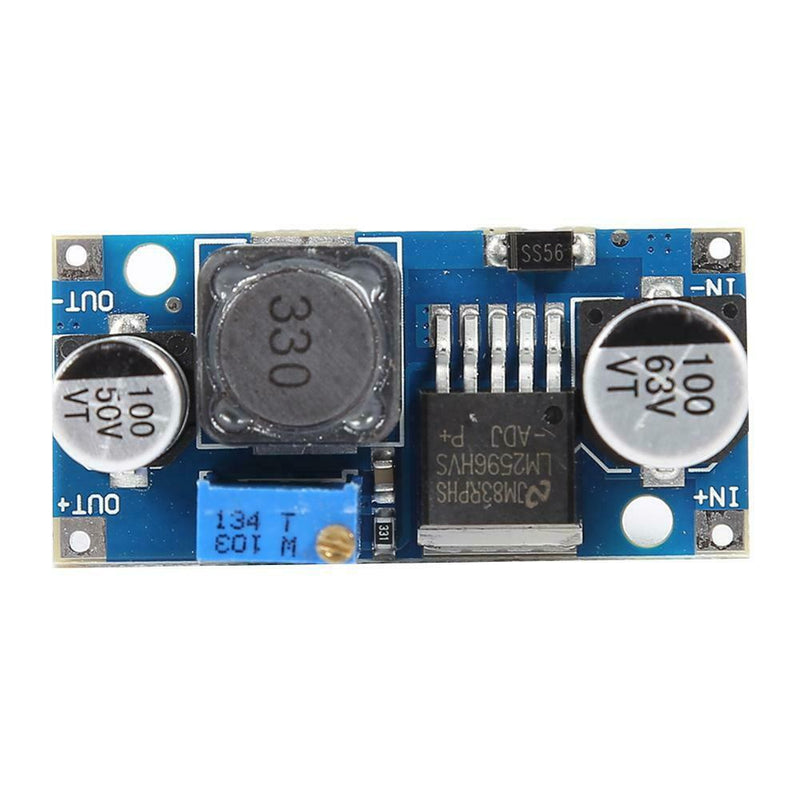

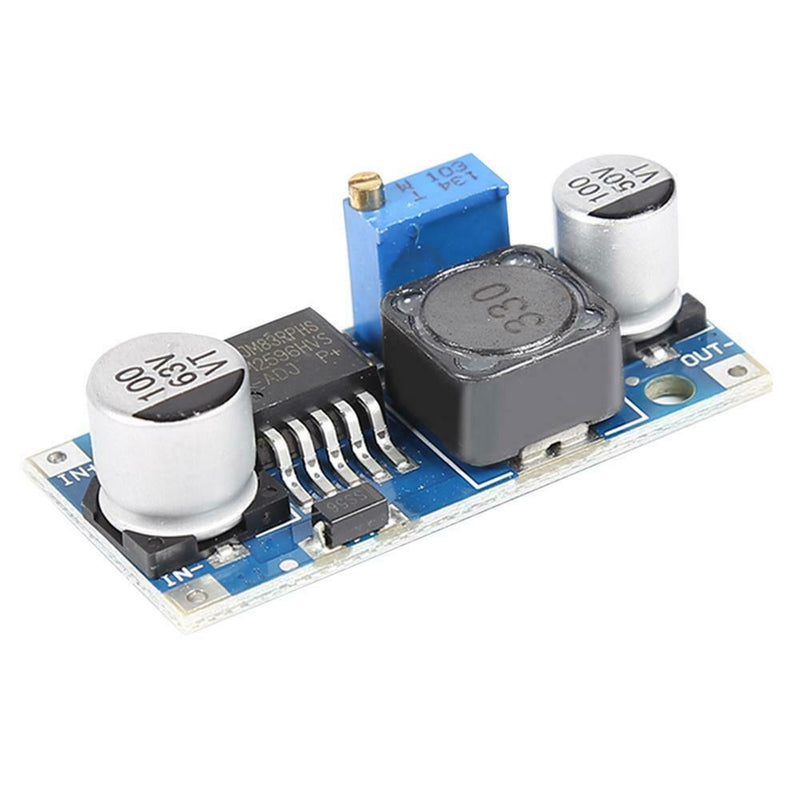

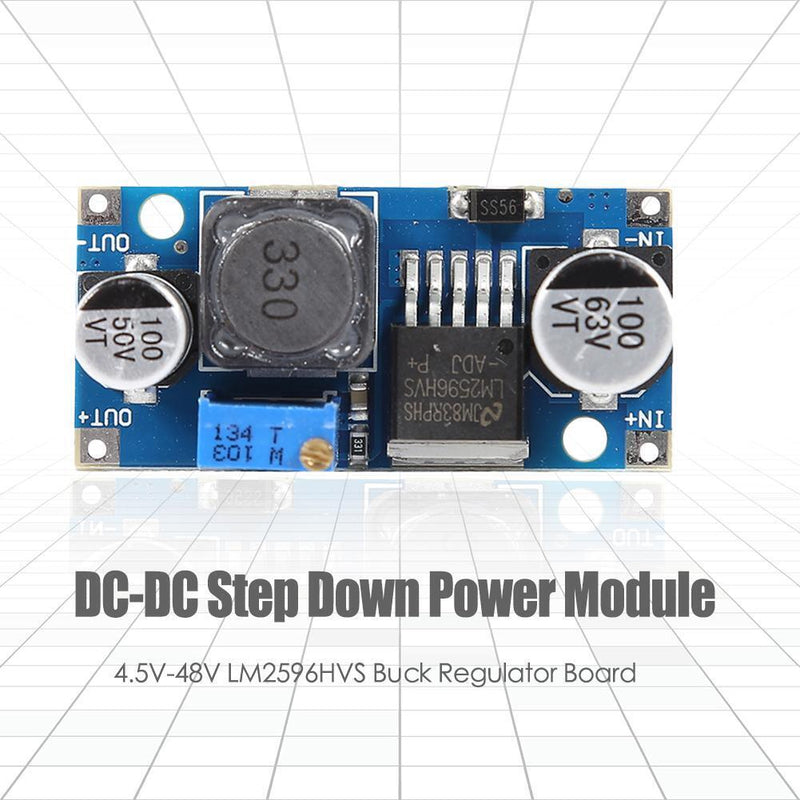

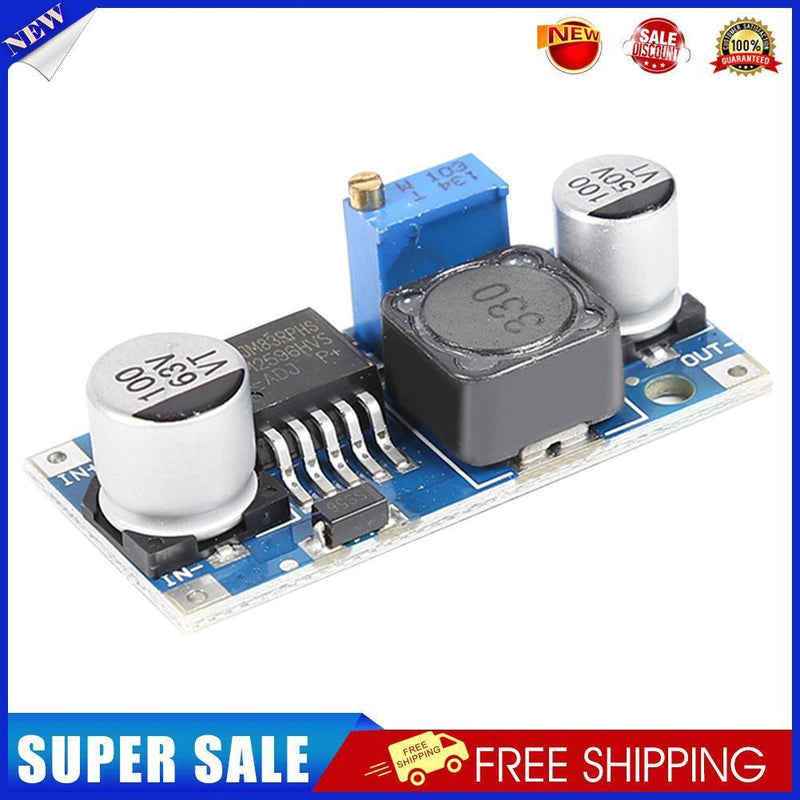

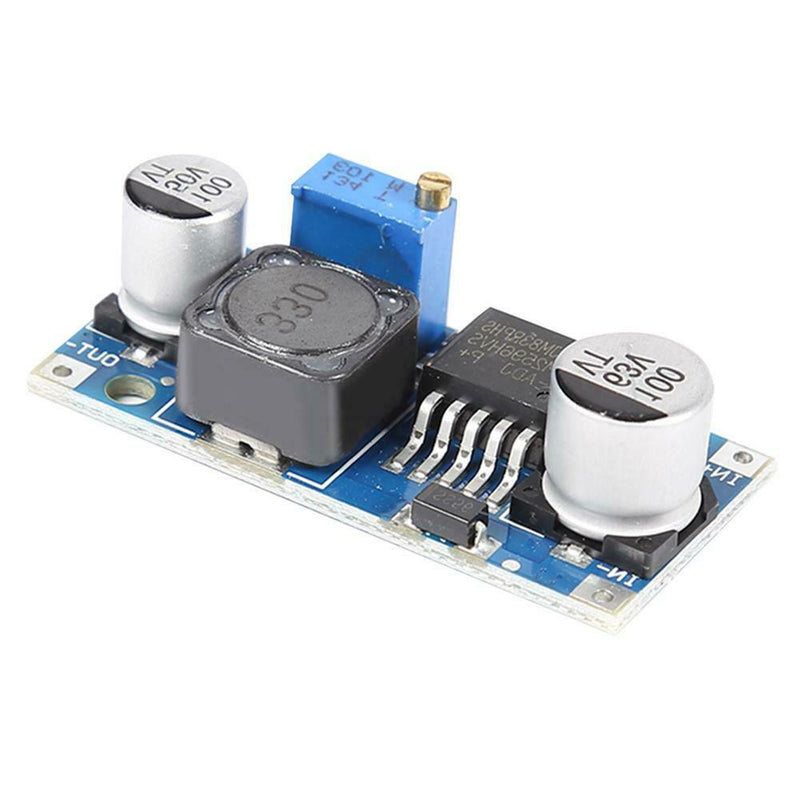

LM2596HVS DC-DC Step Down Power Module DC 4.5V-48V Buck Voltage Adjustable Regulator Converter Board
Description:
1. Input voltage: 4-48V, pay attention to the limit value of 48V, absolutely must not exceed.
2. As the input voltage increases, the output power of the LM2596HVS IC becomes smaller and the operational stability deteriorates. Stable operation between 36V-40V.
3. Adjustment Method: First correctly connect the input power (between 4-48V) and then monitor the output voltage with a multimeter and adjust the potentiometer.

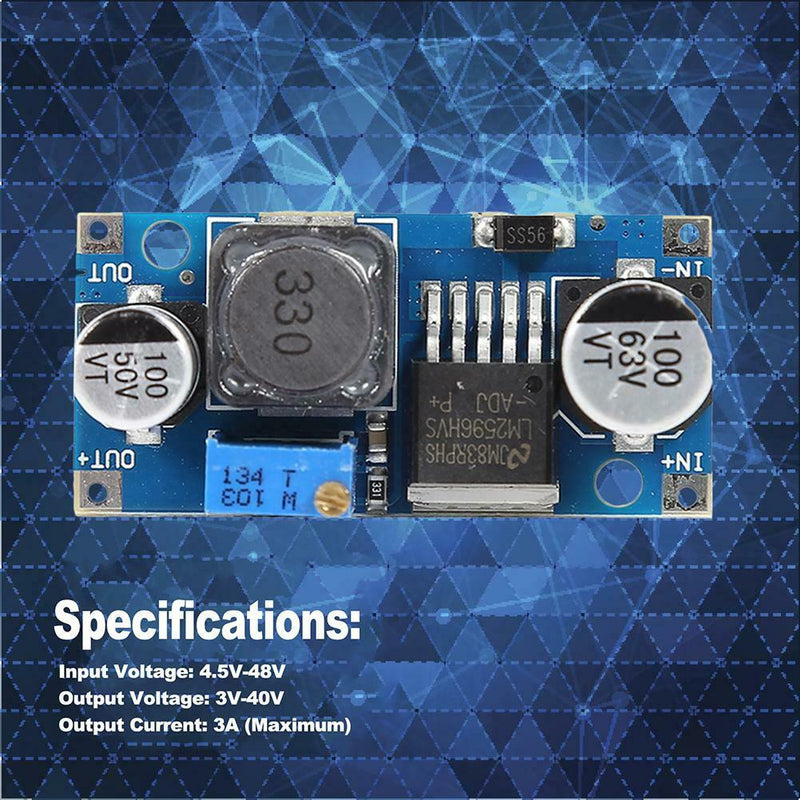

Specifications:
Type/Name: LM2596HVS DC-DC Step-Down Module
Input Voltage: 4.5V-48V
Output Voltage: 3V-40V
Output Current: 3A (Maximum)
Conversion Efficiency: 92% (The Highest)
Output Ripple:
