Description:
This instrument can measure the air pressure of the single pipe, or differential pressure of two pipes, it is suitable for measuring of ventilation and air condition systems, and widely use for gas measurement, calibration, and any trouble shooting of any gas pressure systems.
Specifications:
Material: ABS
Color: Black
Selectable Pressure Range: ±2psi
Accuracy: ±0.3% FSO (at 25℃)
Repeatability: ±0.2% (Max±0.5%FSO)
Linearity/Hysteresis: ±0.29% FSO
Response Time: 0.5sec
Over Range Indicator: Hi
Under Range Indicator: Lo
Operating Conditions: 0 to 50℃(32 to 122℉)
Storage Conditions: -10 to 60℃(14 to 140℉)
Power Supply: 1 x 9V Battery(included)
Dimension: (L)X(W)X(H) 165x80x45mm /6.49"x3.15"x1.77"(appr.)
Features:
● 11 selectable units of measurement
● Differential pressure measurement
● Max / Min / average reading record function
● Data hold function
● Large LCD with backlight
● Zeroing, offset, and data compensation
● Low battery alarm
● Auto power off setup function
● Over range indicator

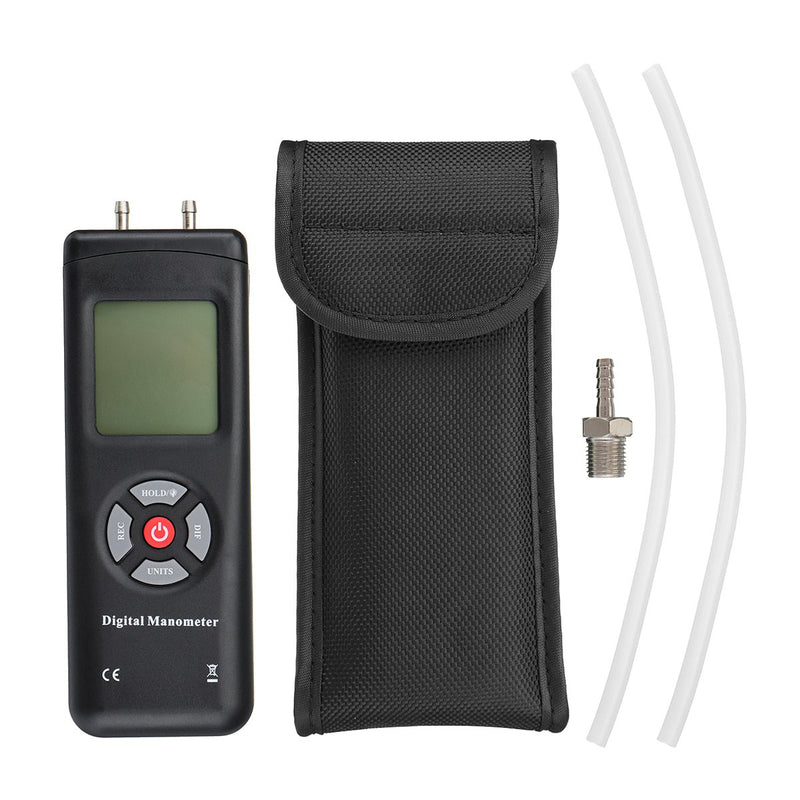

Package Included:
1 x Manometer
2 x Plastic Hose
1 x Metal Connector
1 x 9V Battery

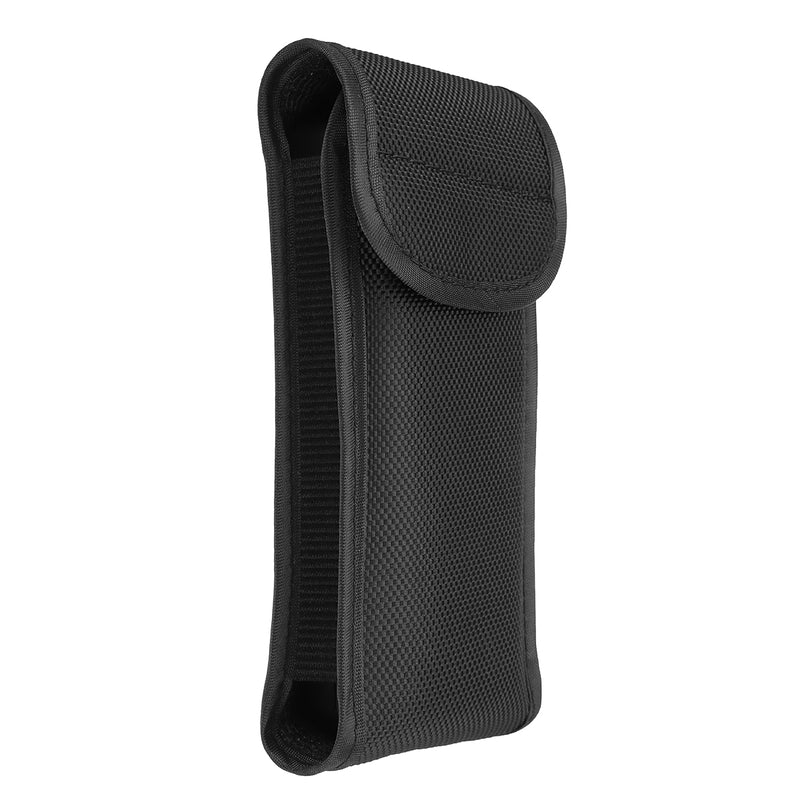

1 x Carry Pouch
1 x English User Manual
