Specification:
Product Name:Connector Plug With Wires
Brand:Excellway®
Part: Connectors/Wiring
Model: PH 2.0mm
Fuel Source: Electric
Length: 300mm
Wire: 26AWG
Quantity:10 Sets
Features:
Pitch : 2.0
Poles : 6
Applicable wire : AWG#26
Voltage rating : 250V DC/AC (Effective value)
Current rating : 2.0A
Withstand voltage : 800V AC (Effective value)
Working Temperature : -25°C ∼ +85°C
Insulation resistance : ≥ 1000M Ω
Contact resistance : ≤ 0.02 Ω
Applicable PC board thickness : 0.8mm – 1.6mm
Package Includes:

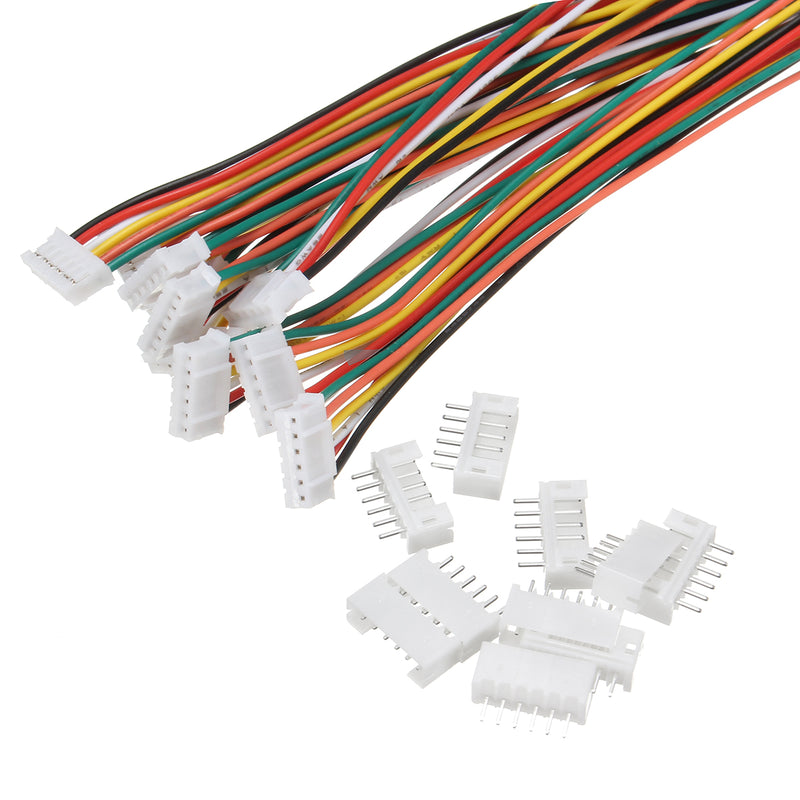

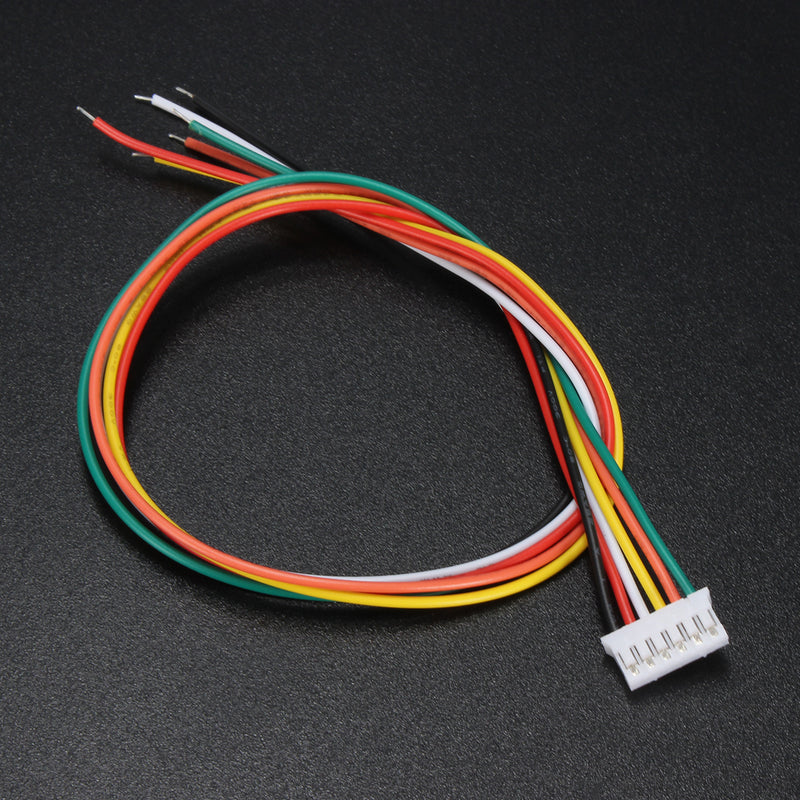

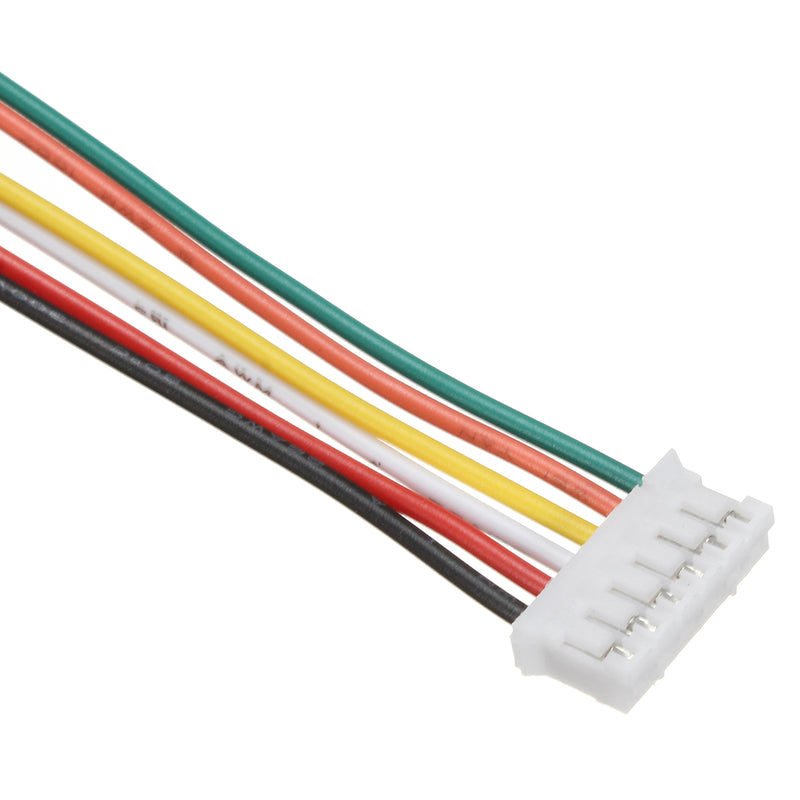

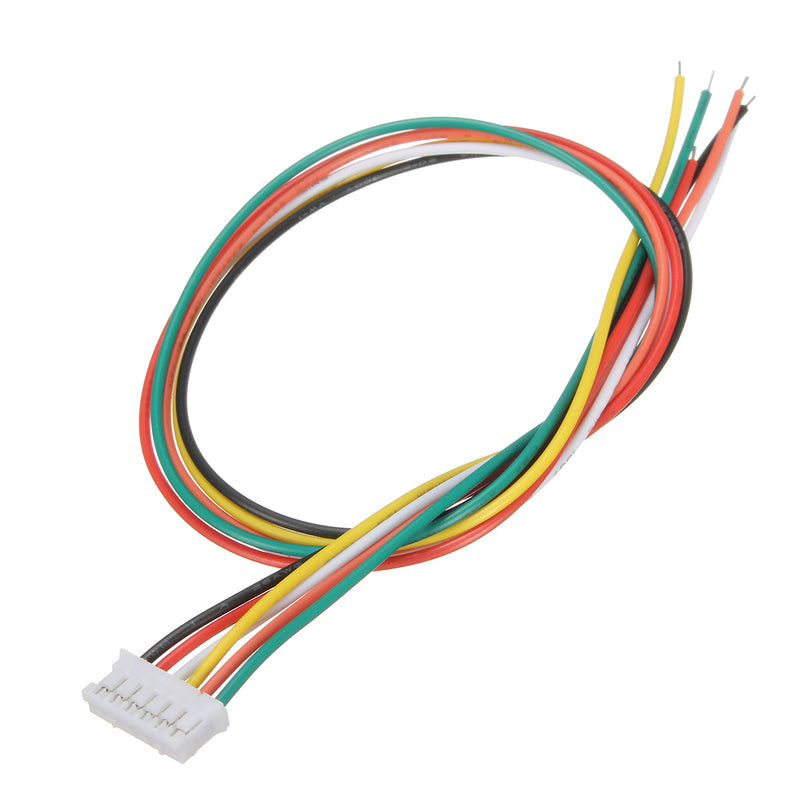

PH 2.0mm 6-pin Female Housing Connector plug with wire x 10 pcs

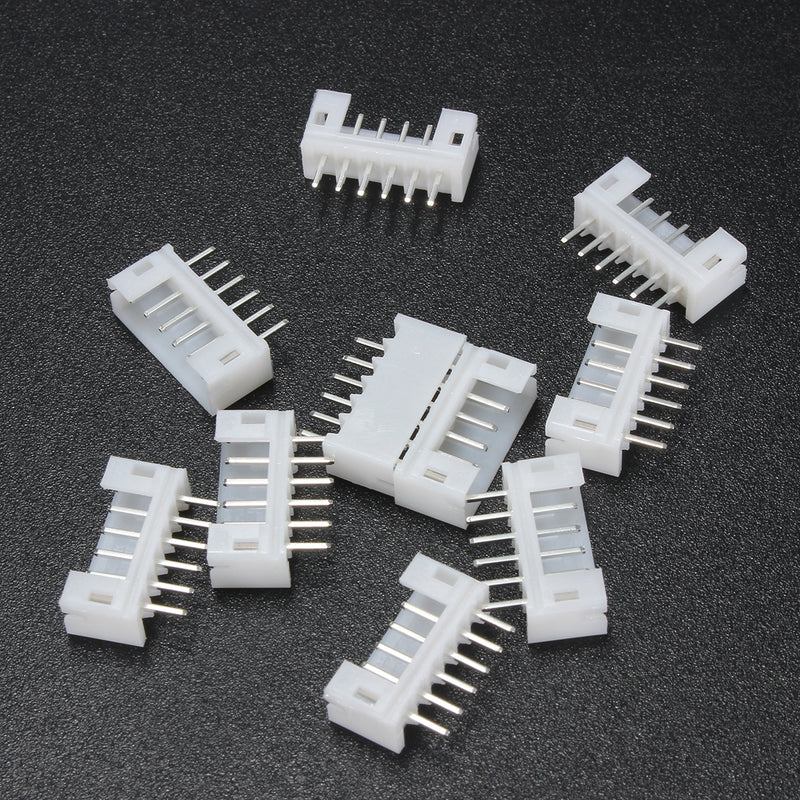

PH 2.0mm 6-pin Male Connector x 10 pcs
