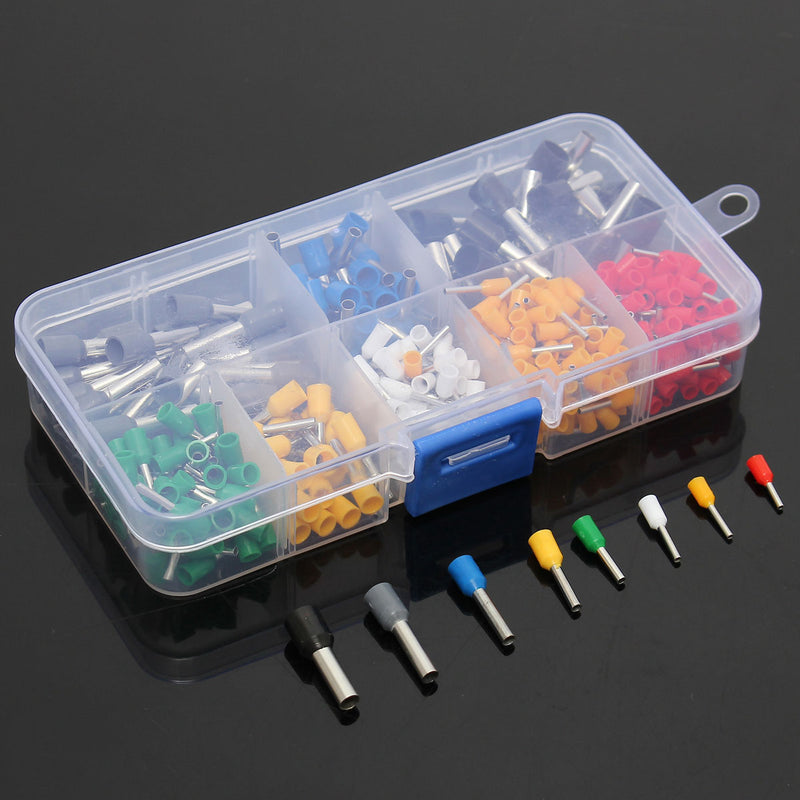

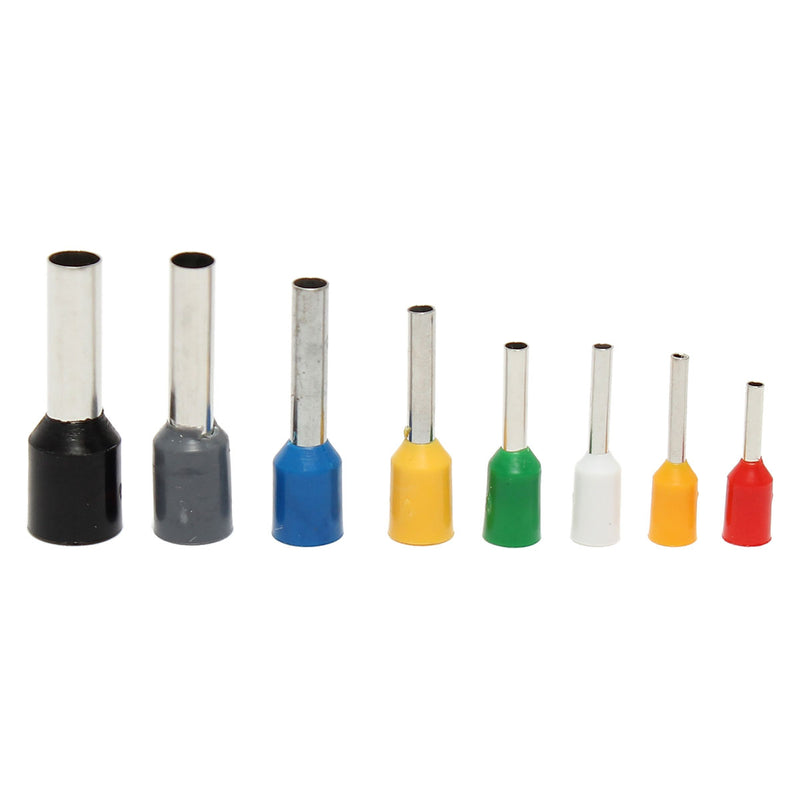

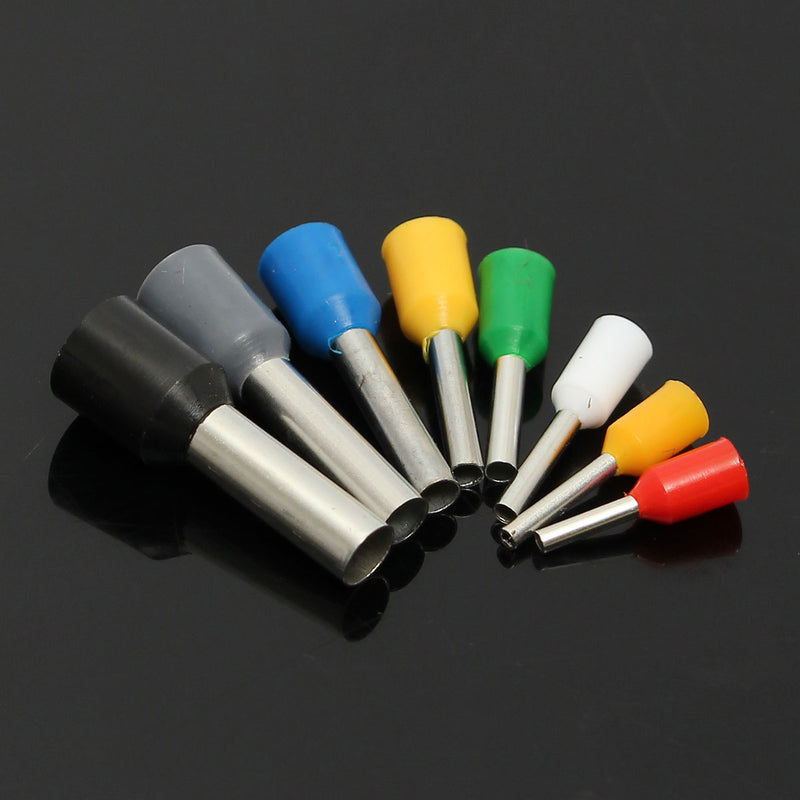

400Pcs Wire Copper Crimp Connector Insulated Cord Pin End Terminal
Specifications:
1. Brand: Excellway®
2. Model: CT04
3. Type:Cold terminals
4. Quantity:400PCS
5. Model:E0506,E0508,E7508,E1008,E1510,E2512,E4012,E6012
Features:
1.Convenient and practical
2.Durable and easy to install
3.Many models which can meet your different demand.
4.Impact resistance, corrosion resistance and oil resistance
Drawing :
| 400 Wire Copper Crimp Connector Insulated Cord Pin End Terminal AWG 22 to 10 |
|
A.W.G.
MM²
|
MODEL |
QTY |
Size(mm) |
| F |
L |
W |
B |
D |
C |
|
22 A.W.G. 0.5MM²
|
E0506 |
100Pcs
|
6.0 |
11.0 |
3.0
|
6.0
|
1.3
|
1.0
|
| E0508 |
100Pcs
|
8.0 |
13.0 |
| 20 A.W.G. 0.75MM² |
E7508 |
50Pcs
|
8.0 |
14.0 |
3.0 |
6.0 |
1.5 |
1.2 |
| 18 A.W.G. 1.00MM² |
E1008 |
50Pcs
|
8.0 |
14.0 |
4.0 |
6.0 |
2.0 |
1.5 |
| 16 A.W.G. 1.50MM² |
E1510 |
25Pcs
|
9.0 |
16.0 |
4.0 |
7.0 |
2.0 |
1.5 |
| 14 A.W.G. 2.50MM² |
E2512 |
25Pcs
|
11.0 |
18.0 |
5.0 |
7.0 |
2.5 |
2.3 |
| 12 A.W.G. 4.00MM² |
E4012 |
25Pcs
|
12.0 |
20.0 |
5.0 |
8.0 |
3.0 |
2.8 |
| 10 A.W.G. 6.00MM² |
E6012 |
25Pcs
|
12.0 |
20.0 |
6.0 |
8.0 |
4.0 |
3.5 |
Package included:

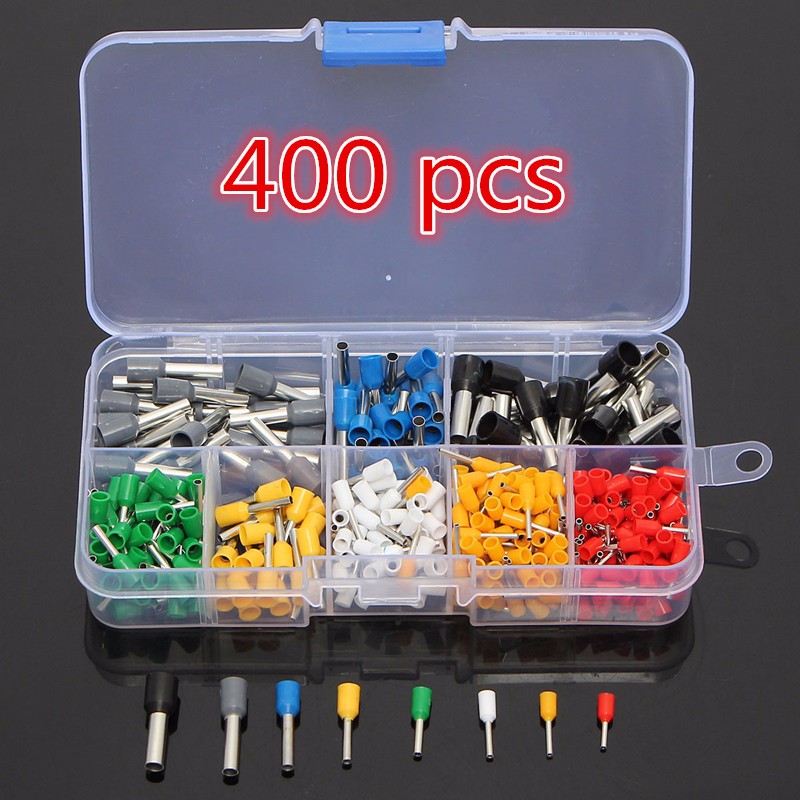

400 x Excellway CT04 Insulated Cord Pins
