Excellway EC03 780Pcs Electrical Terminals Wire Connectors with Box & Crimping Pliers

Excellway EC03 780Pcs Electrical Terminals Wire Connectors with Box & Crimping Pliers

Name: Excellway EC03 780Pcs Electrical Terminals Wire Connectors with Box & Crimping Pliers
Brand: Banggood
SKU: U2I-BG-1097440
Price: 12,162.00 INR
Availability: InStock

SKU: U2I-BG-1097440

Share this product

Description:

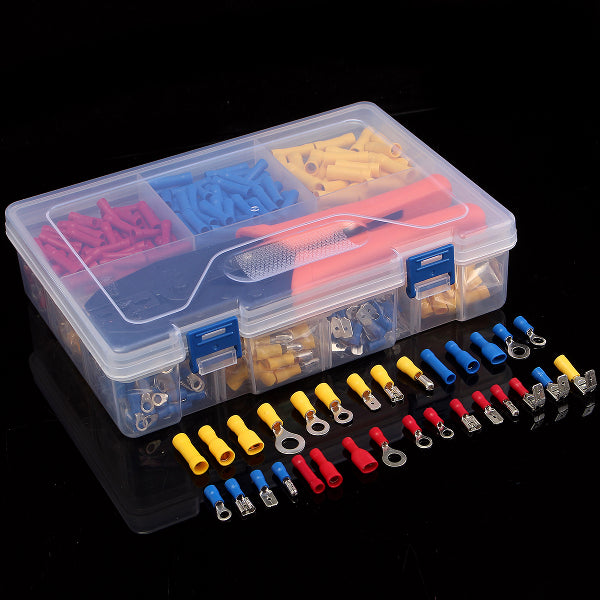

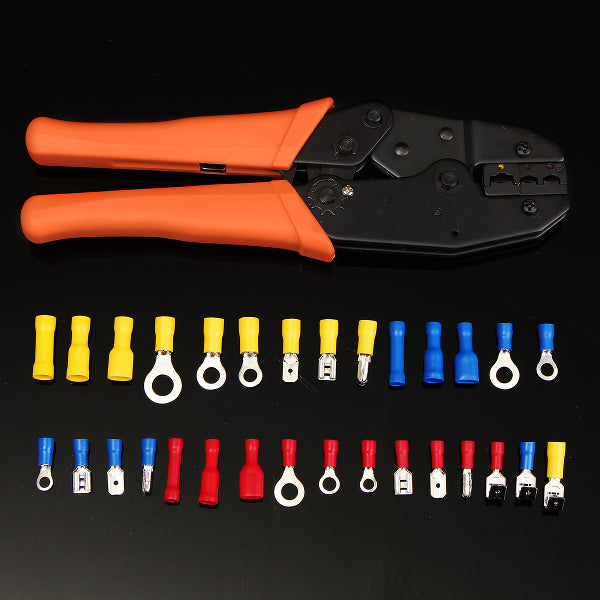

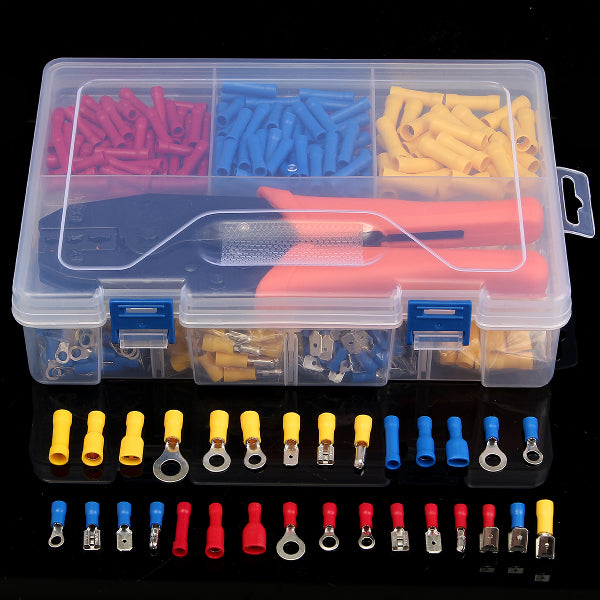

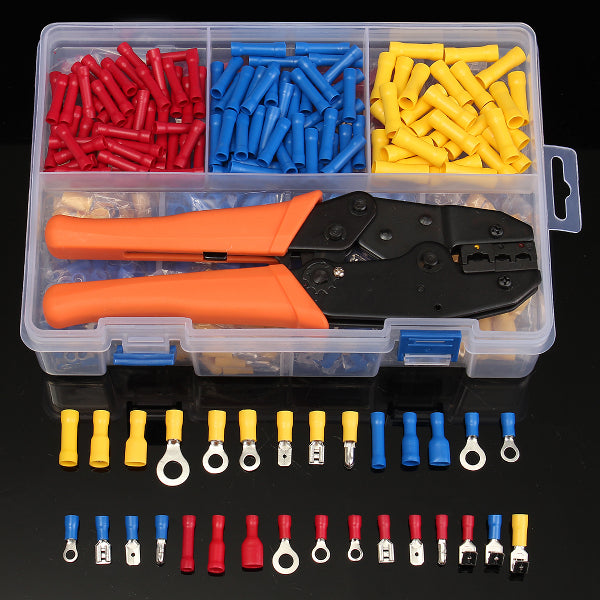

This listing features 780 pieces of assorted wire connector (box-packed) kit and 1 piece of crimping plier.
Ideal for garages,auto electricians,mechanics,workshops etc...Suitable for cars,vans,motor homes,household usage,industry usage,etc..

Specification:
Brand:Excellway®
Model:EC03
Wire connector material: PVC+Copper
Storage Case material: Plastic
Package Size: 225x16x55mm(Length x Width x Height)

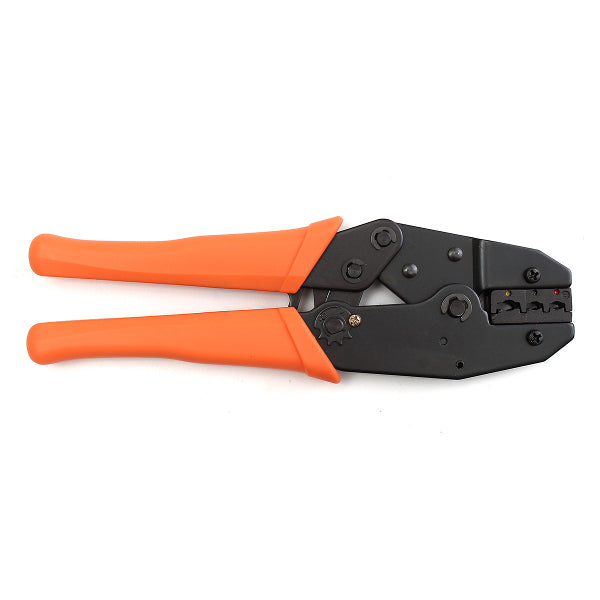

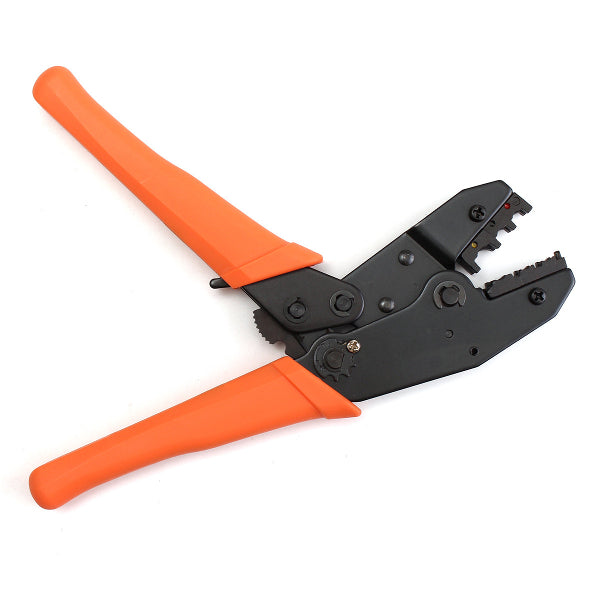

Crimping Plier Size: 220x65mm(Length x Width)
Voltage: 600V

Features:
- An assorted box which contains the most popular various size wire terminal connectors and crimping plier
- Includes 30 popular connector types ranging in different colours,which are red,blue and yellow
- Packed in box,great for use and carry for most people.
- Crimping Plier can be used to crimp wire connector.Different size of terminals 's Wire gauge are distinguished by color.

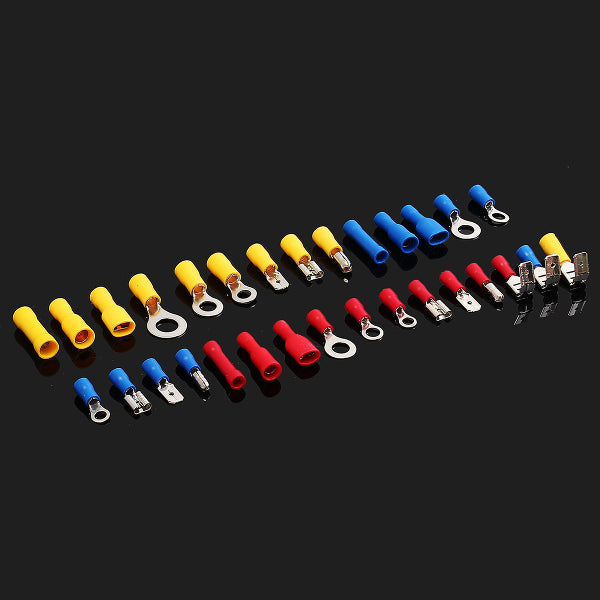

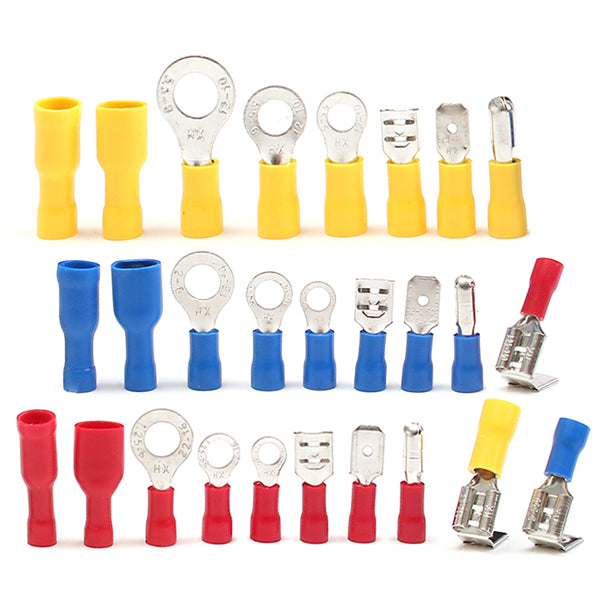

Wire connector of detail as follow:
(Color X Suited Wire/Wire Size)
Quantity X Model X Terminal Size&Type

Red: 22-16AWG/0.5-1.5mm2

RV1.25-4 M4 Ring Terminal	20
RV1.25-5 M5 Ring Terminal	20
RV1.25-6 M6 Ring Terminal	20
FDFD1.25-250 6.35mm Fully-insulated Female Spade Connector	20
FDD1.25-250 6.35mm Semi-insulated Female Spade Connector	40
MDD1.25-250 6.35mm Male Spade Connector	40
BV1.25 Butt Connector	50
MPD1.25-156 4mm Male Bullet Connector	40
FRD1.25-156 4mm Female Bullet Connector	40
PBDD1.25-250 6.35mm Semi-insulated Piggy Back Connector	10

Blue: 16-14AWG/1.5-2.5mm2

RV2-4 M4 Ring Terminal	30
RV2-5 M5 Ring Terminal	30
RV2-6 M6 Ring Terminal	20
PBDD2-250 6.35mm Semi-insulated Piggy Back Connector	10
FDFD2-250 6.35mm Fully-insulated Female Spade Connector	30
MPD2-156 4mm Male Bullet Connector	40
FRD2-156 4mm Female Bullet Connector	40
BV2 Butt Connector	50
MDD2-250 6.35mm Male Spade Connector	40
FDD2-250 6.35mm Semi-insulated Female Spade Connector	40

Yellow:12-10AWG/4.0-6.0mm²

RV5.5-5 M5 Ring Terminal	10
RV5.5-6 M6 Ring Terminal	10
RV5.5-8 M8 Ring Terminal	10
FRD5.5-195 5mm Female Bullet Connector	10
MPD5.5-195 5mm Male Bullet Connector	10
FDD5.5-250 6.35mm Semi-insulated Female Spade Connector	10
MDD5.5-250 6.35mm Male Spade Connector	10
FDFD5.5-250 6.35mm Fully-insulated Female Spade Connector	10
BV5.5 Butt Connector	30
PBDD5.5-250 6.35mm Semi-insulated Piggy Back Connector	10
