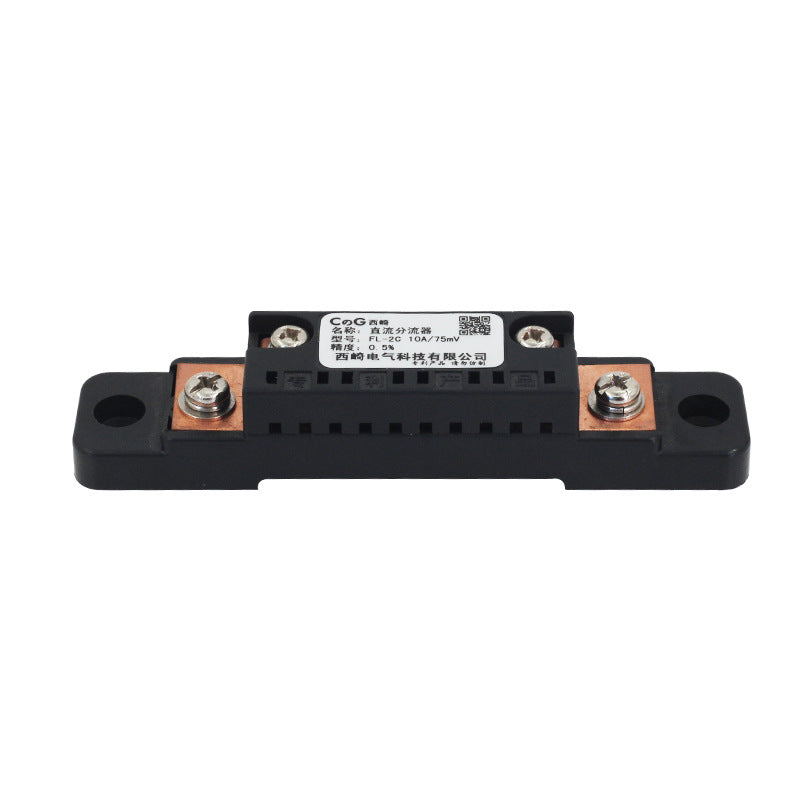

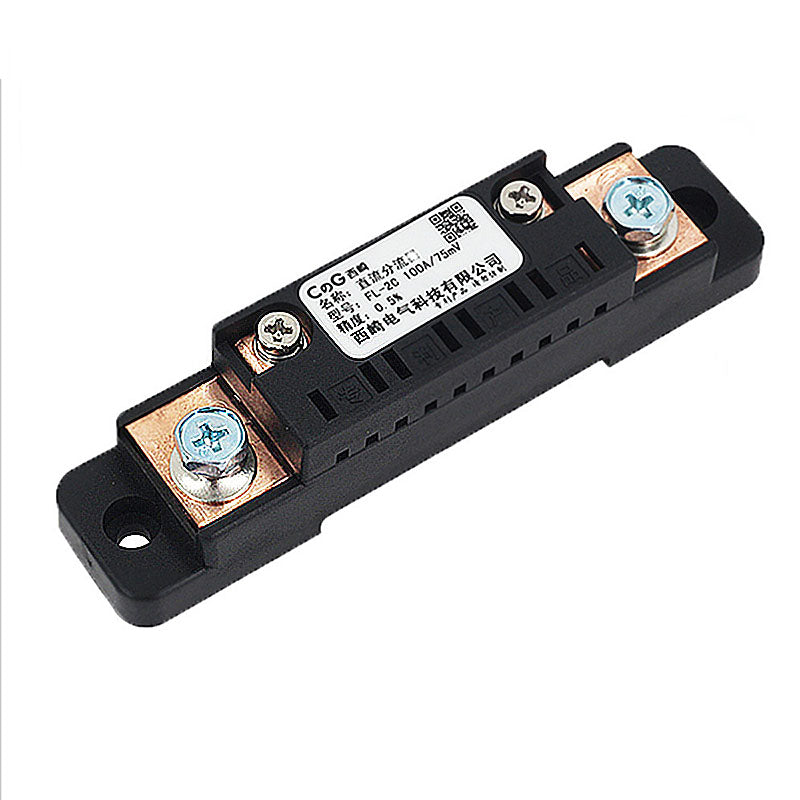

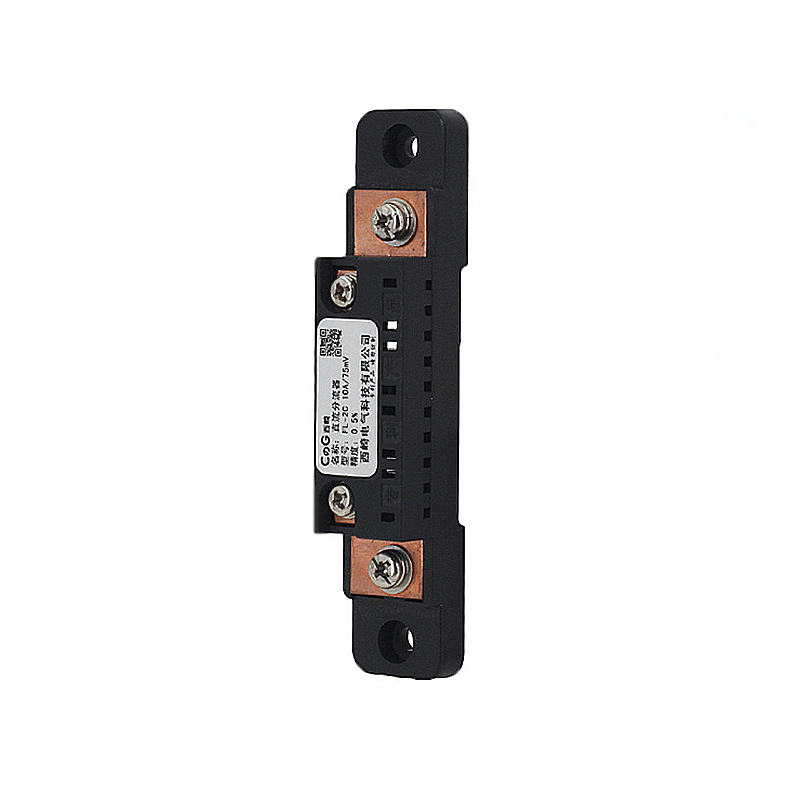

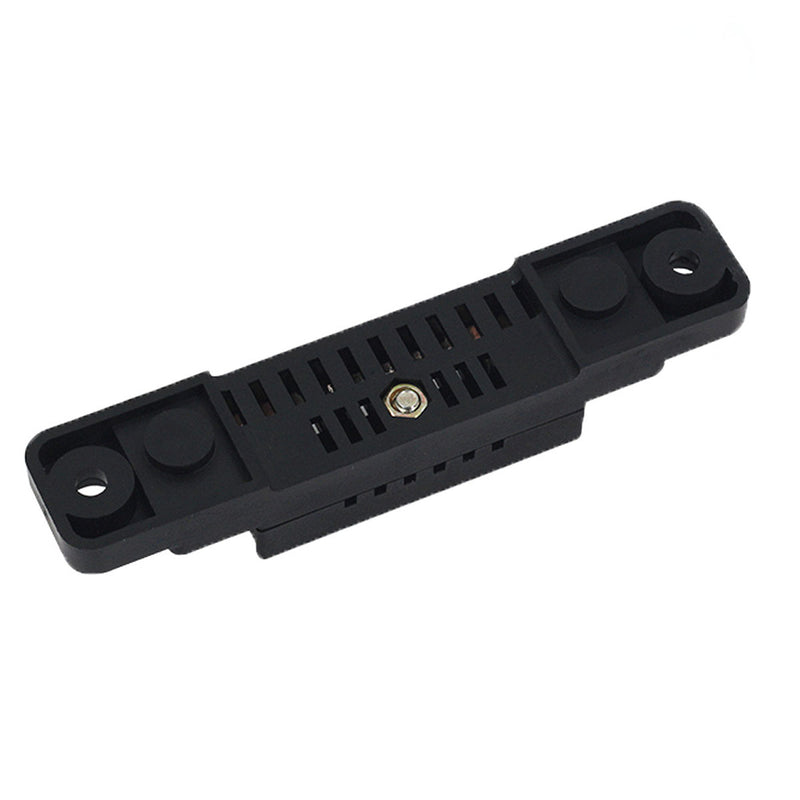

FL-2C 10A-100A 75mV Current Meter Shunt DC Ammeter Splitter Current Shunt Resistor DC Meter Shunted Ammeter
Save 0
SKU: U2I-BG-1504319
Share this product
Description
Specification:
Current
10A
15A
20A
30A
40A
50A
100A
Rated secondary current
75mA
Output Voltage
0.075V
Working Temperature
0-100℃
Feature:
The FL-2C series shunt is made of copper and manganese copper alloy, which has the following advantages:
1. The external use of high temperature resistant flame-retardant shell, with fast heat dissipation, small temperature drift, easy to install, and strong resistance to shock and impact.
2.Using copper and manganese copper alloy, it has high precision grade, can work for a long time, and has low power consumption.
3. The external housing is not only easy to install but also reduces external magnetic field interference, ensuring measurement accuracy and stability.
Package included: 1XCurrent Meter Shunt
