Specification:

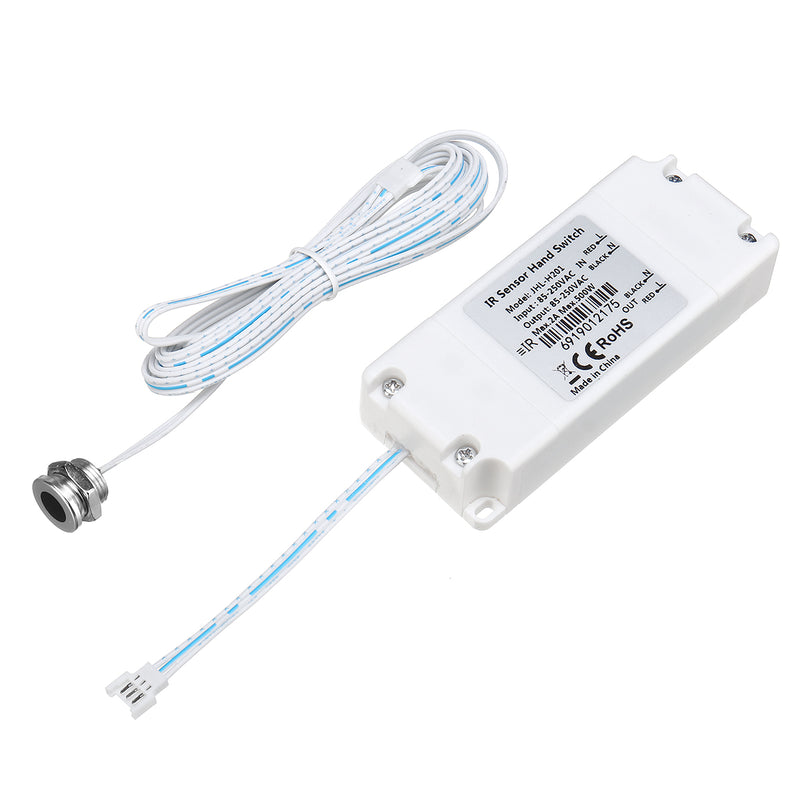

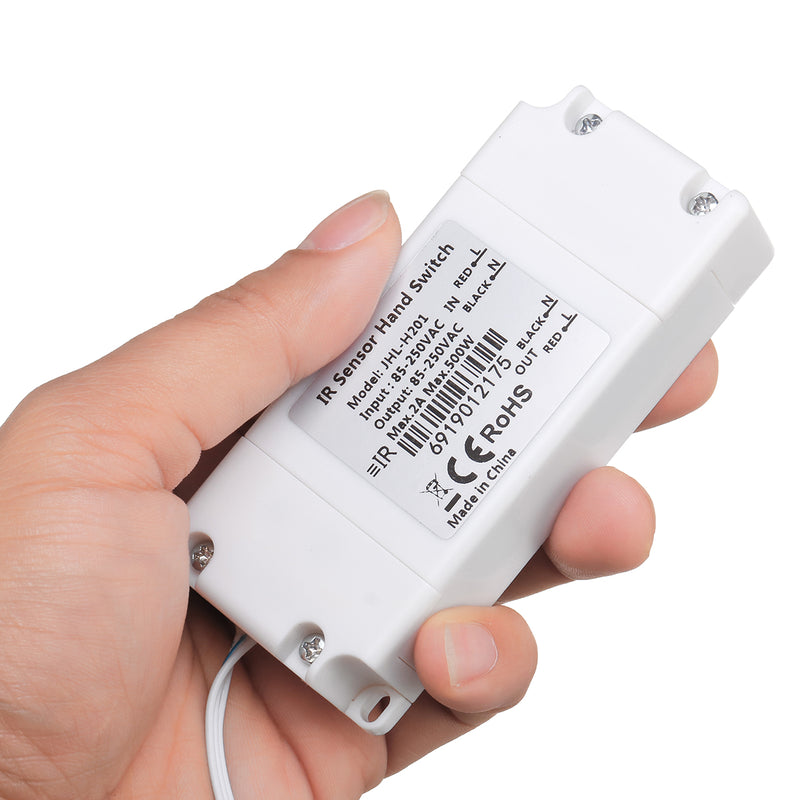

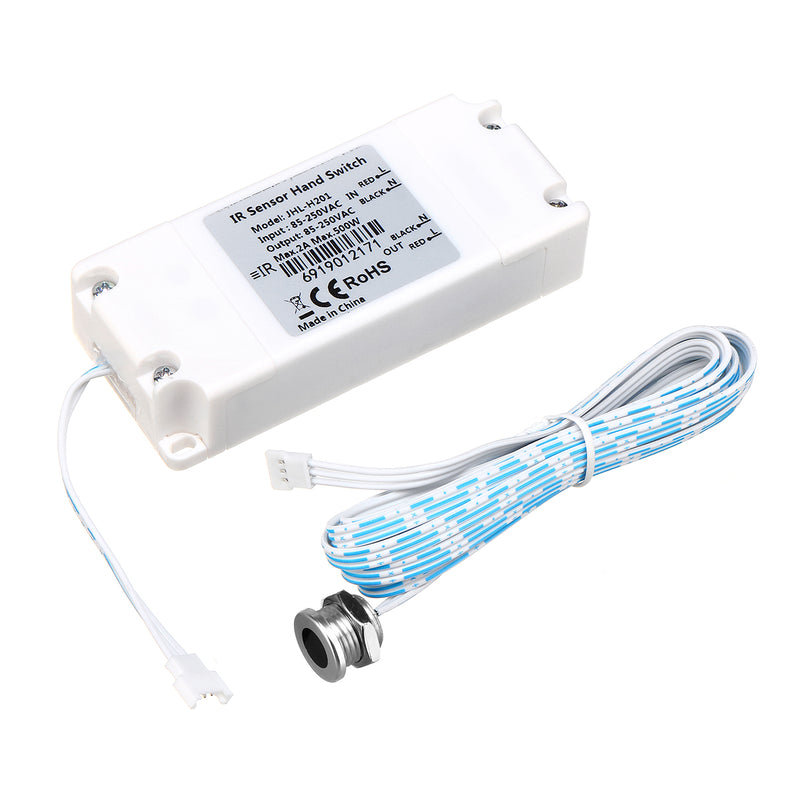

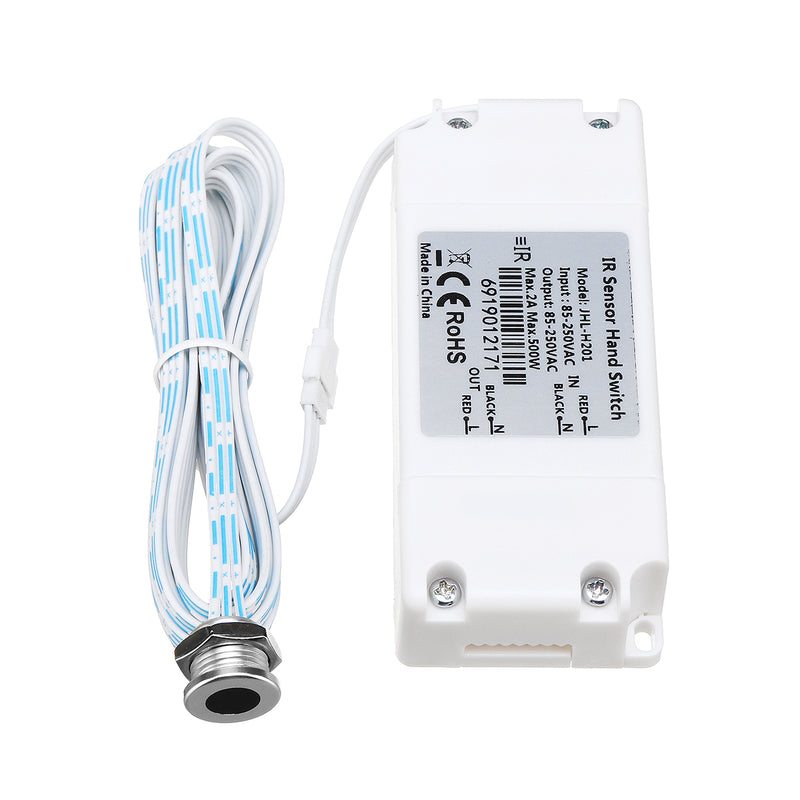

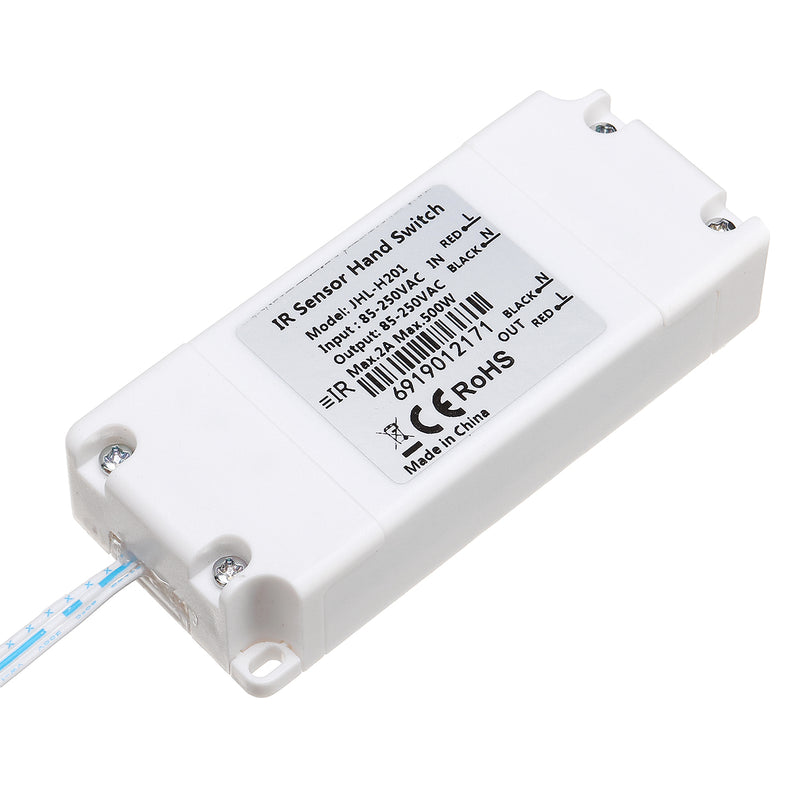

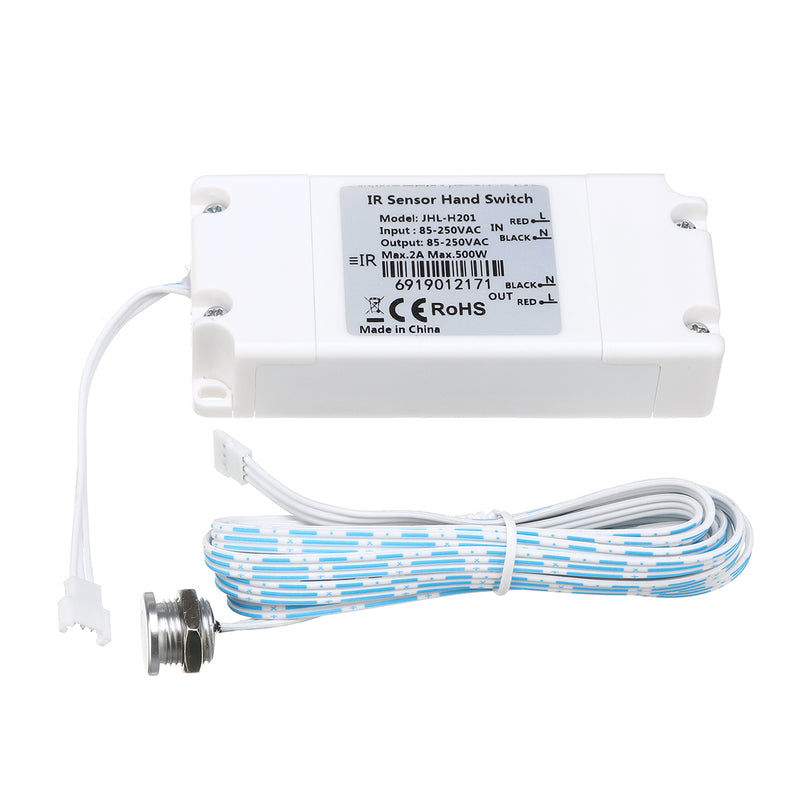

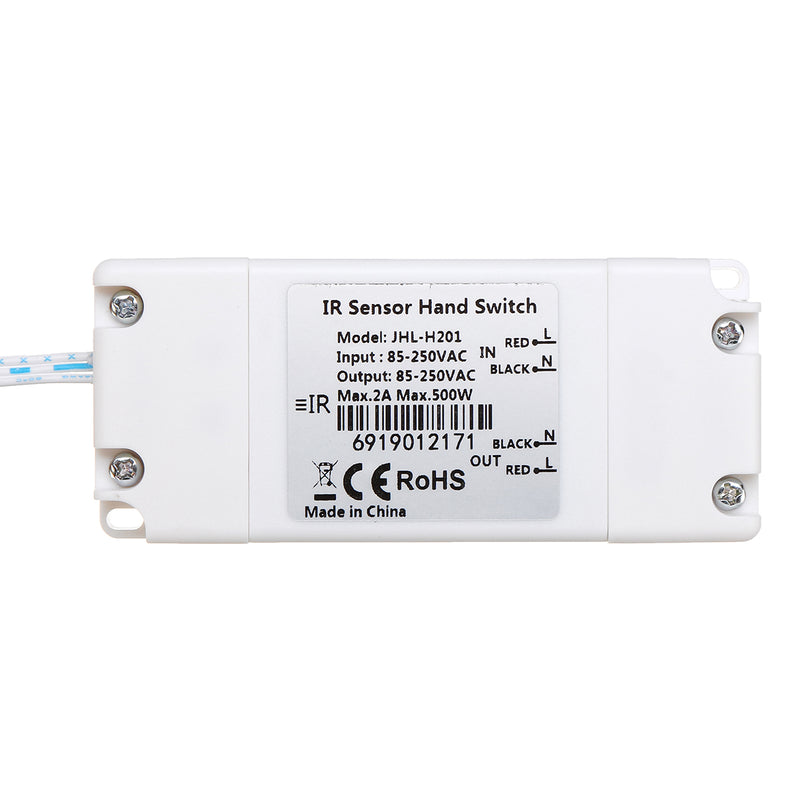

Type: IR Sensor Hand Switch
Model:JHL-H201
Rate Input Voltage: 85-250V AC
Rate Output Voltage: 85-250V AC
Detection Range: Less Than 8cm
Power Frequency: 50/60Hz
Rated Current: Max.2A
Average Load: Max.500W
Environment Temperature: -20℃~55℃
Protection: IP20

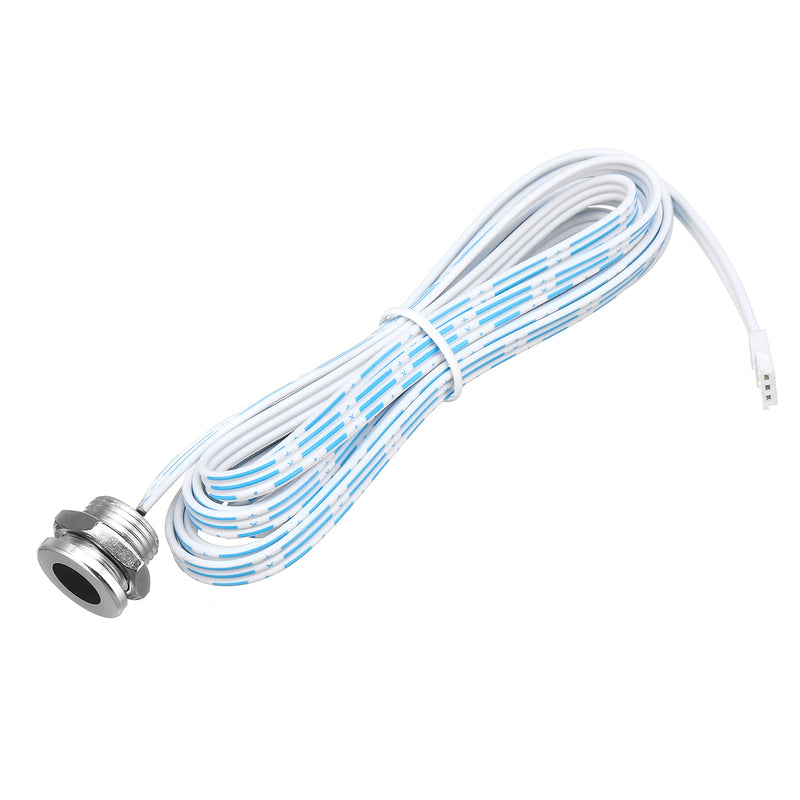

The Diameter of the Detector: approx. 15 mm
Cable Length: 30cm/1m/2m(Optional Length)
Product Features:
- EASY INSTALLATION
Electrical motion sensor with the mini sensor for installation inside or outside furniture.
- APPLICATION:
Perfect to use in wardrobes, cabinets, closets, cupboards in the kitchen, bedroom, bathroom or living room.
- OPEN/CLOSE DOOR - ON/OF
With this contactless switch, you can turn light (or electric circuit) on and off simply by moving the door.
By opening the door or cabinet front light goes on, by closing the door the is turned off. Reaction distance less than 8 cm.
- MOVE HAND - ON/OFF
Sensor for hand.
Move hand before the detector the first time: lamps turn on,
Move hand before the detector the second time: lamps turn off
The perfect choice when your hands are wet or full of cookie dough and you need more light.
So the sensor works like a universal switch.
Package Included:
1 x IR Sensor Hand Switch
Note:
1. Please allow 1-5mm error due to manual measurement and make sure you do not mind before ordering.
2. Due to the screen difference, the color may be a little different from what you expect, please allow it, thank you!
