Features:
This controller can only be applicable for lead-acid batteries.
- Solar Charge Controller regulates the voltage from solar panels going to battery.
- Build-in industrial master chip to control the charger and discharge process.Parameters are adjustable. Prolong the battery life cycle and keep the load work well.
- Professional 3-stage PWM charge management, all necessary protections equipped. Short-circuit protection, open-circuit protection, reverse polarity protection

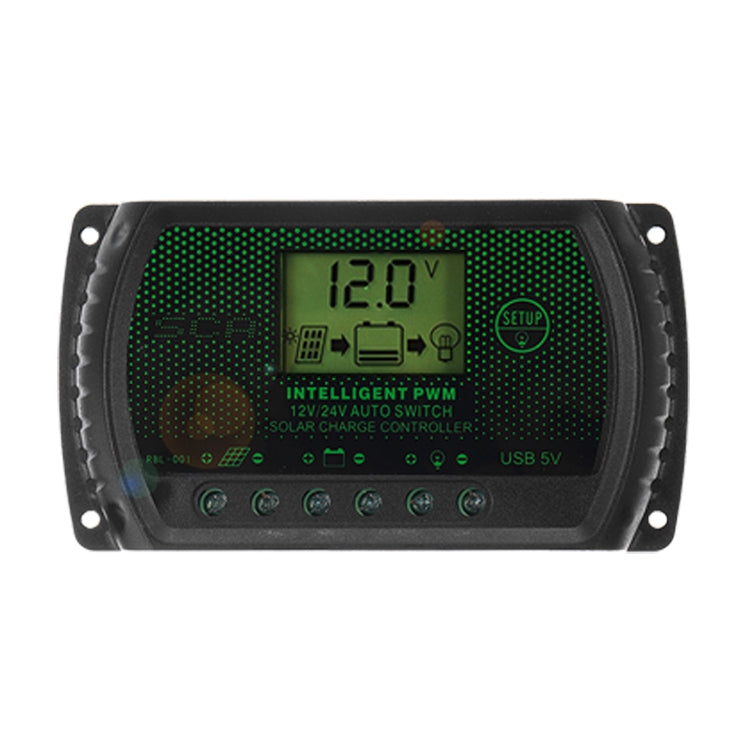

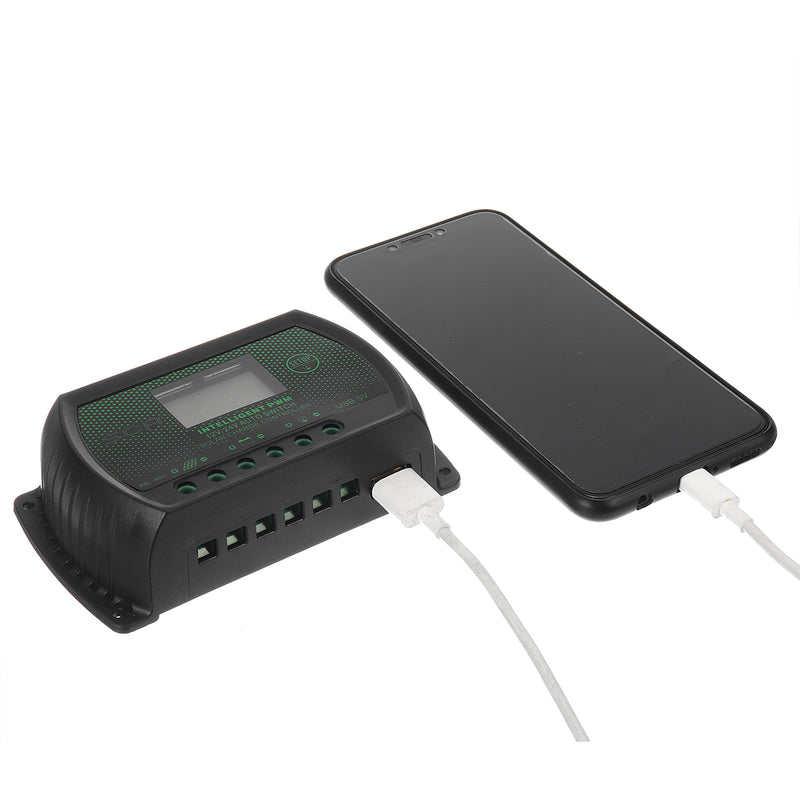

- Dual USB with 5V/2A provides charging to universal mobile phone devices.LCD screen with backlight function clearly indicates status and data.
- Great Heat Dissipation. Dual MOS reverse current protections, low calorific value.
- Easy to install and operate, suitable for home, industrial and commercial solar energy system application.
Specification:
Material: Plastic
Size: Approx.12.4cm*6.8cm
Battery Voltage: 12V/ 24V (Auto recognition)
Charge Current: 10/20/30A
Operating Temperature: -35 ~ +60℃
Storage Temperature: -35 ~ +60℃
Application: Home, Industrial, Commercial
Overloading voltage Protection: 15V/12V; 15V*2/24V
Overloading voltage Protection: 14.6V/12V; 14.6V*2/24V
Charge release voltage: 10.8V/12V; 10.8V*2/24V
Charge release voltage returns: 12.2V/12V; 12.2V*2/24V
USB output: 5V
12V battery can only access 18V-20V solar panels
24V battery can only access 36-40V solar panels
10A (12V/ 120W (MAX) 24V/ 240W (MAX) )
20A (12V/ 240W (MAX) 24V/ 480W (MAX) )
30A (12V/ 360W (MAX) 24V/ 720W (MAX) )
Package:

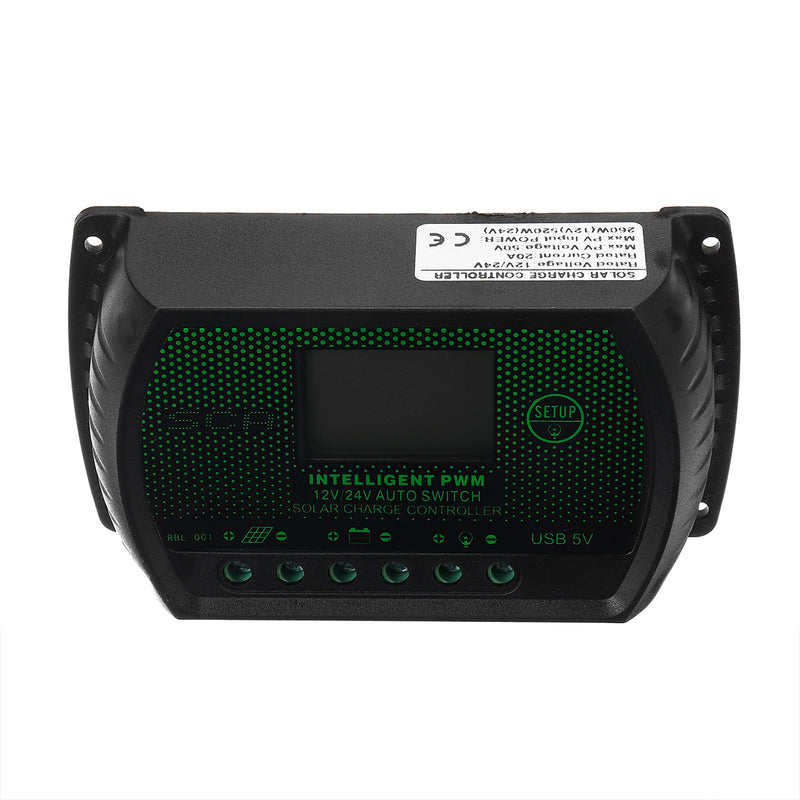

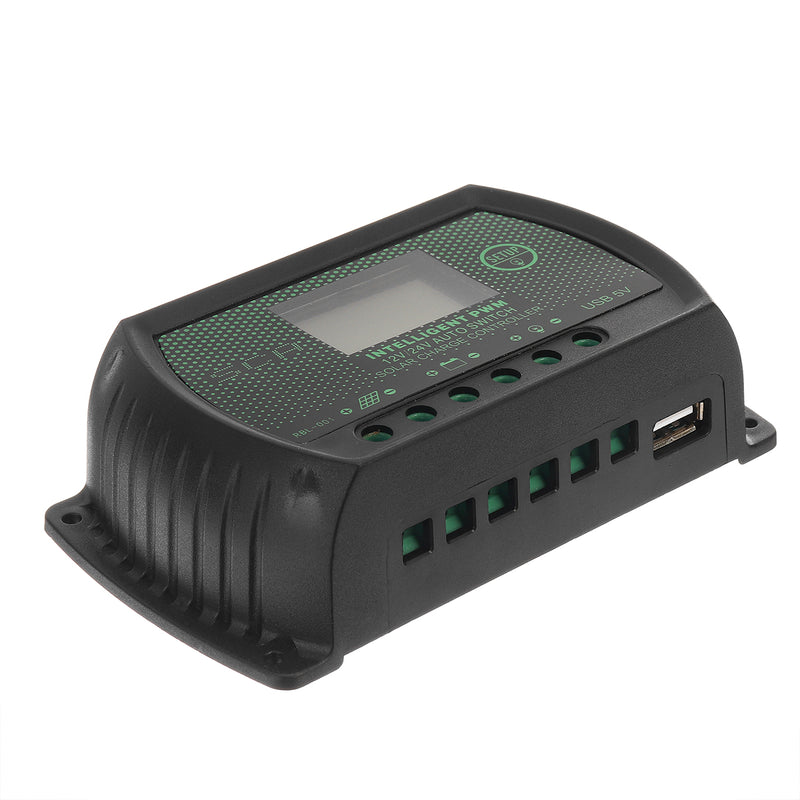

1x Solar Panel Controller
