MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector

MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector

Name: MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
Brand: Banggood
SKU: U2I-BG-1053106
Price: 2,353.00 INR
Availability: InStock

SKU: U2I-BG-1053106

Share this product

Description:

MC4Y-B2 Solar Panel Y Type 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector

Features:

For connecting solar panels.

Compatible with MC4 connector.

Sturdy and durable.

Cable length: 32cm

Working current: 20A(4mm²), 30A(6mm²)

Withstand voltage: DC1000V

Contacting resistance: <2 m

Insulation resistance: > 500M

Suitable single core cable section: 2.5mm², 4mm², 6mm²

Cable outer diameter: 5mm - 7mm

Ambient temperature: -40~ + 105℃

Protection class: IP67

Safety class: II

Shell material: PPO

Contacting material: Copper, tin plated

Terminal connecting method: Pressure Welding

Package included:

1 x MC4Y-B2 MC4 Solar Panel Connector

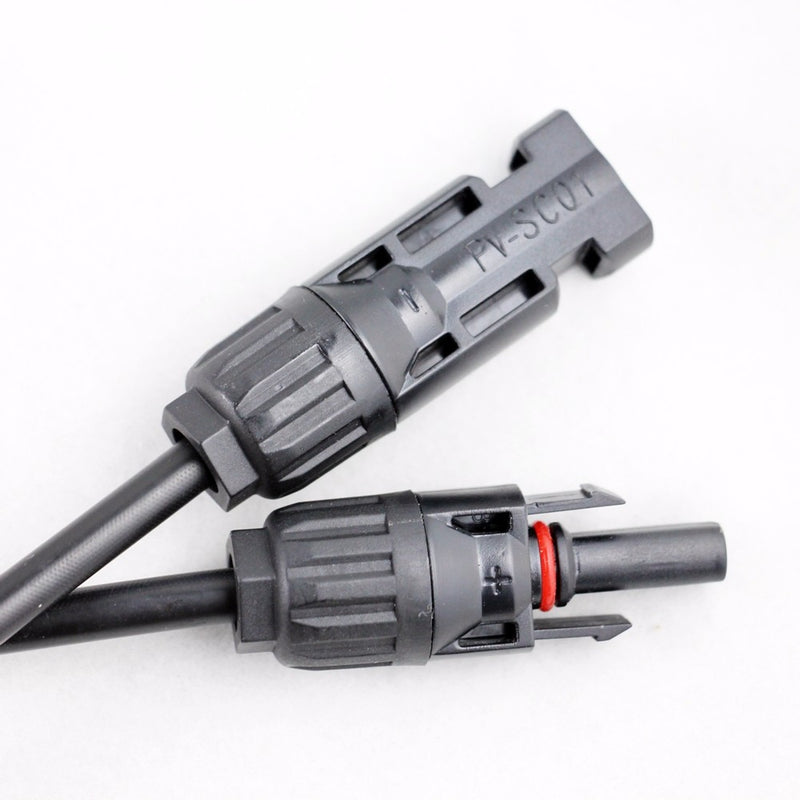

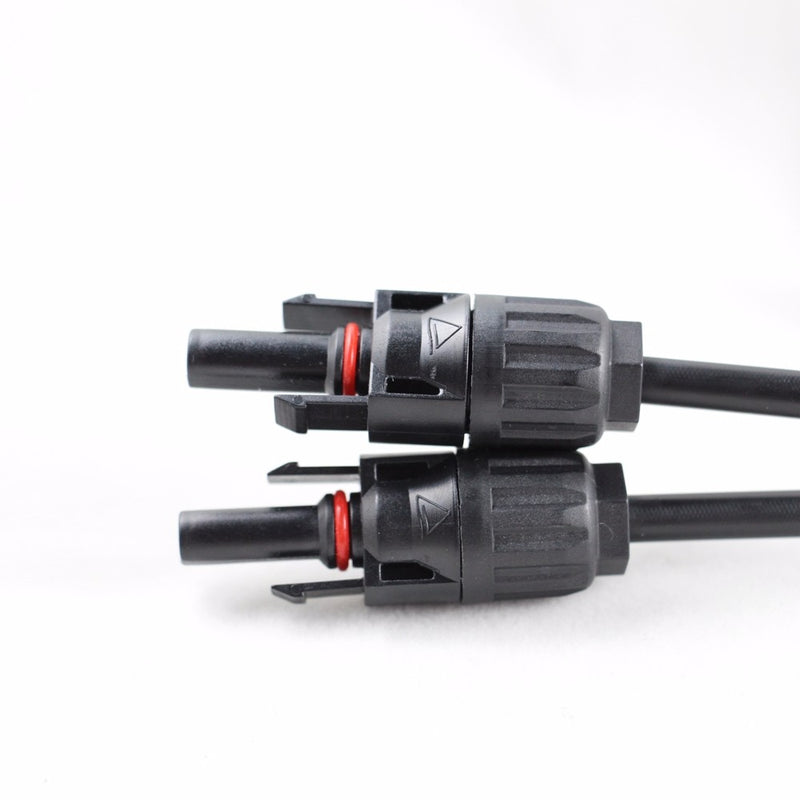

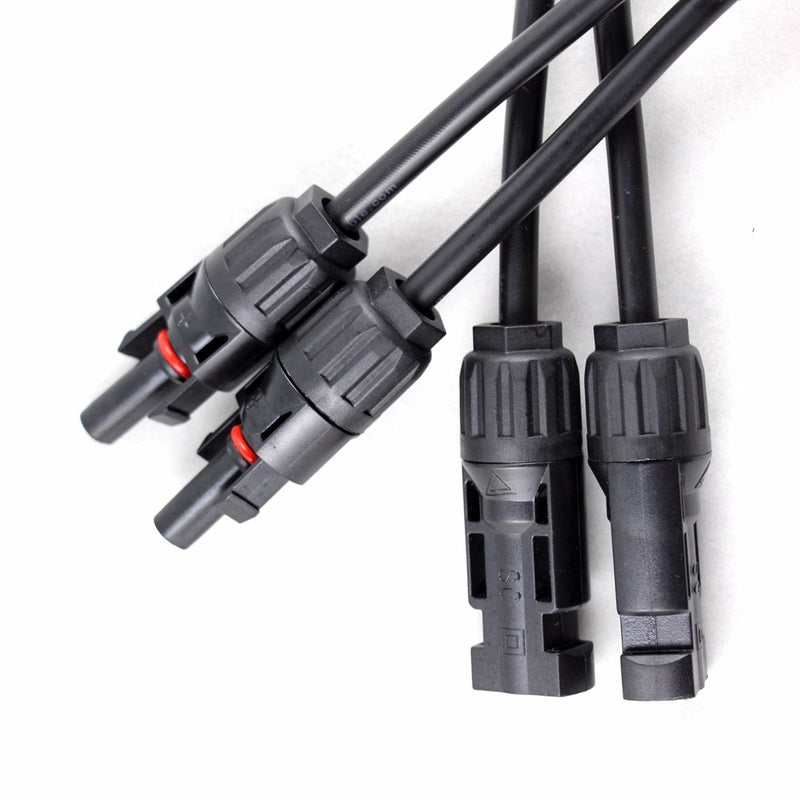

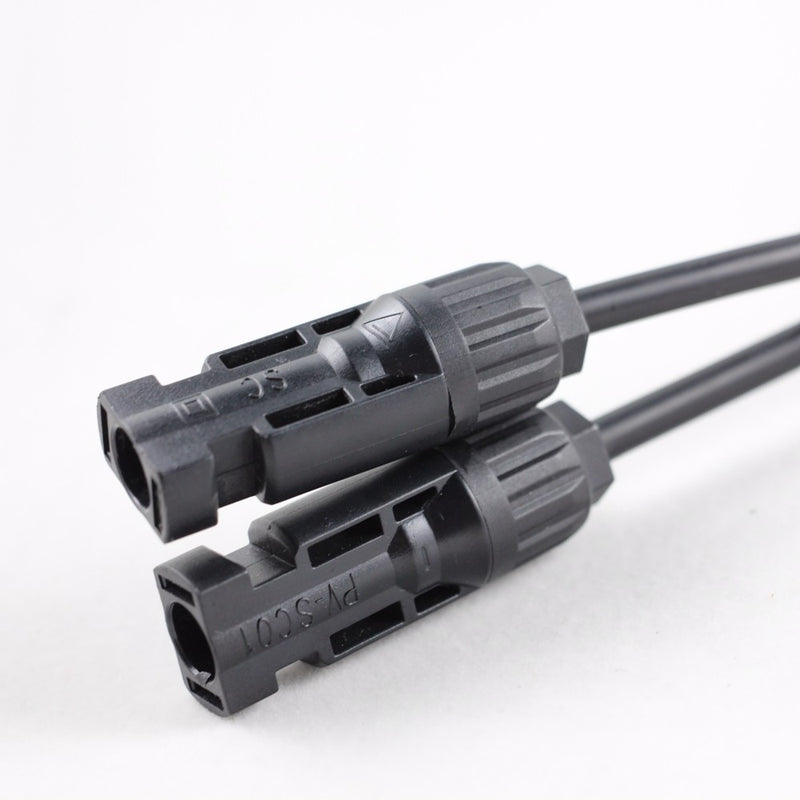

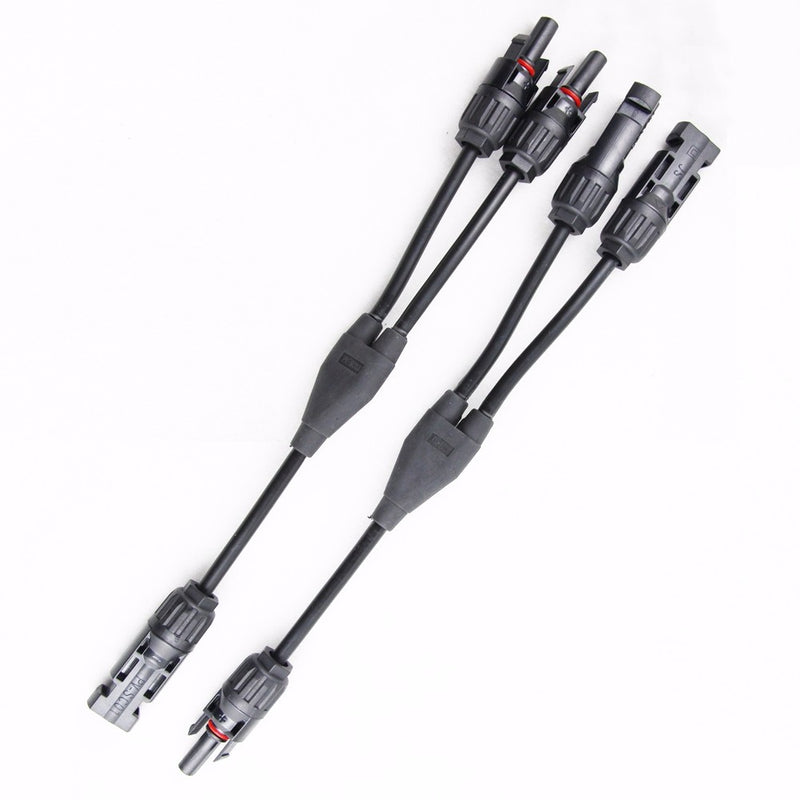

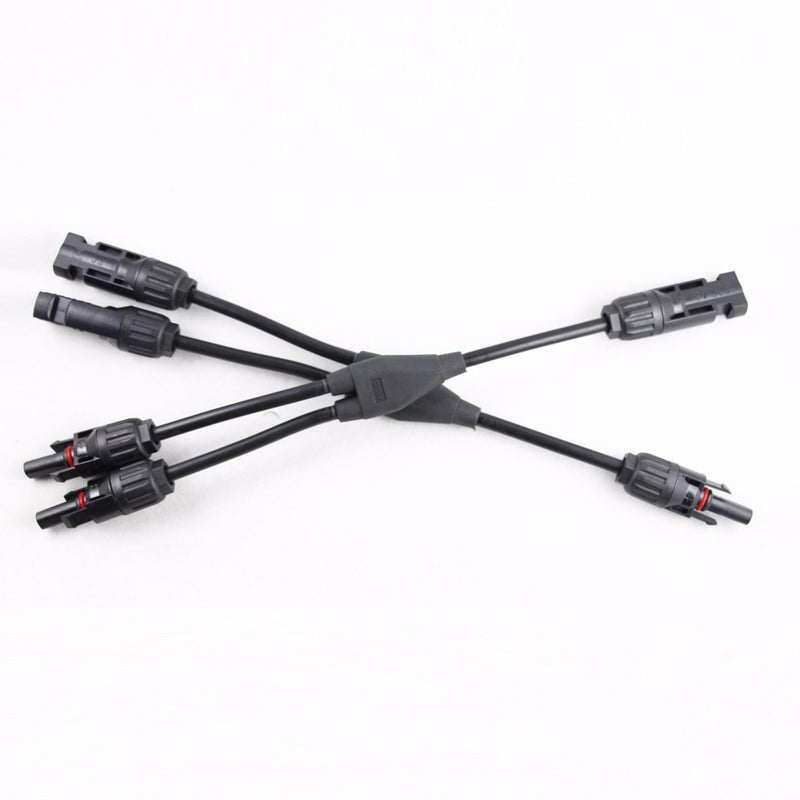

Details pictures:
