MLA-30 Loop Antenna Active Receiving Antenna 100kHz-30MHz for Short Wave Radio
Save 0
SKU: U2I-BG-1583309
Share this product
Description

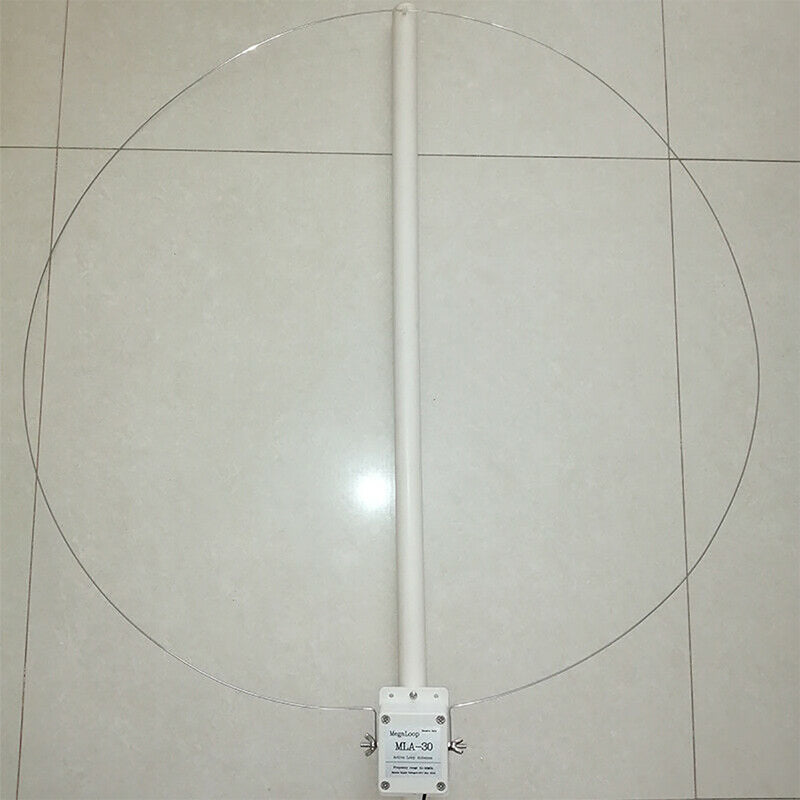

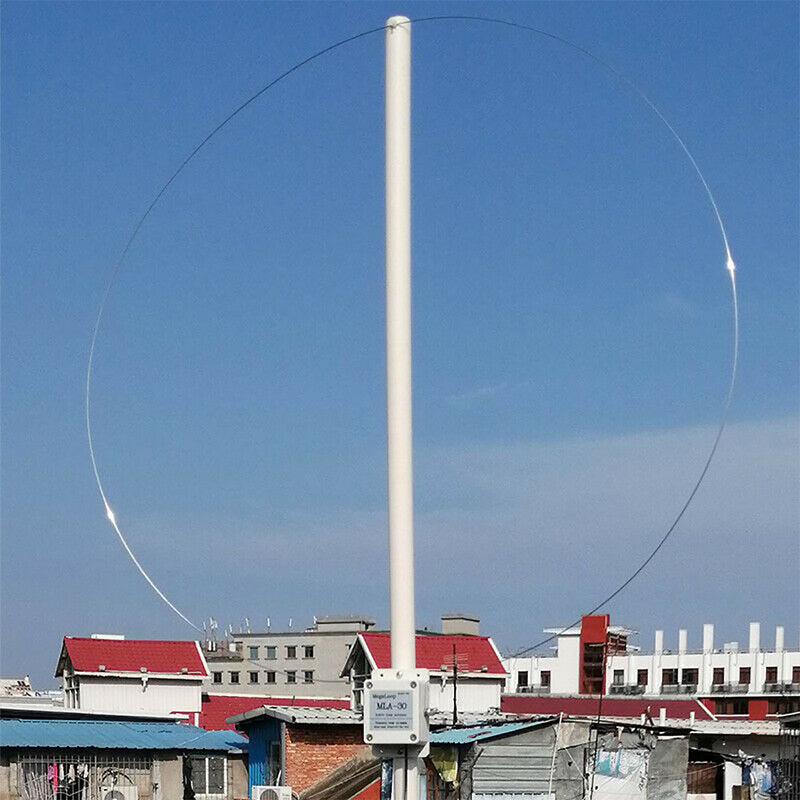

Description: The MLA-30 loop antenna is a popular broadband antenna. It is an effective antenna for short-wave listeners (SWL) and amateur radio enthusiasts (HAM) to receive medium-wave and short-wave in the limited living area of the city. Frequency coverage: 100kHz to 30 MHz. Excellent directionality can help you reduce noise and improve signal-to-noise ratio, and can dig out weak signals that are overwhelmed by noise when conventional antennas are received. The MLA-30 loop antenna is easy to install and can be easily installed on balconies, rooftops, and other small, compact, low-profile installations without worrying about neighbors and property opposition. Another advantage of the MLA-30 loop antenna is that it is directional. By rotating the antenna so that the dummy point of the antenna is aligned with the interfering signal, the specific near-field interference can be minimized.
Specifications: Type: MLA-30 Toroidal Magnetic Antenna Main Coverage: 100kHz to 30 MHz
Features: - No manual adjustment required. - Rainproof enclosure for long-term fixed outdoor use. - Stainless steel ring vibrator, easy to install and easy to maintain. - Local radiation noise suppression up to 30 dB compared to long-haul antennas. - 8-shaped patterning provides deep dummy points to further reduce interference. - USB power supply, convenient to take power. Self-contained feeders simplify the installation process. - Simple structure, easy to install to the balcony, rooftop and other locations. - Install low-key, no need to worry about neighbors and properties. - Modular design, easy to install and maintain.
Tips: 1. Do not connect it to the transmitter as it will cause the preamplifier to be damaged. 2. Need to prepare a PVC sheath tube for support, any diameter, need to pay attention to the need to have a certain strength, any community hardware store can buy. You can also use existing bamboo poles, wood poles, etc., and be careful not to use metal rods.

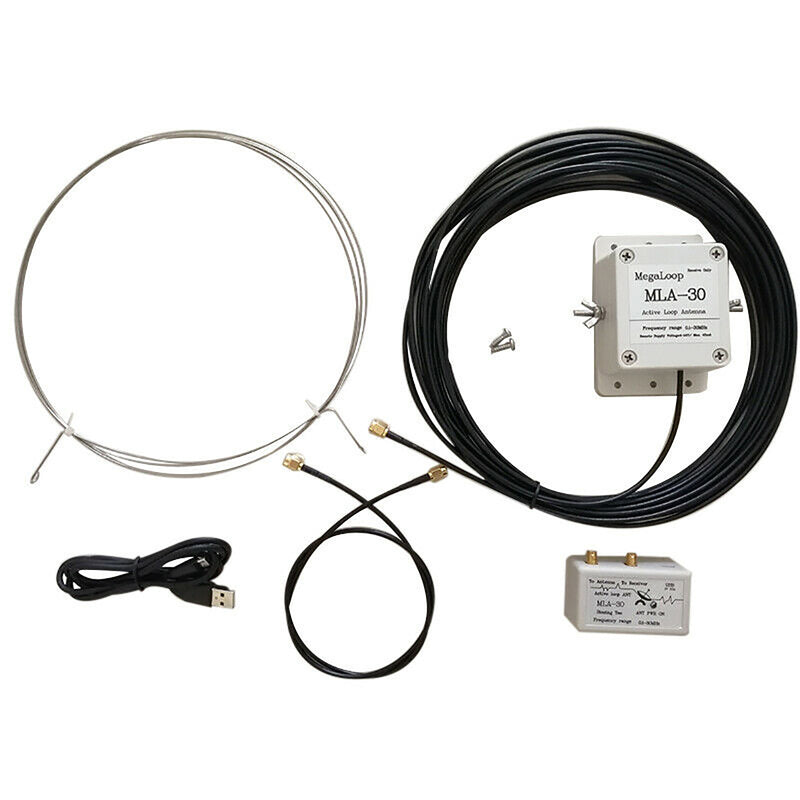

Package Included: 1X MLA-30 Amplifier with 10M cable 1X Stainless steel vibrator 1X Bias supply 1X 0.8m USB Cable 1X 60cm SMA jumper Cable 2X Stainless Steel Fixing Screws
