1.2V Solar Lawn Light Lantern Controller Board Ni-MH Battery Road Lamp Circuit Module for Home Solar Landscape Light
Feature:
Drive 1 to multiple LED lamp beads or parallel strings
Suitable for 1.2V single-cell Ni-MH battery power supply
Can drive red, yellow, blue, white and green LED lamp beads
White lamp beads are used by default
The circuit board uses I-shaped inductors, high conversion efficiency, long lighting time, high brightness of the lamp beads, with light control function, charging during the day, and automatically lighting at night
The battery discharge current is about 30mA by default
Specification:
Electrical parameters:

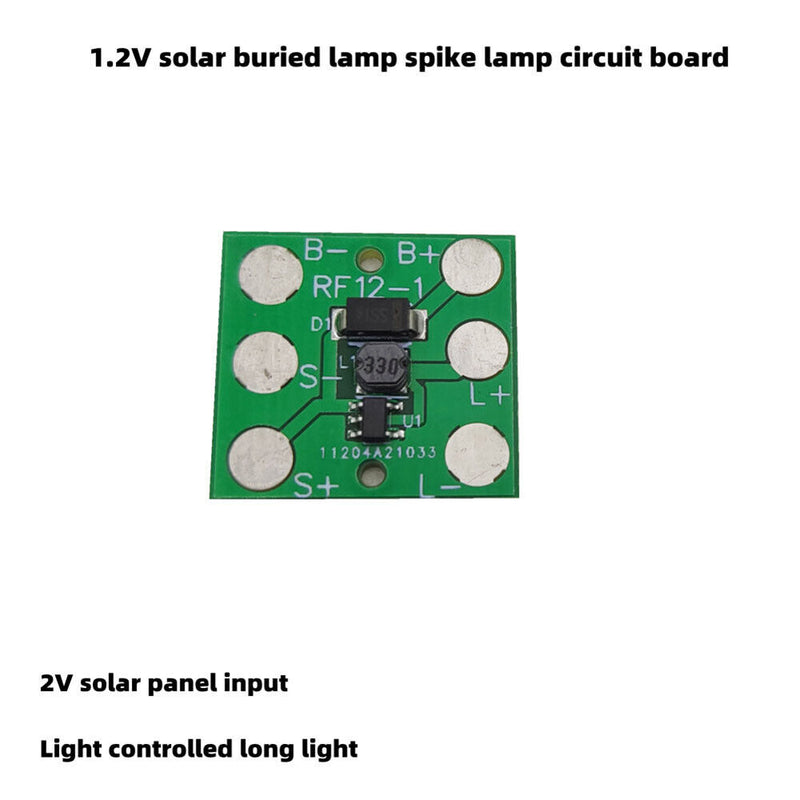

Solar panel voltage: about 2V
Solar panel current: 120mA
Battery specification: Single-cell Ni-MH AA or AAA rechargeable battery
Battery capacity: about 600mAh is recommended
Battery discharge current: about 30mA
Flashing frequency: No flashing
Material: PC
Size: 20*18.5mm
Applicable occasions:

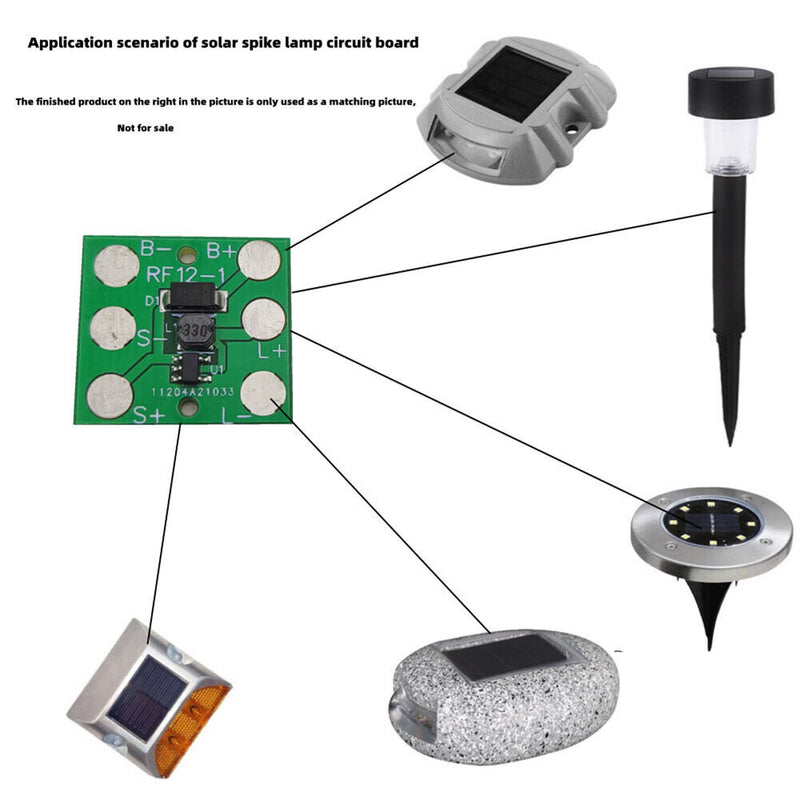

1. Solar single and double sided spikes, solar ship warning lights, solar contour lights, solar navigation lights
2. Charging and light-sensitive switch control of household solar landscape lights, solar mason light jars, solar lawn lights, solar Christmas lights, solar gypsophila, solar string lights, etc.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
