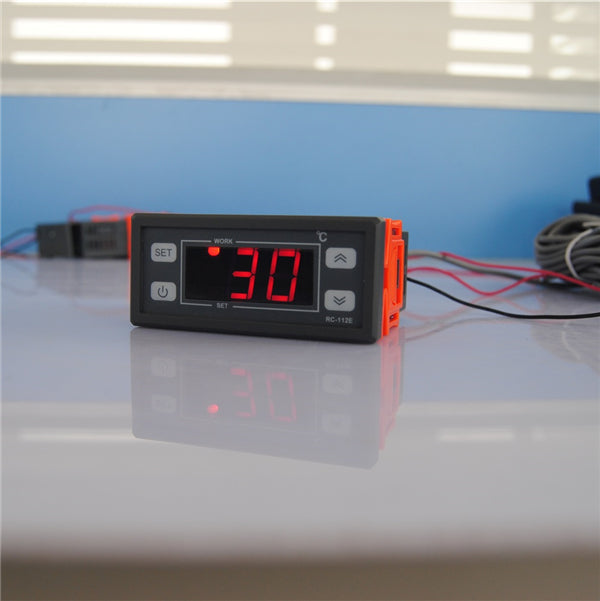

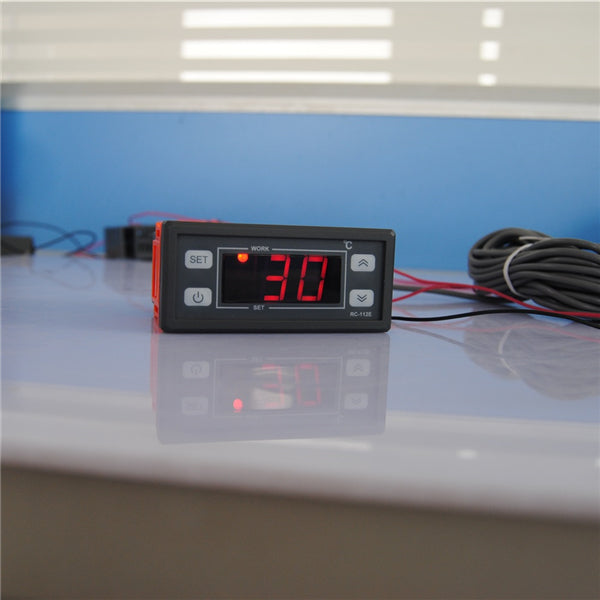

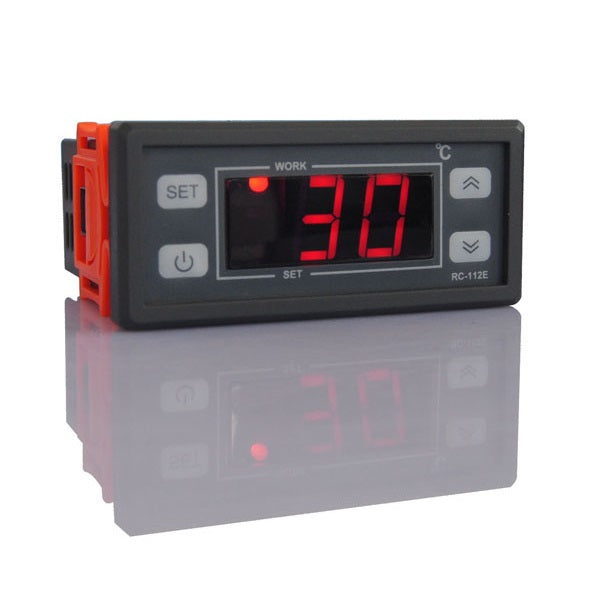

RC-112 220V/110V 10A Digital LCD Thermostat Regulator Temperature Controller
Save 0
SKU: U2I-BG-983667
Share this product
Description
Features :
A mini temperature controller. With large and clear LCD display for better readability. Wide temperature measuring range. Heating and cooling control. Temperature calibration function. Delay protection function. All parameters can be set to default setting after short circuit. Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems.
Specifications :
Temperature measuring and controlling range : -40 - 99°C Relay capacity of Compressor options : 10A Power options : 220VAC, 110VAC Input : 1 NTC sensor; sensor wire : 2m(standard) Accuracy : ±1°C; Resolution : 1°C Consumption : ≤3W Cut-out size : 71 x 29(mm) Ambient requirements : temperature : -10 - 60°C; humidity : 20 - 85% (No condensate)
Code
Function
Setting range
Default
Unit
HC
Mode option
C : refrigeration H : heating
C
/
D
Controlling-temp. differential
1 - 15
3
℃
LS
Lower Temp.limit
-40 - settung Temp.
-40
℃
HS
Upper Temp.limit
Setting Temp. - 99
99
℃
CA
Temp. calibration
-5 - 5
0
℃
PT
Compressor delay
0 - 15
3
Min
Package includes :
1 x RC-112 Temperature Controller (110V, 220V for optional~) 1 x 2M NTC sensor 1 x User manual
