Specification:
| Model |
TB2512 |
| Type |
Terminal block |
| Working frequency |
Low frequency |
| Interface type |
AC/DC |
| Rated current |
25A |
| Rated voltage |
600V |
| Conductor cross section |
0.5-2.5mm2 |
| Number of pin |
24 |
|
Number of cores
|
12 |
| Contact material |
Iron |
| Insulation material |
PC |
| Size |
163mm x 30mm x 19mm |
Feature:--High quality iron screw with high strength
--The guide is made of iron and treated with anticorrosion

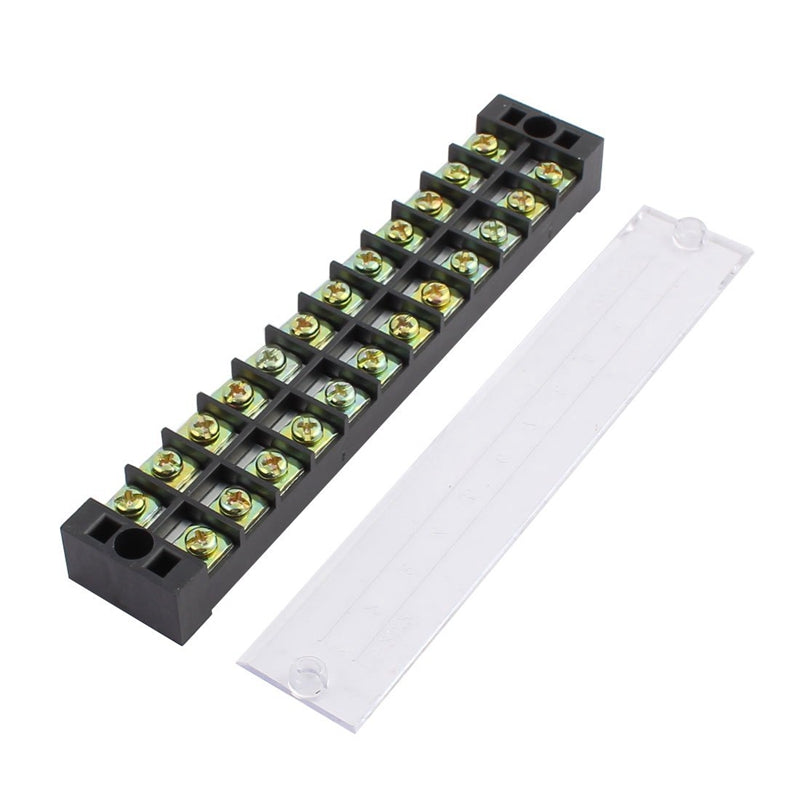

--Dust proof transparent plastic protective cover, Strong and durable
--Each pair of terminals is insulated from the next, prevent circuit in disorder
--Used for wires connecting of home appliances, electronic circuits, machines, etc.
Package Included:
1 x Terminal block
