Specification:
| Model |
1:TB1504 |
2:TB1505 |
3:TB1506 |
4:TB1508 |
5:TB15010
|
6:TB15012 |
| Poles |
4 |
5 |
6 |
8 |
10 |
12 |
| Dimensions(mm) |
55*17*17.9 |
64*22*17.9 |
72*22*17.9 |
90.3*22*17.9
|
107*22*17.9 |
125*22*17.9 |
| Type |

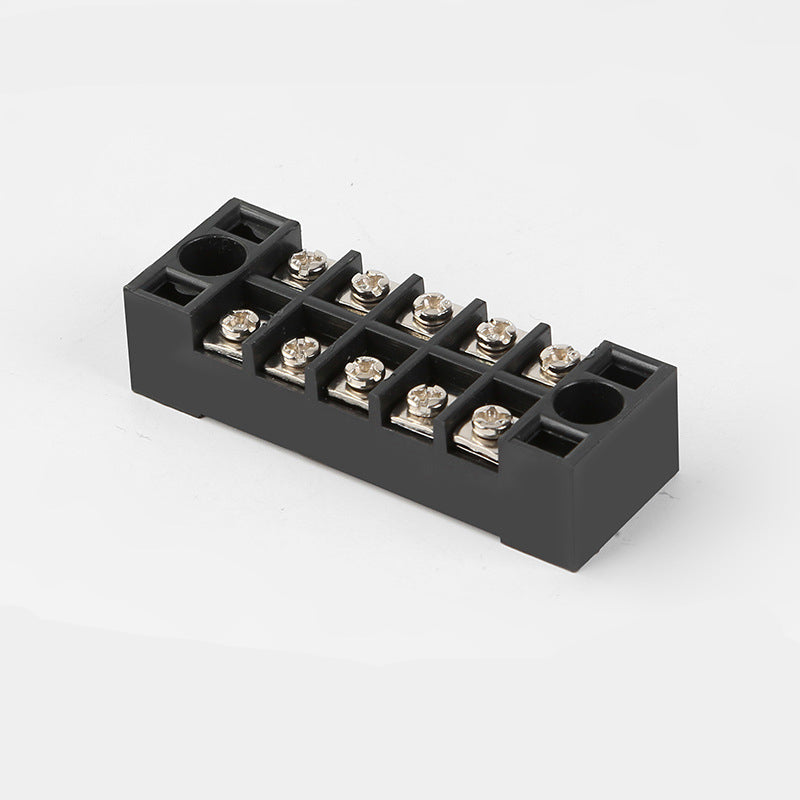

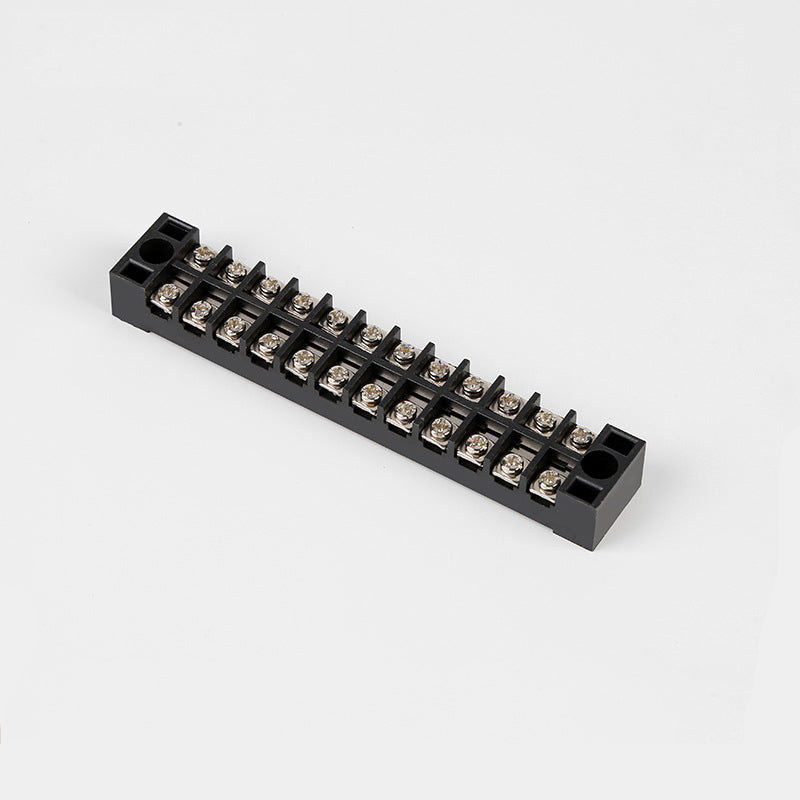

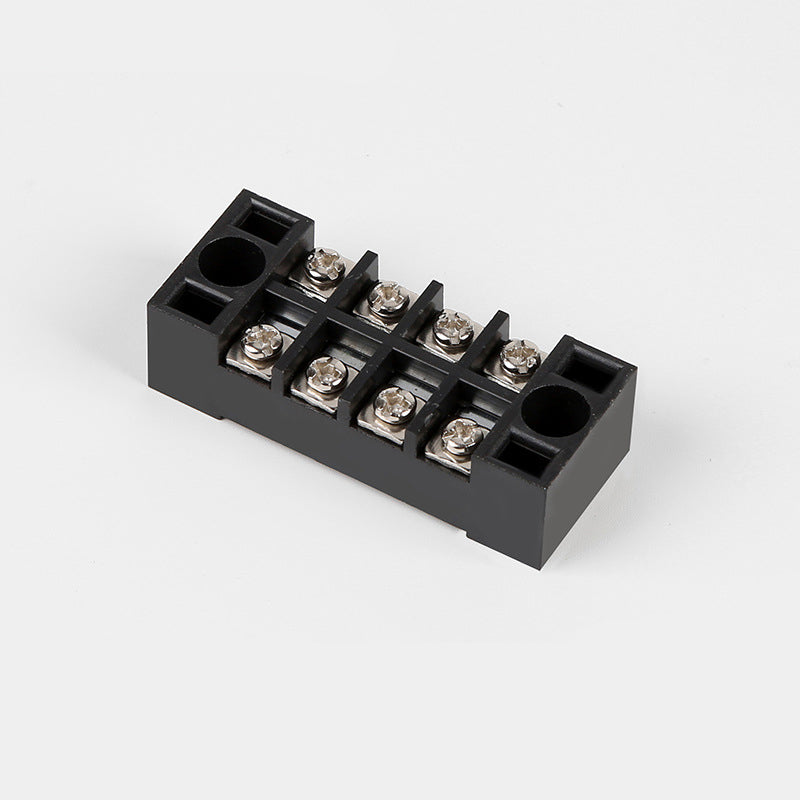

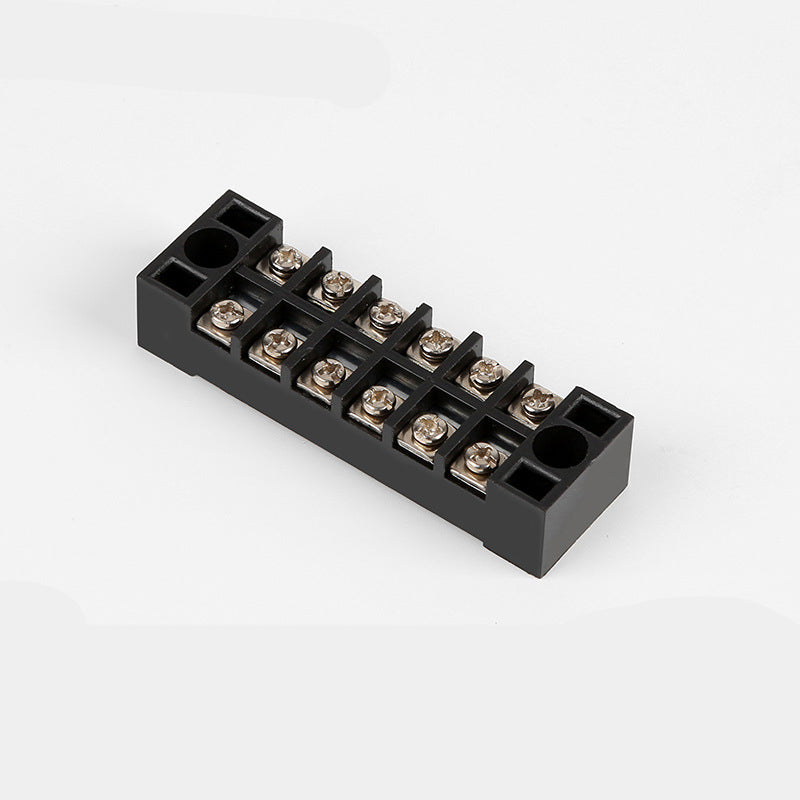

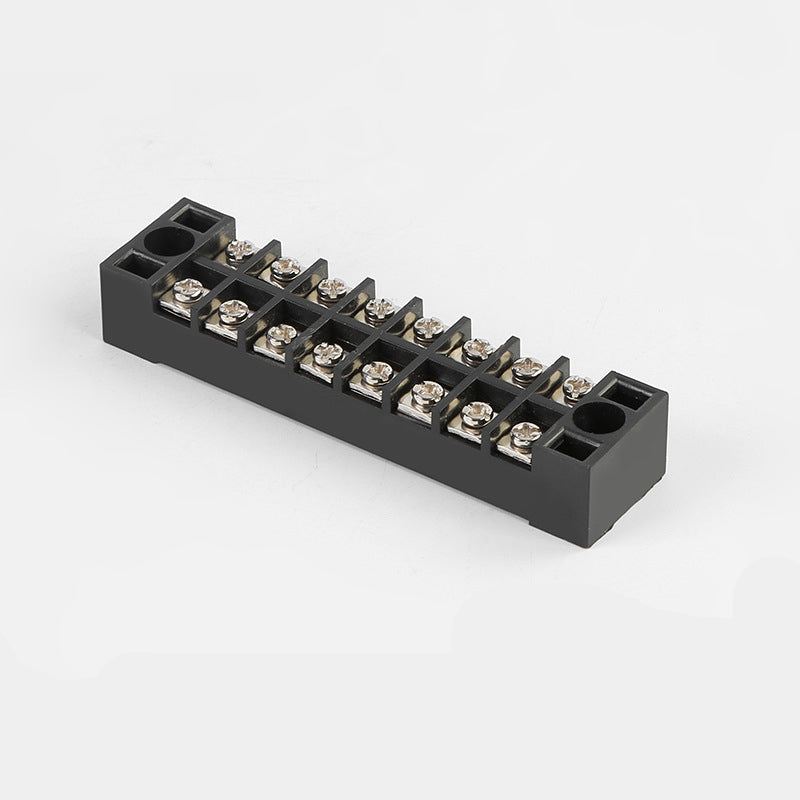

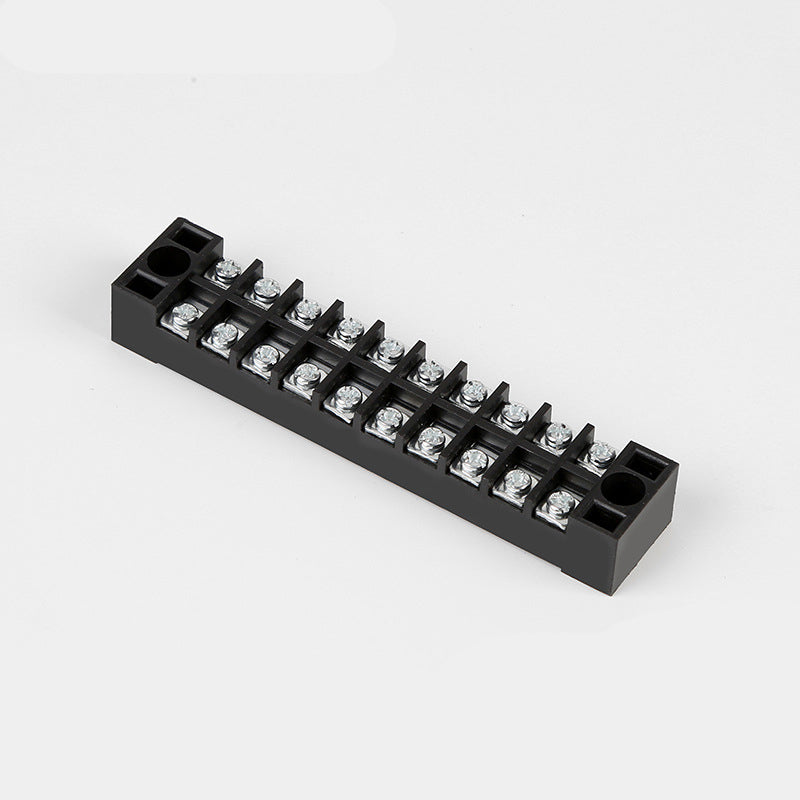

Terminal block |
| Working frequency |
Low frequency |
| Interface type |
AC/DC |
| Rated current |
15A |
| Rated voltage |
600V |
| Conductor cross section |
0.5-1.5mm2 |
| Contact material |
Copper |
| Insulation material |
Pc |

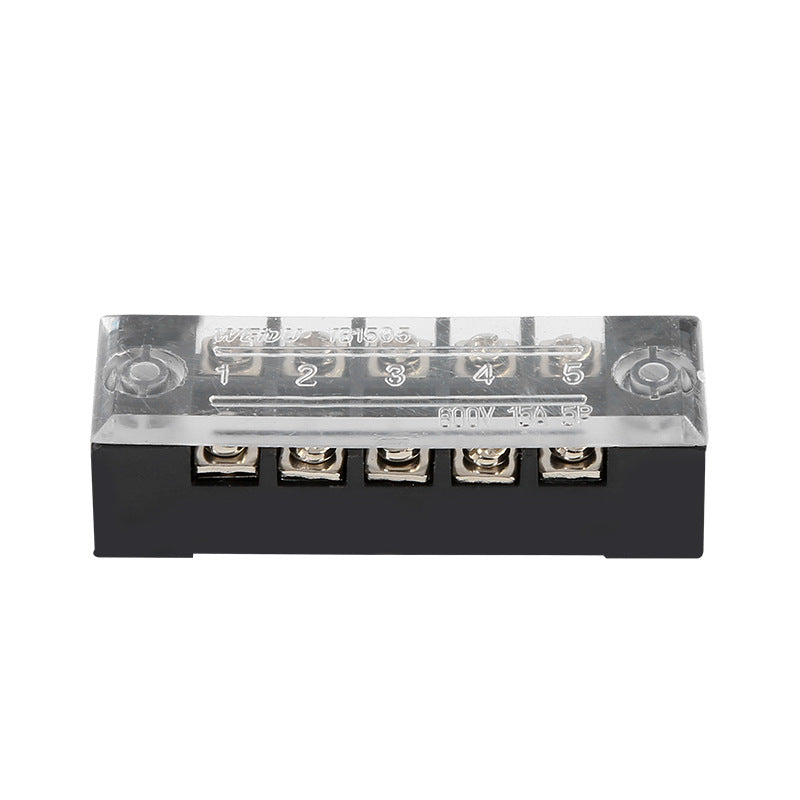

Feature:--PC protective cover, dustproof, durable
--The screws are made of high strength iron
--All copper guides, strong electrical conductivity
--Flame-retardant shell, strong hardness, safe and reliable
Applications:
--High and low voltage complete sets of equipment, junction boxes, complete sets of cabinets, explosion-proof distribution boxes, explosion-proof junction boxes
Package Included:
1 x Terminal Block
