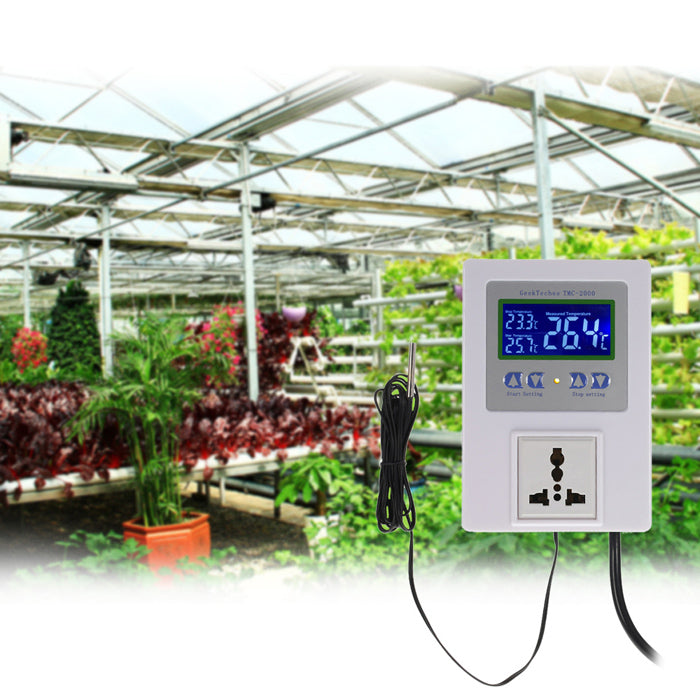

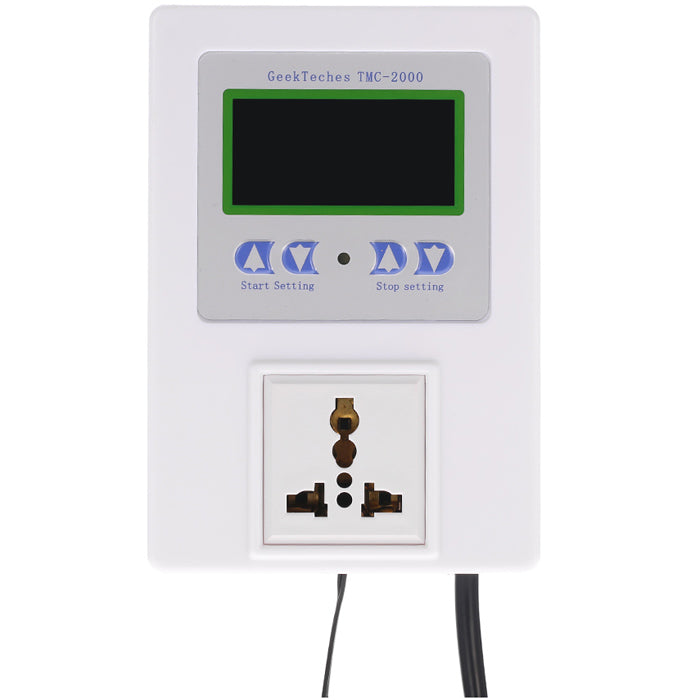

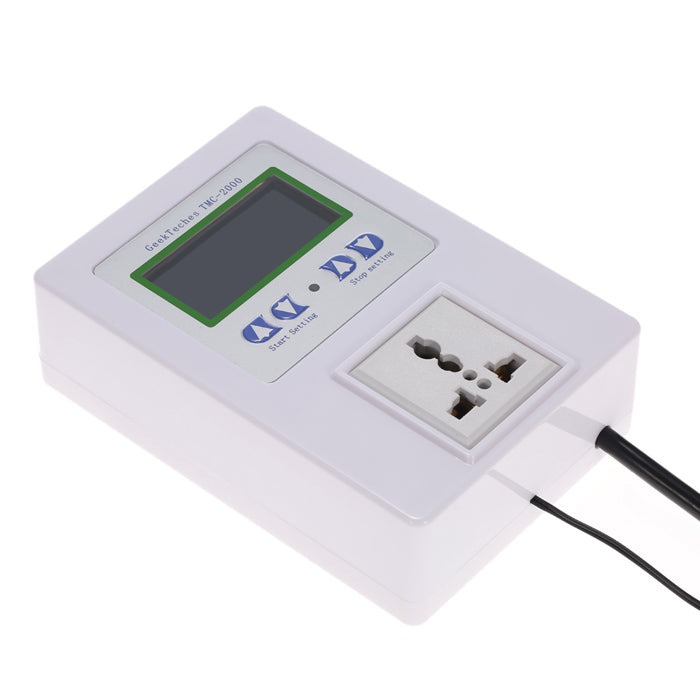

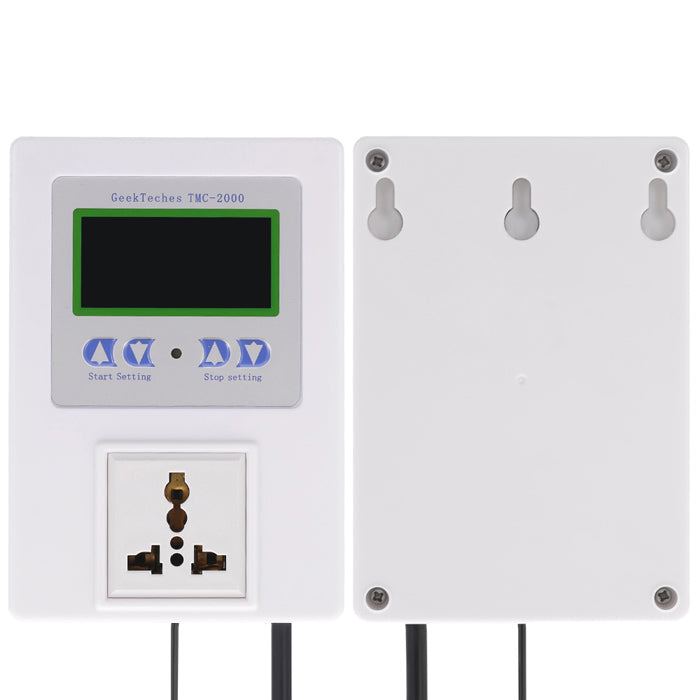

This temperature controller features pre-wired cord with a plug to install in your electrical socket, a output socket to plug your appliance, and the LCD display shows current temperature and start/stop temperature. This device is fairly simple to set up and adjust, switch to heating or cooling mode freely. It is very accurate in keeping the temperature at the desired level. Plug and play design, easy to use. It is suitable for freezer, conditioner, green house, dog house,incubators, etc.Show the measured temperature, start temperature and stop temperature at the same time.

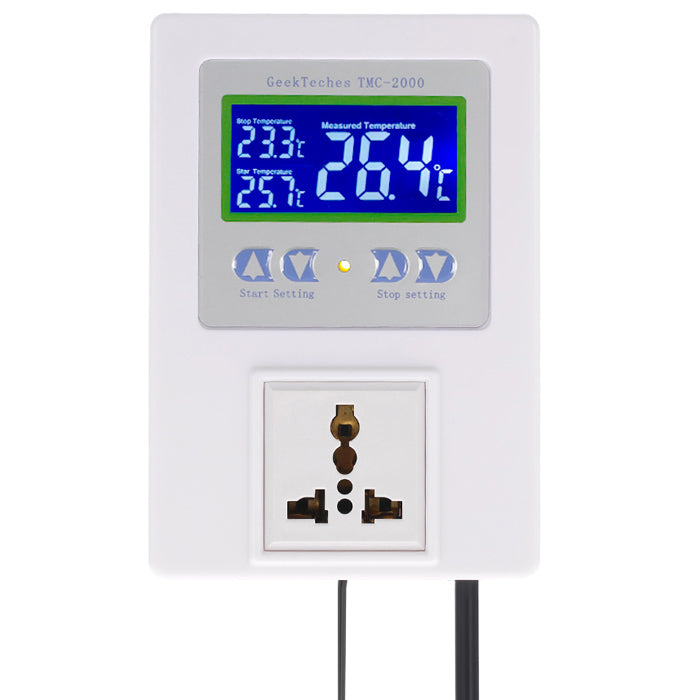

Digital LCD display for clear readings, 4 buttons for easy operation.

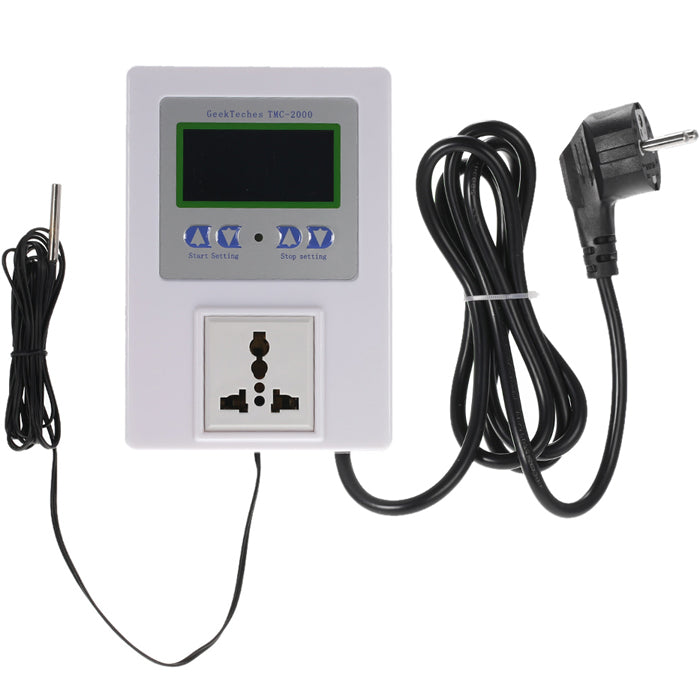

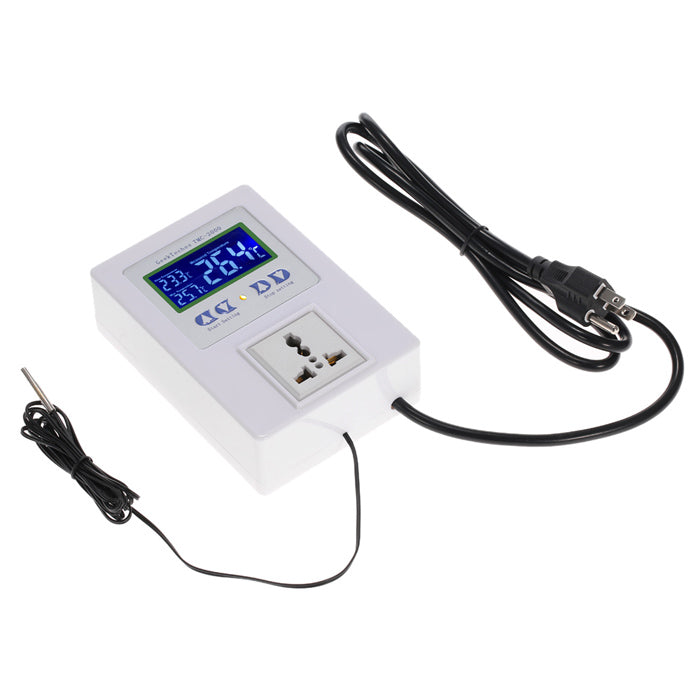

Pre-wired cord with a plug, plug and play design for convenient use.
Heating/refrigeration modes, users can set the start/stop temperature freely.
Temperature measuring range: -50°C~110°C; control precision: 0.1°C.
Specifications:
Display: 2.4" LCD Display
Temperature Measuring Range: -50°C~110°C
Control Precision: 0.1°C
Measuring Accuracy: ±0.1°C
Resolution: 0.1°C
Power Supply: AC 110V-240V
Plug Type: US Plug/ EU Plug
Refresh Rate: 0.8s
Temperature Correction Range: (+/-)9°C

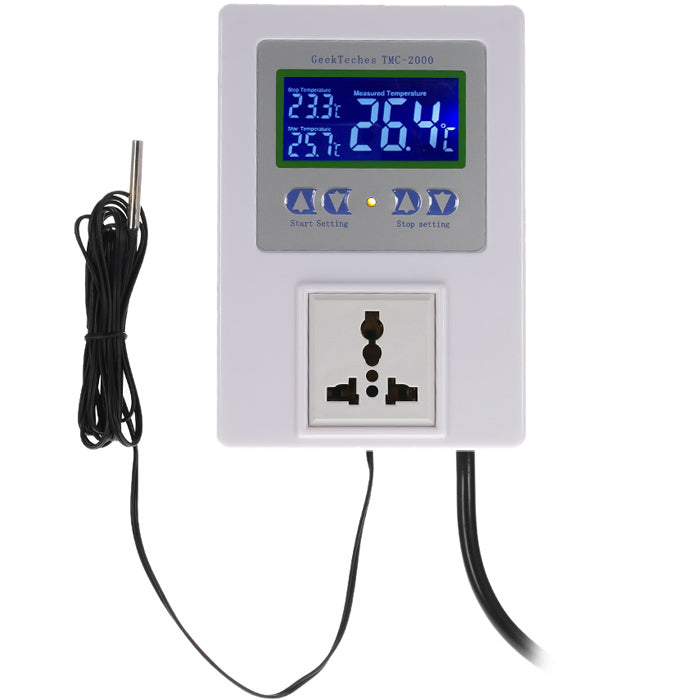

Measurement Input: DS18B20 Waterproof Type Sensor
Output: Relay 10A One Load
Static Current: less than 20mA
Attraction Current: less than 50mA
Working Environment: -10°C~60°C, Humidity 20%~85%
Working Modes: Heating or Cooling Mode
Power Cable Length: Approx. 150cm / 59in
Item Size: 140 x 98 x 44mm / 5.5 x 3.86 x 1.7in
Item Weight(with Sensor and Power Plug): 328g / 11.57oz
Package Size: 20 x 13 x 5.5cm / 7.87 x 5.12 x 2.16in
Package Weight: 402g / 14.2oz
Package Included:
1 x Temperature Controller with Sensor
1 x English User Manual
